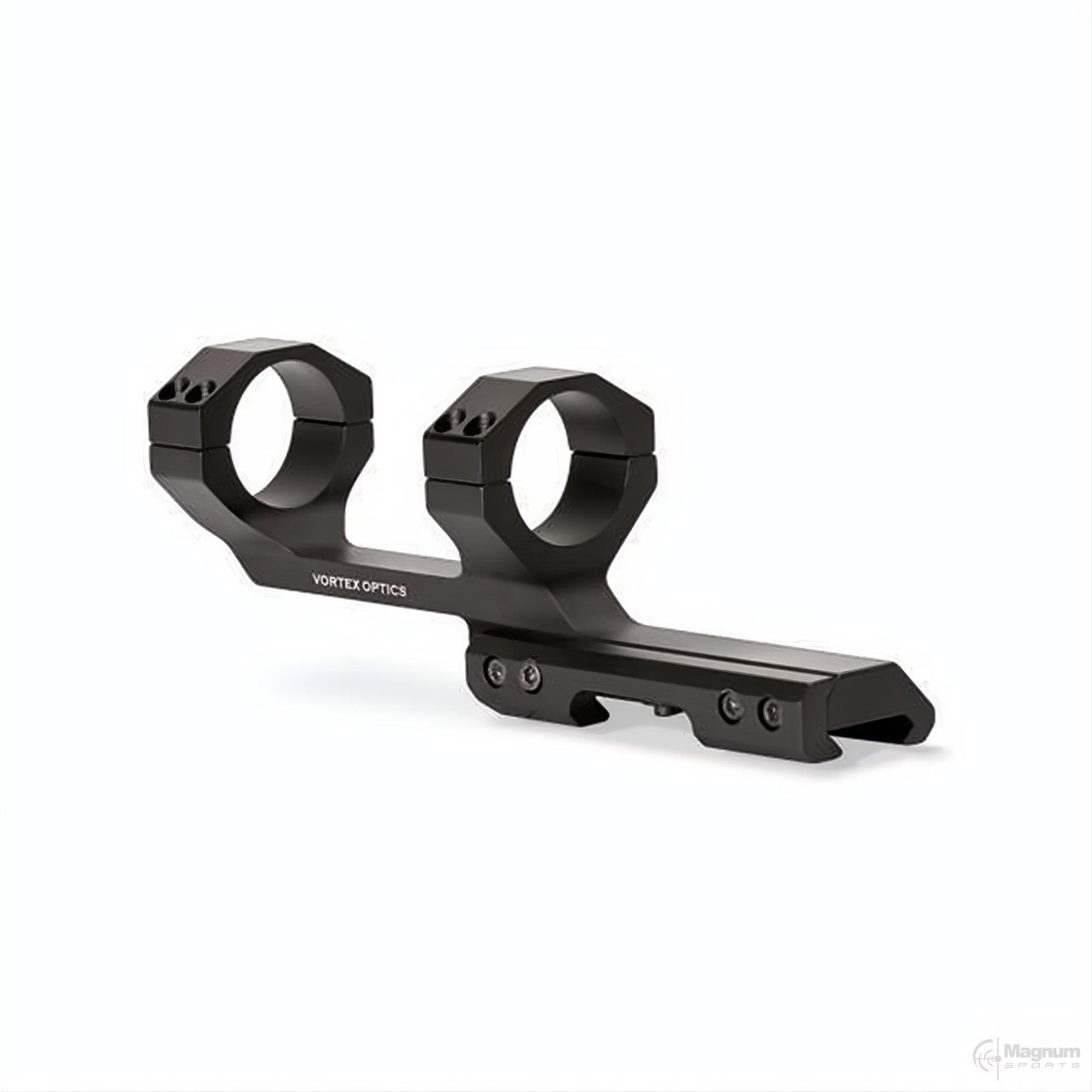

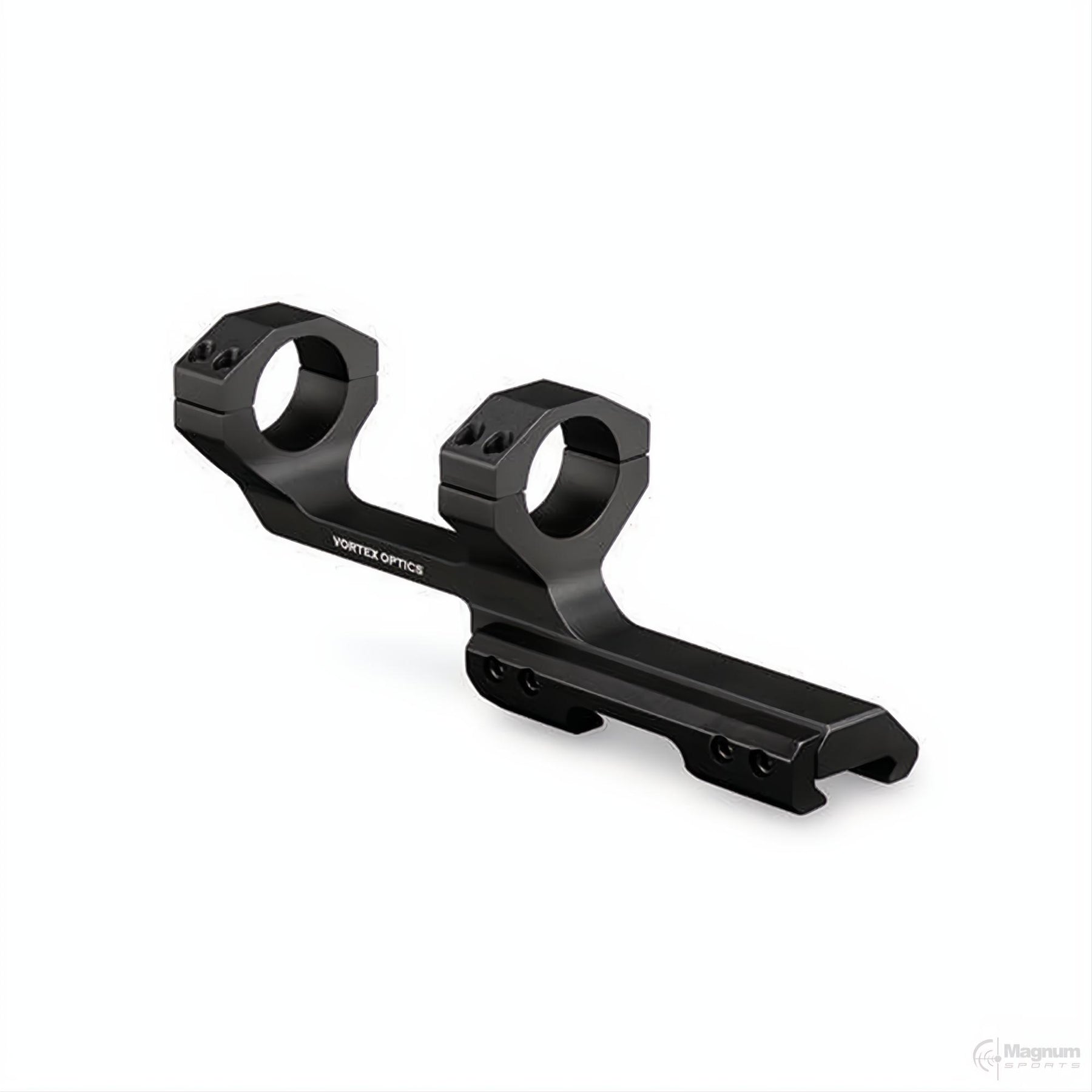

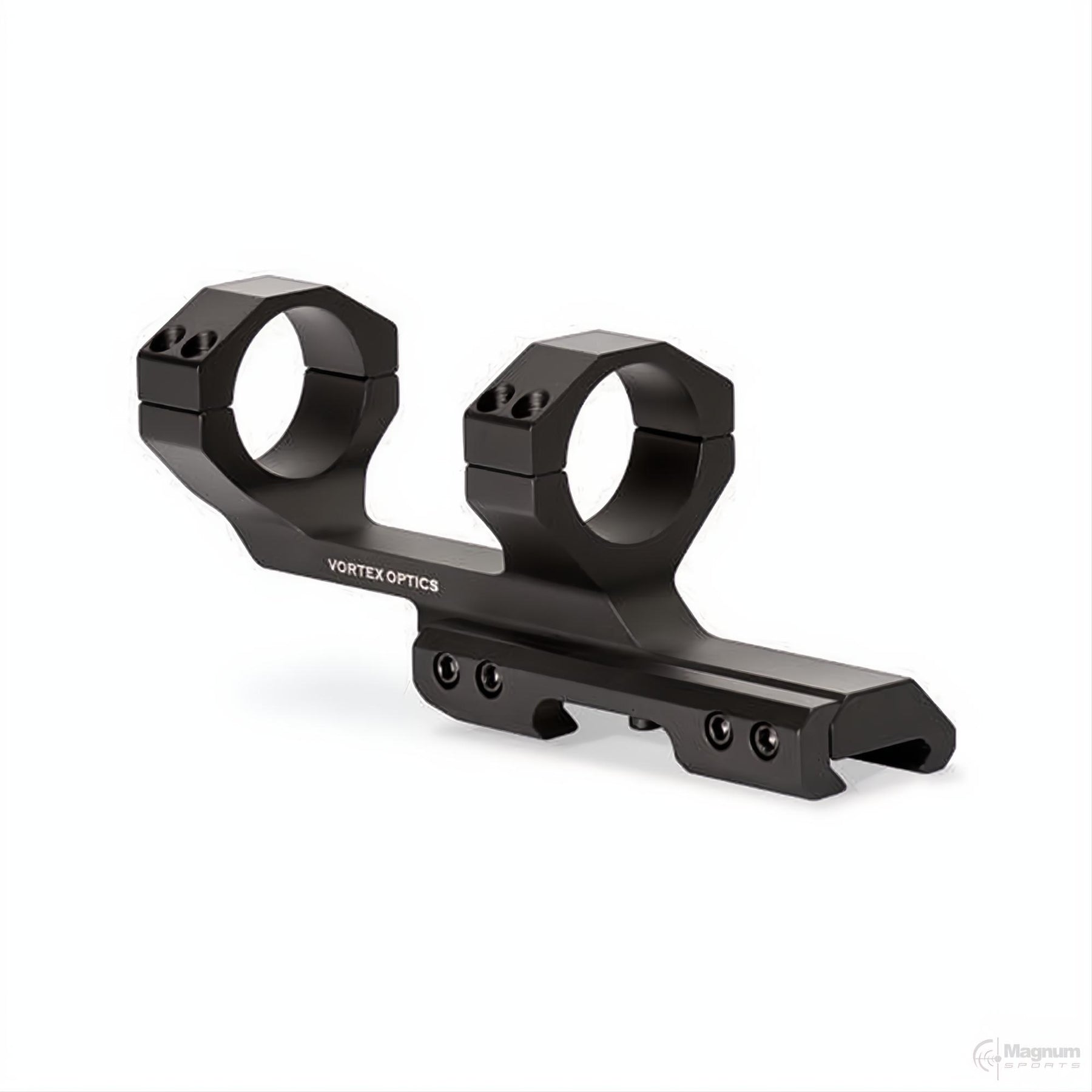

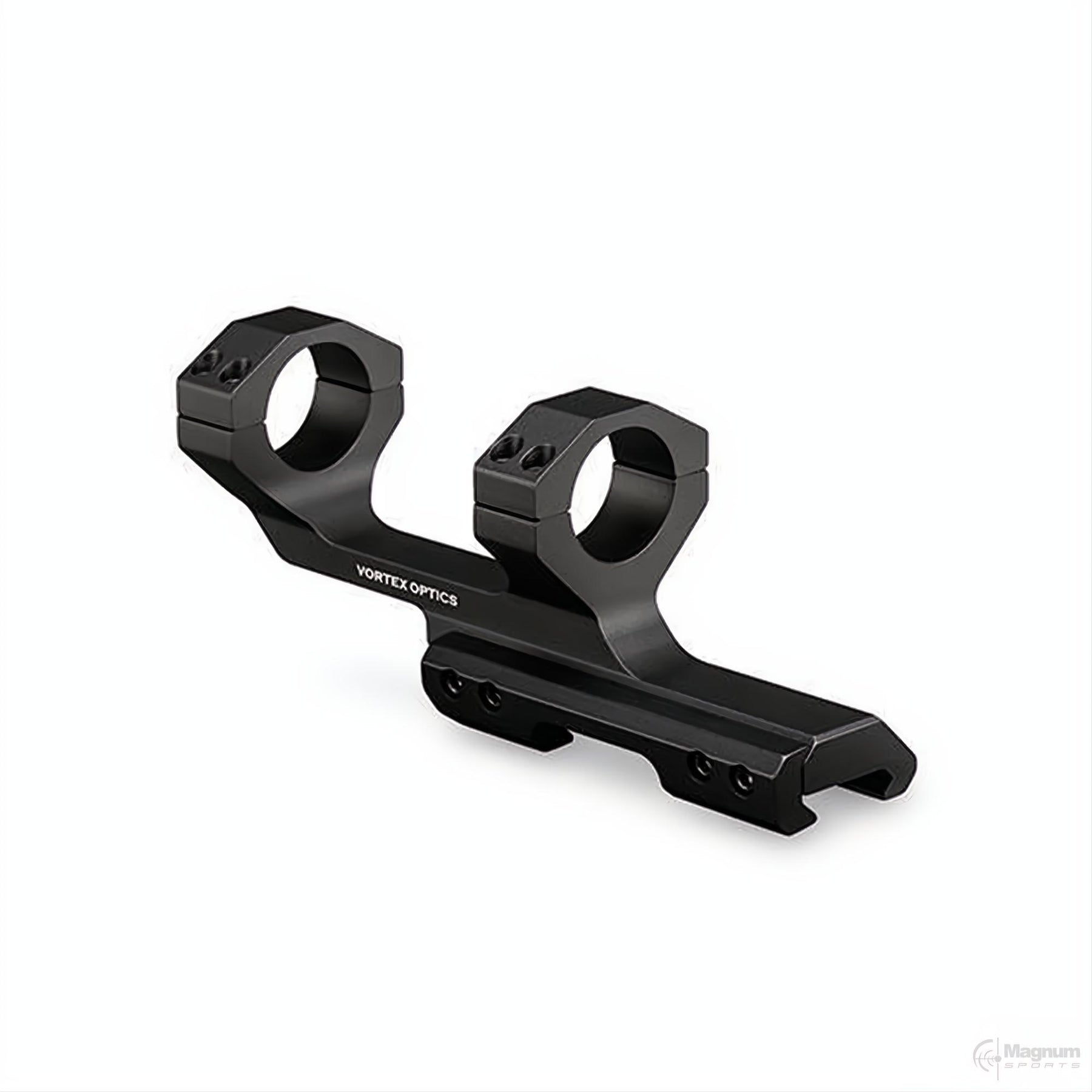

Use this cantilever mount for mounting scopes onto rifles with picatinny rails. The 2-inch offset of this cantilever mount positions the scope in a forward location, allowing the correct eye relief, also available in 3 inch offset. Aluminum construction.
0 MOA so can be used in extended forward or rearward position. Great for rifles with a full length rail (ie. chassis) or long eye relief, or use rearwards for scopes with a short eye relief.
The cantilever ring mount positions the telescopic sight at a height of 1.59 inches (40.39 mm) from top of the picatinny rail to center of scope tube. Weighs 6.7 ounces.
- Tighten rail mount bolt to 20 inch pounds.
- Tighten scope ring fasteners to 16 inch pounds.
Available in:
- 1" inch Scope Tube, 2" inch Offset(CM-102)
- 1" inch Scope Tube, 3" inch Offset (CM-103)
- 30mm Scope Tube, 2" inch Offset (CM-202)
- 30mm Scope Tube, 3" inch Offset (CM-203)
