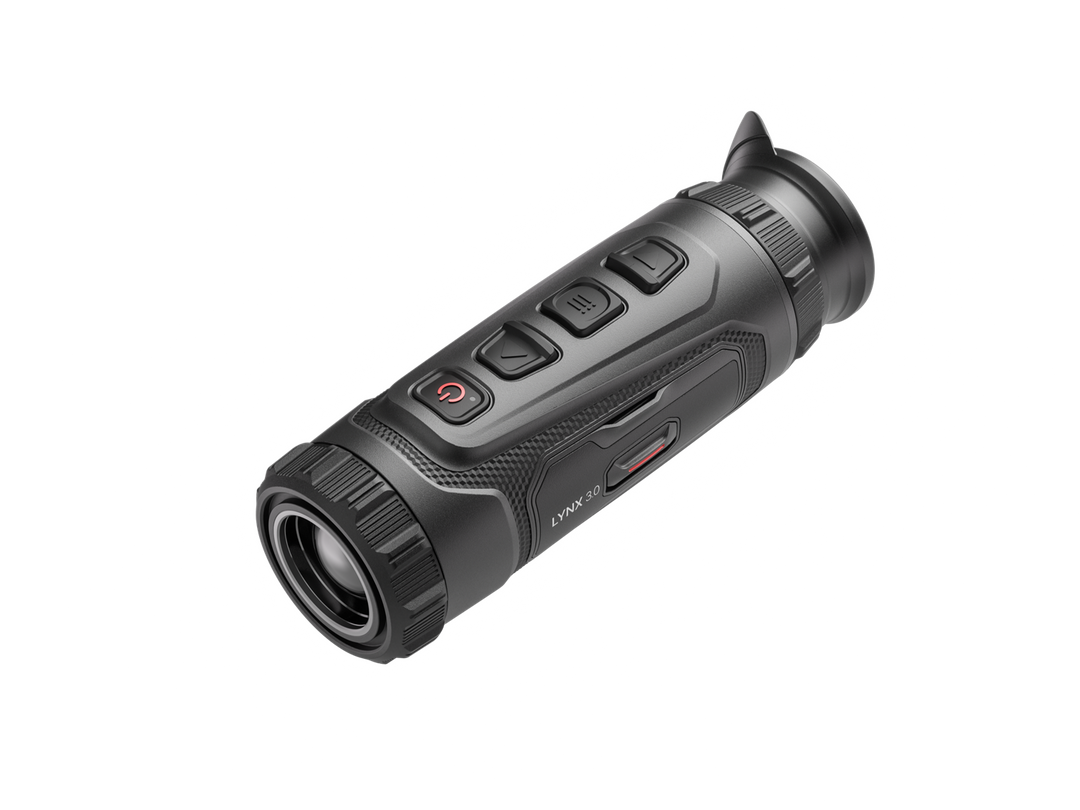

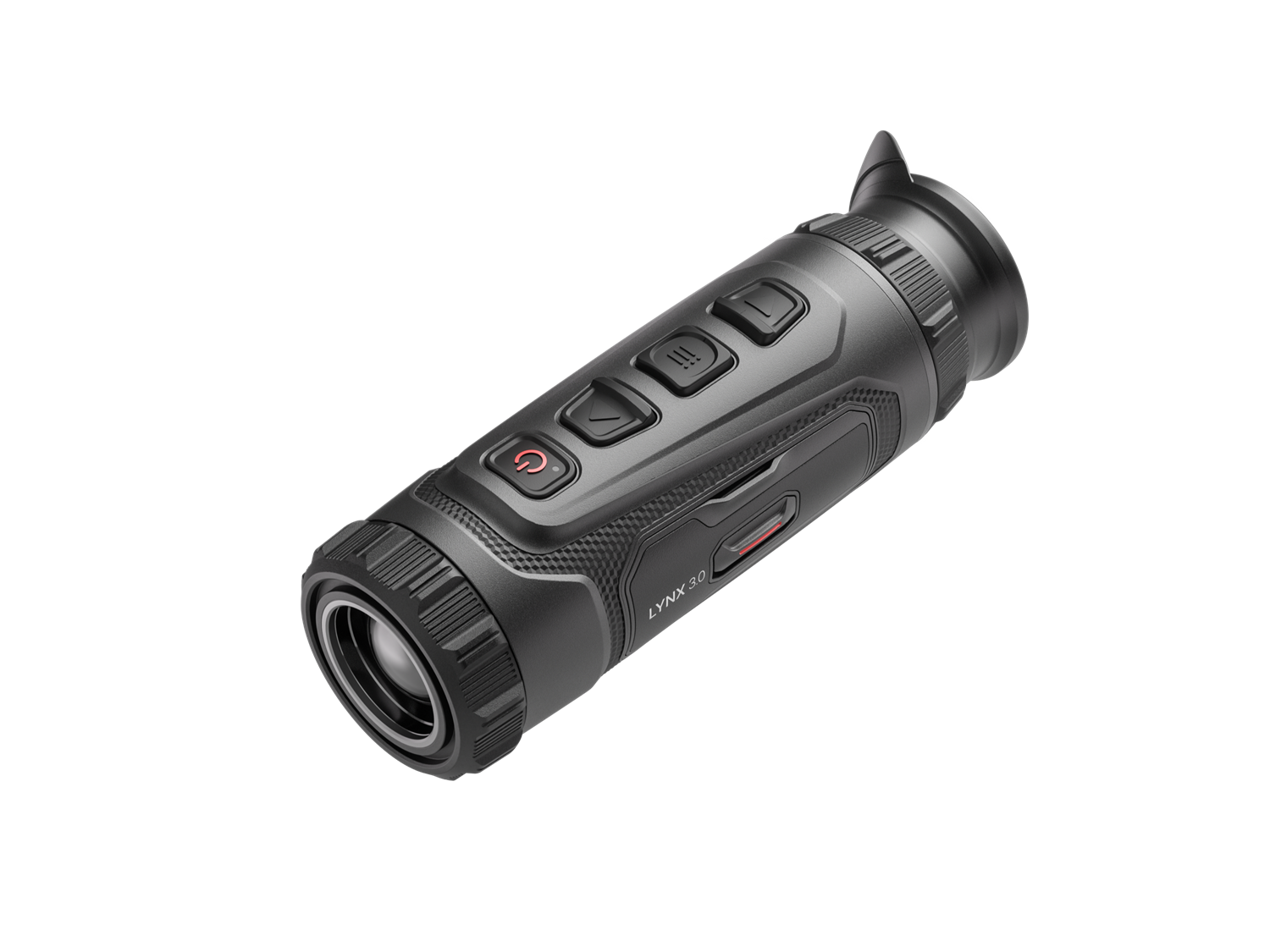

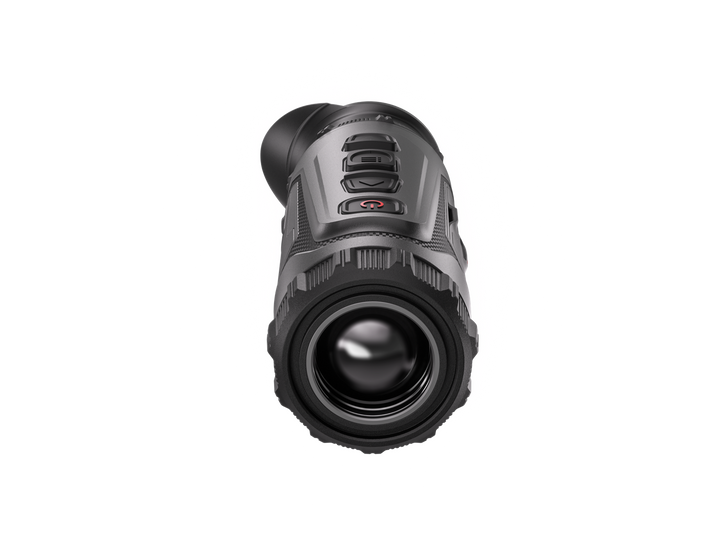

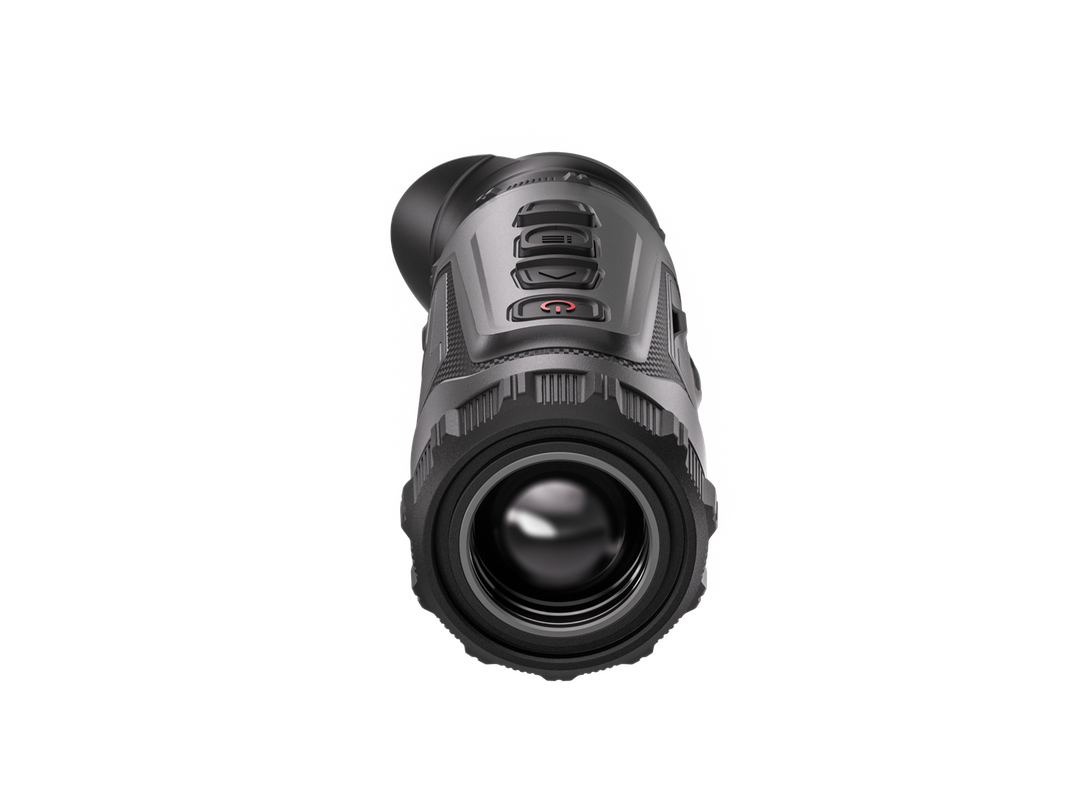

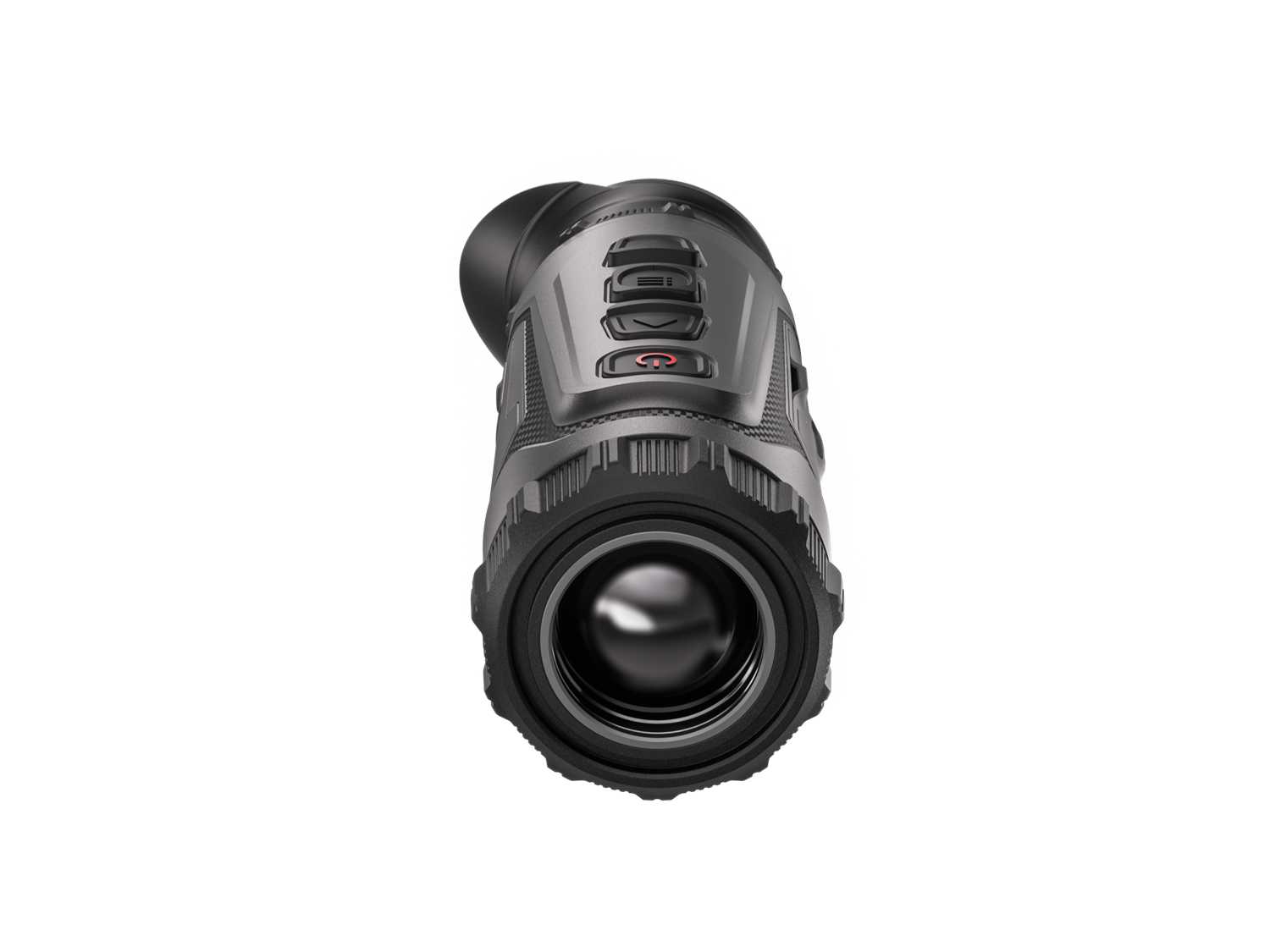

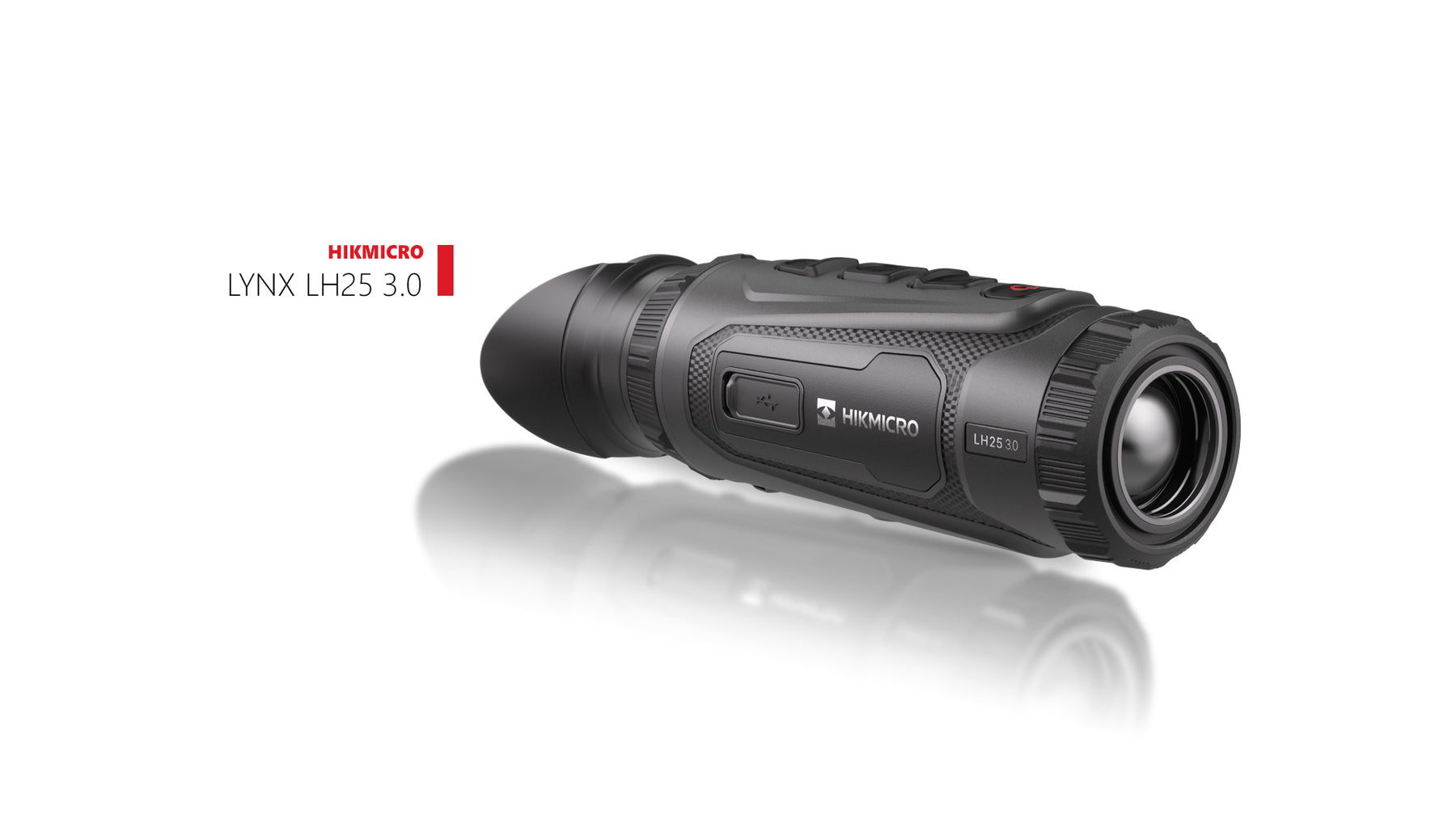

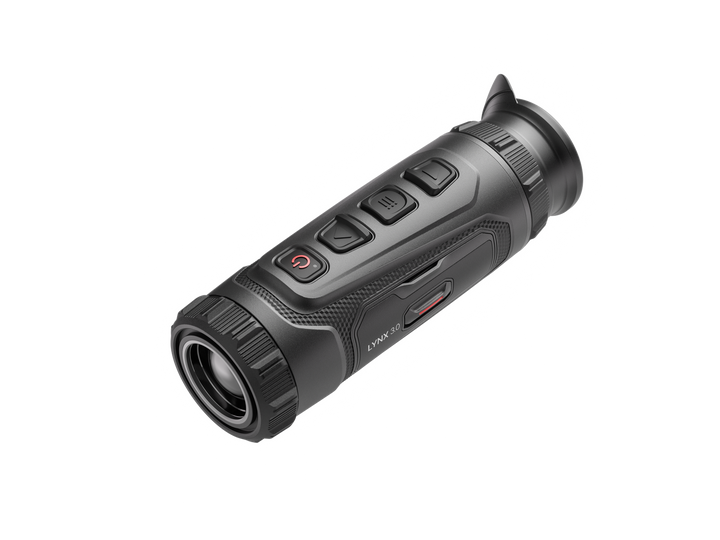

HIKMICRO LYNX LH25 3.0

HIKMICRO Lynx LH25 3.0 handheld thermal monocular camera is equipped with a 384 x 288 infrared detector and a 1280 x 960 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.

Features

• High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
• 25mm, F1.0 lens with thermal detection range up to 1200m
• AI-powered Image Pro 3.0 and Zoom Pro algorithms
• HIKMICRO Shutterless Imaging System (HSIS)
• 0.49-inch OLED display with 1920 × 1080 resolution
• Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
• Lightweight design at 328.5g, with a pocket-sized build

Specifications

• Specification Thermal Module
• Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 384×288 * Frame Rate: 50Hz

• Pixel Interval: 12μm
• Response Waveband: 8μm to 14μm
• NETD: Less than 15 mK (@25°C),F#=1.0
• Lens (Focal Length): 25mm, f1.0 * Focus Mode: Focus Ring
• Detection Range: 1200m * Min. Focusing Distance: 3m
• Magnification: 2.5× - 20× (8×)
• Field of View(H × V), Degrees / m @100m: 10.5°×6.4°/18.4m×11.2m

Image Display

• Display: 1920×1080, 0.49 inch, AMOLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 6mm
• Eye Relief: 20mm
• Diopter (Range): -5D to +3D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes
• Image Pro 3.0: Yes
• Sync Pro: Yes
