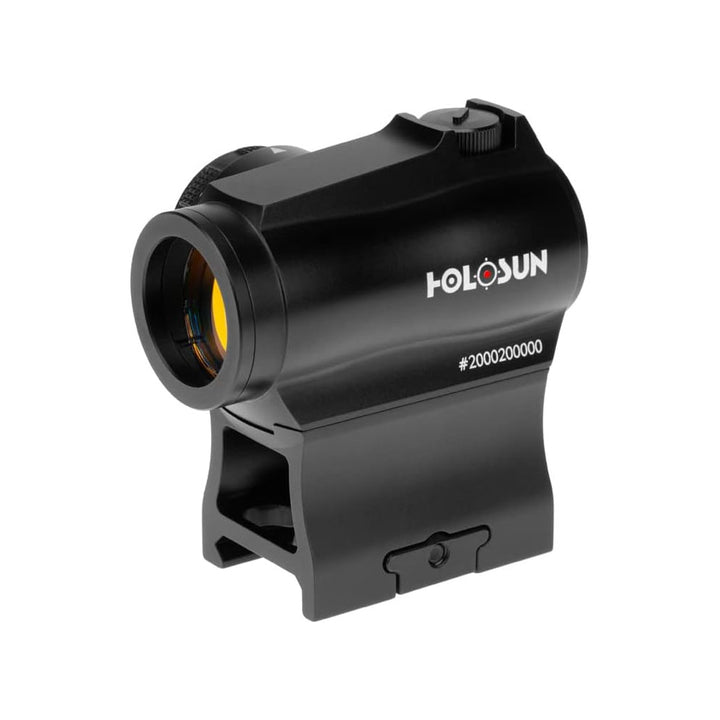

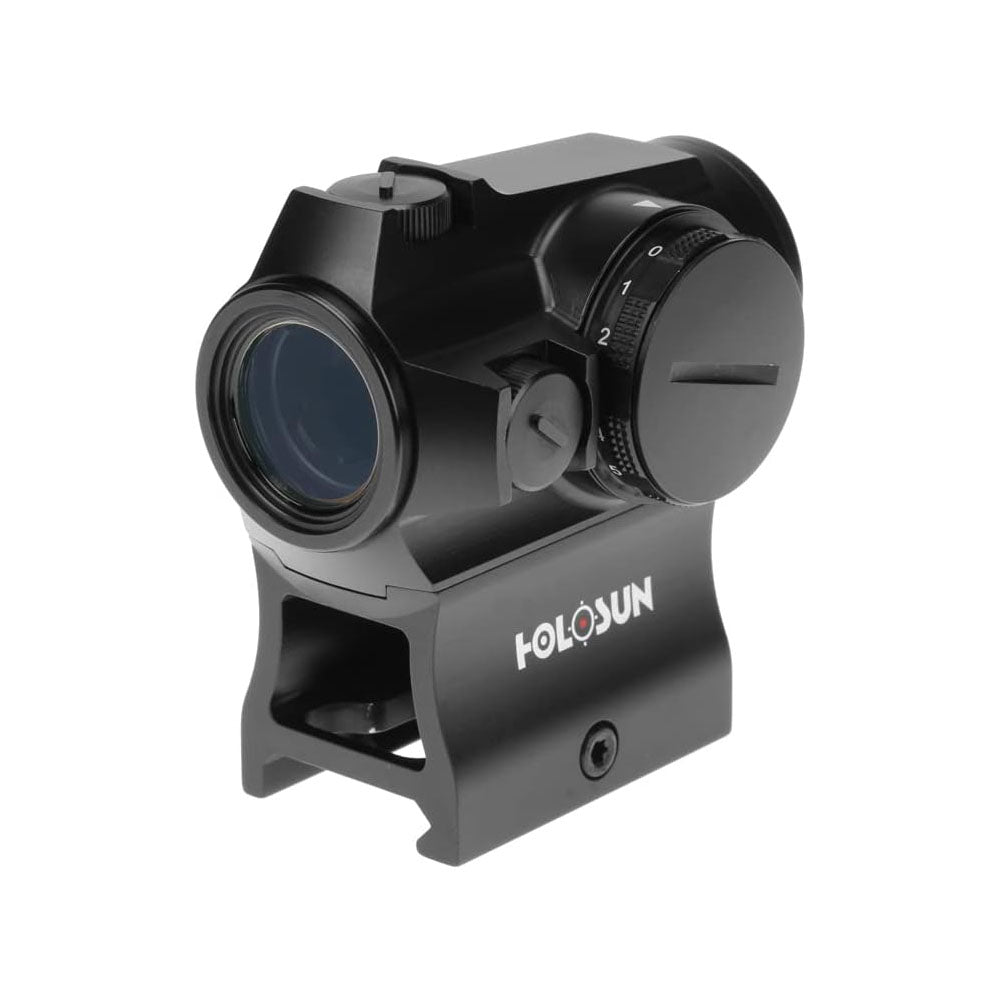

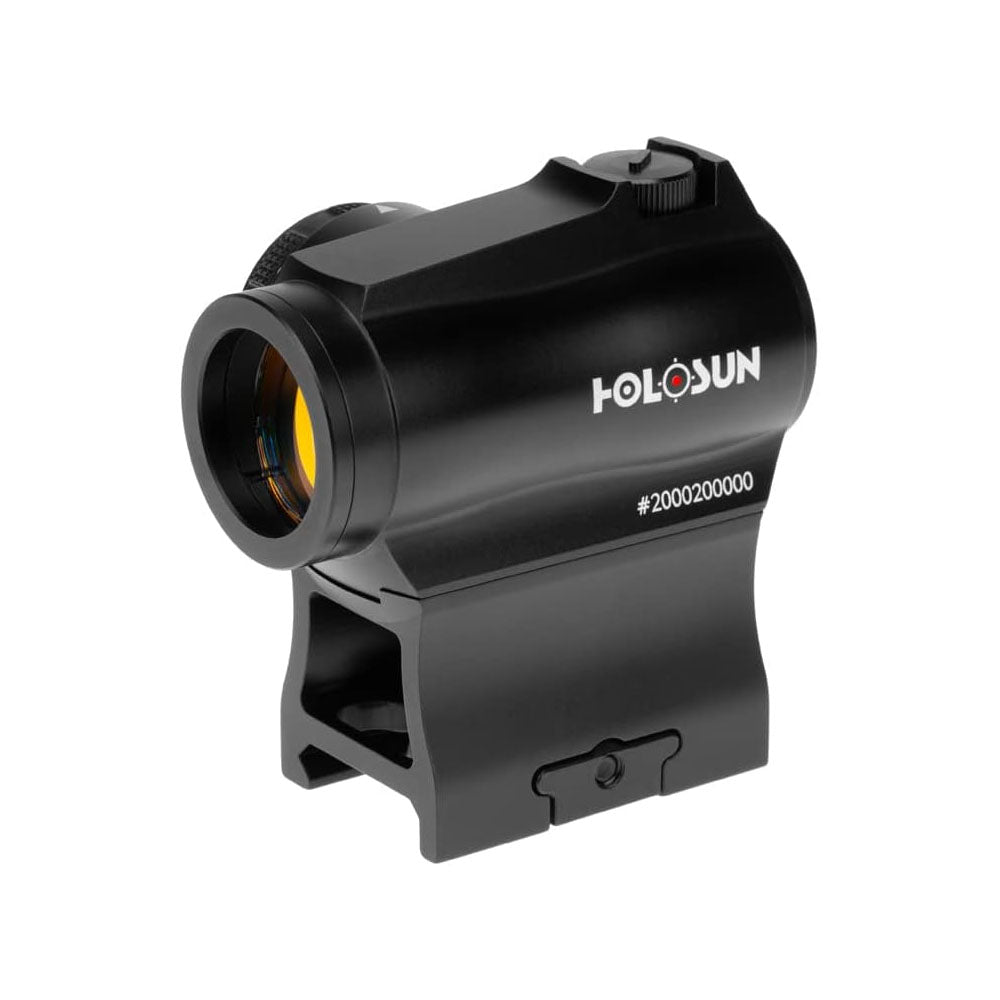

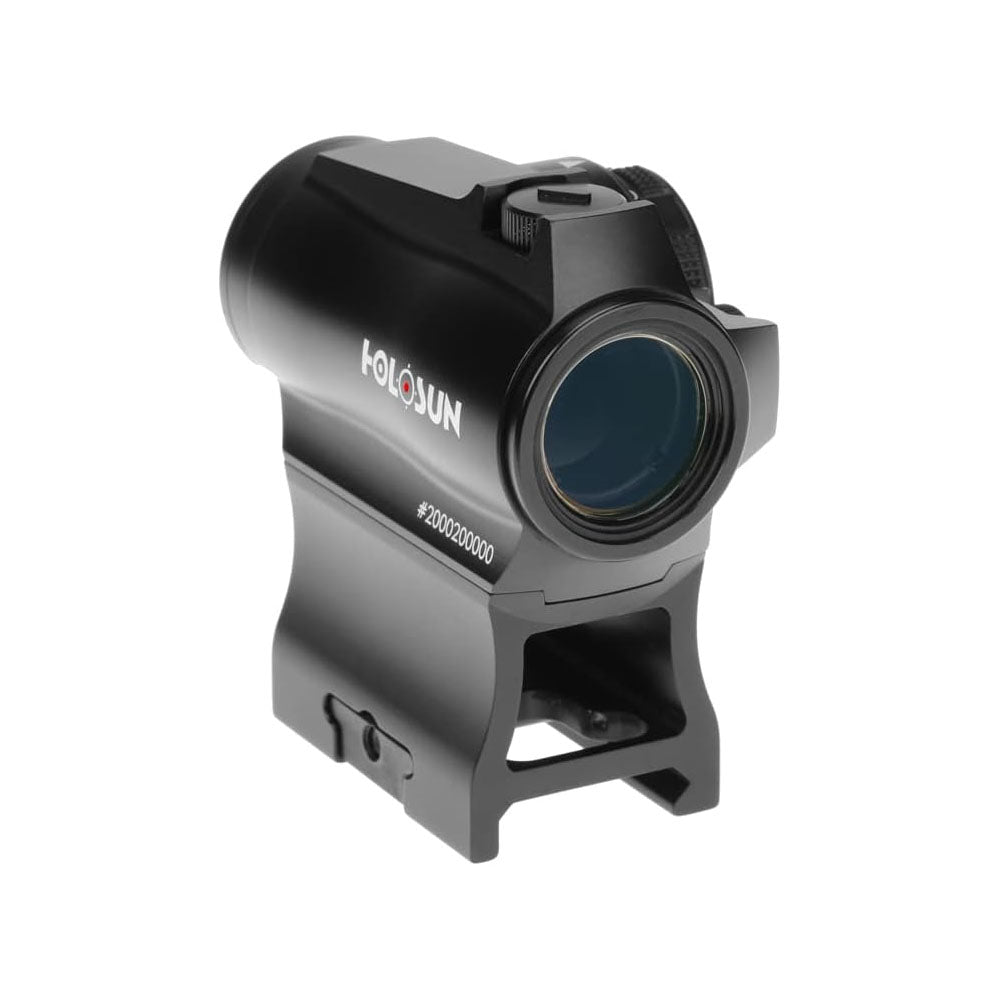

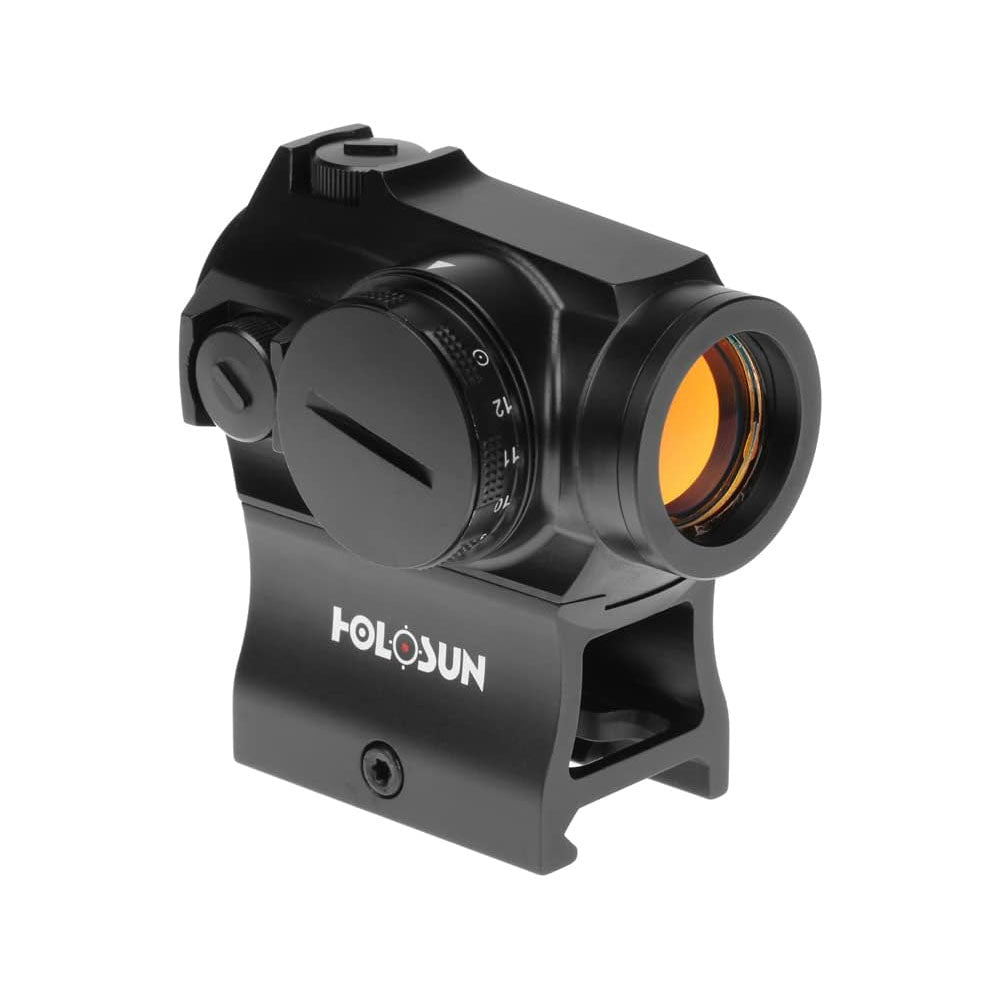

The HE503R-GD (Gold Dot) is a 20mm micro sight designed for rifle and carbine applications. HE503R-GD features a Rotary switch to select reticle intensity, Holosun's Gold Super LED with 50k hour battery life, and MRS (Multi-Reticle System) with 10 daylight and 2 night vision compatible reticle intensity settings.
The HE503R-GD housing is made from 6061 aluminum and includes both a lower 1/3 co-witness mount (1.63") and a low mount (.75") for low-comb height rifle applications. Additional features include rubber lens covers, and a battery compartment integrated into the Rotary switch for the 2032 battery. HE503R-GD is a versatile sight for users of all levels.
| Reticle | 2 MOA Dot |
| Light Wavelength | 590nm |
| Reticle Color | Gold |
| Parallax Free | Yes |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
| Power Source | Battery |
| Battery Type | CR2032 |
| Battery Life (Hours) | 50000 |
| Brightness Setting | 10 DL&2 NV |
| Window Size | 20mm Diameter |
| Dimension (in) | 2.751.431.62 |
| Weight (oz) | 3.53 |
| Housing Material | 6061 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| Storage Temperature | -40~70 |
| Working Temperature | -30~60 |
| Submersion | IP67 |
| Vibration | 1000G |
