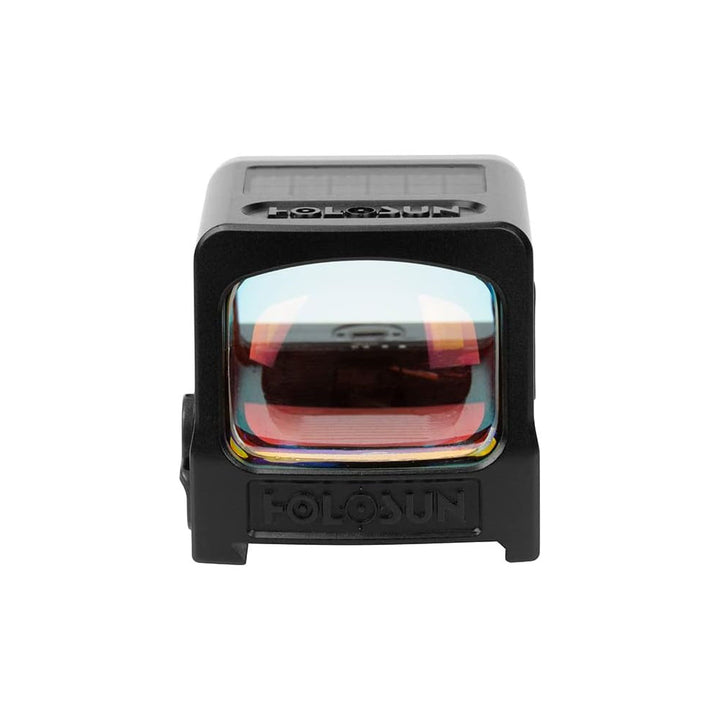

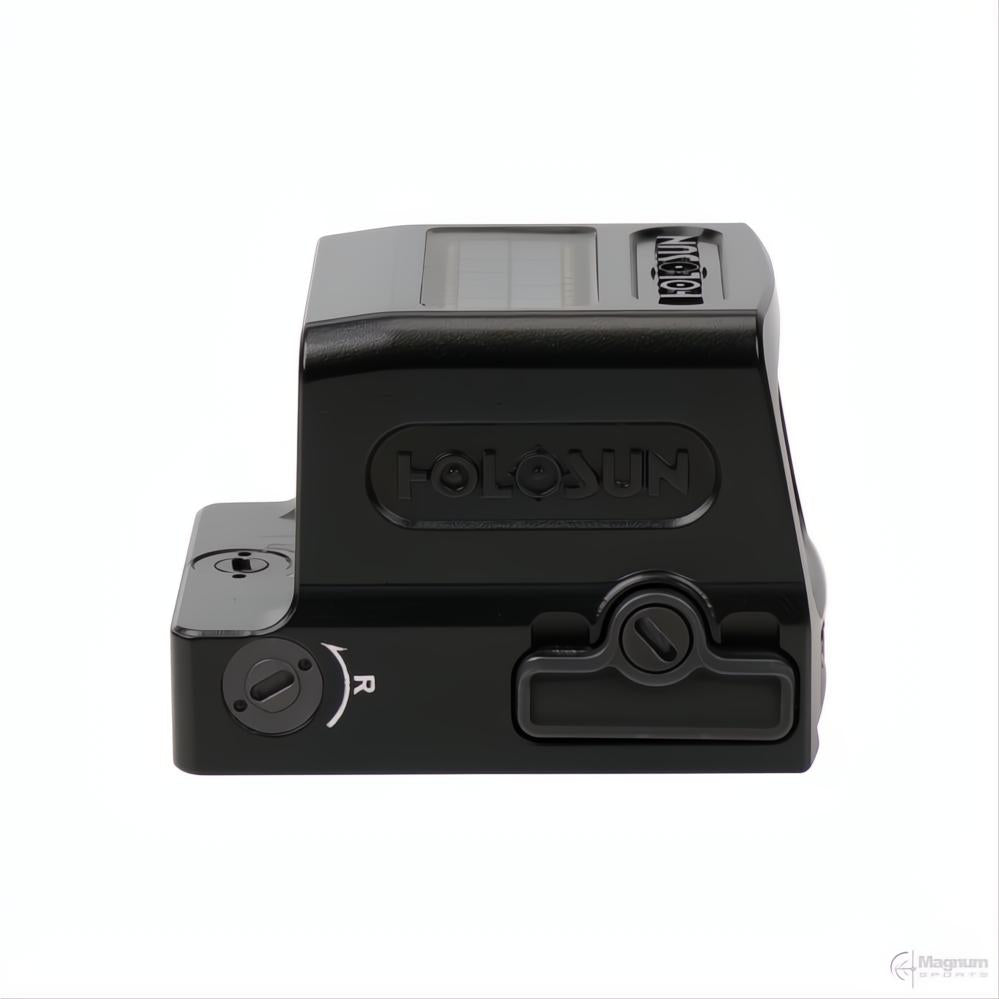

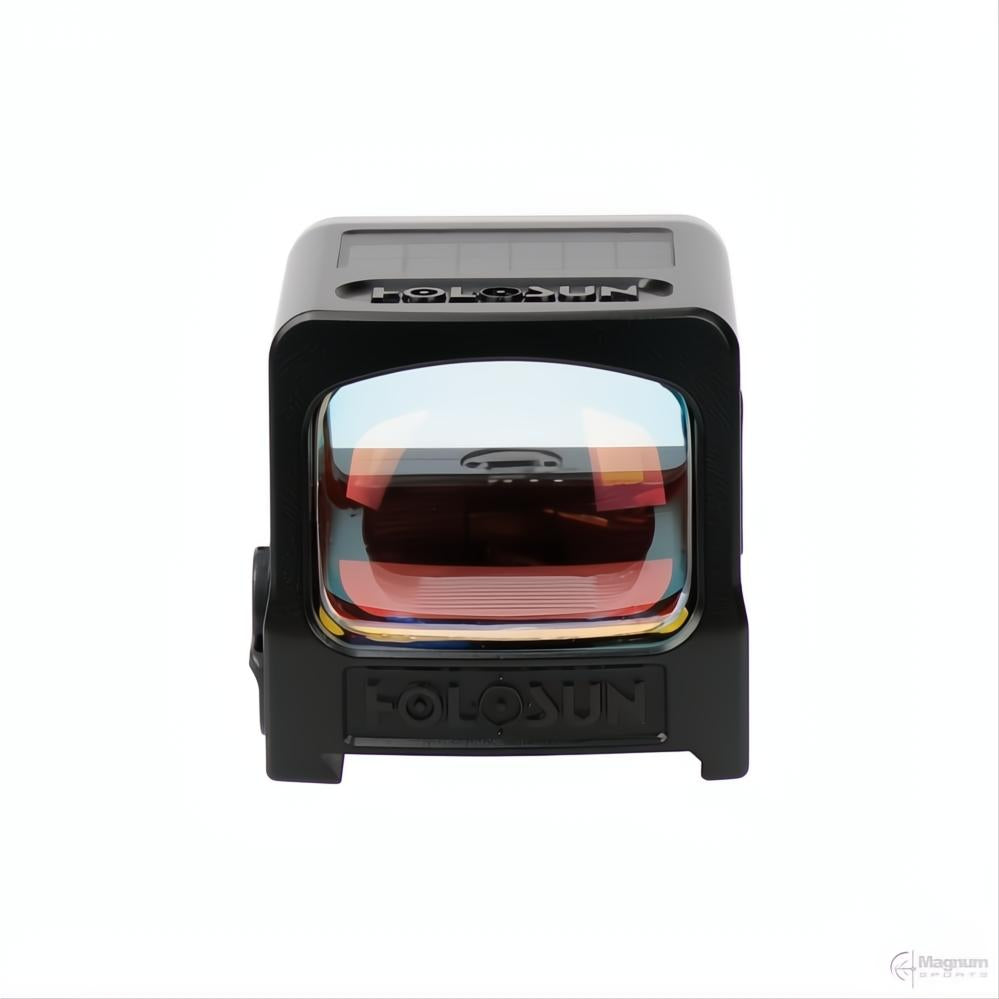

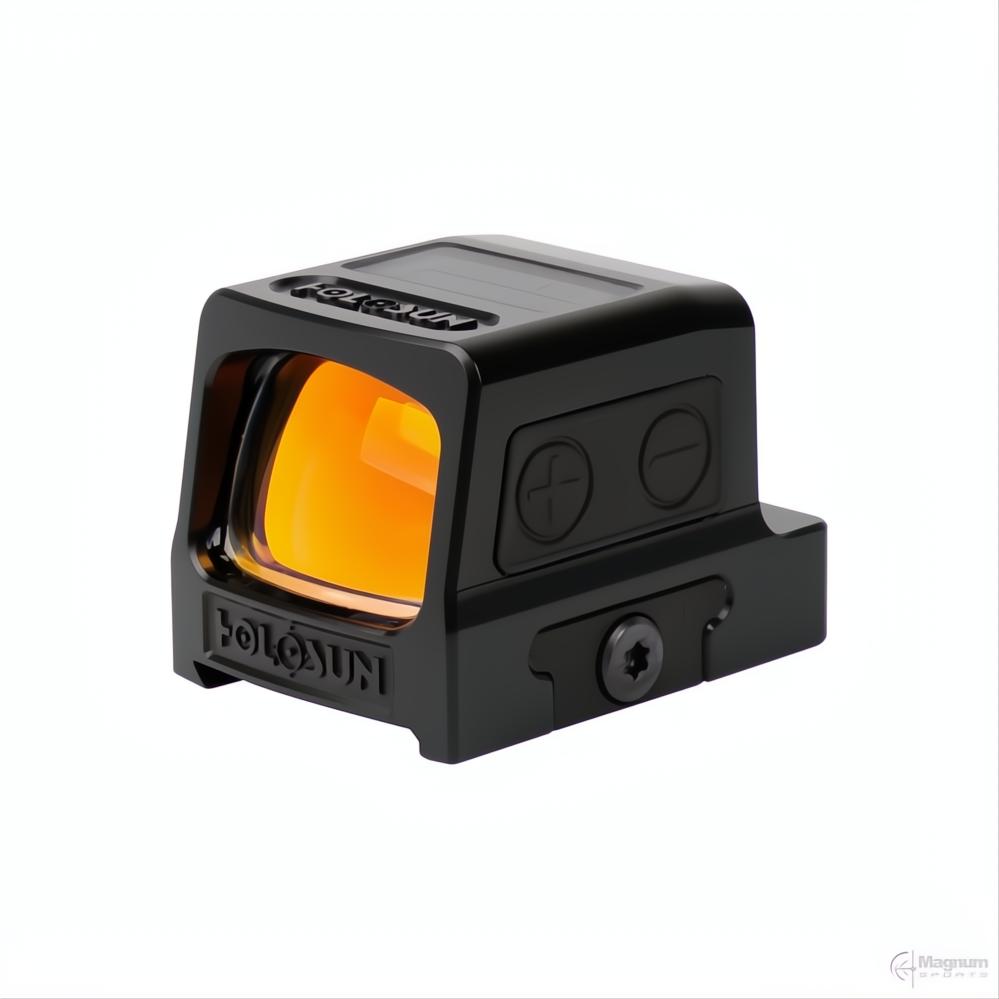

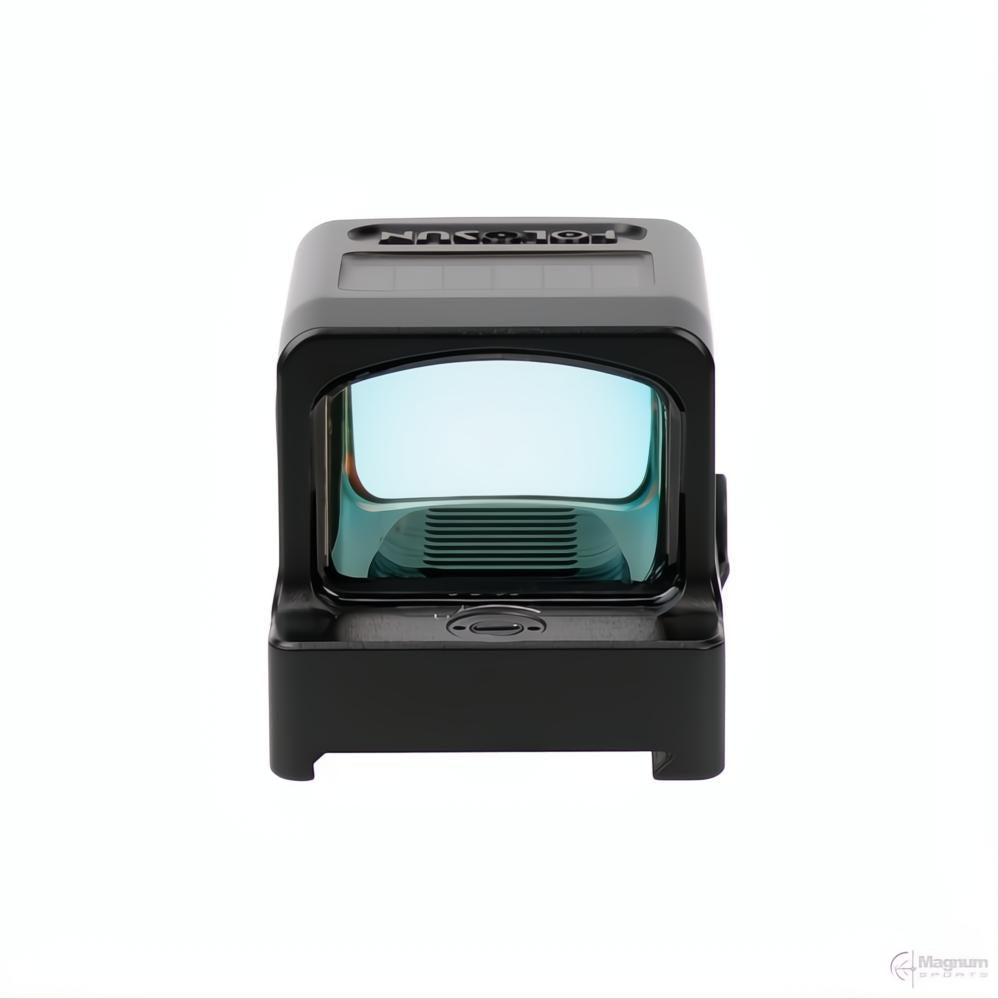

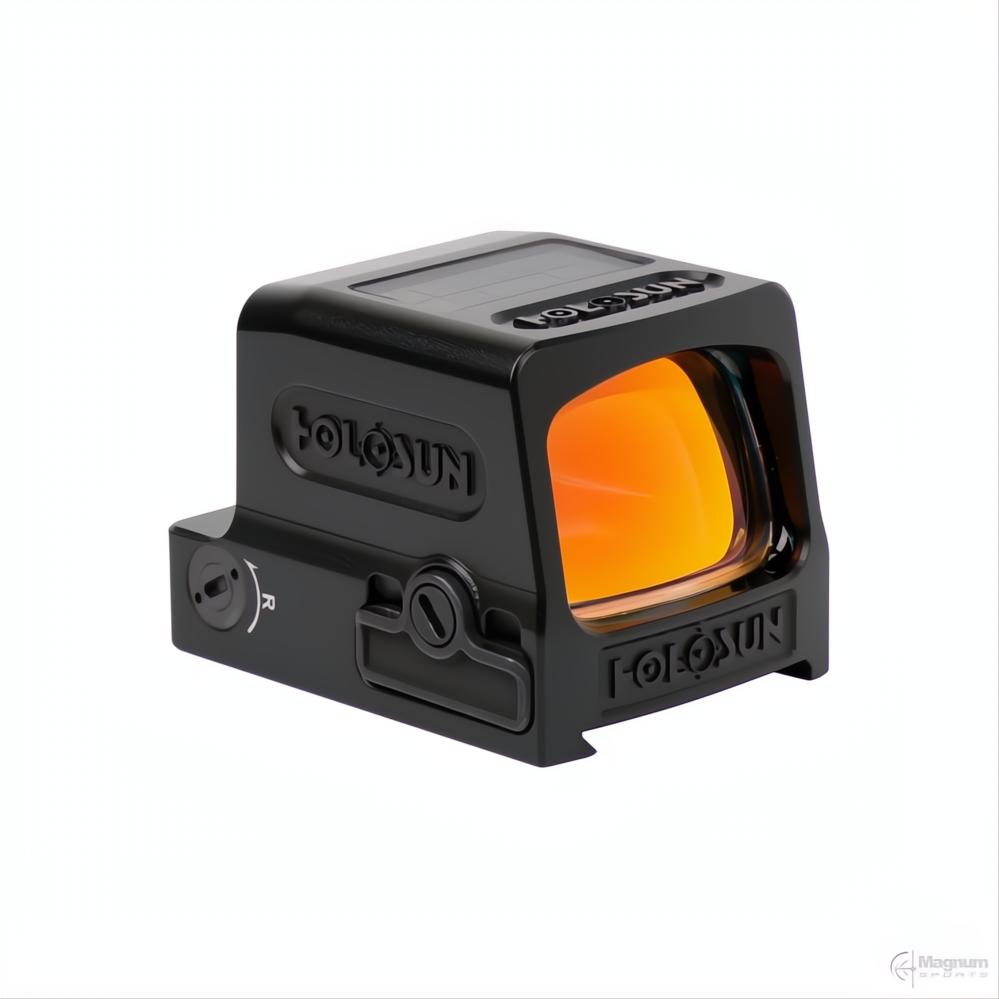

The HE509T-GR X2 is a hard-use, nitrogen-purged enclosed LED sight designed for handgun applications. The HE509T-GR X2features a grade 5 titanium housing, Holosun’s Super LED with up to 50k hour battery life, Multi-Reticle System, Solar Failsafe, and Shake Awake technology.
The X2 version adds improved glass clarity, Lock Mode, and a full Multi-Reticle System providing 2MOA dot only, 32MOA Circle only, or a Circle-Dot combination. HE509T-GR X2 includes an adapter plate for compatibility with *RMR footprints. HE509T-GR X2 feature 12 intensity settings, two of which are compatible with night vision devices.
*509T models include an adapter plate for RMR footprints. Please be aware that our adapter plate is not compatible with alternative RMR footprints which use threaded bosses such as those from Zev or Brownells.
Key features include:
- Solar Failsafe™ & Shake Awake™
- Multiple Reticle System (MRS): Circle Dot; Dot Only
- Super LED
- Up to 50,000 Hours Battery Life (Setting 6)
- 12 Brightness Setting: 10 DL & 2 NV Compatible
- Enclosed Design & Titanium Housing
- Multilayer Reflective Glass
- Convenient Tray Battery Compartment
- Parallax-free & Unlimited Eye Relief
Comes with:
- RMR-to-509T Adapter
- T10 L Key
- User Manual
- CR1632 Battery
- Lens Cloth
OPTICAL DATA
Reticle 2 MOA Dot & 32 MOA Circle
Light Wavelength 540nm
Reticle Color Green
Parallax Free Yes
Unlimited Eye Relief Yes
Magnification 1x
Multi-Coatings Yes
ELECTRONIC DATA
Power Source Solar & Battery
Battery Type CR1632
Battery Life (Hrs) 50000
Brightness Setting 10 DL&2 NV
PHYSICAL DATA
Window Size 0.66x0.9
Dimension (in) 1.6×1.16×1.13
Weight (oz) 1.72
MECHANICAL DATA
Housing Material Titanium
Surface Finish Titanium
Adj. per Click 1 MOA
W&E Travel Range ±30 MOA
ENVIRONMENT DATA
Storage Temp. -40‚ÑÉ~70‚ÑÉ
Working Temp. -30‚ÑÉ~60‚ÑÉ
Submersion IP67
Vibration 5000G
