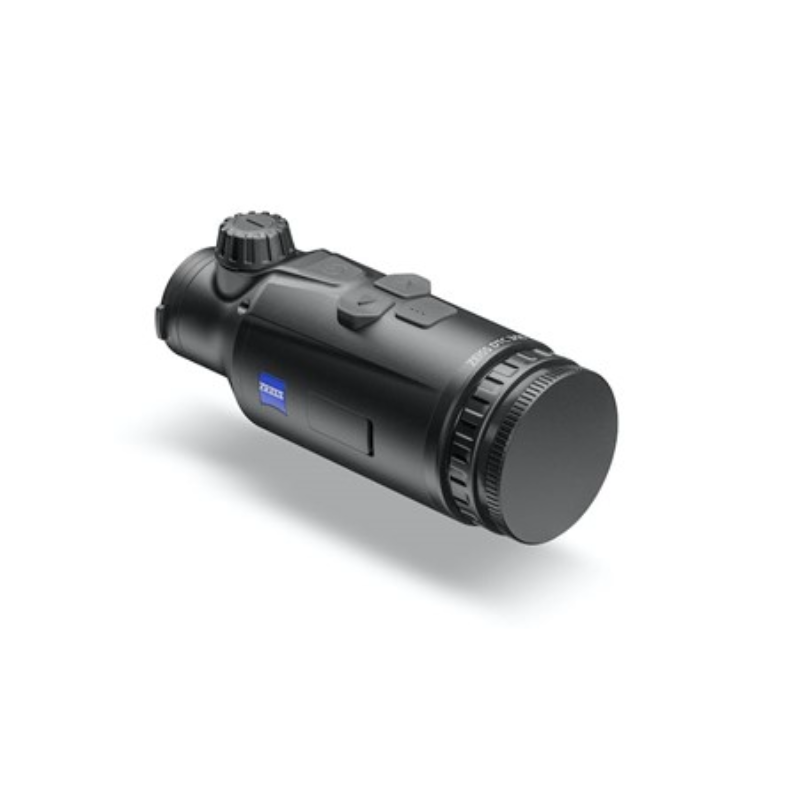

Ensure that every night hunt is a success – the new ZEISS DTC 3 Thermal Imaging Clip-Ons offer perfectly compatible optics with a large and high-contrast 1024 × 768 HD AMOLED display, intuitive ergonomics, precise and user-friendly zeroing procedure thanks to the app-controlled zeroing assistant, virtually unlimited battery life, and numerous customization options.
Range and accuracy at long distances play a crucial role in night hunting in open terrain. The ZEISS DTC 3/38 covers a larger area, has a field of view of 12.3 meters at 100 meters, and an accurate click value of 1.6 cm at 100 meters – for extremely precise zeroing and thus highly accurate and ethical shots.
Performance
Focal length |
38 mm |
Aperture |
f/1.0 |
Field of view at 100 m (yds) |
12.3 m (40 ft) |
Objective viewing angle |
7° x 5° |
Range |
1.950 m (2.133 yd) |
Sensor resolution |
384 x 288 |
Sensor pixel pitch |
12 μm |
Display resolution |
1024 x 768 |
Display frame rate |
50 Hz |
Display type |
AMOLED |
Optical magnification |
1,0 |
Maximum digital zoom |
- |
Zoom steps |
- |
Vertical adjustment range at 100 m |
154 cm |
Lateral adjustment range at 100 m |
205 cm |
Adjustment per click at 100 m |
1.6 cm |
Features
Battery type |
Li-Ion |
Battery run time |
10 h |
Internal memory |
- |
WLAN |
- |
Bluetooth |
+ |
Livestream function (Video & Photo) |
- |
Physical
Operating temperature |
− 10°C | + 50°C (+ 14 °F | + 122°F) |
Length x Width x Height |
164 x 60 x 65 mm (6.5 x 2.4 x 2.6") |
Weight |
650 g (22.9 oz) |
