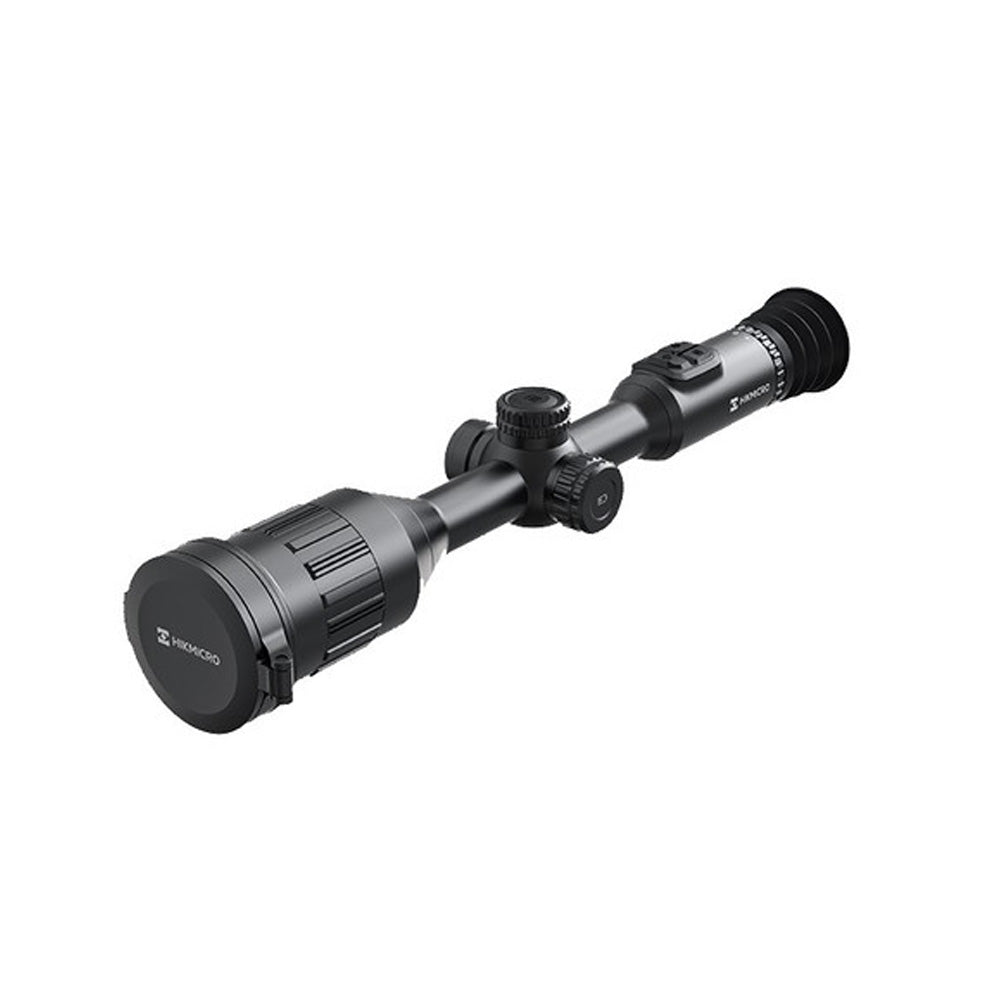

The HIKMICRO STELLAR SX60L 3.0 Thermal Scope is equipped with a high-performance 1280×1024 @12μm thermal detector, offering exceptional sensitivity (NETD＜18mK) and cutting-edge Image Pro 2.0 processing. This ensures you can capture the finest details in any weather or lighting condition, without interruption. Its large 1.03” AMOLED display with 2560×2560 resolution enhances target detection for faster and more accurate spotting. The built-in 1000m laser rangefinder (LRF) and ballistic calculation further enhance shooting precision, making the SX60L 3.0 the perfect choice for field and forest hunting.
Features:
- 1280 x 1024 resolution @12 μm thermal detector
- High sensitivity thermal module NETD <18 mK (@25°C, F# = 1.0)
- 60 mm, F1.0 lens with detection range up to 3100 m
- 2560 × 2560 resolution 1.03-inch OLED display
- Built-in lens laser rangefinder up to 1000 m, with ballistic calculation
- Rechargeable internal batteries and external battery, 10h continuous operation
- High shock resistance up to 1000 g/0.4 ms
SPECS:
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 1280×1024
- Frame Rate: 25Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 18 mK (@25°C),F#=1.0
- Lens (Focal Length): 60mm, F1.0
- Detection Range: 3100m
- Focus Mode: Focus Ring
- Field of View(H × V), Degrees / m @100m: 14.6°×11.7°/25.6m×20.5m
Image Display
- Display: 2560x2560,1.03 inch OLED
- Contrast Adjustment: Yes
- Brightness Adjustment: Yes
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Flat Field Correction Mode: Auto, Manual, External Correction
- Exit Pupil: 6mm
- Eye Relief: 45mm
- Diopter (Range): -4D to 4D
- Tone Adjustment: Cold, Warm
- Zoom Pro: No
- HSIS (HIKMICRO Shutterless Image System): No
General
- Protection Level: IP67
- Weight: 1000g without external battery
- Dimension: 452.6mm x 94.3mm x78.9mm
- Mounting: Standard 30mm
- Working Temperature: -30 °C to 55 °C (-22 °F to 131°F)
- Center Height: 41mm
System
- Record Video: On-board Video Recording
- Capture Snapshot: Yes
- Hotspot: Yes
- Standby Mode: Yes
- Storage: Built-in EMMC (64 GB)
- PIP: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Audio Recording: Yes
- Recoil-activation Recording: Yes
- Freeze Zeroing: Yes
- Max. Recoil: 1000g/0.4ms
- Local Album: Yes
- Zeroing Profiles: 5
- Ballistic Calculation: Yes
Power Supply
- Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
- Battery Operating Time: 9 hours continuous running (@25°C, LRF on)
- Type-C Power Supply: 5 V DC/2 A, USB Type-C interface Supports QC3.0
* Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery.
Laser Rangefinder
- Safety Class for Laser: Class 1
- Wavelength: 905nm
- Max. Measuring Range: 1000m
- Measurement Accuracy: ±1 m
- LRF Module in Lens: Yes
- Min. Measuring Range: 10m
