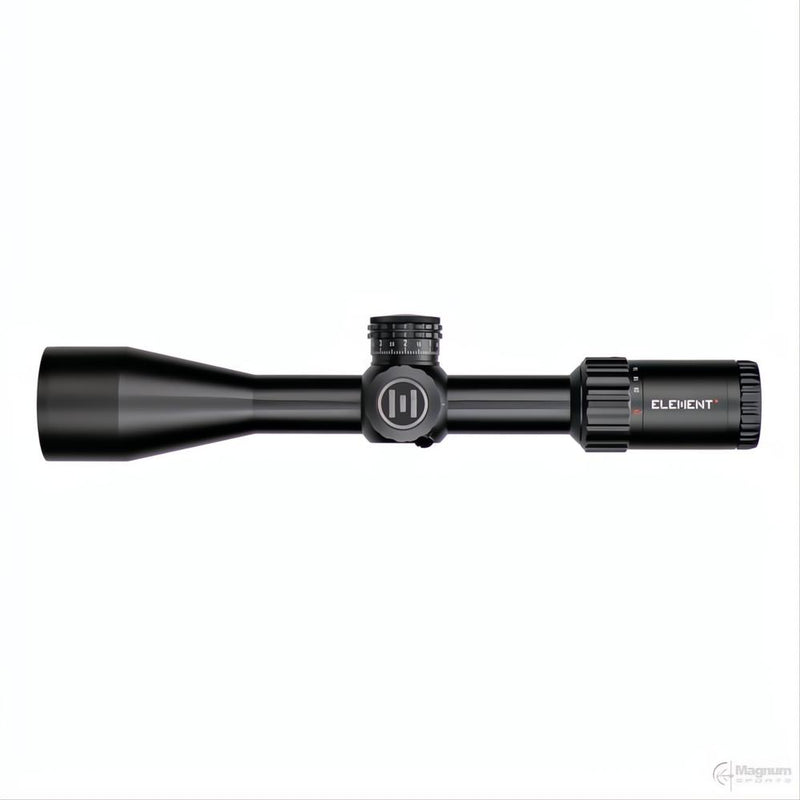

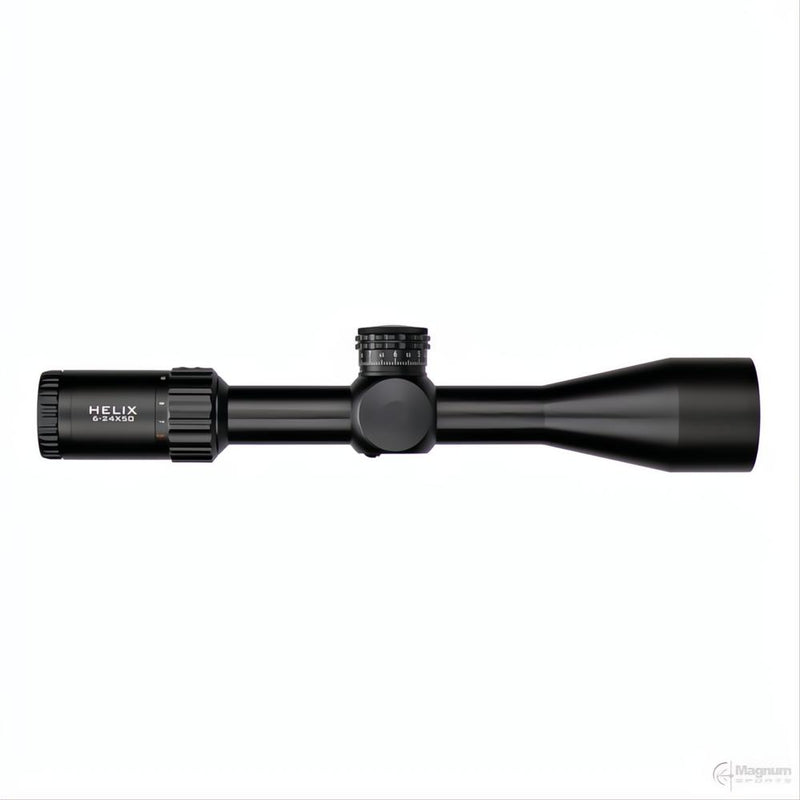

The HELIX GEN 2 continues the legacy of the original HELIX line of riflescopes, with industry-leading reliability and performance taken to the next level through new features and further design improvements.
The important things come first: Reliable tracking, intelligent reticles, innovative features, and a user-friendly turret system. The turret system is tool-free and now features 8 MRAD or 20 MOA per revolution. The zero-stop mechanism ensures you never lose track of where you are, and the Second Focal Plane reticle provides a crisp, uncluttered image at all magnifications. Optically, the familiar 4x erector system is complemented by a new design allowing for a larger field of view and a more forgiving eye-box. Stringent quality control checks are in place to ensure repeatable performance under harsh conditions, and if something goes wrong, Element Optics' Platinum Lifetime Warranty has you covered!
- Zero Stop
- Strong And Rugged Design
- Adjustable Diopter
- Second Focal Plane
- Weather Resistant
- Side Parallax
- 30mm Body Tube
- Advanced Fully Multi-coated Lenses
| MAGNIFICATION RANGE | 6-24x |
| TUBE DIAMETER | 30mm |
| OBJECTIVE LENS DIAMETER | 50mm |
| EXIT PUPIL | 8.3-2.1mm |
| EYE RELIEF | 3.7-4" (94-102mm) |
| FIELD OF VIEW | 20.1-5.1 ft @ 100yds (6.7-1.7 m @ 100m) |
| CLICK VALUE | 1/4 MOA (20 MOA/rev) / 1/10 MRAD (8 MRAD/rev) |
| ELEVATION ADJ. RANGE | 65 MOA / 18.9 MRAD |
| WINDAGE ADJUSTMENT RANGE | 40 MOA / 11.6 MRAD |
| MINIMUM PARALLAX | 10 yds / 10 m |
| LENGTH | 14.0 in / 356 mm |
| WEIGHT | 29.2 oz / 830g |
