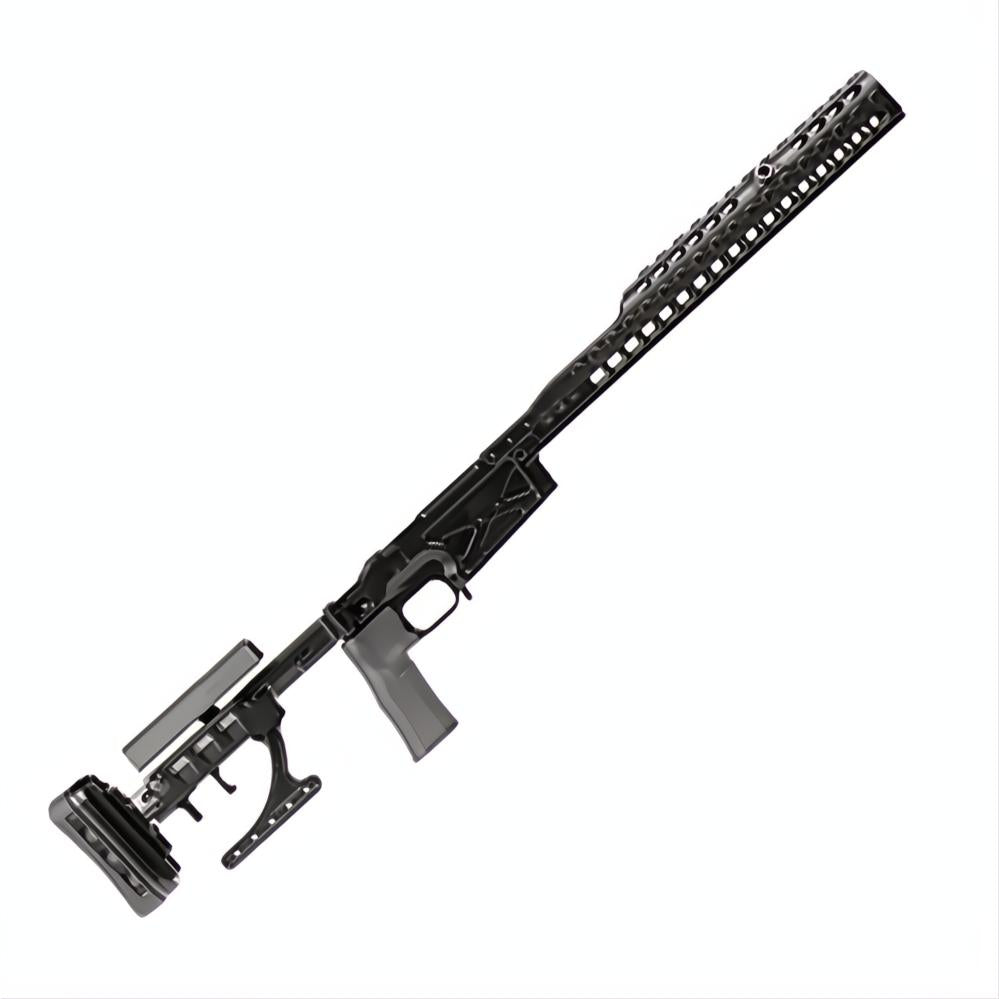

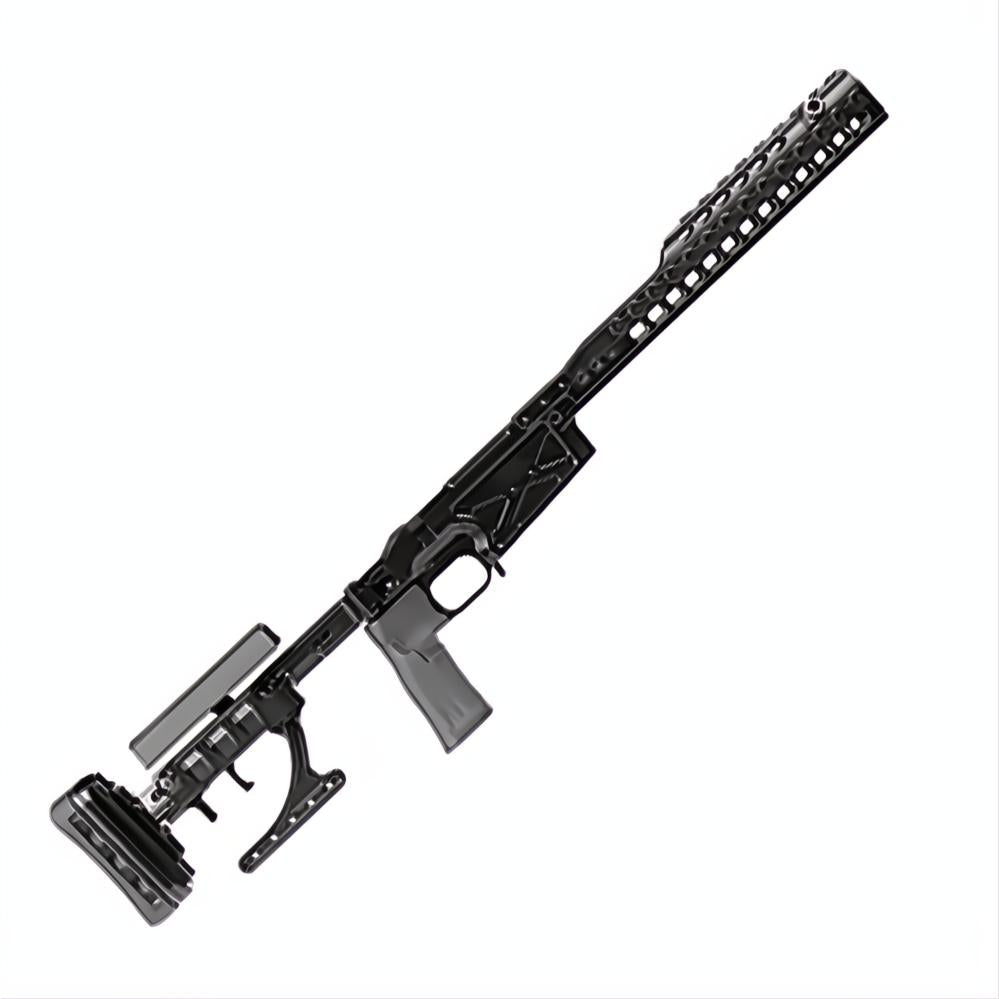

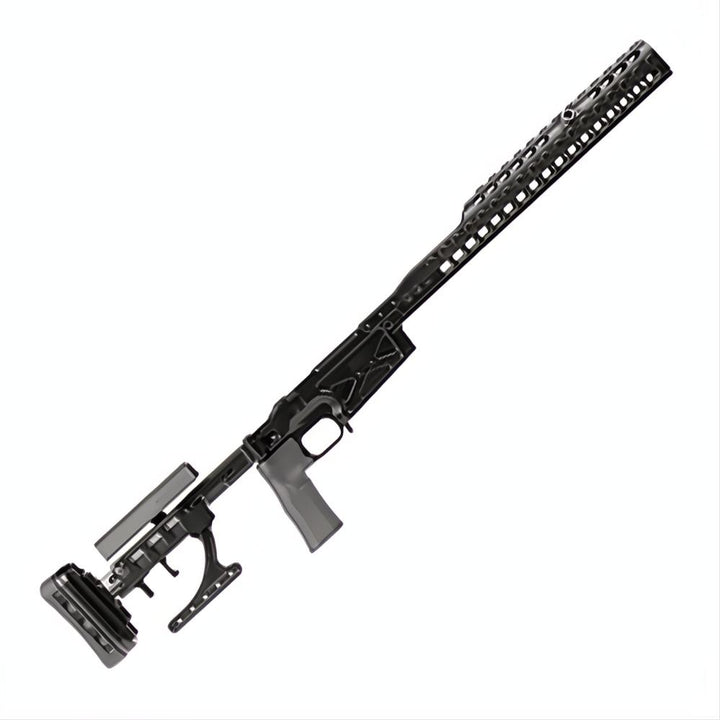

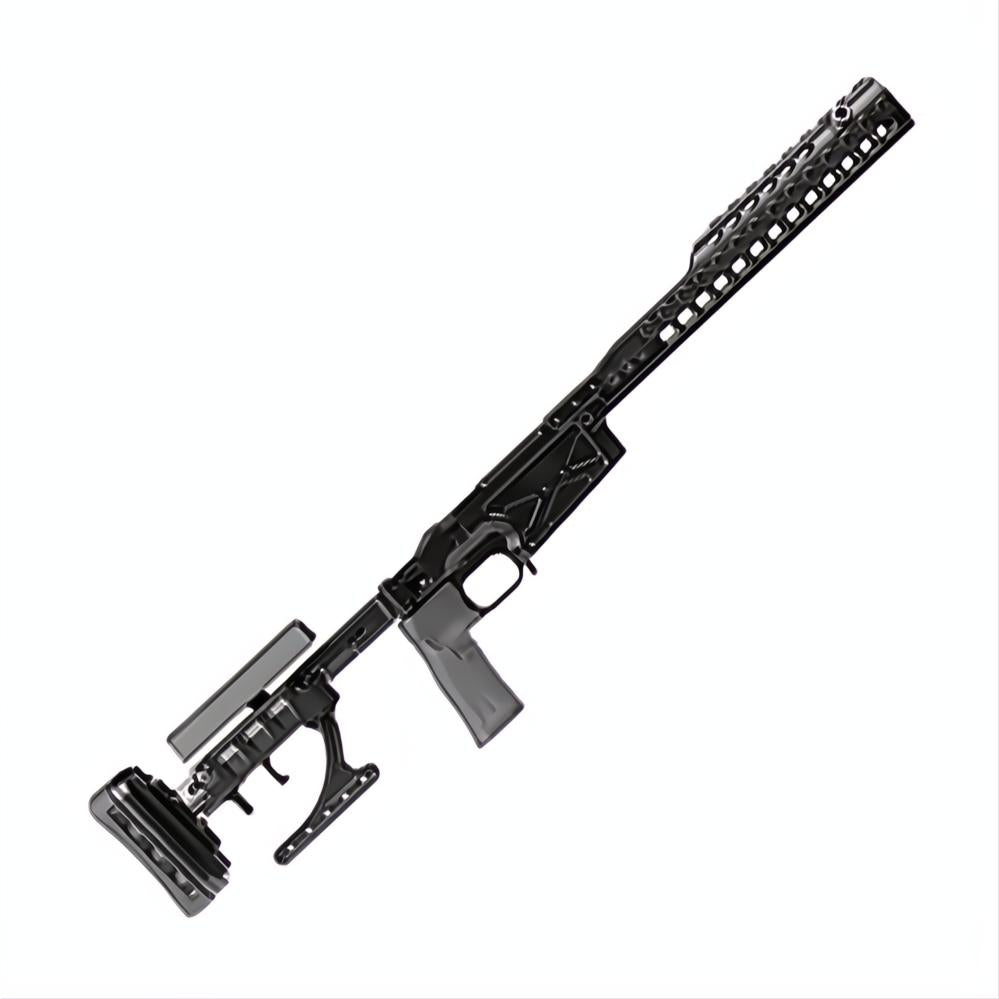

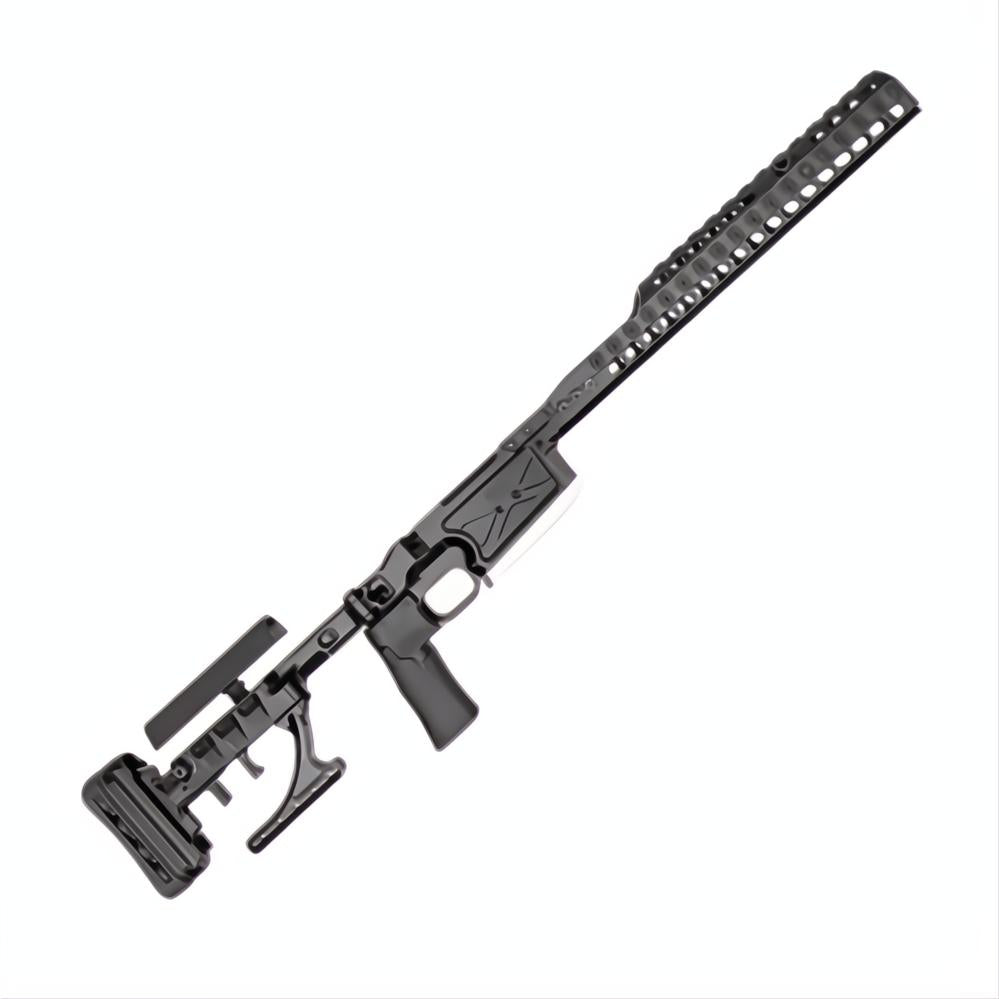

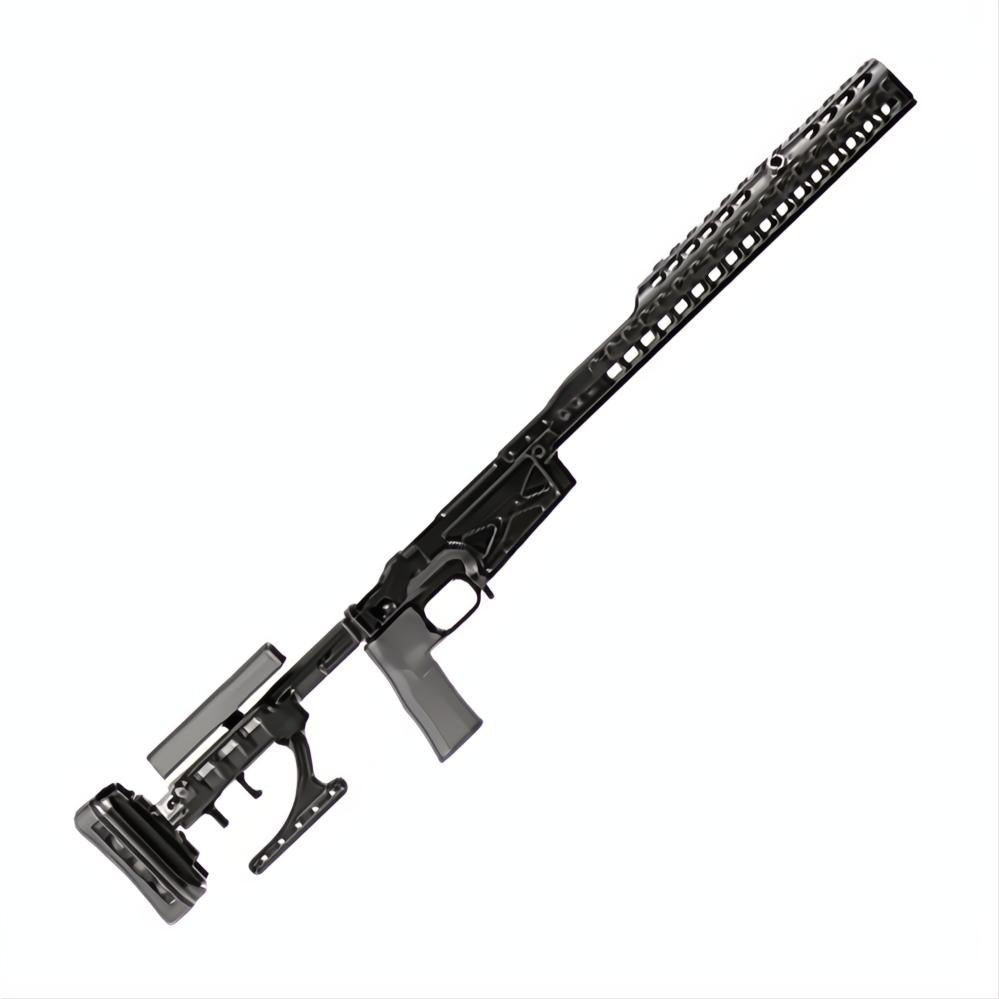

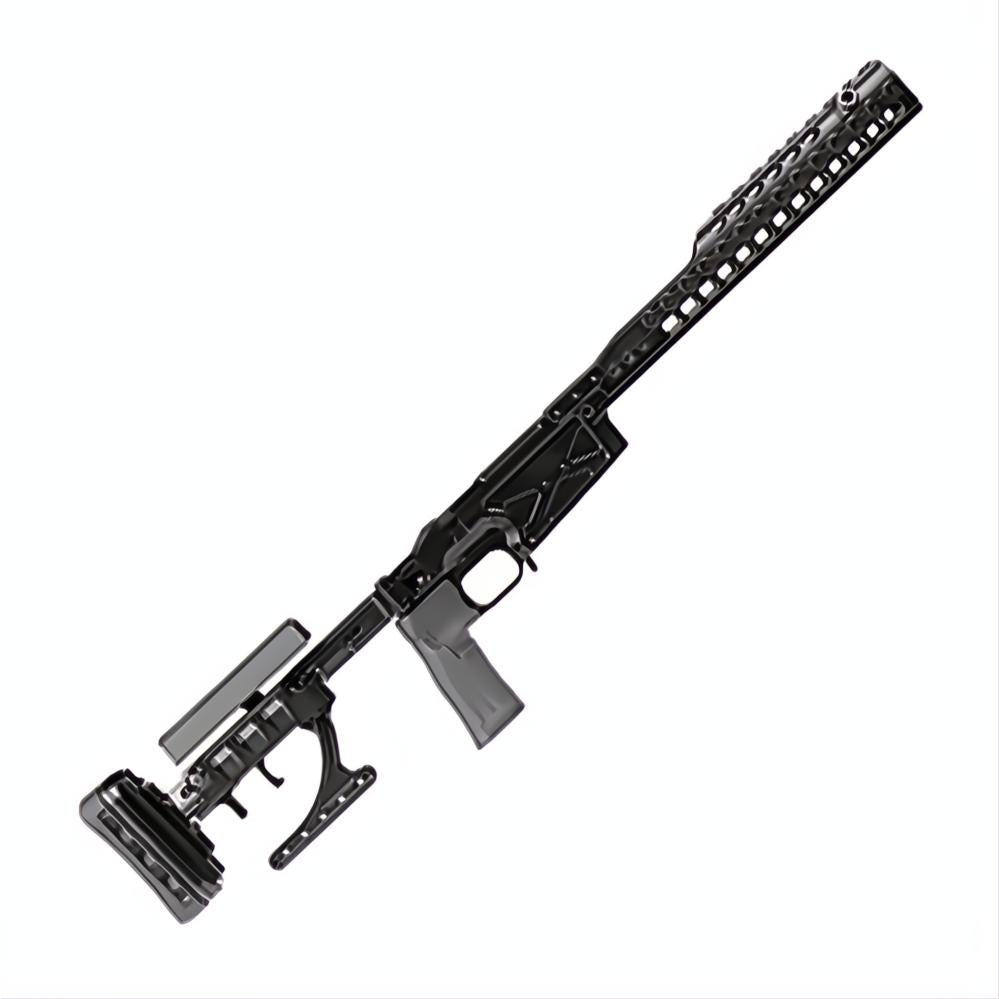

Spuhr Chasis

Features Spuhr Interfaces along the top of the for-end for use with NV devices and illuminators, etc.

Please note, The folding stock function will be disabled if you state doesn't allow it, no damage to the stock occurs in the process.

Specifications: Length: 975 mm/38.4" (685 mm/27.0" folded)

Width: 48.5 mm/1.9"

Height: 180 mm/7.1"

Weight: 2.42 kg/5.34 lb

Forend: 406 mm/16.0"

Color: Black

The Spuhr Ideal Chassis System (SICS) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy. The SICS features:

III Aircraft grade aluminum alloy construction

III Folding stock assembly with adjustment for solid lockup

III Quick-adjustable length-of-pull (50 mm/1.97" travel) and recoil pad height (32 mm/1.25")-toolless and without play III Height and length-adjustable cheek piece

III Length-adjustable proprietary pistol grip (8 mm/0.32" travel, AR-compatible)

III 16" Spuhr Interface forend with integrated ARCA Swiss rail and QD sling cups

III AICS pattern magwell - not for AI AX magazines

III Built-in barricade stop

Note:

III As the Tikka T3/T3x actions have a 28 mm/1.102" front face diameter, even a straight bull barrel matching the Tikka action's diameter will fit in the CH110 13" forend.

III Due to the narrow magwell in the Tikka T3/T3x actions, some plastic magazines may not seat properly without modification.

´
