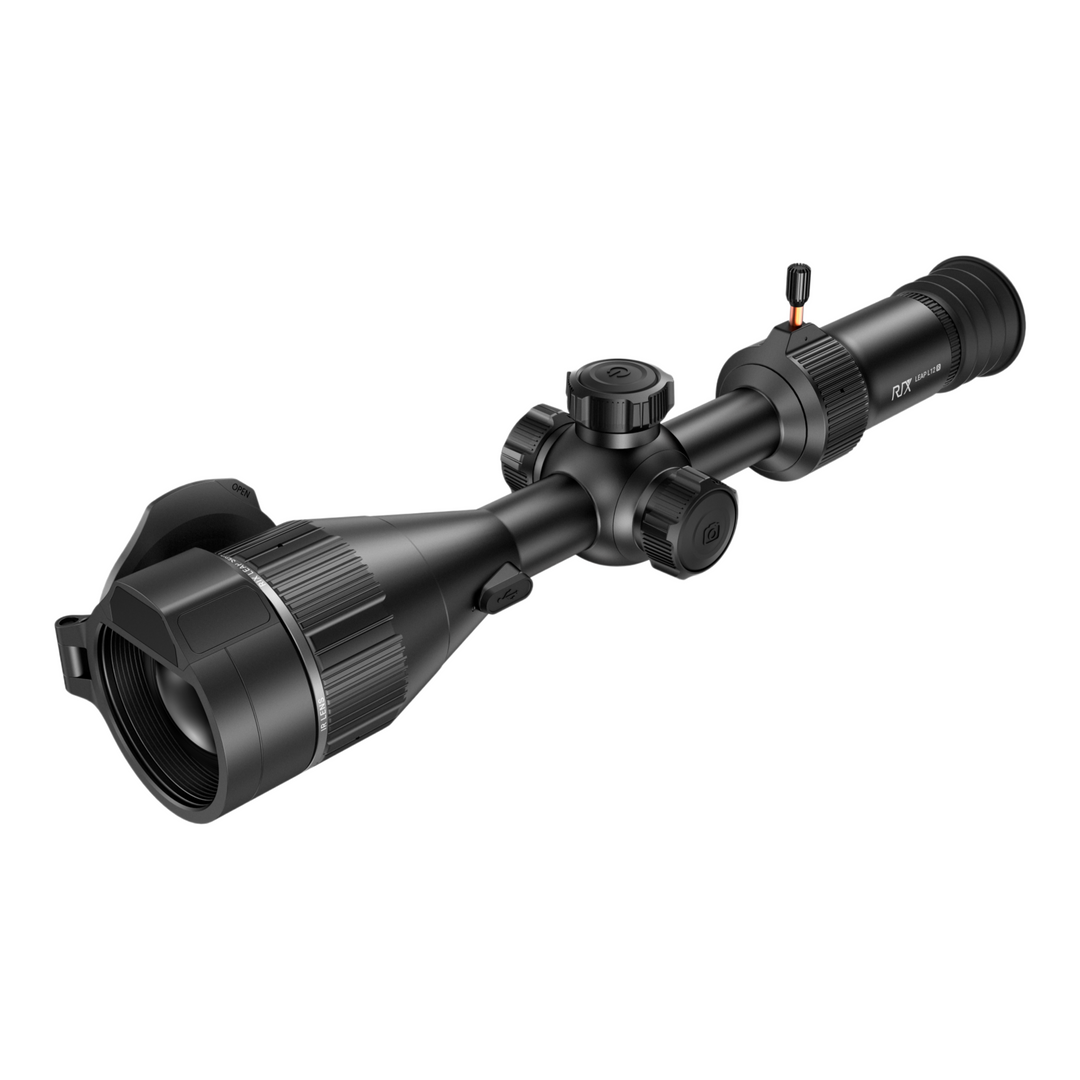

The RIX Optics LEAP is a thermal riflescope with continuous optical zoom and a laser rangefinder built into the lens, feeding its ballistic calculator.
The LEAP L12R pairs a 1280 × 1024 thermal sensor with a 60 mm, F1.0 lens, rated by RIX to detect at up to 3,100 m and range targets out to 1,200 m. Battery life is quoted at 6.5 h and it is IP67 rated.
At a Glance
| 1280 × 1024 @ 12 µmThermal sensor | <15 mKSensitivity (NETD) | 60 mm, F1.0Objective lens |
| 3,100 mDetection range | 1,200 mLaser rangefinder | 1356 gWeight |
Key Features
- Continuous optical zoom – floating-lens zoom group gives smooth magnification without digital pixelation: 3.2-9.6× (L3R), 2.8-8.4× (L6R), 2-6× (L12R), plus digital zoom.
- Lens-integrated LRF to 1200 m – laser and optical axes are aligned inside the objective for ±1 m ranging without separate calibration; feeds the built-in ballistic calculator.
- Sensor and lens options – 384 × 288 35 mm F0.9 (L3R), 640 × 480 50 mm F0.9 (L6R) - NETD <20 mK, 50 Hz; L12R uses a 1280 × 1024 sensor, NETD <15 mK, 60 Hz with a 60 mm F1.0 lens.
- AMOLED eyepiece – 1920 × 1080 on L3R/L6R; L12R has a round 1.03-inch 2560 × 2560 AMOLED for a traditional scope-like view. 50 mm eye relief.
- Large knobs and buttons – three large knobs and two oversized buttons work in the dark or with gloves; L12R maps each knob to one on-screen function.
- Return to Center (RTC) and fine reticle – reticle re-centres on the Y axis after zeroing; L3R/L6R zero in 0.35 MOA steps.
- Recoil rated to 1000 g – RIX rates LEAP for calibres such as .375 H&H, 12-gauge and 9.3×64; IP67, mounts in 30 mm rings with a Picatinny QD mount supplied.
- Recording and RIX+ app – 1280 × 720 (L3R/L6R, 32 GB) or 1280 × 1280 (L12R, 64 GB) photo/video; Wi-Fi streaming and firmware updates.
Best For
- Long-range night shooting with built-in ranging
- Deer and pig hunting across gullies and paddocks
- Shooters who want optical rather than digital zoom
Specifications
| Detector | |
|---|---|
| Sensor type | VOx Uncooled |
| Resolution | 1280 × 1024 |
| Pixel pitch | 12 µm |
| Sensitivity (NETD) | <15 mK |
| Frame rate | 60 Hz |
| Optics | |
| Objective lens | 60 mm, F1.0 |
| Optical zoom | 2–6× |
| Field of view | 14.6° × 11.7° (25.6 × 20.5 m @ 100 m) |
| Digital zoom | 1 to 8× |
| Eye relief | 50 mm |
| Dioptre adjustment | -5 to +5 D |
| Display | |
| Screen | AMOLED |
| Display resolution | 2560 × 2560 |
| Range Performance | |
| Detection range | 3,100 m |
| Laser Rangefinder | |
| Maximum range | 1,200 m |
| Accuracy | ±1 m |
| Reticle & Zeroing | |
| Ballistic calculator | Yes, 5 Zeroing Profiles Supported |
| Recording & Connectivity | |
| Video / photo resolution | 1280 × 1280 |
| Storage | 64 GB |
| Wi-Fi | Support (RIX+) |
| App | RIX+ |
| Power | |
| Battery | 18650+Built-in rechargeable battery |
| Battery life | 6.5 h |
| External power | 5 V (Type-C USB) |
| Mounting & Recoil | |
| Recoil rating | 1000 g |
| Mounting | 30 mm rings |
| Physical & Environmental | |
| Water / dust protection | IP67 |
| Operating temperature | -20 to +50 °C |
| Weight | 1356 g |
| Dimensions (L × W × H) | 395 × 97 × 85 mm |
In the Box
- LEAP L12R
- Picatinny QD Mount (QDM-L02)
- Battery Charger
- 18650 Battery × 1 (70mm length)
- USB Type C Cable
- Thermal Target
- Lens Cloth
Watch It in Action
Frequently Asked Questions
How far can the LEAP L12R see?
RIX rates detection at 3,100 m — the distance at which a heat source shows on screen. Recognising what an animal is happens closer than that, and rain, fog and high humidity all shorten thermal range.
How does it mount, and what recoil can it take?
Mounting: 30 mm rings. Recoil rating: 1000 g.
How long does the battery last?
RIX quotes 6.5 h. Battery: 18650+Built-in rechargeable battery.
Does it connect to a phone?
Yes. It connects over Wi-Fi to the RIX+ app for live view, photo and video download and firmware updates.
Can I use a thermal or night-vision device for hunting in Australia?
Rules on thermal and night-vision equipment differ between states and between public and private land. Check your state's hunting and firearms regulations, and the conditions of any permit or property access, before using it in the field.
Australian stock, supported locally by RIX Optics Australia: a 3-year warranty on all complete RIX devices, extended by a further 2 years on registration for thermal devices with a 384 × 288 or higher sensor. Not sure which model suits your country or budget? Get in touch and we'll help you choose.
