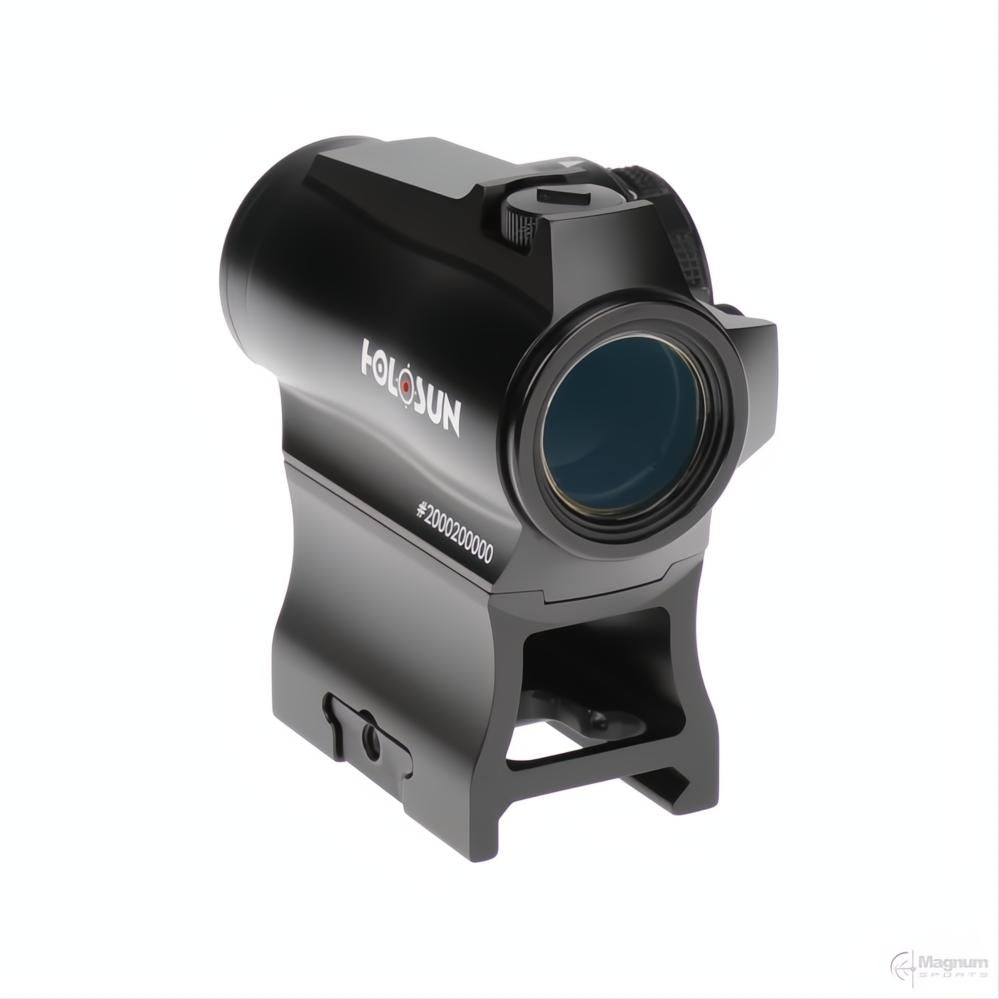

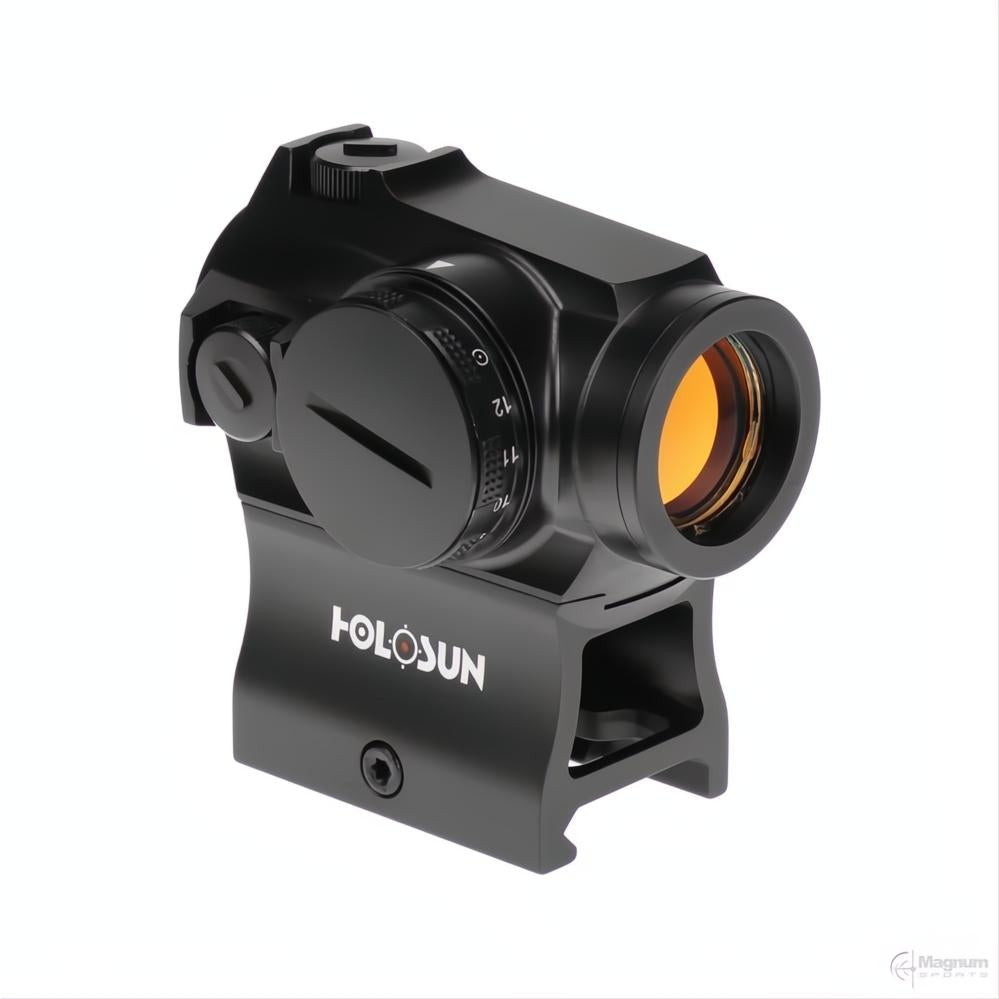

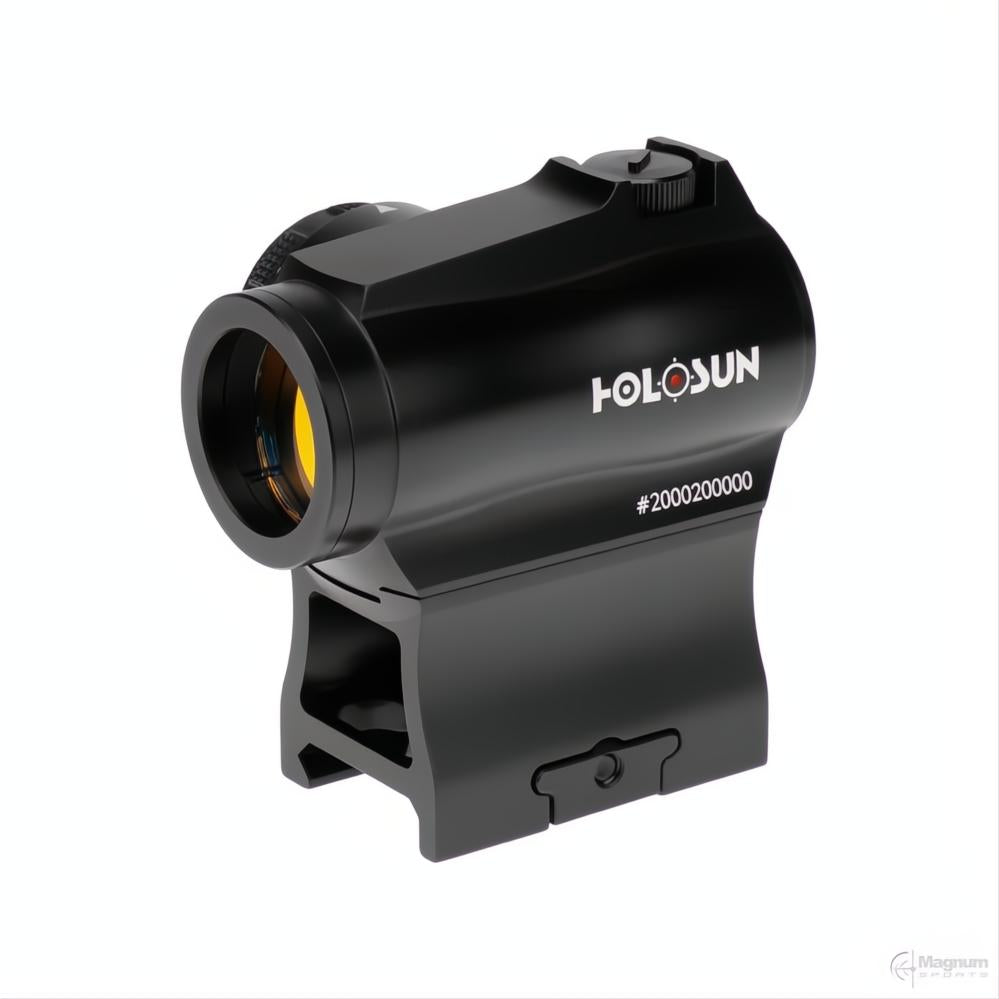

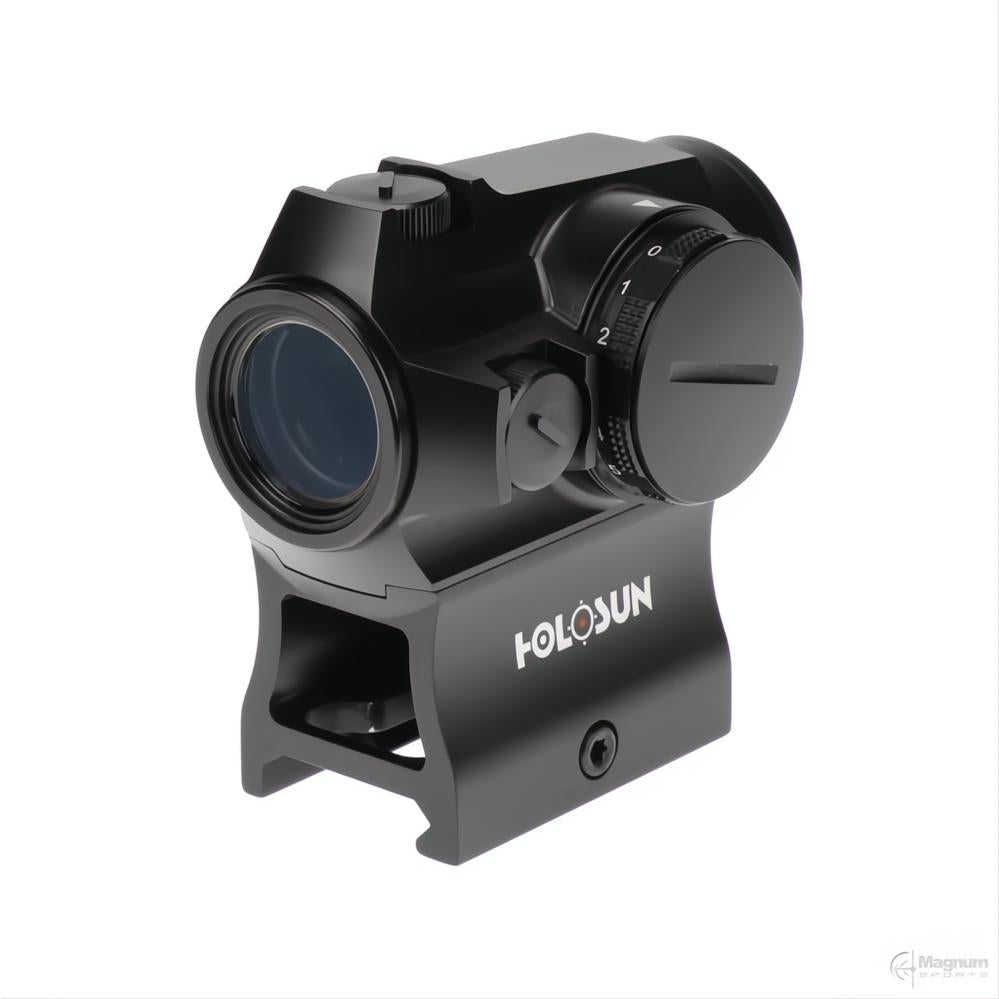

The HE503R-GD (Gold Dot) is a 20mm micro sight designed for rifle and carbine applications. HE503R-GD features a Rotary switch to select reticle intensity, Holosun’s Gold Super LED with 50k hour battery life, and MRS (Multi-Reticle System) with 10 daylight and 2 night vision compatible reticle intensity settings.
The HE503R-GD housing is made from 6061 aluminum and includes both a lower 1/3 co-witness mount (1.63”) and a low mount (.75”) for low-comb height rifle applications. Additional features include rubber lens covers, and a battery compartment integrated into the Rotary switch for the 2032 battery. HE503R-GD is a versatile sight for users of all levels.
Features
- Multiple Reticle System
- Super LED
- Multilayer Reflective Glass
- Gold MRS:2 MOA Dot; 2 MOA Dot & 65 MOA Circle
- Up to 100,000 Hours Battery Life (Setting 6)
- 12 Brightness Setting: 10 DL & 2 NV Compatible
- Rotary Battery Compartment
- Parallax-free & Unlimited Eye Relief
In the Box
- Lower 1/3 Cowitness Mount
- Low Profile Mount
- T10 L Key
- Rubber Cover
- User Manual
- CR2032 Battery
- Lens Cloth
OPTICAL SPECS
| Reticle |
2 MOA Dot |
| Light Wavelength |
590nm |
| Reticle Color |
Gold |
| Parallax Free |
Yes |
| Unlimited Eye Relief |
Yes |
| Magnification |
1x |
| Multi-Coatings |
Yes |
ELECTRONIC SPECS
| Power Source |
Battery |
| Battery Type |
CR2032 |
| Battery Life (Hours) |
50000 |
| Brightness Setting |
10 DL&2 NV |
PHYSICAL SPECS
| Window Size |
20mm Diameter |
| Dimension (in) |
2.75×1.43×1.62 |
| Weight (oz) |
3.53 |
MECHANICAL SPECS
| Housing Material |
6061 T6 Aluminum |
| Surface Finish |
MAO |
| Adjustment per Click |
0.5 MOA |
| W&E Travel Range |
±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature |
-40‚ÑÉ~70‚ÑÉ |
| Working Temperature |
-30‚ÑÉ~60‚ÑÉ |
| Submersion |
IP67 |
| Vibration |
1000G |
