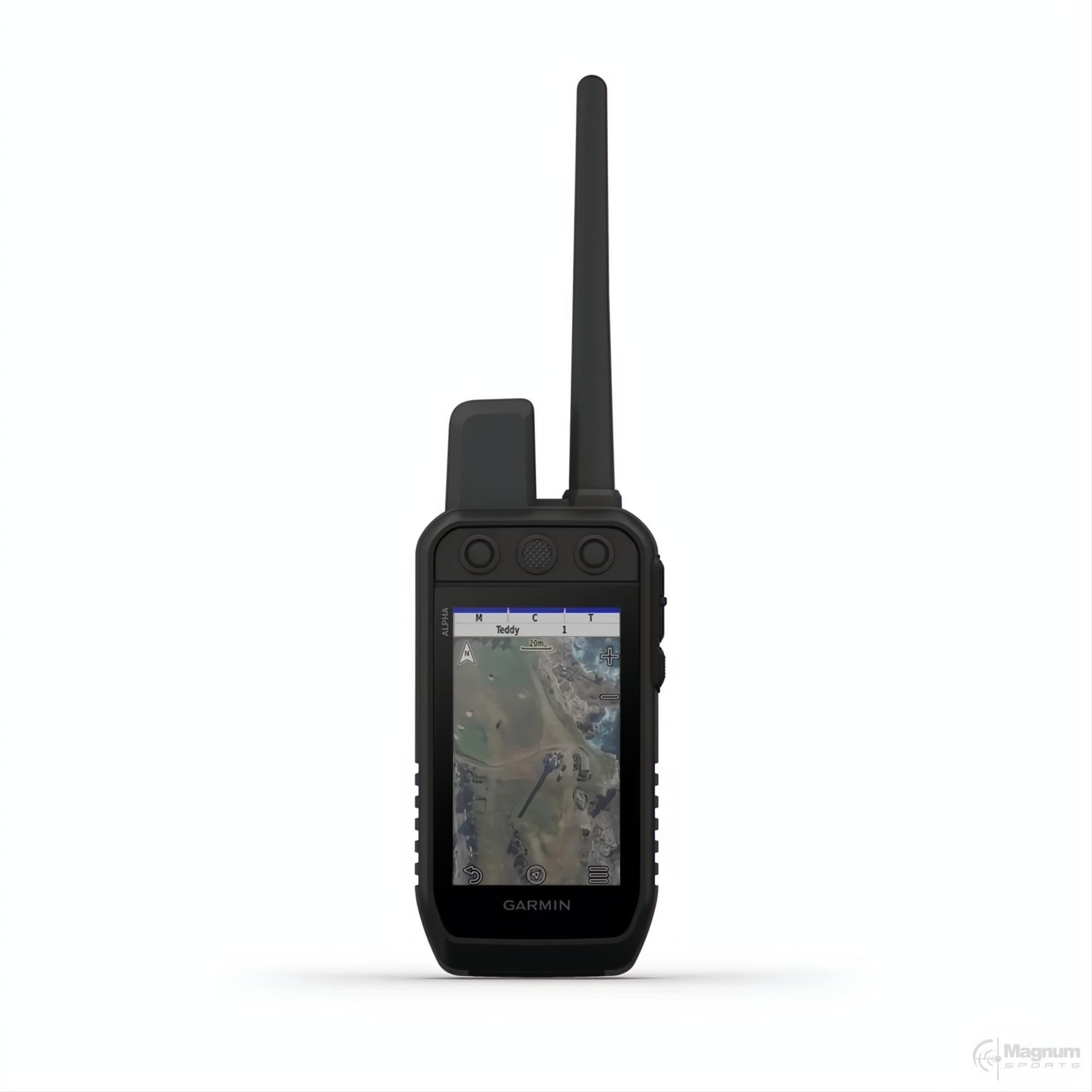

Track and train your dogs with the Alpha® 200, Handheld Only system, featuring a sunlight-readable 3.50″ capacitive touchscreen and user-friendly, six-button design1.
This handheld is designed to help make tracking and training simple, accessible and fast.
Track and train your pack while they’re out in the field.
Keep inactive dogs in the system for easier setup and management.
Navigate every hunt with the best in Garmin mapping and sensors.
User-replaceable battery lasts up to 20 hours.
Sagebrush plateaus, rolling prairies, dense hardwoods, rocky ridges no matter where you hunt, you and your dogs need reliable gear. Track and train your dogs in the field1 with the Alpha 300 handheld, featuring a new vivid 3.5" touchscreen and user-friendly 6-button design. Track your dogs in the field1 with the Alpha 300 handheld, featuring a new vivid 3.5" touchscreen and user-friendly 6-button design.
See your maps and track your dogs on an even brighter 3.5" display with up to a 2.5-second update rate. Easily interact with the device on a responsive touchscreen, even with gloves on, and read the screen in a variety of light conditions.
Monitor the concentration of collars in the area, and easily select less congested channels to avoid interference.
Monitor up to 20 dogs with your compatible dog collars from up to 14.5 kilometres away on the colour touchscreen display.
Use dedicated buttons for fast training cues and command initiation. Select from 18 levels of momentary and continuous stimulation. Hunters can also issue different levels of audible tone or vibration commands.
See critical hunt metrics, such as distance, speed and time afield, right on the dog info screen.
Download satellite imagery via Wi-Fi technology to your device, and see the terrain features from above to help you navigate or find suitable habitat for your quarry.
General | |
---|---|
Dimension | 2.70 x 6.40 x 1.30″ (6.80 x 16.20 x 3.40 cm) *dimensions do not include antenna |
Weight | 9.90 oz (280 g) with standard antenna and battery |
Water rating | IPX7 |
Touchscreen | Yes |
Display Type | Transflective, colour TFT touchscreen |
Display Size | 1.80″ W x 3.0″ H (4.70 x 7.70 cm); 3.50″ diag (88.90 mm) |
Display Resolution | 282 x 470 pixels |
Battery type | rechargeable lithium-ion (included) |
Battery life | Up to 20 hours |
Memory/History | 16 GB |
Interface | High-speed USB |
Maps & Memory | |
---|---|
Preloaded maps | Yes (TopoActive) |
Ability to add maps | Yes |
Basemap | Yes |
Automatic routing (turn by turn routing on roads) for outdoor activities | Yes (with optional mapping for detailed roads) |
Satellite imagery | Yes, direct to device (no annual subscription required) |
External memory storage | microSD™ card (not included) |
Waypoints/favorites/locations | 10,000 |
Tracks | Up to 20 assets (any combination of compatible dog devices and handhelds) |
Navigation Track Log | 20,000 points, 200 saved gpx tracks, 300 saved fit activities |
Navigation Routes | 250 |
Stored contacts | 250 dogs |
Group management | Yes |
Sensors | |
---|---|
GPS | Yes |
Galileo | Yes |
Barometric altimeter | Yes |
Compass | Yes (tilt-compensated 3-axis) |
High-sensitivity receiver | Yes |
Daily Smart Features | |
---|---|
Compatible with Garmin Messenger app | Yes |
Safety and Tracking Features | |
---|---|
LiveTrack | Yes |
Tactical Features | |
---|---|
XERO™ Locations | Yes |
Outdoor Recreation | |
---|---|
Point-to-point navigation | Yes |
Area calculation | Yes |
FISH FORECAST | Yes |
Sun and moon information | Yes |
Custom maps compatible | Yes |
Radio Features | |
---|---|
Frequency band | VHF |
Channels | 5 |
Range | T 5, 14.50 kilometres; T 5 mini, 14.50 kilometres |
Location reporting (send and receive GPS positions) | Yes |
Vibration alert | Yes |
Contacts | Yes |
Outdoor Applications | |
---|---|
Compatible with Garmin Explore™ app | Yes |
Garmin Explore website compatible | Yes |
Dog tracking | Yes |
Connections | |
---|---|
Connections Wireless Connectivity | Yes (Wi-Fi®, Bluetooth® and ANT+®) |
