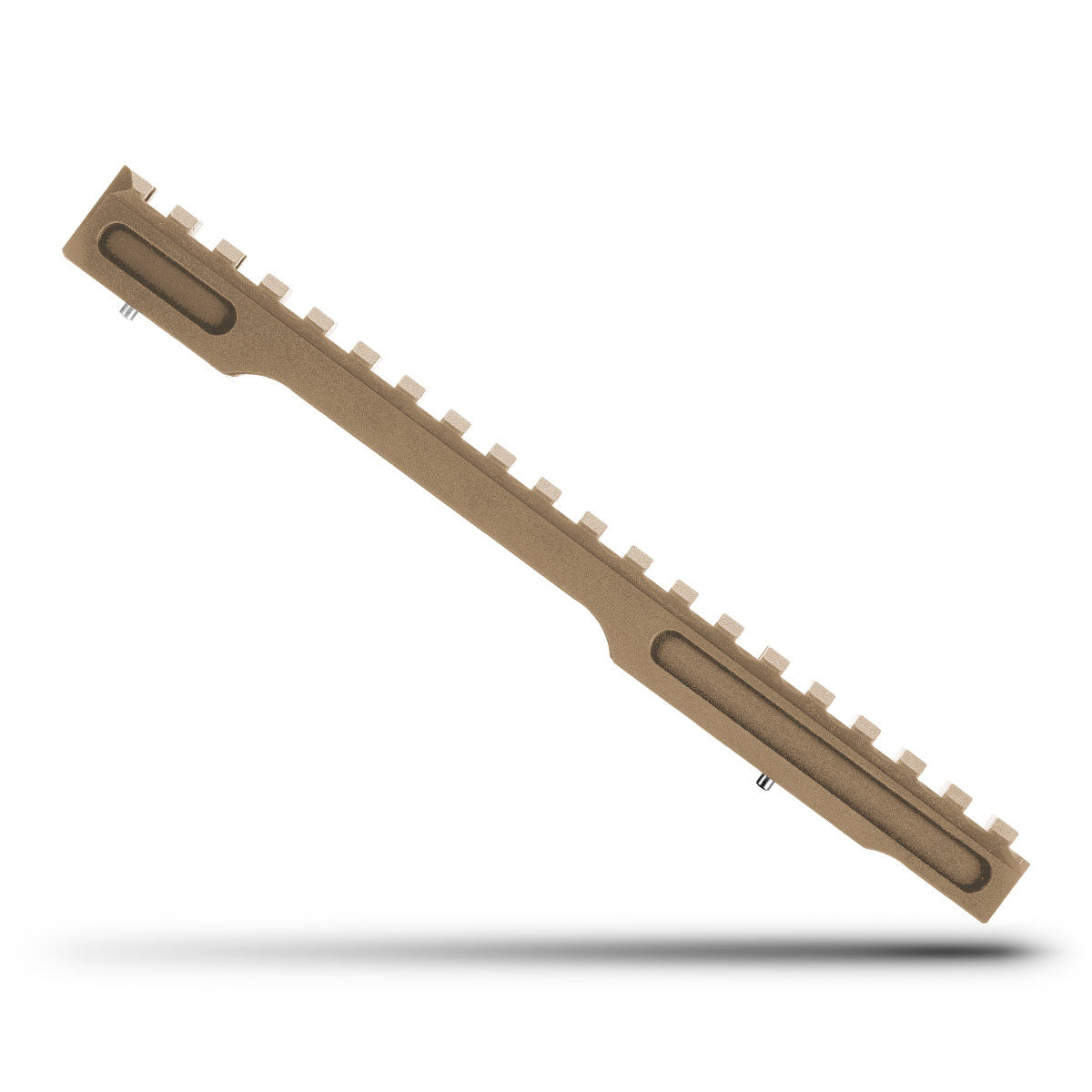

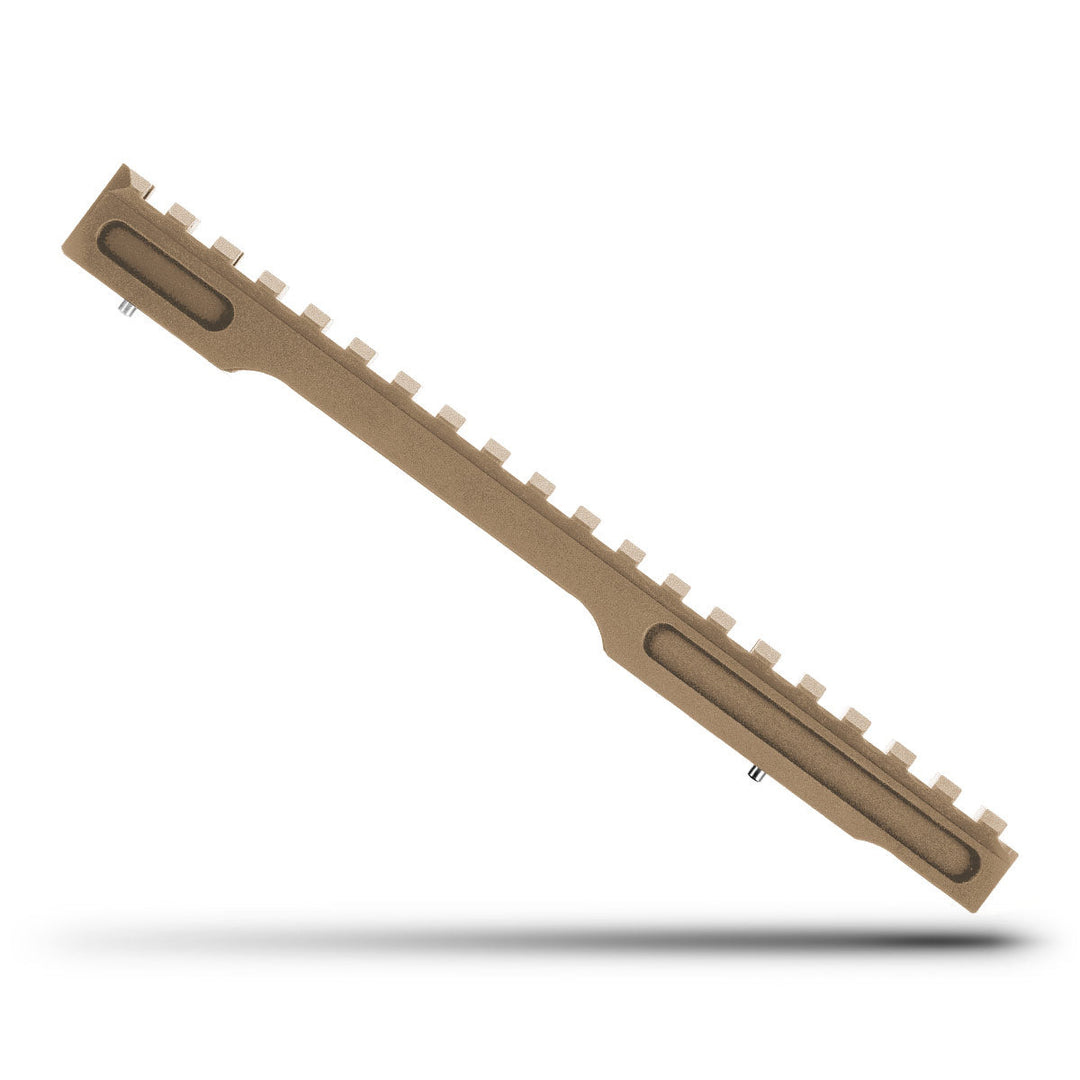

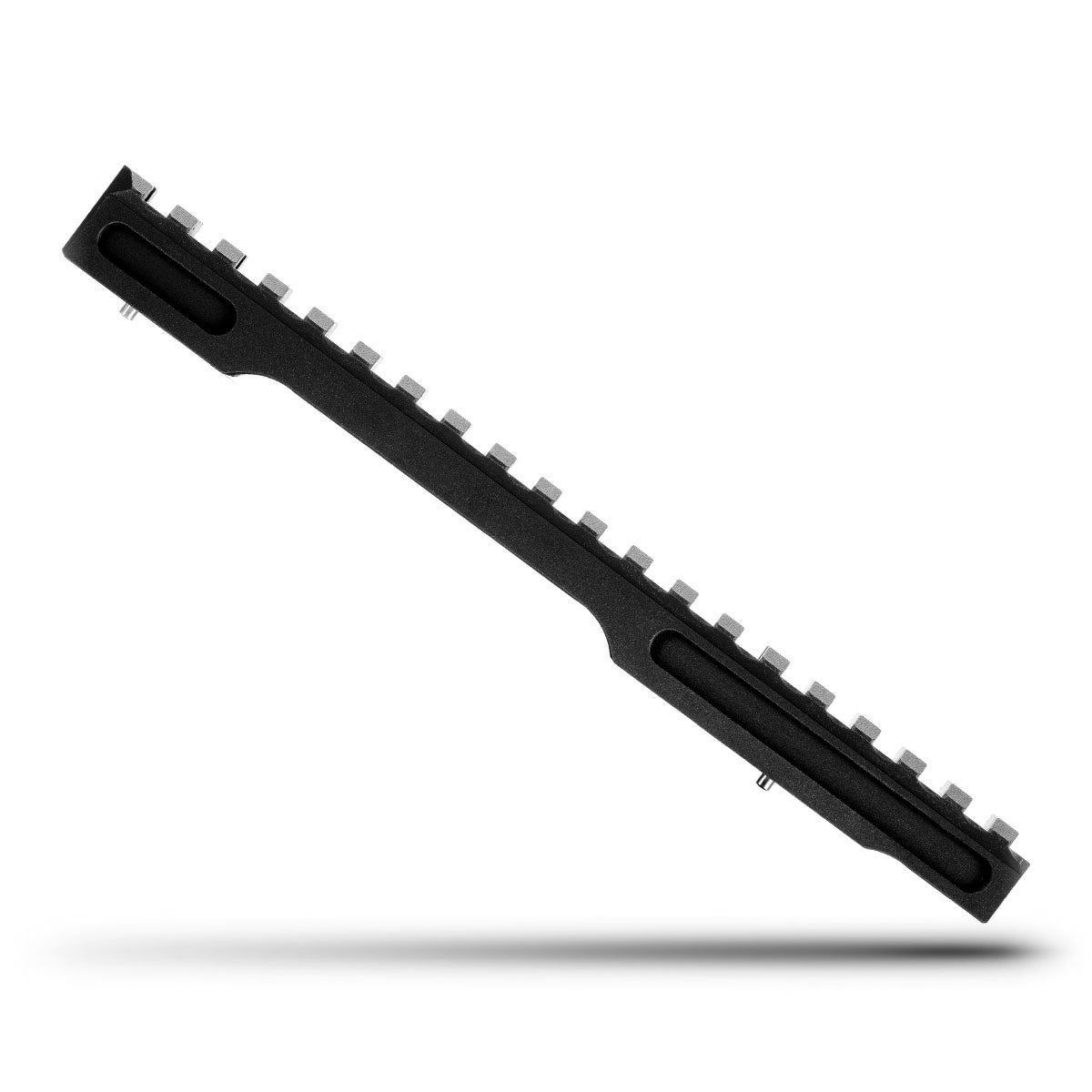

The MDT 20 MOA High Scope Base is a Picatinny scope base from MDT (Modular Driven Technologies), makers of precision rifle chassis systems, stocks and accessories. Available by action (Remington 700 SA, Remington 700 LA, Tikka T3/T3x SA, Savage SA); colour (Black, FDE).
Install your optics seamlessly on your ESS chassis system bolt action rifle with our 20 MOA ESS Scope Base Rails.
Details
MDTs ESS Scope Base Picatinny Rails are designed to make the mounting of your optics easier. They are machined from 6061-T6 aluminum, then hard-anodized black for a durable finish. The underside of the rails are profiled to allow the rail to be mounted flush on the receiver and to match the geometry of the ejection port. These rails are designed with a 20 MOA incline providing additional elevation adjustment from your scope*. A recoil lug has been integrated in the underside rail profile on models where the actions design allows for this feature.
* Additional elevation adjustment will vary based on your scope specifications.
MIL-STD-1913 & STANAG 4694 spec rails
CNC machined from 6061-T6 aircraft grade aluminum
Contoured for snag-free operation
Hardware Included
#6-48 TORX screws (rail base drilled to accommodate #8-40 screws also)
Key Features
- Specifications
- Finished with Cerakote
- 20 MOA rail
- Integrated recoil lug**
- SA & LA options
- ** On select models only
Specifications
- Action options: Remington 700 SA, Remington 700 LA, Tikka T3/T3x SA, Savage SA
- Colour options: Black, FDE
