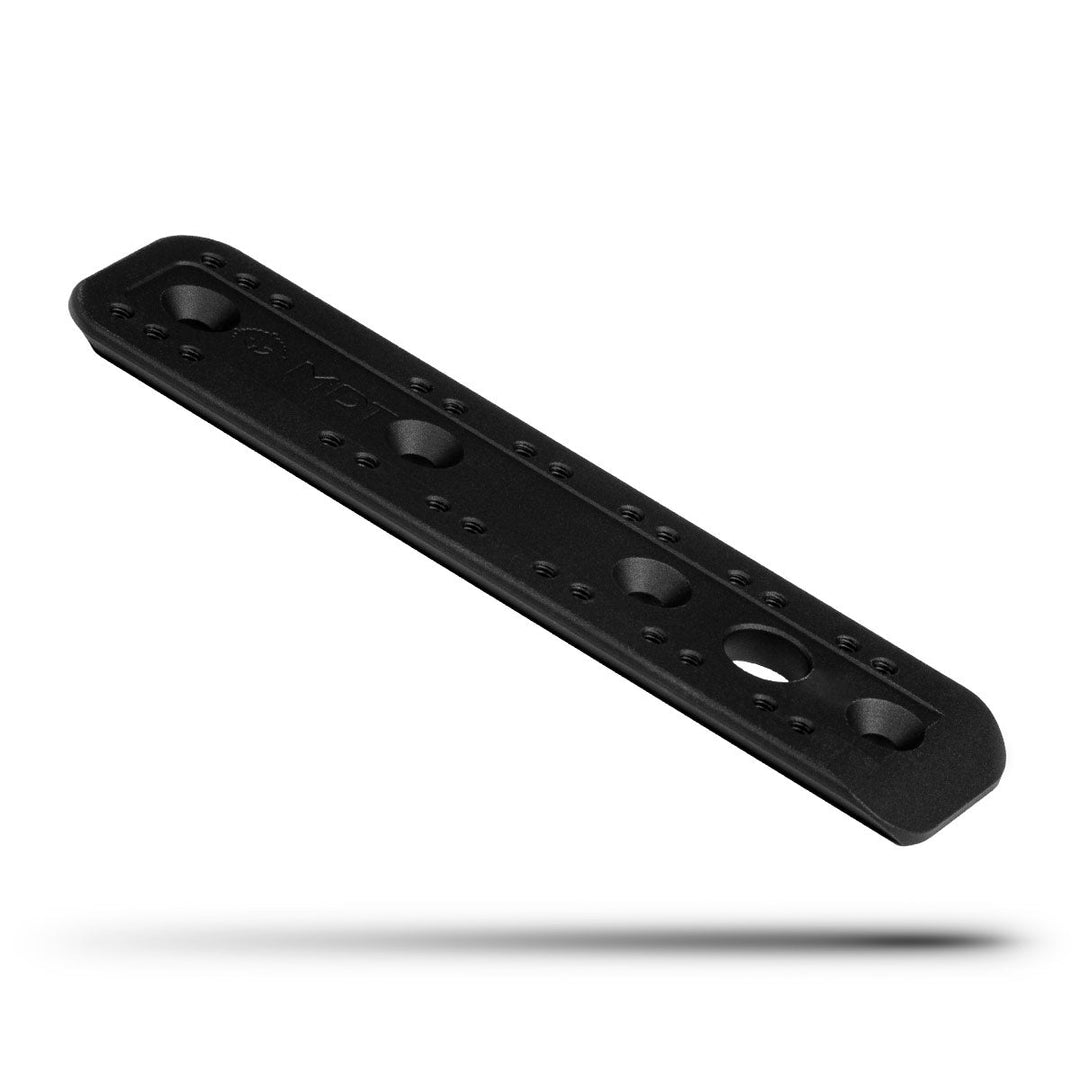

MDT Bolted Arca Rail - 6"

The MDT Bolted Arca Rail - 6" is a chassis accessory from MDT (Modular Driven Technologies), makers of precision rifle chassis systems, stocks and accessories.

Attach an ARCA Adaptor to a Magpul MOE interface.

Mil-spec Type II hard-black anodized aluminum ARCA adapters that attach to hand guards and forends with Magpul MOE spaced tapped holes. Features a flat profile, to allow infinite adjustment of ARCA accessories along the 6” section.

Details

Mil-spec Type II hard-black anodized aluminum Arca adapters that attach to hand guards and forends with Magpul MOE spaced tapped holes. Features a flat profile, to allow infinite adjustment of Arca accessories along the 6” section.

Specifications

Compatible with Magpul MOE hole spacing mounting systems commonly found on rifle chassis, stocks and handguards, including the MDT LSS, HS3, TAC21 (non M-Lok), LSS-22 and discontinued LSS-XL

6” of available mounting surface to fit a wide array of tripod adapters and accessories

26 drilled and tapped holes to allow proper indexing of accessories for increased consistency

Rearward overhang to allow mounting on a tripod closer to the rifles center of gravity

Angled front surface to ease tripod engagement and reduce snagging

Rounded edges to decrease shooter discomfort when shooting standing or unsupported

6061-T6 aluminum construction

Mil-spec Type II hard anodized finish to stand up to repeated usage

All of MDT's RRS/Arca dovetails are machined and checked to the Really Right Stuff (RRS) standard.
