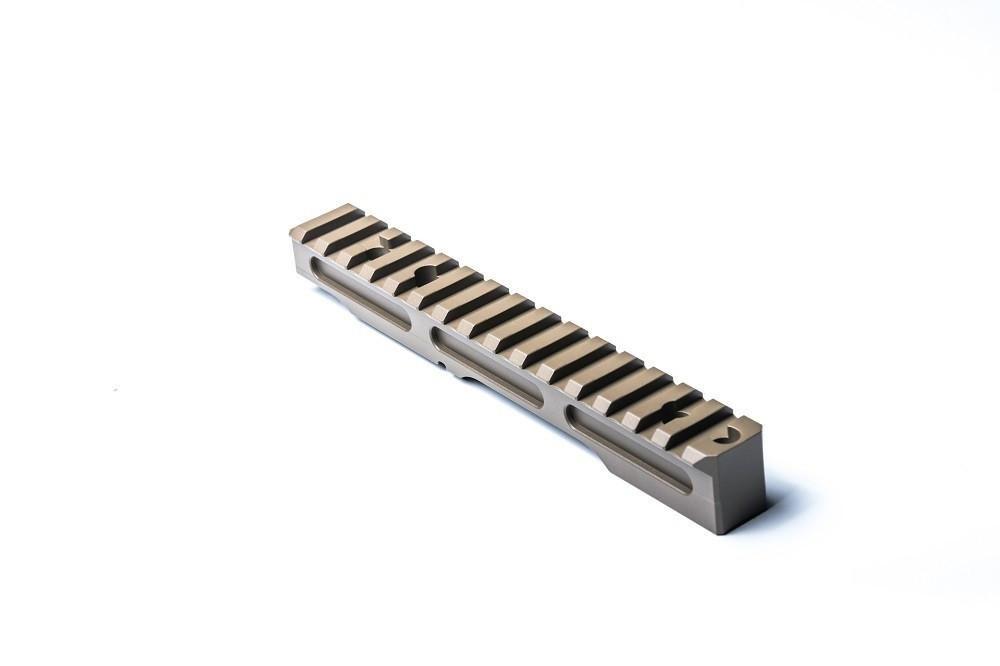

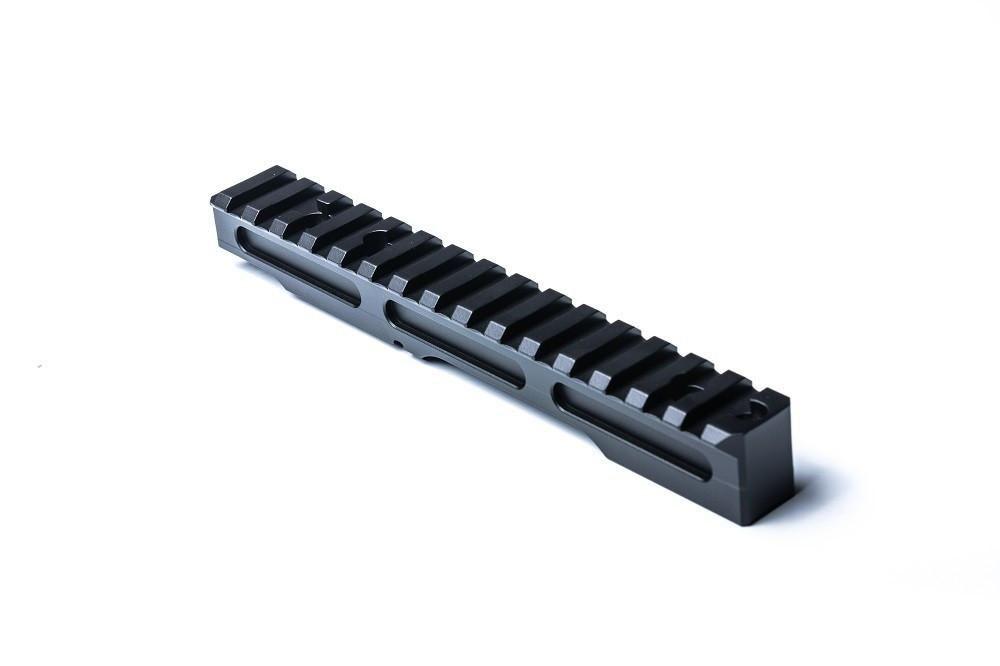

MDT ESS High Picatinny Scope Base

Designed specifically for the MDT ESS chassis, these high Picatinny scope bases sit at a height that lines up with the full and partial rail ESS forends, giving you a continuous mounting plane for optics and accessories. The underside is shaped to sit flush on the receiver and match the ejection port, while a built-in 20 MOA incline gives your scope extra elevation for long range shooting.

Key Features

• Height matched to MDT ESS full and partial rail forends
• 20 MOA incline for additional elevation adjustment (actual gain depends on your scope)
• Underside profiled to sit flush on the receiver and suit the ejection port
• Integrated recoil lug on select models where the action allows
• Contoured for snag-free handling

Specifications

• Standard: MIL-STD-1913 and STANAG 4694 Picatinny
• Material: CNC machined 6061-T6 aluminium
• Finish: Mil-Spec Type III hard anodised, Black or FDE
• Hardware: #6-48 Torx screws included; base also drilled for #8-40 screws

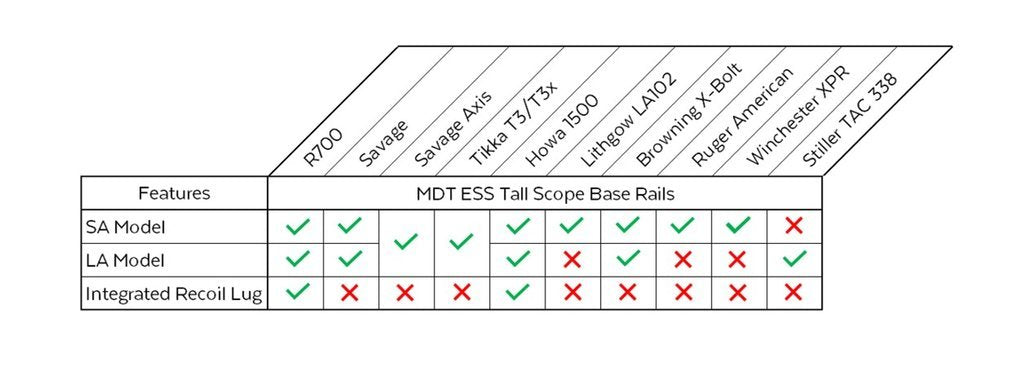

• Fitments offered: Browning X-Bolt SA, Daniel Defense Delta 5 SA, Howa 1500 SA and LA, Lithgow 102 SA, Ruger American SA, Savage Axis SA/LA, Savage LA, Stiller TAC 338 LA, Winchester Model 70 SA, Winchester XPR SA
• Savage note: Fits round-back Savage receivers (early 2000s onward); will not fit older flat-back receivers
• Please measure your receiver's centre spread to confirm fit
