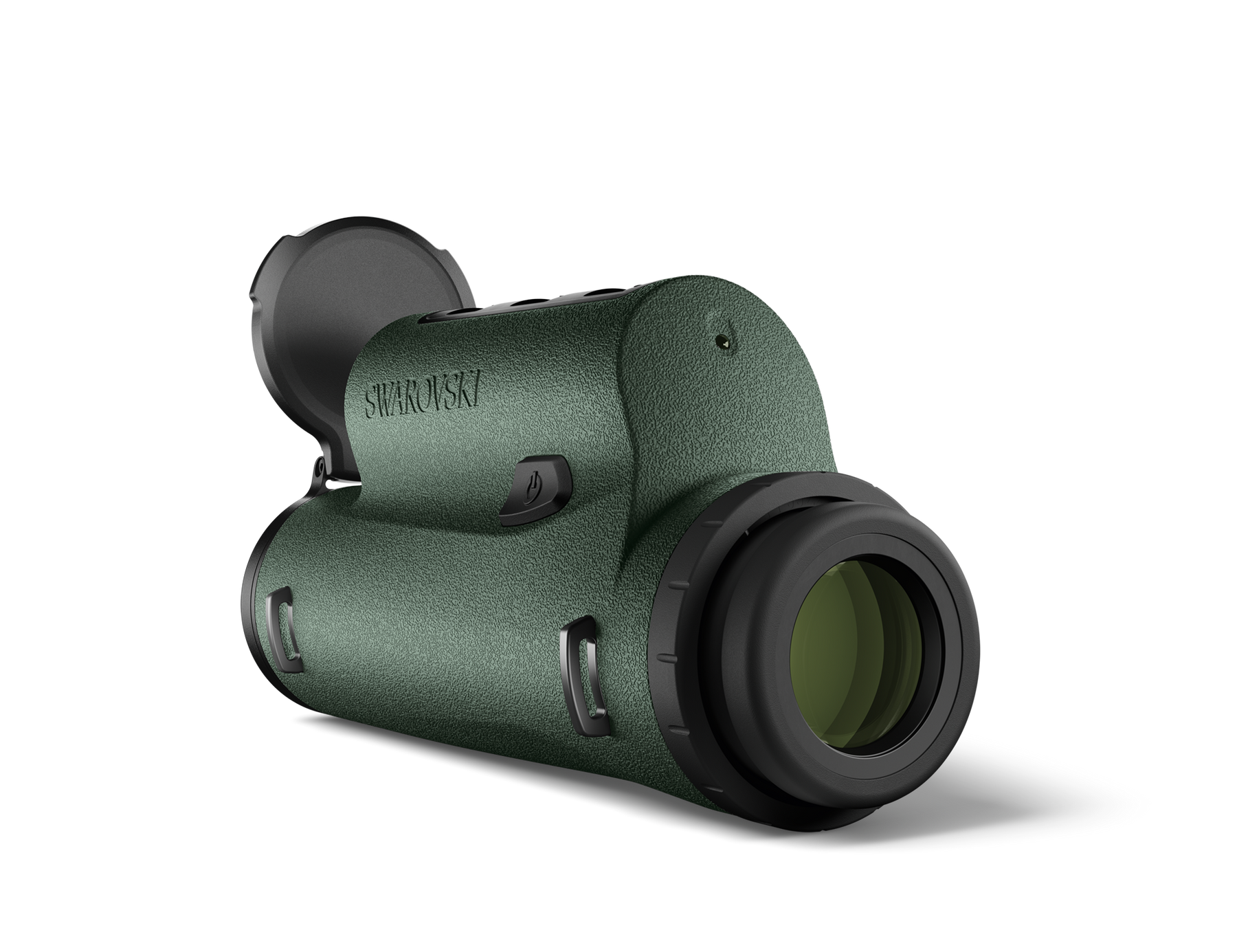

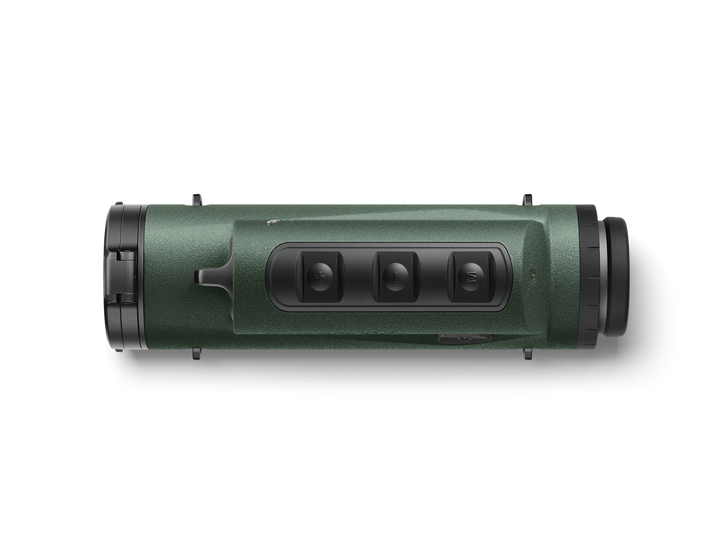

Swarovski tM 35+

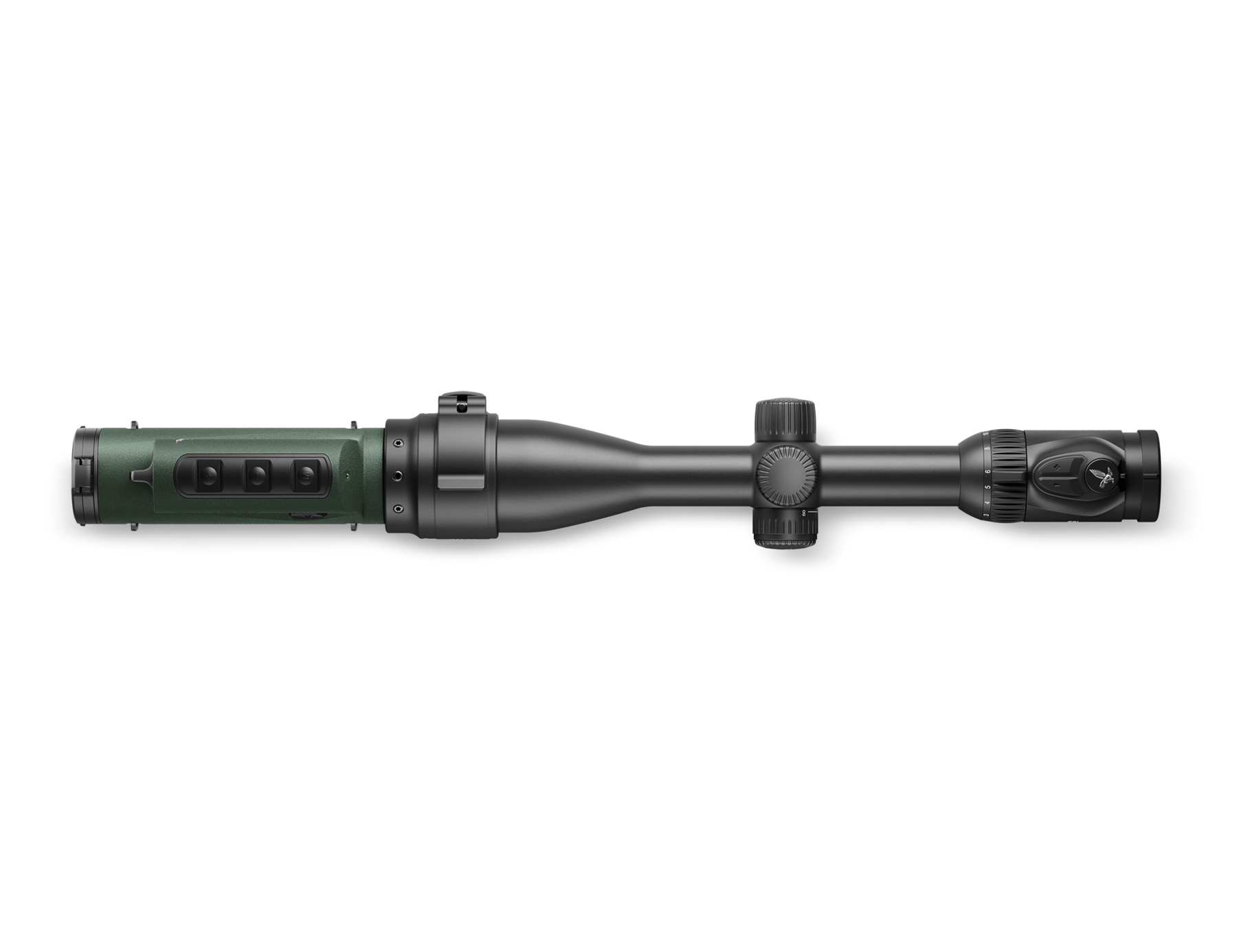

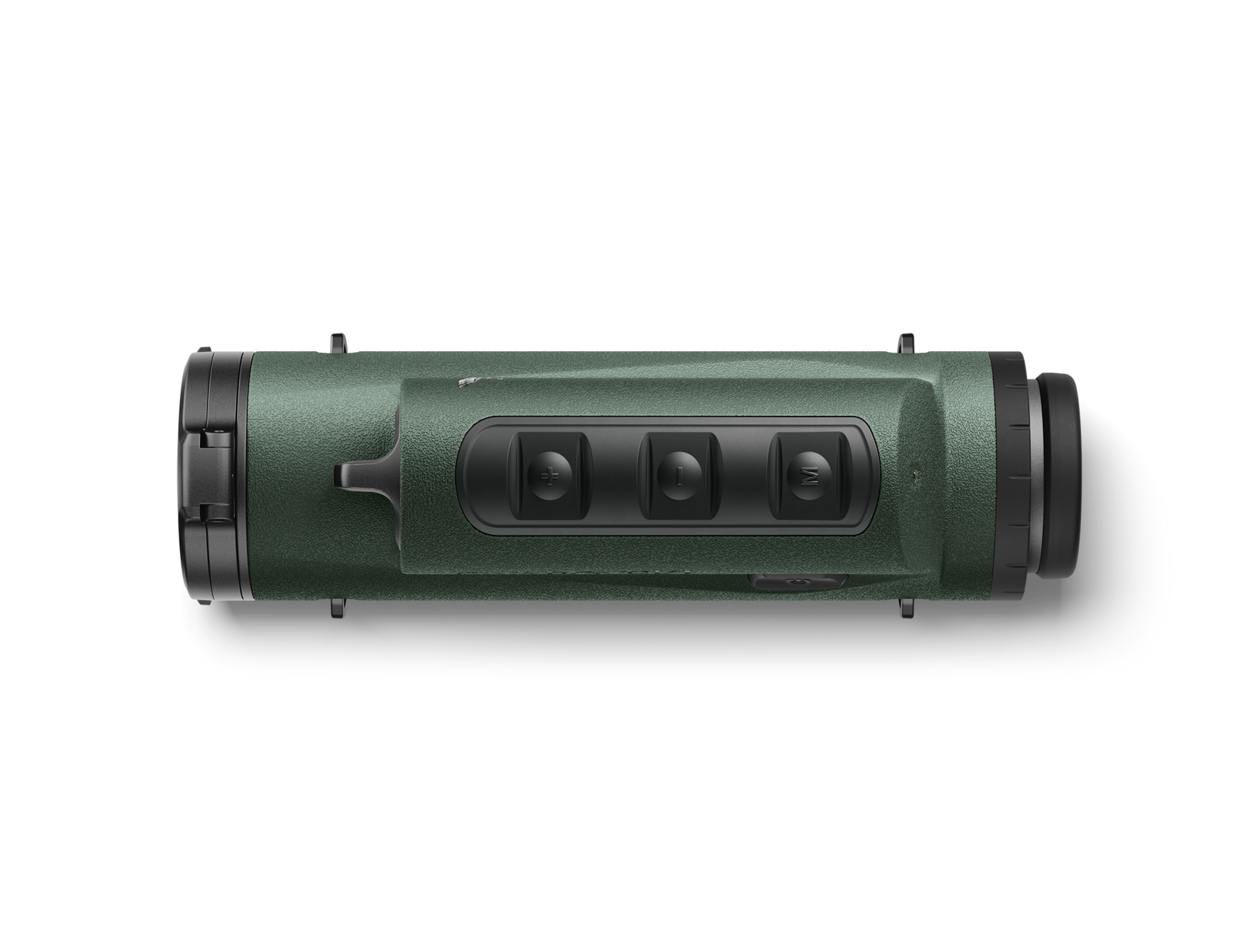

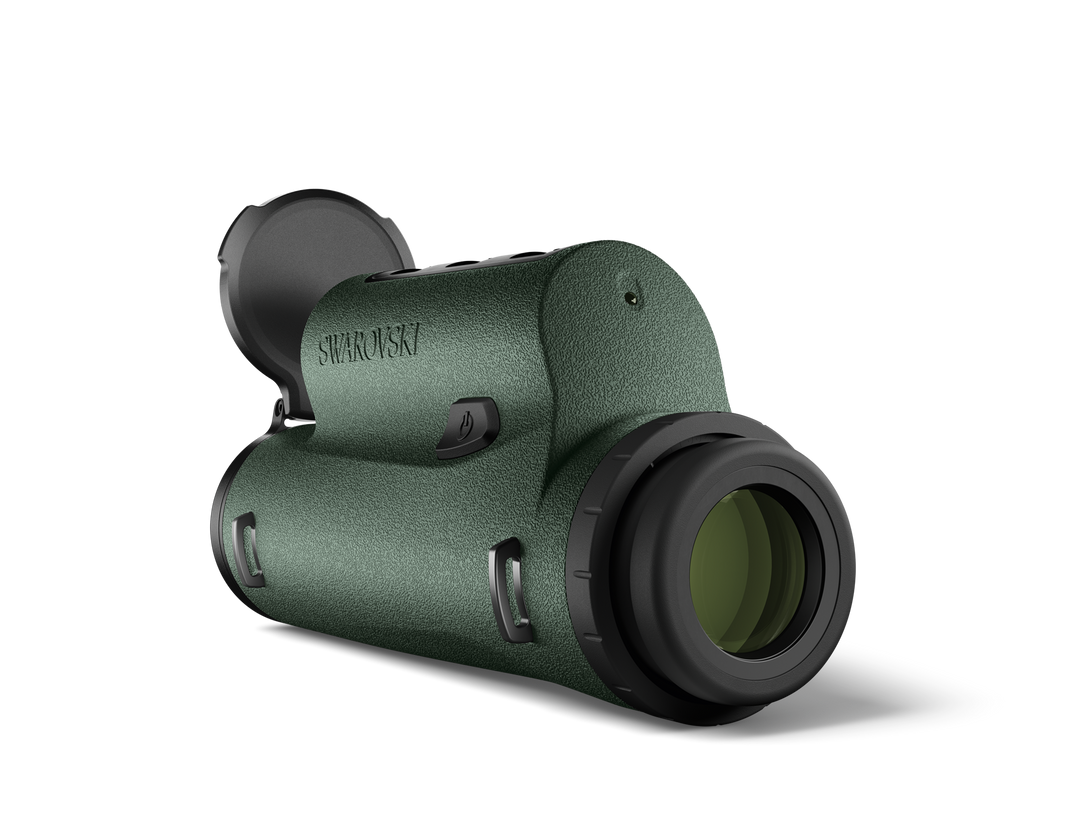

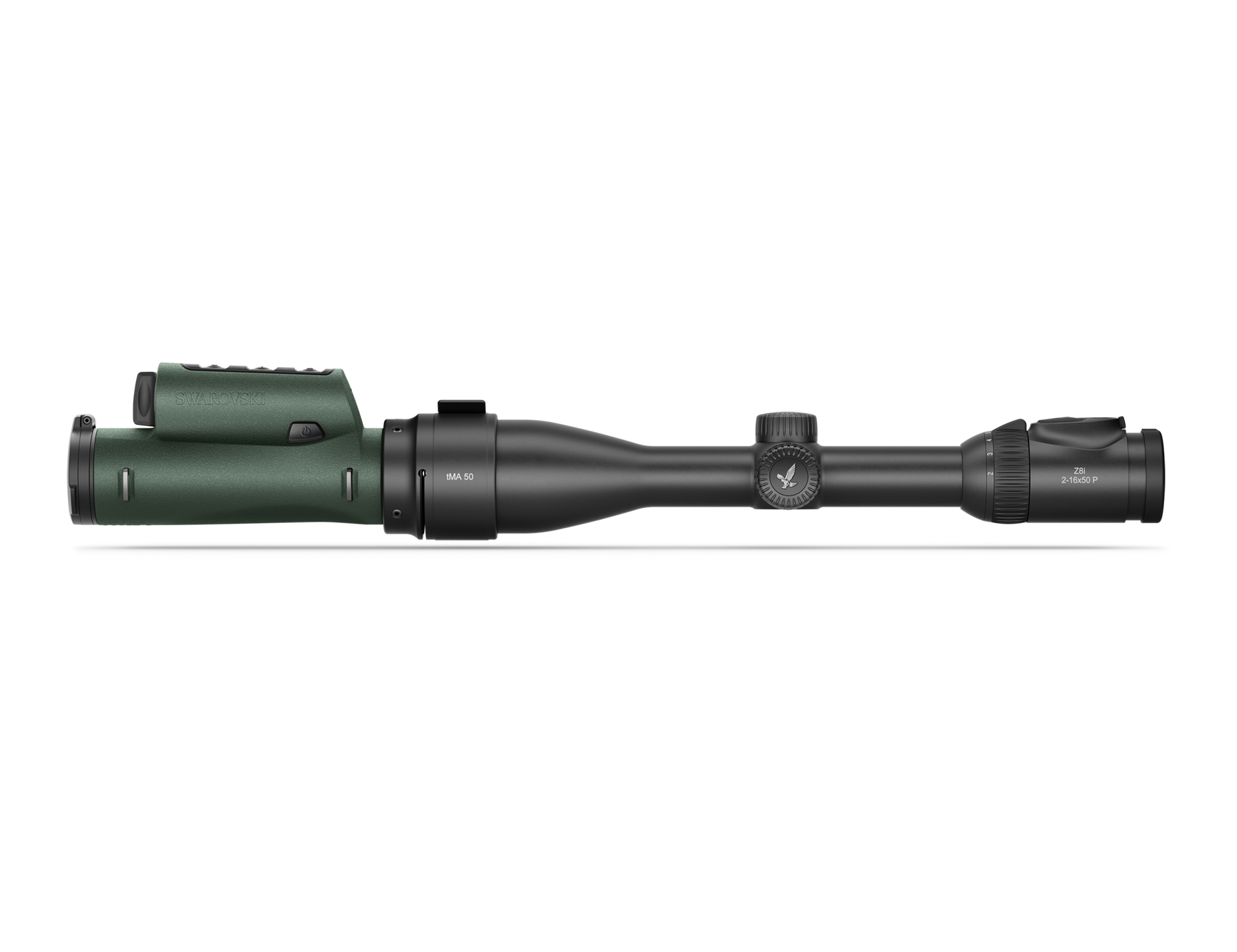

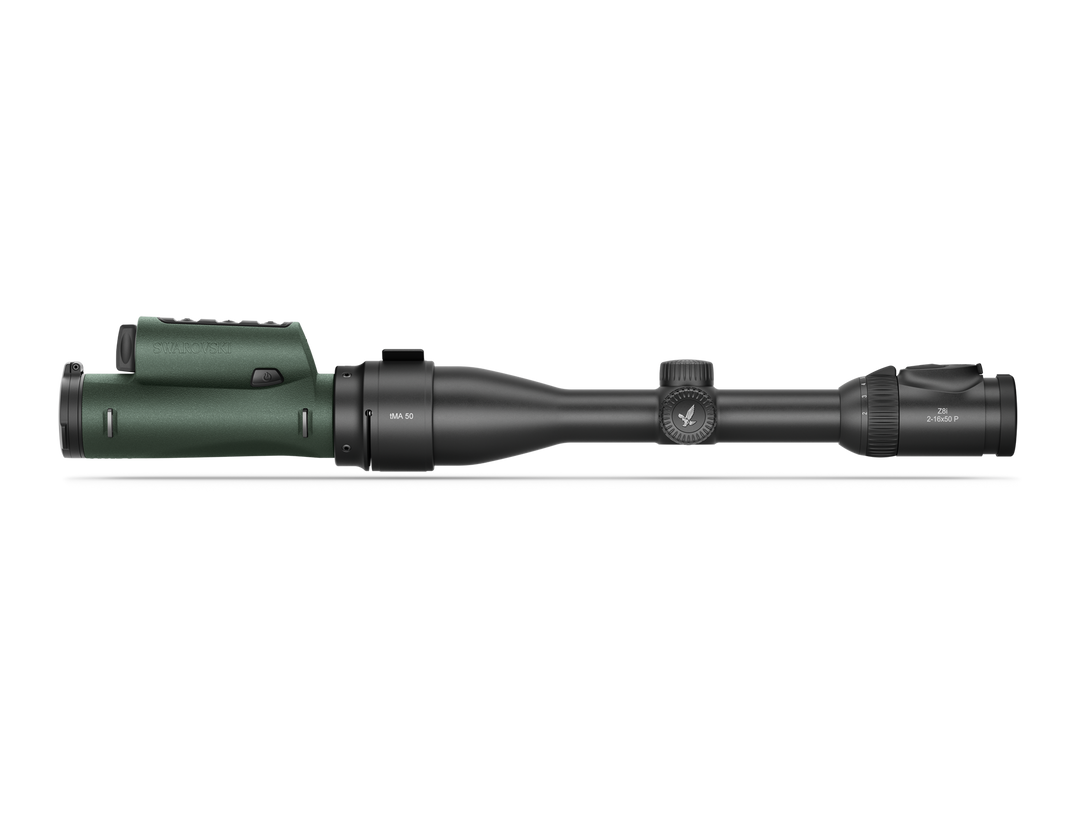

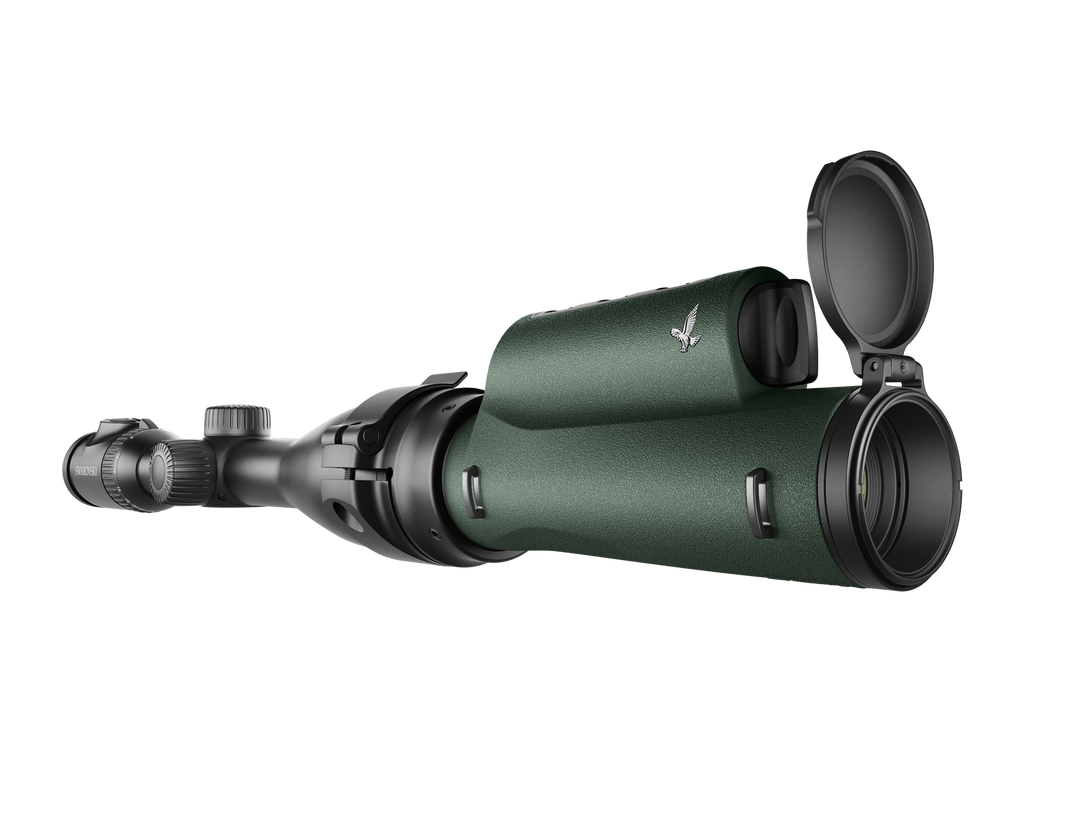

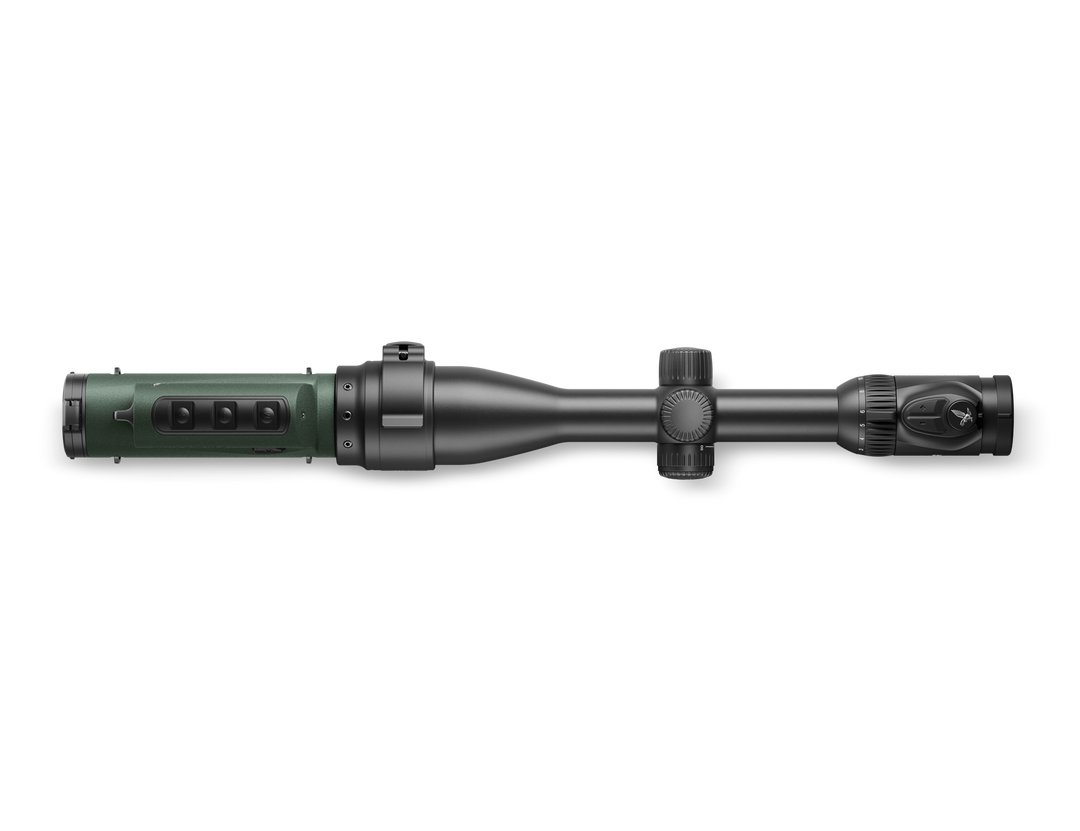

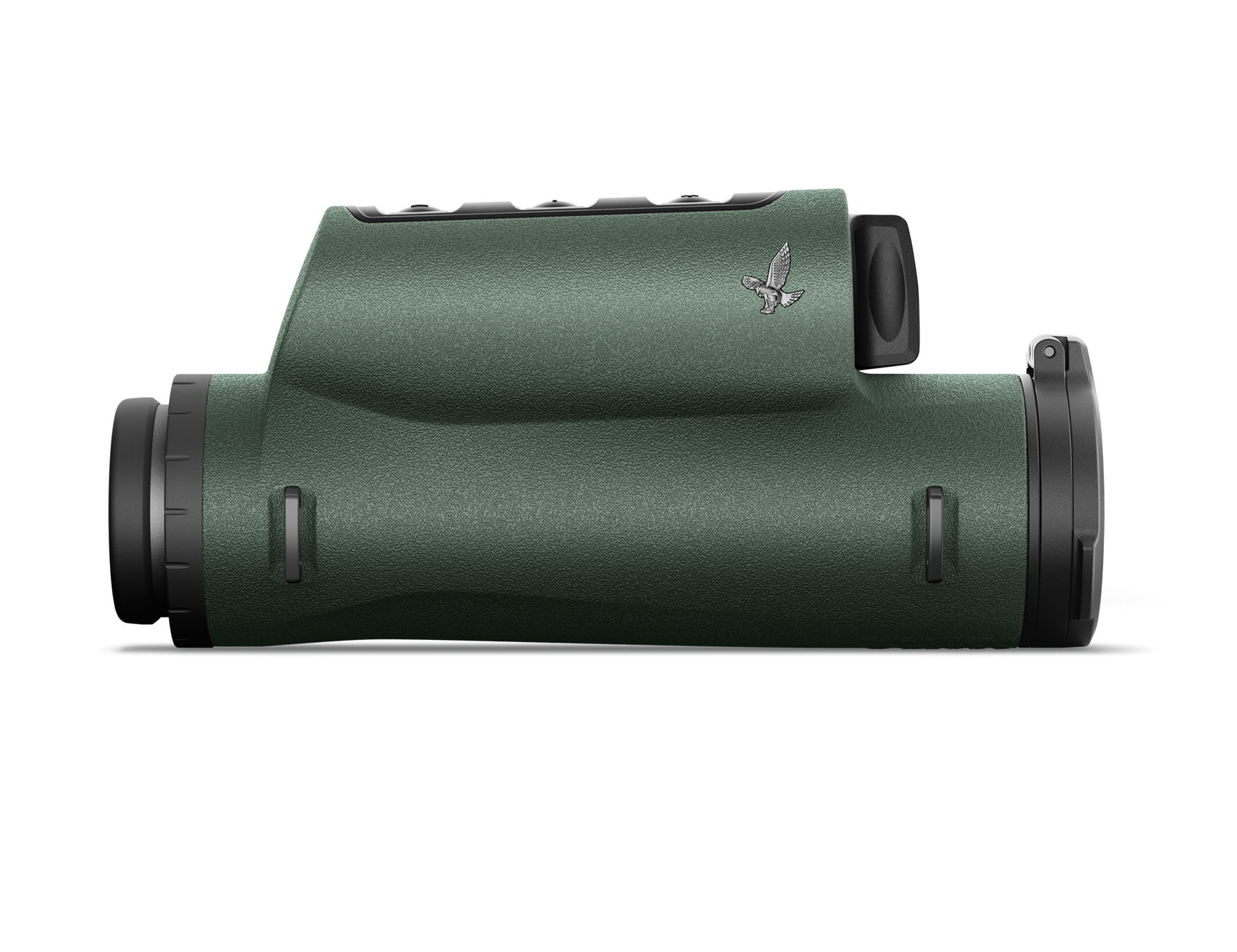

The tM 35+ is Swarovski Optik's combined thermal monocular and clip-on. Used in the hand it is a light, compact spotter for finding pigs, foxes and deer at dusk and in the dark; fitted to a Swarovski rifle scope with the matching tMA adapter it becomes a thermal clip-on with a guaranteed point of impact, so there is no re-zeroing when you move between day scope and thermal.

The 640x512, 12 µm sensor and 35 mm f/1.0 lens give a wide 21.6 x 17.4 m field at 100 m, and the 2560x2048 AMOLED display keeps the image sharp at 1x and 2x digital zoom. SWAROLIGHT switches the unit on and off with the rifle's angle, brightness adjusts itself, and White Hot or Black Hot modes are a button away. Battery life is around 6.5 hours from the RB tM 35 rechargeable, with a charger, sidebag, straps and covers in the box.

Compatible with the dS, Z8i and Z8i+, Z6i, Z5i and X5i; the tMA adapters are listed separately. Thermal imaging devices are not licensed items in NSW, but check the rules for your state and hunting ground before using one on a rifle.

Key Features

• Hand-held monocular and clip-on in one unit
• 640x512 VOx sensor, 12 µm pixels, 60 Hz
• 35 mm f/1.0 objective, 21.6 x 17.4 m field at 100 m
• 1x optical, 2x digital magnification
• SWAROLIGHT automatic on/off and brightness
• White Hot and Black Hot display modes
• IP68, 495 g, M44x0.75 thread for tMA adapters
• About 6.5 hours from one RB tM 35 battery

Specifications

• Sensor: Uncooled VOx microbolometer, 640x512, 12 µm
• Objective lens: 35 mm f/1.0
• Field of view: 21.6 x 17.4 m at 100 m
• Magnification: 1x optical, 2x digital
• Display: AMOLED 2560x2048, 60 Hz
• Eye relief: 21 mm
• Start-up time: 3 s
• Battery: Li-ion 3,000 mAh, about 6.5 h
• Dimensions: 170 x 54 x 80 mm
• Weight: 495 g
• Connection thread: M44x0.75
• Protection: IP68, -20 to +50 °C
• Maker code: NS-6F9AB000-0
• In the box: RB tM 35 battery, RBC charger, micro-USB cable, FSB-L sidebag, winged eyecup, carrying strap, hand strap, eyepiece cover, integrated objective cover
