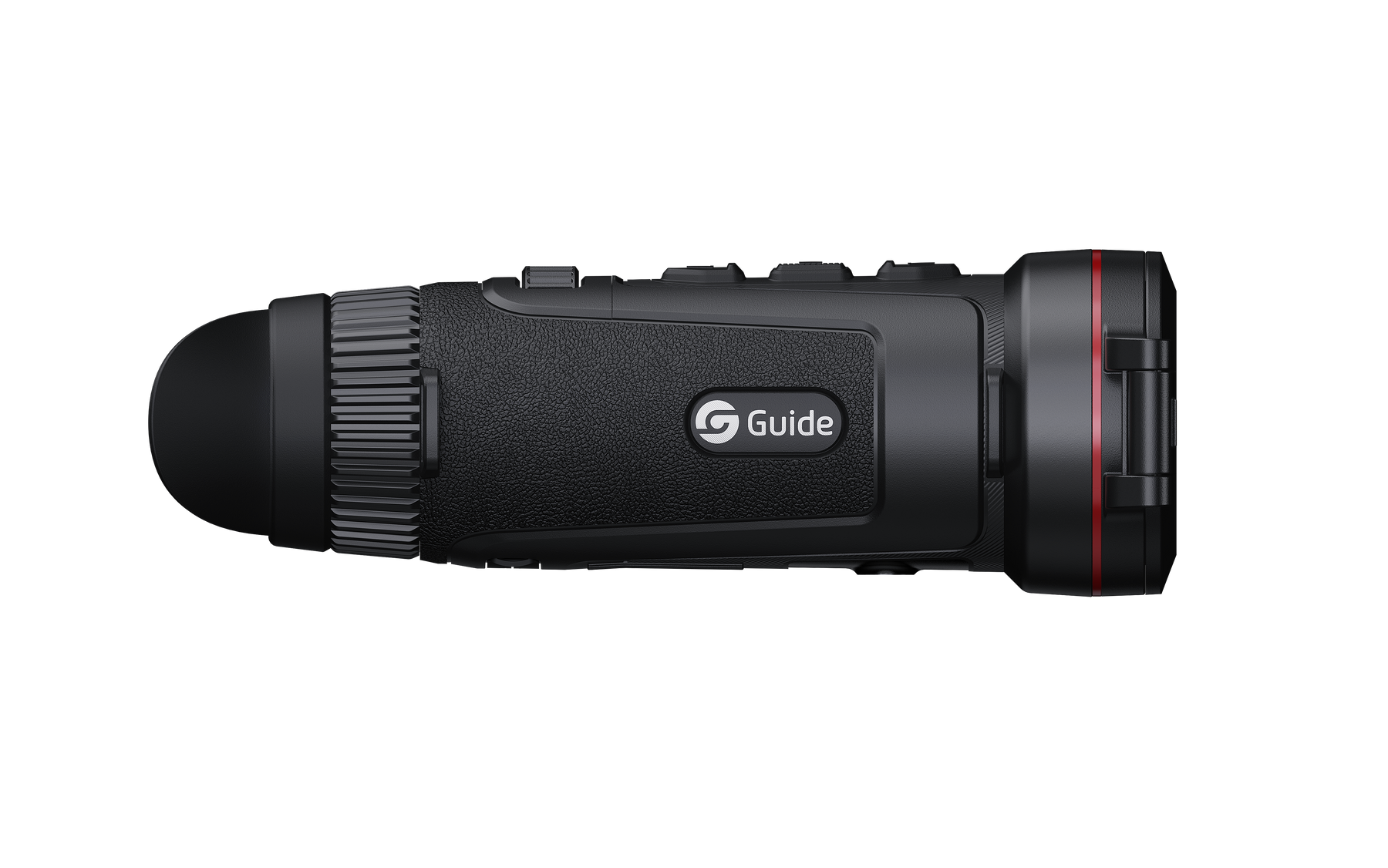

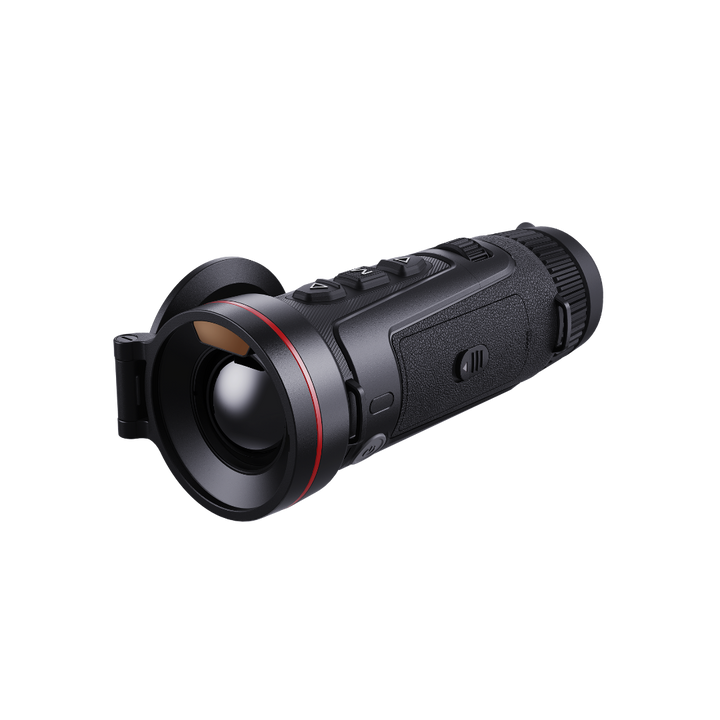

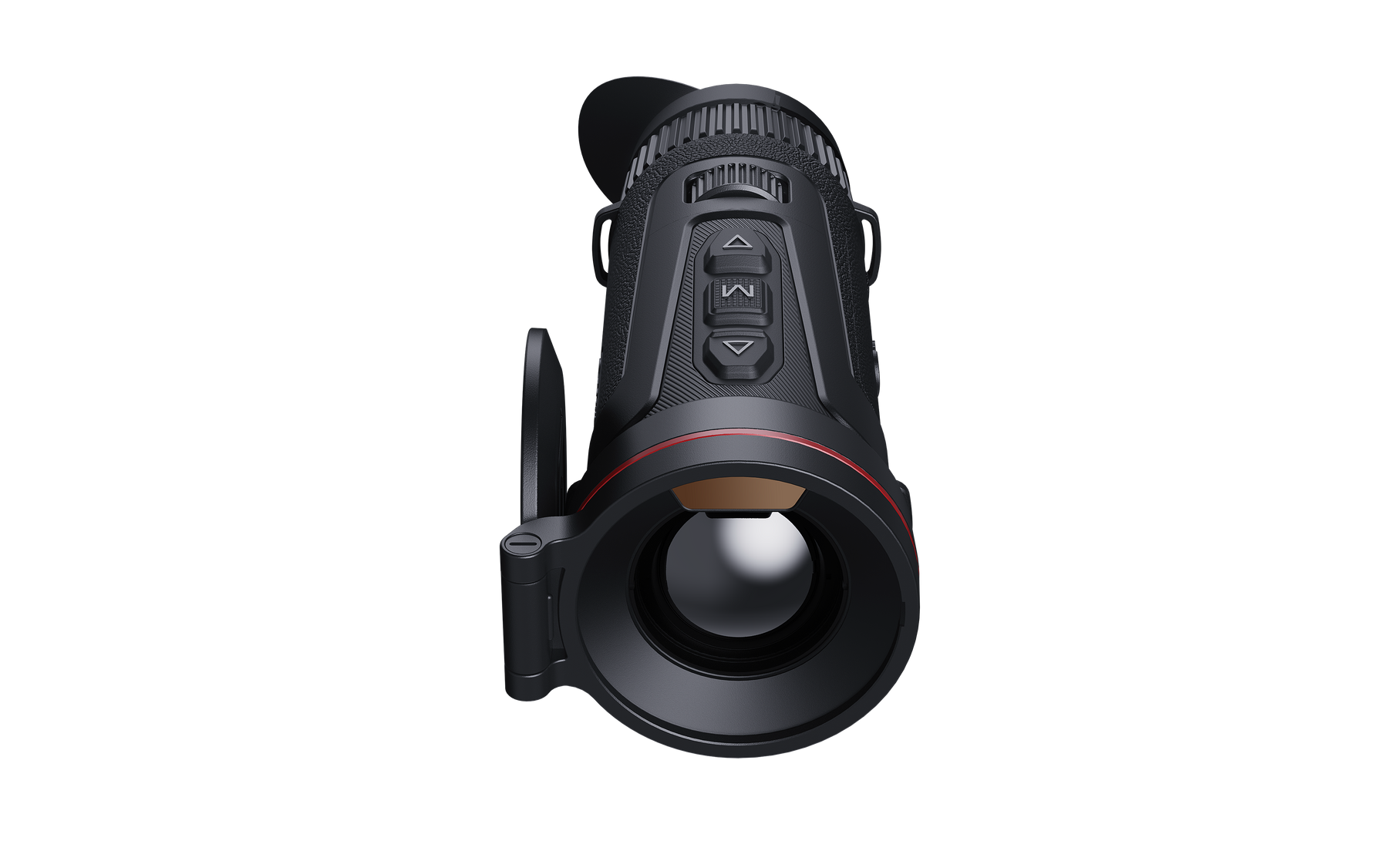

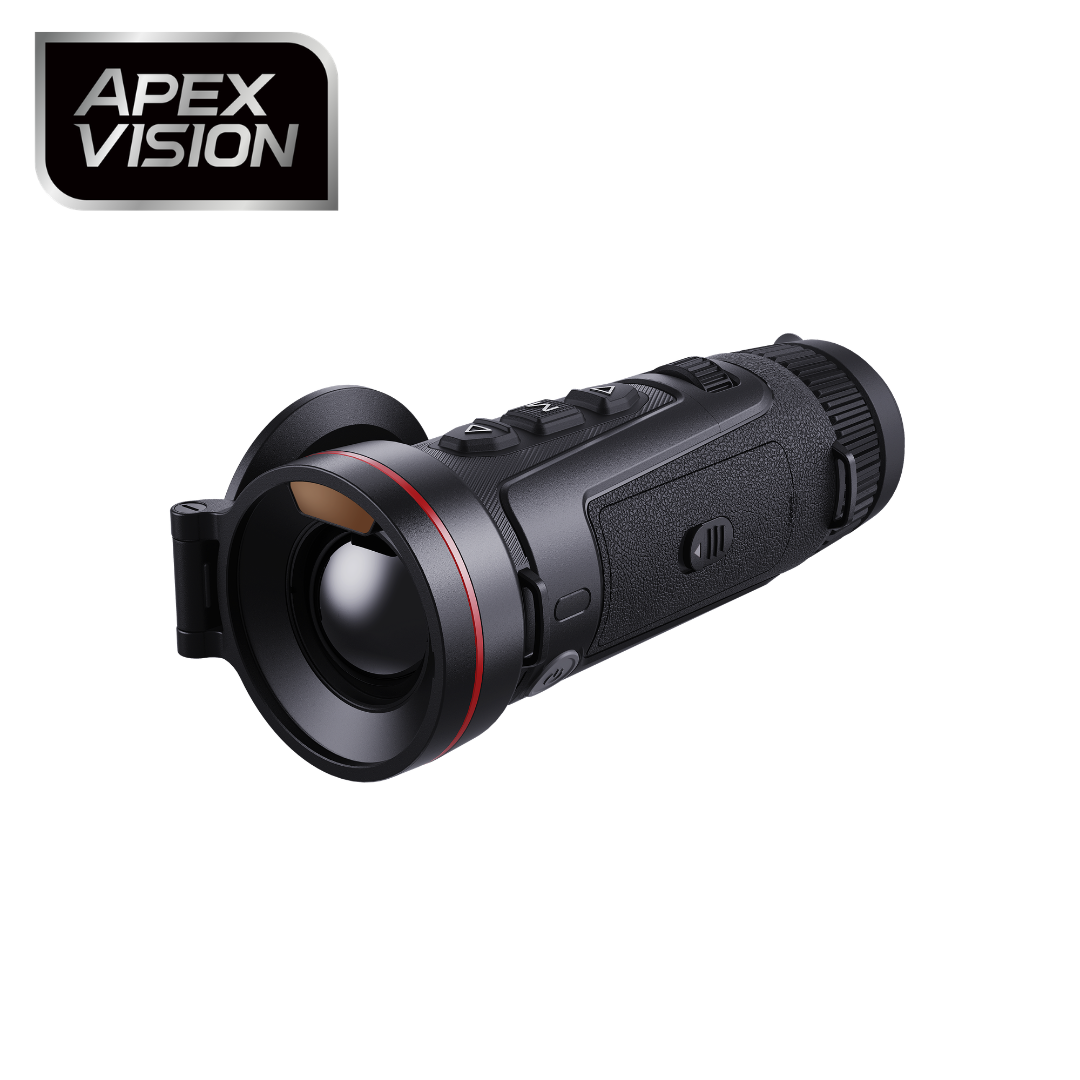

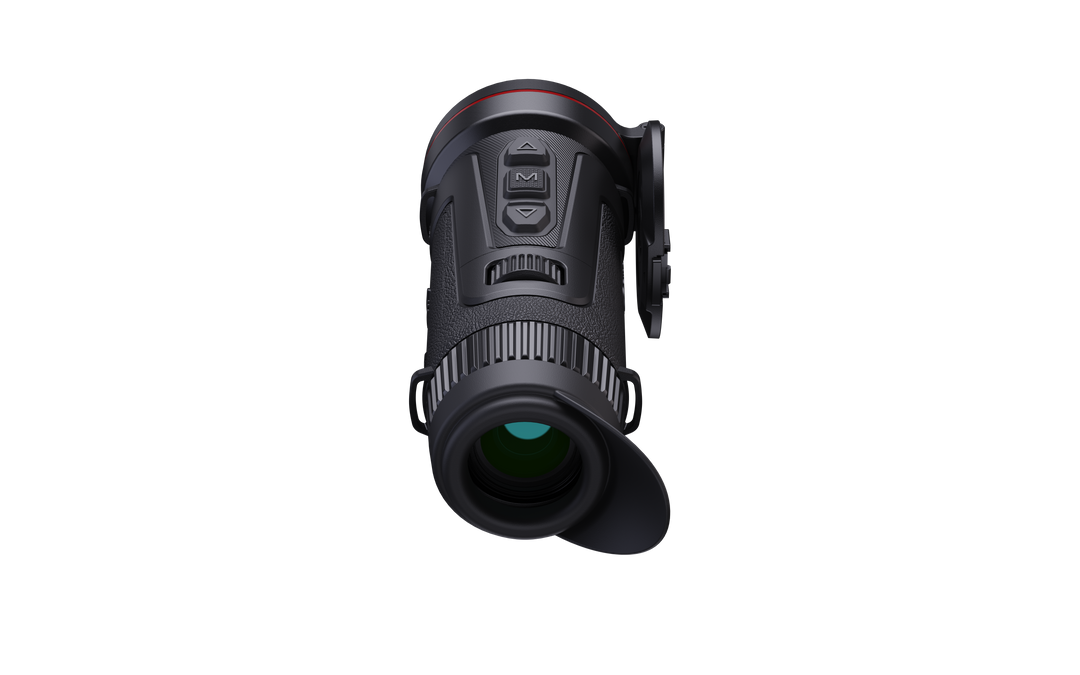

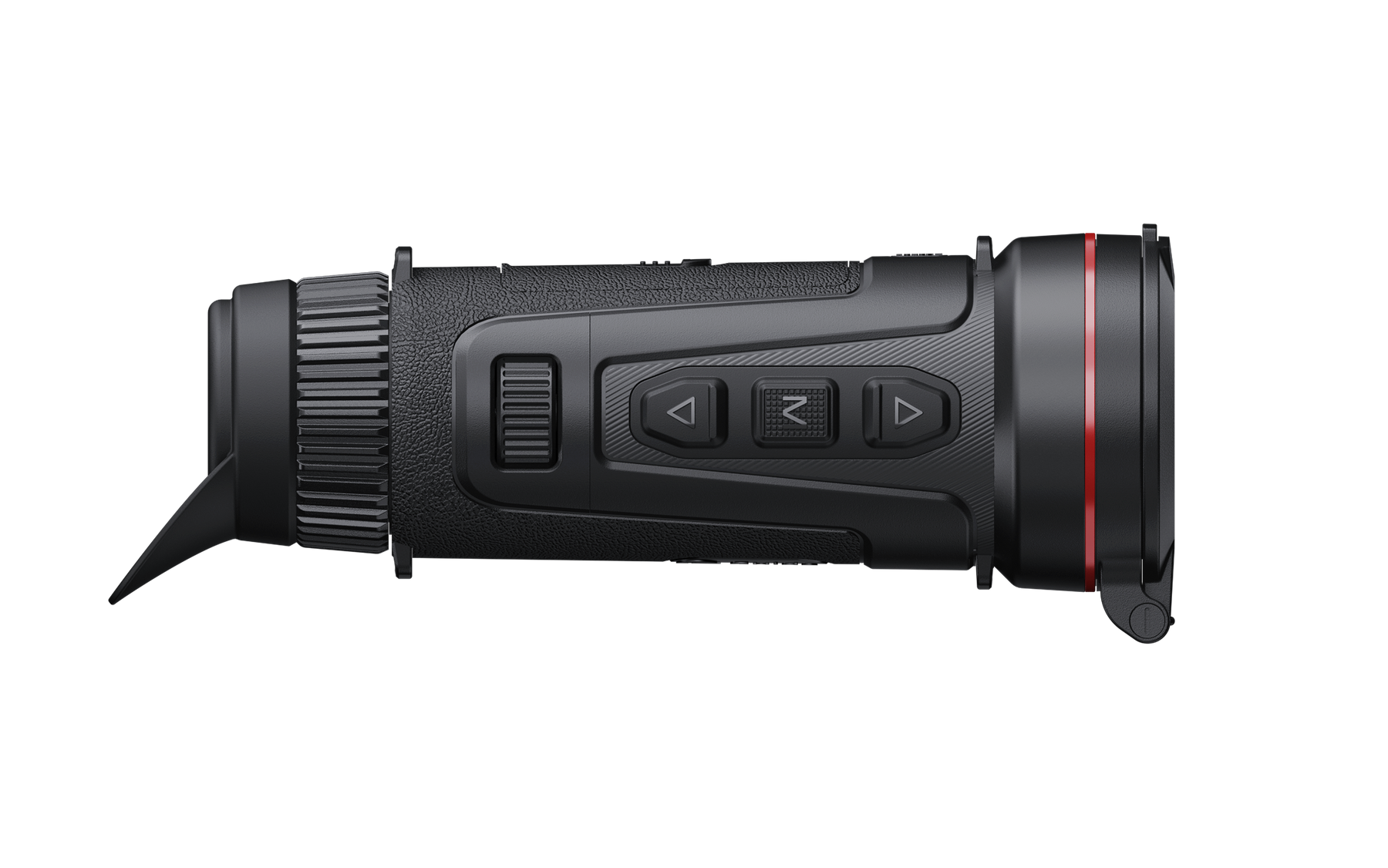

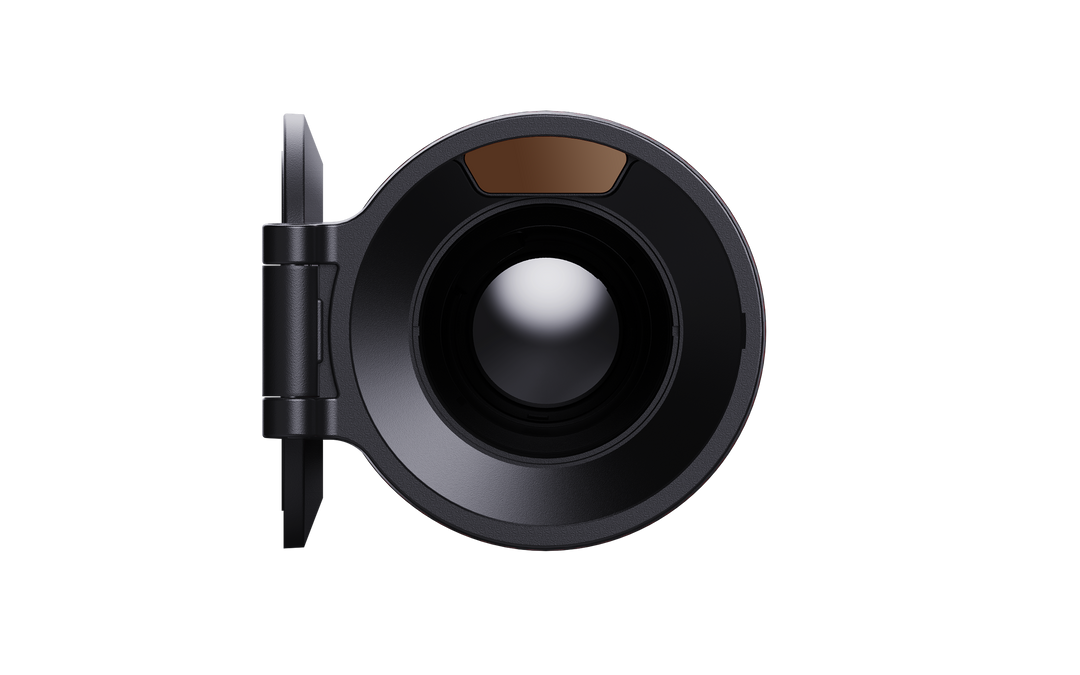

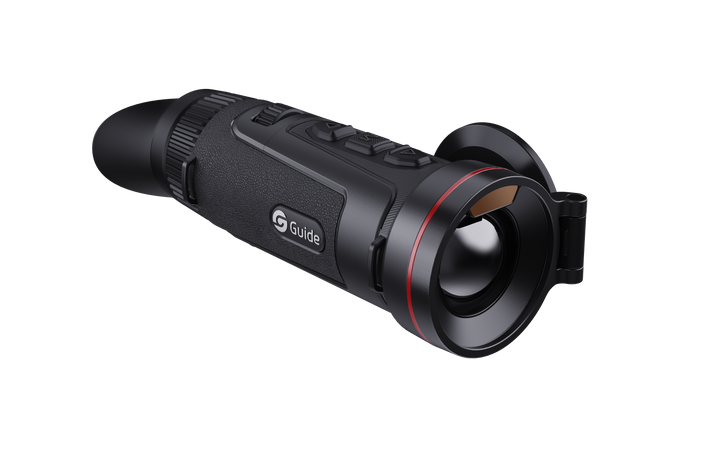

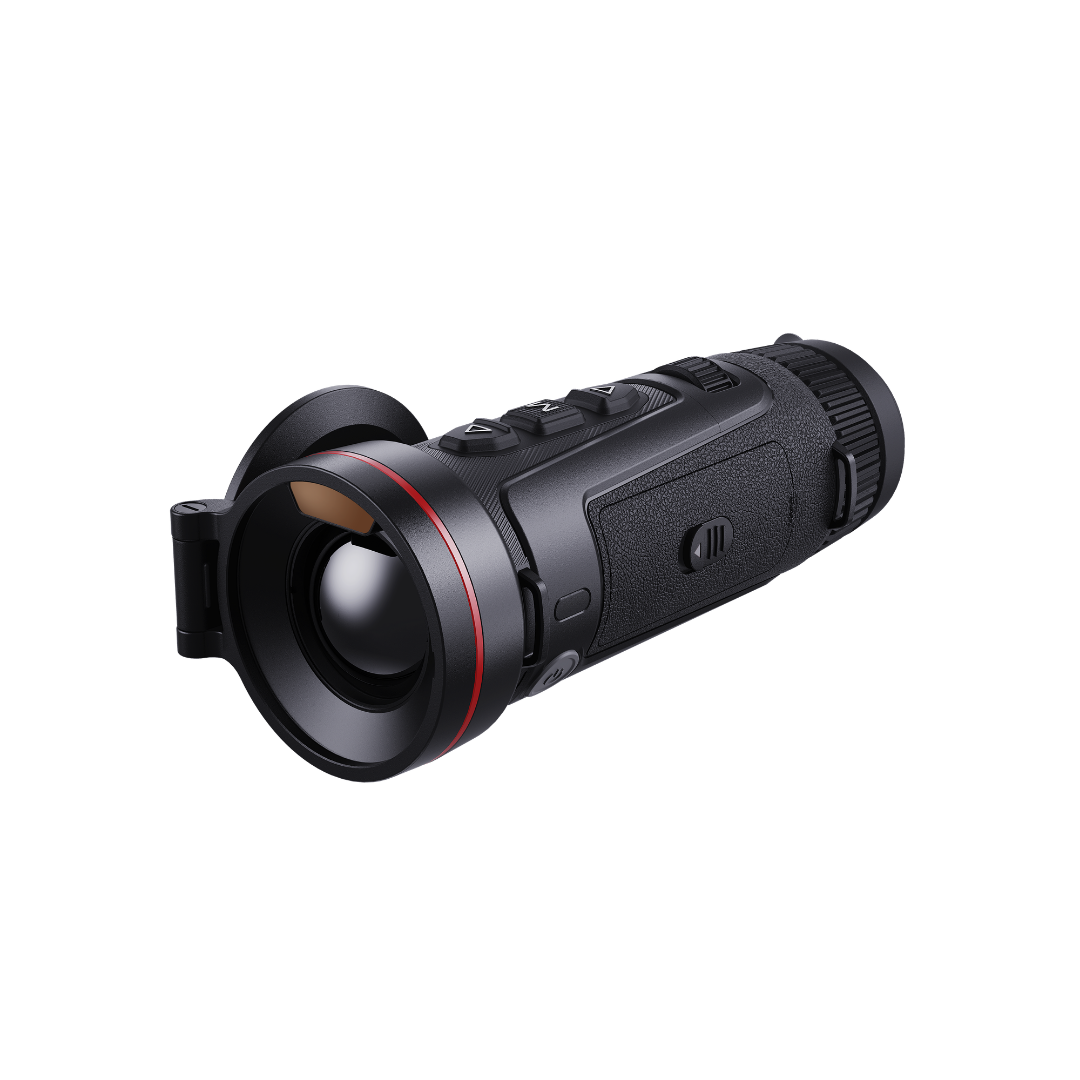

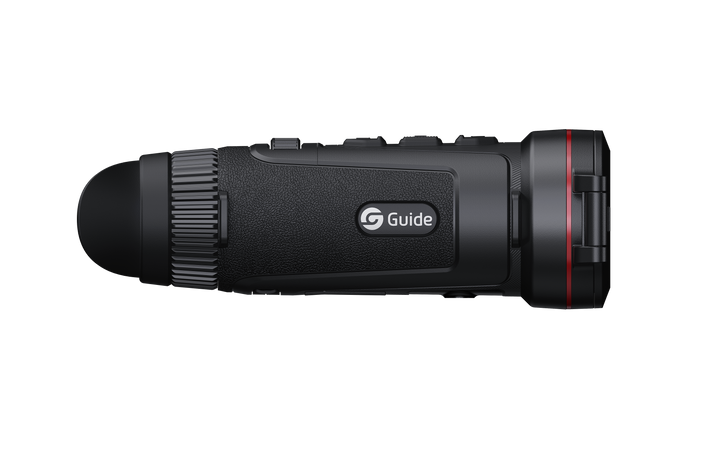

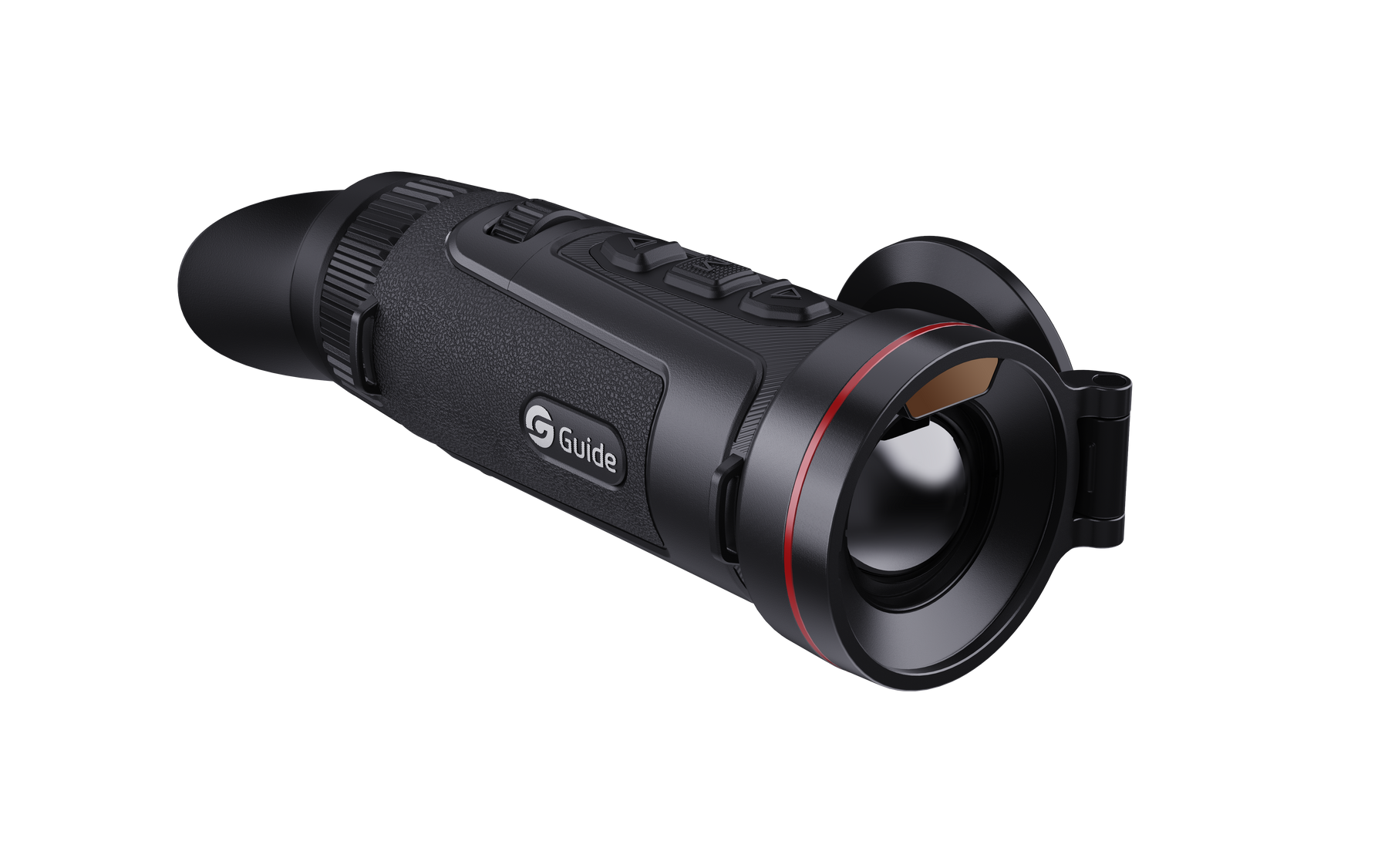

Guide Kodiak TK635LS 3.0 Thermal Monocular

The Guide KODIAK TK635LS 3.0 packs serious thermal performance into one of the lightest LRF monoculars in its class. At just 524g, about the weight of a bottle of water, it's easy to carry on long stalks and all-night sessions, while its 640×512 @12μm detector with ≤15mK NETD sensitivity and fast 35mm F0.9 lens pick up heat signatures out to 1800m.

The complete ApexVision S1 architecture (ApexCore S1 detector, Nexus 1.0 platform and Hyper-Light 3.0 algorithm) draws out subtle temperature differences for clearer target recognition and richer detail. Shutterless 3.0 and a 50Hz frame rate keep the image smooth and uninterrupted as you follow moving game, and the huge 1.03" AMOLED 2560×2560 display gives a crisp, immersive view across 2.8x–22.4x magnification. The wider field of view makes it a great choice for scanning closer country and timber.

Spot something and the built-in 1200m laser rangefinder gives you the distance straight through the monocular. It's ready in three seconds, comfortable in either hand with a one-finger focus roller, records photo, video and audio to 64GB of storage, connects over dual-band Wi-Fi to the TargetIR app, and is IP67 rated against water and dust. Expect around 5.5 hours per battery, with two batteries supplied.

Key Features

• 640×512 @12μm thermal detector, ≤15mK NETD
• 35mm F0.9 lens, up to 1800m detection range
• Built-in 1200m laser rangefinder
• Huge 1.03" AMOLED 2560×2560 display
• Complete ApexVision S1 imaging system
• Shutterless 3.0 with 50Hz frame rate
• Lightweight 524g body, 3-second start-up

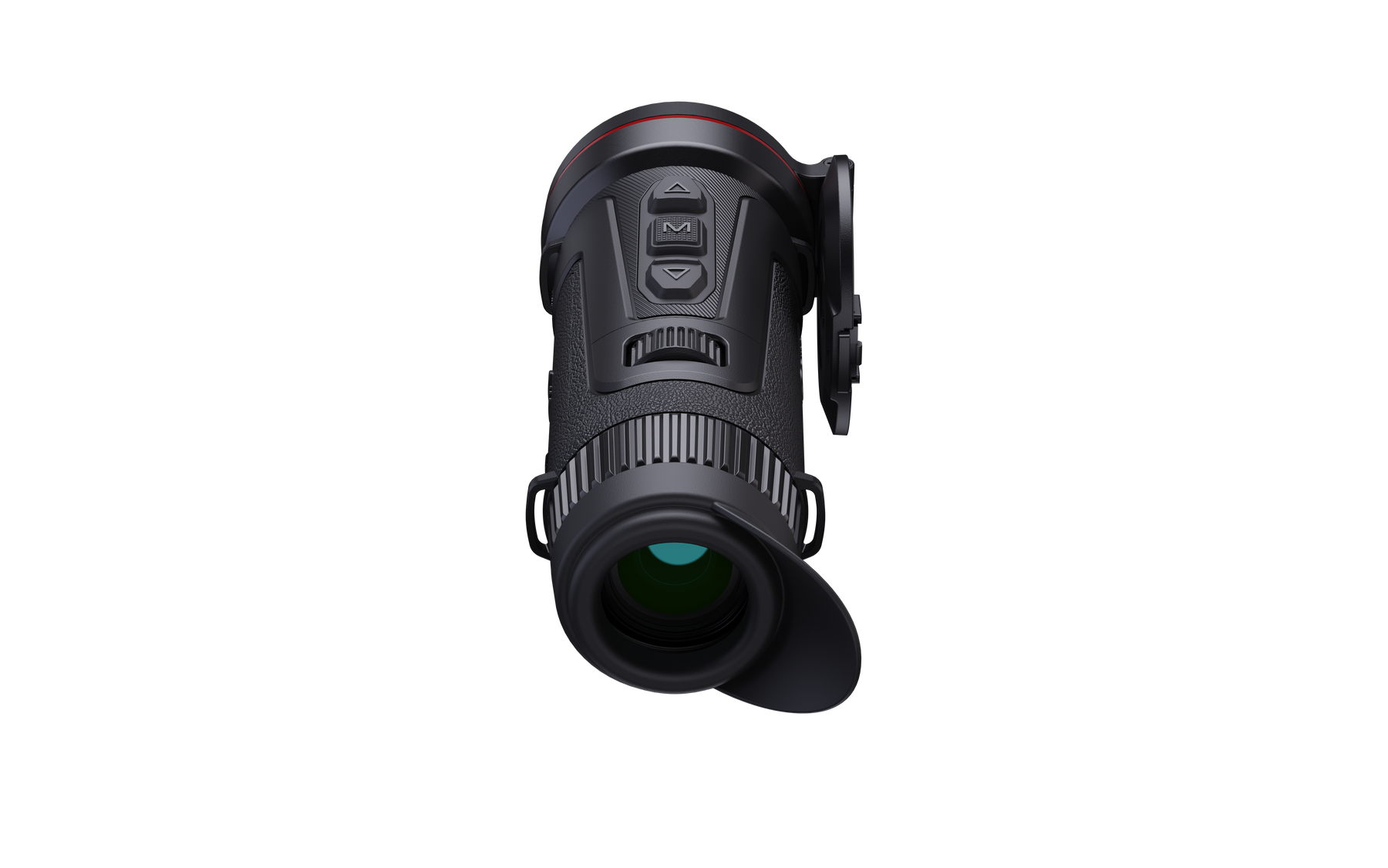

• Ambidextrous design with one-finger focus roller
• 64GB storage for photo, video and audio; dual-band Wi-Fi and TargetIR app support
• IP67 water and dust protection
• Approx. 5.5 hours per battery, two batteries supplied

Specifications

• Sensor: 640×512, 12μm pixel pitch
• NETD: ≤15mK
• Response waveband: 8–14μm

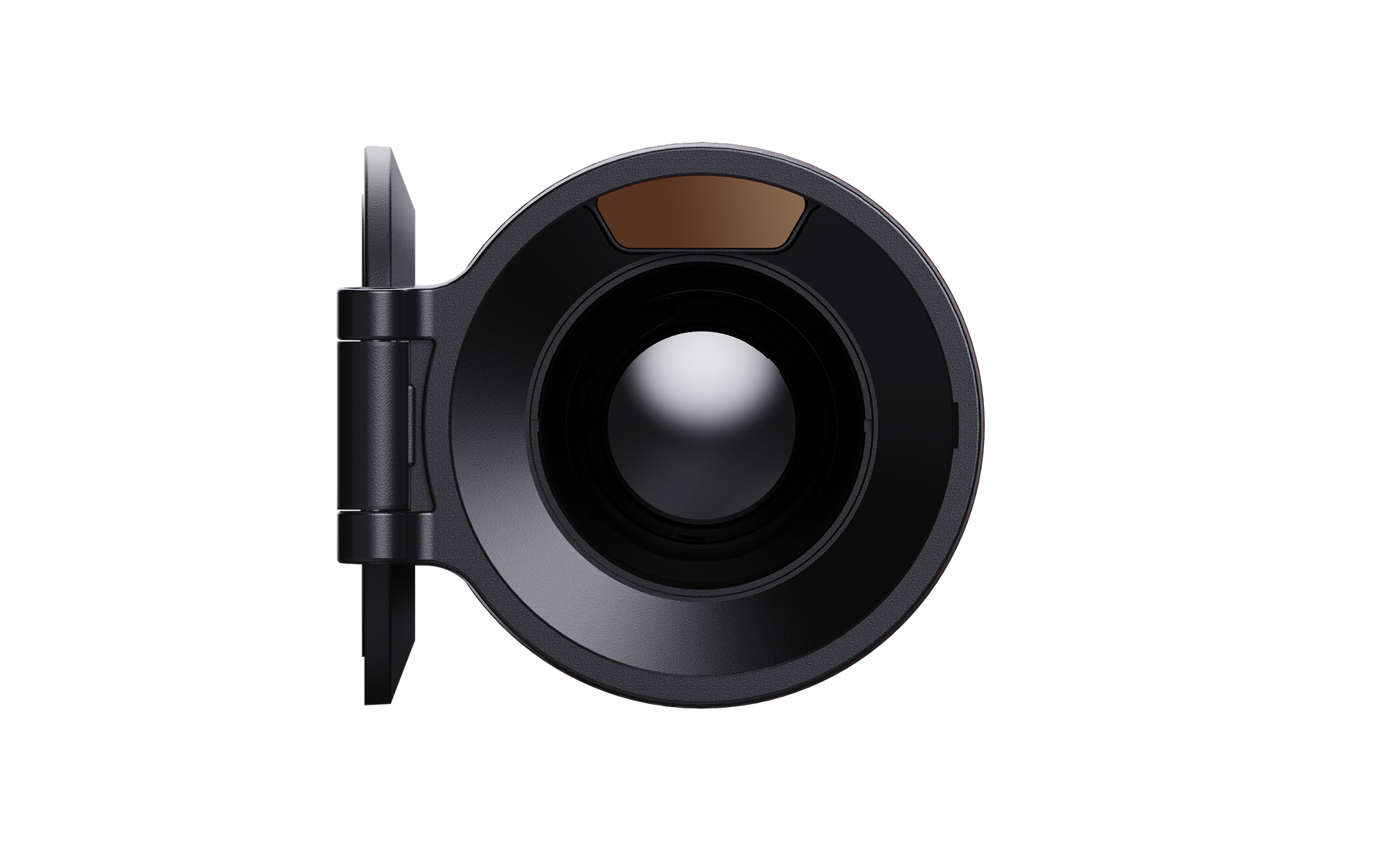

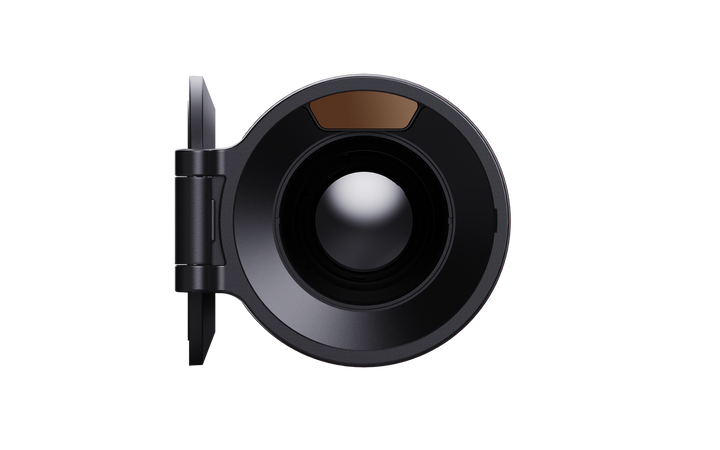

• Lens: 35mm F0.9
• Magnification: 2.8x–22.4x
• Field of view: 12.5° × 10.0° (21.9 × 17.6m @ 100m)
• Detection range: 1800m
• Laser rangefinder: 1200m
• Display: 1.03" AMOLED, 2560×2560
• Frame rate: 50Hz
• Diopter: -6 to +6
• Palettes: White Hot, Black Hot, Amber Sepia, Red Hot, Iron Red, Blue Hot, Green Hot
• Storage: 64GB, video and audio recording
• Battery: replaceable, approx. 5.5 hours operating time
• Power: USB-C
• Protection: IP67
• Operating temperature: -20°C to 50°C
• Dimensions: 182 × 67 × 79mm
• Weight: 524g
