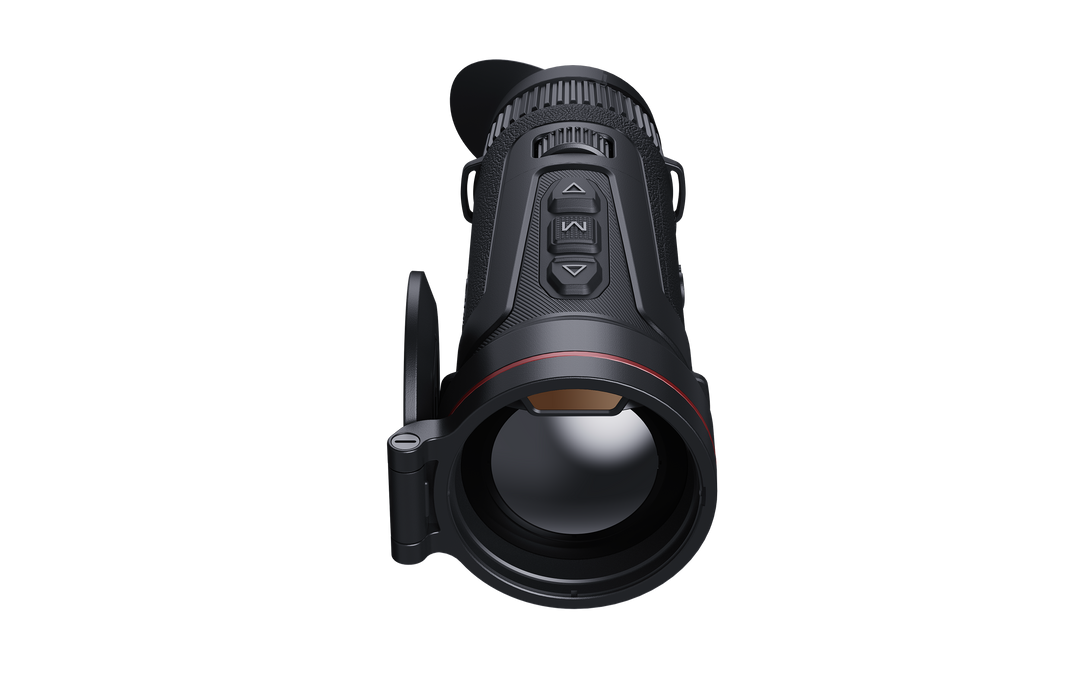

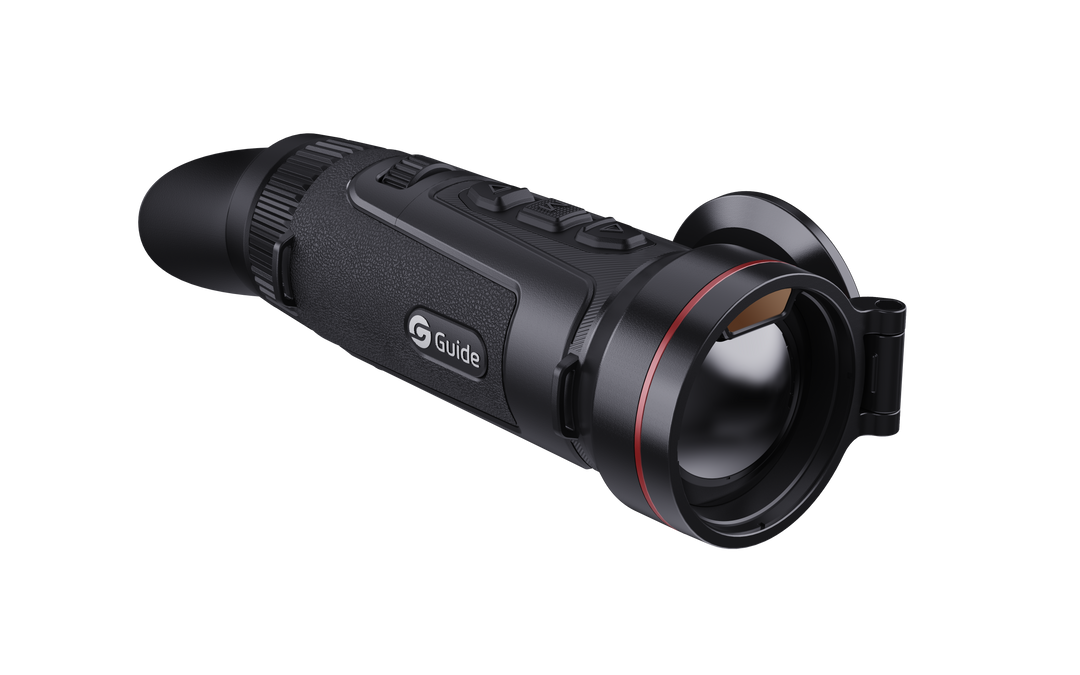

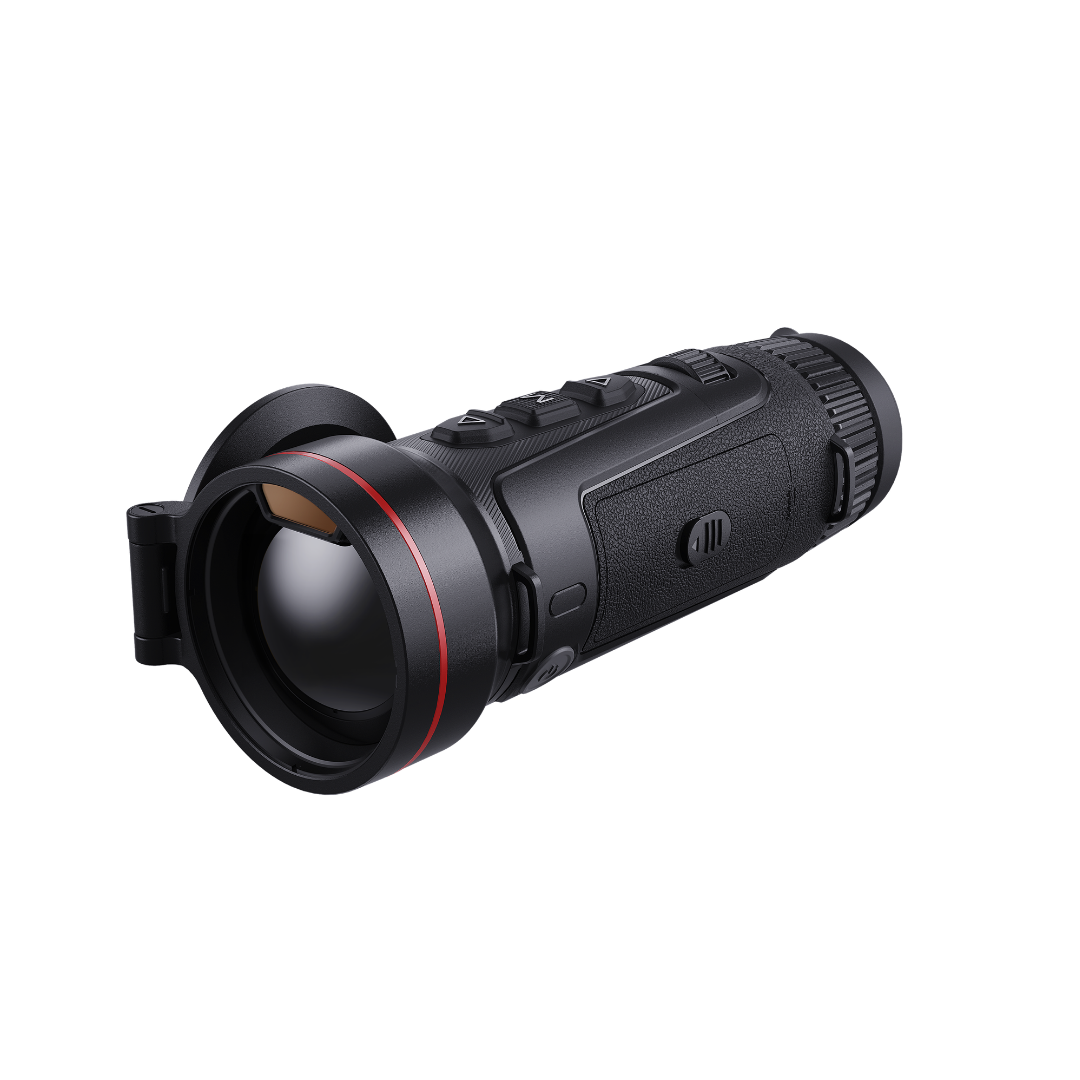

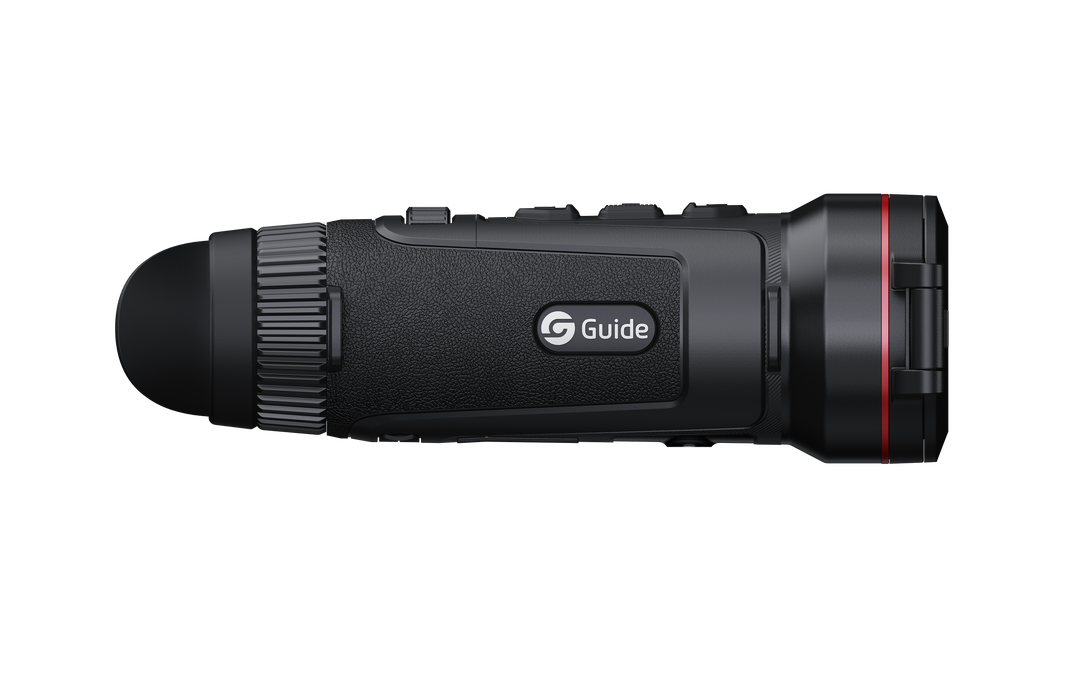

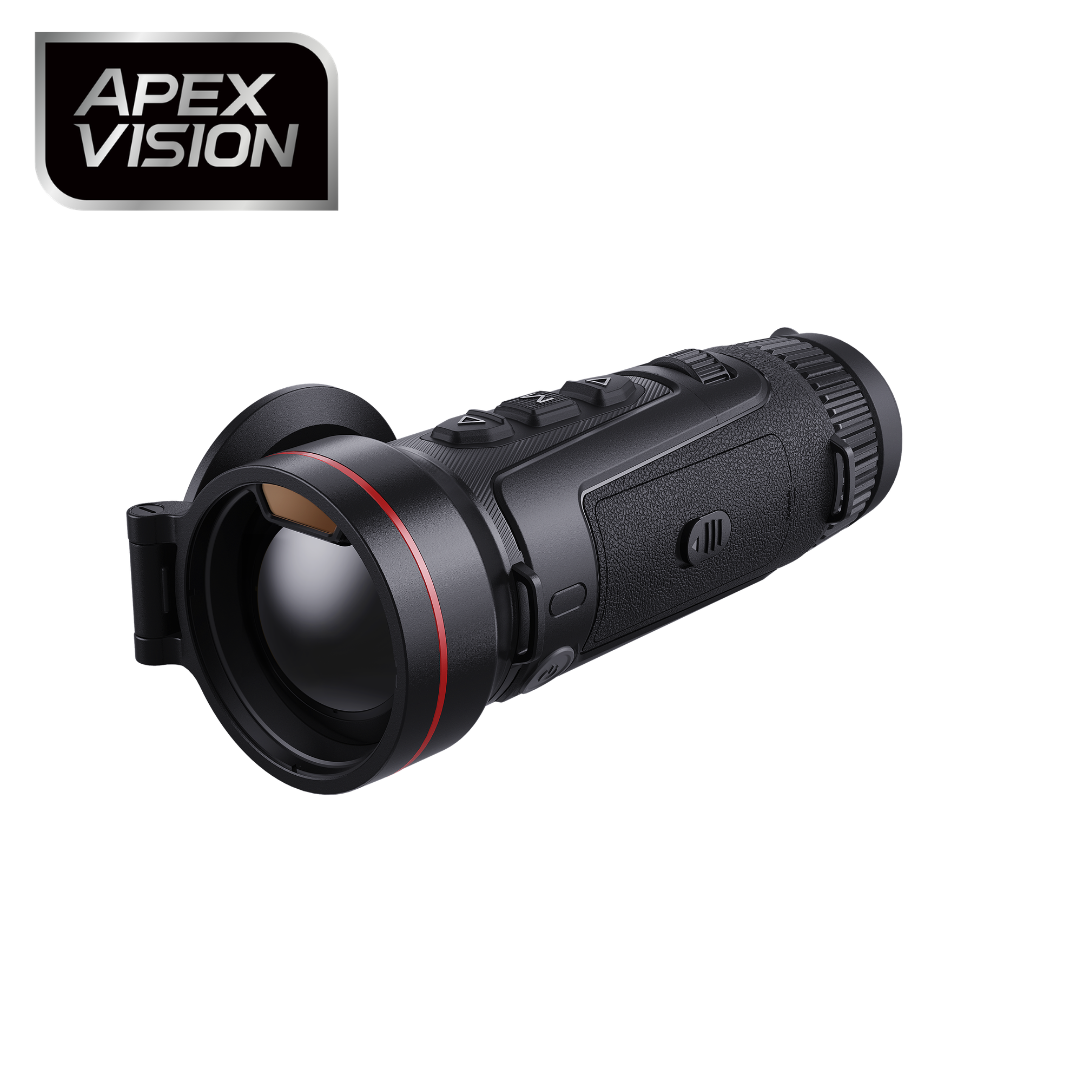

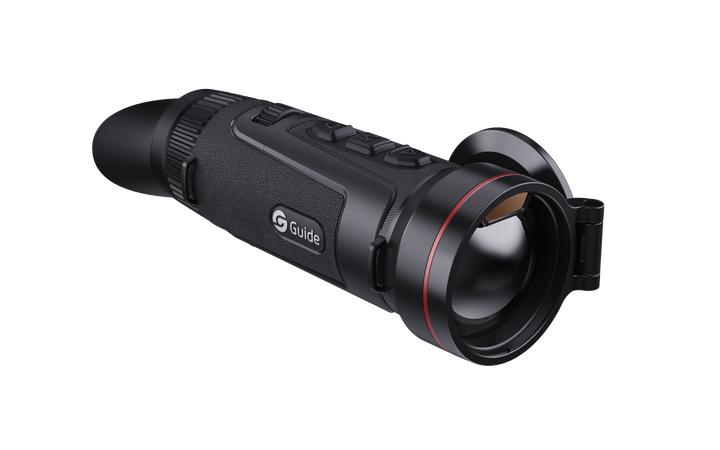

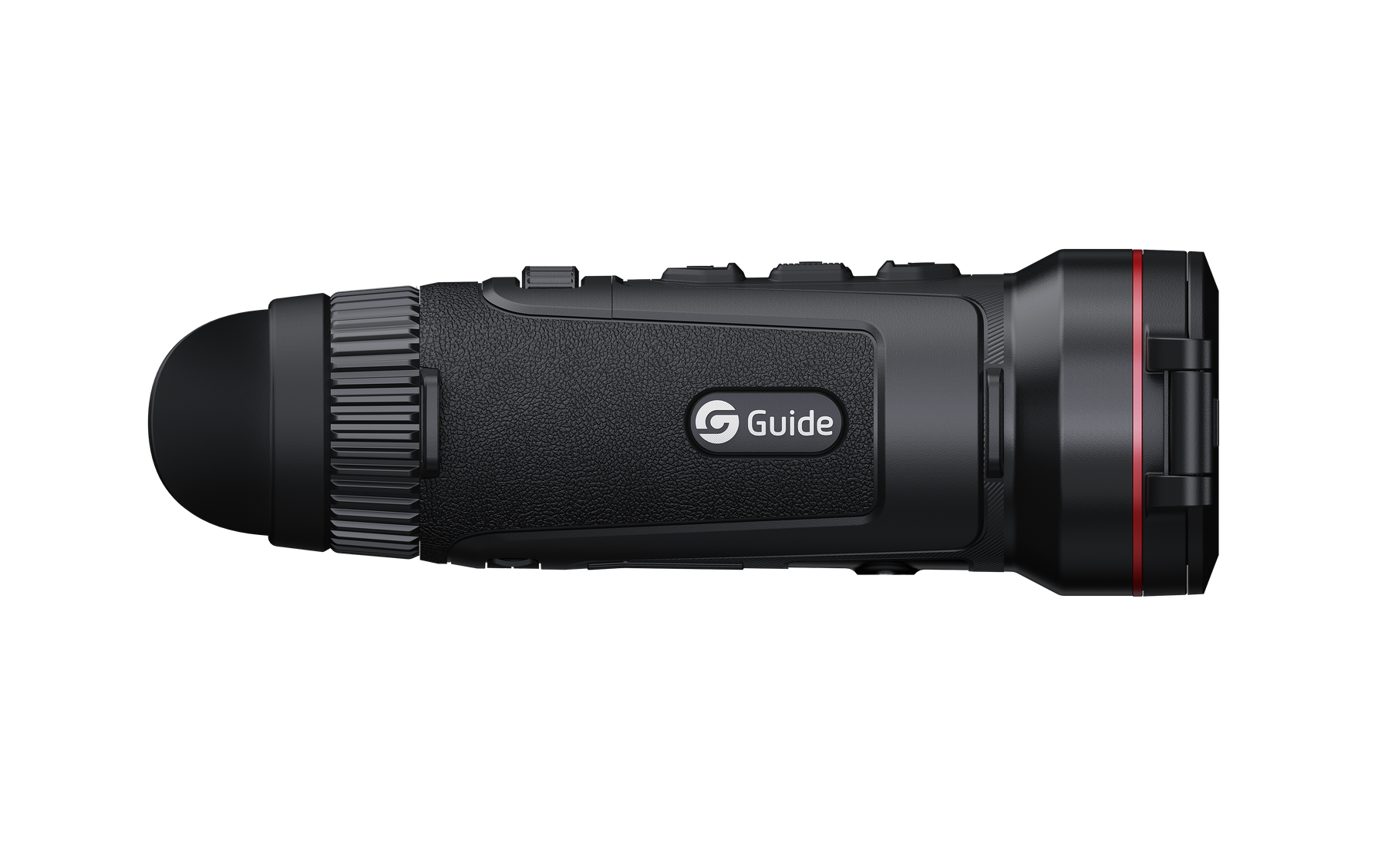

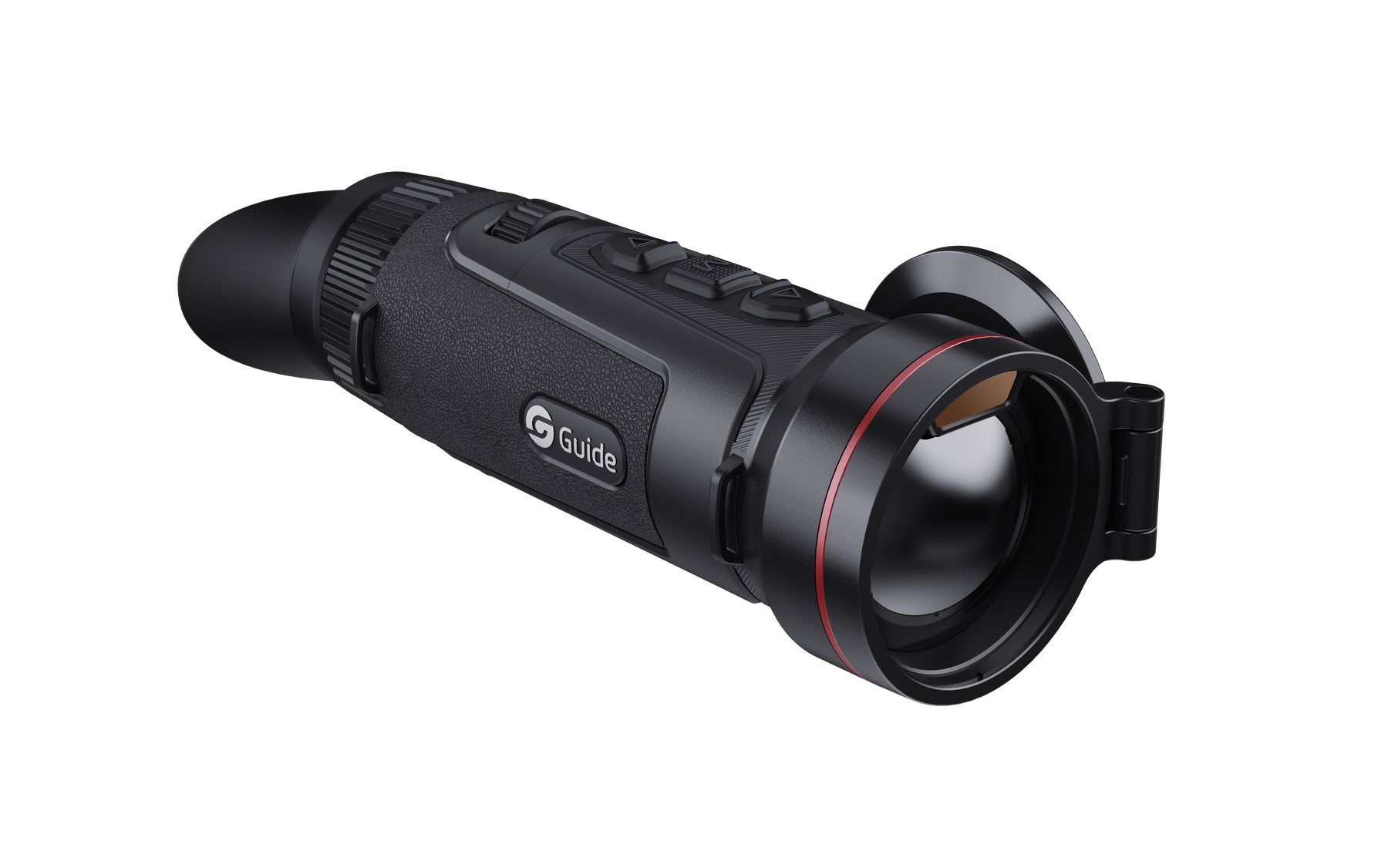

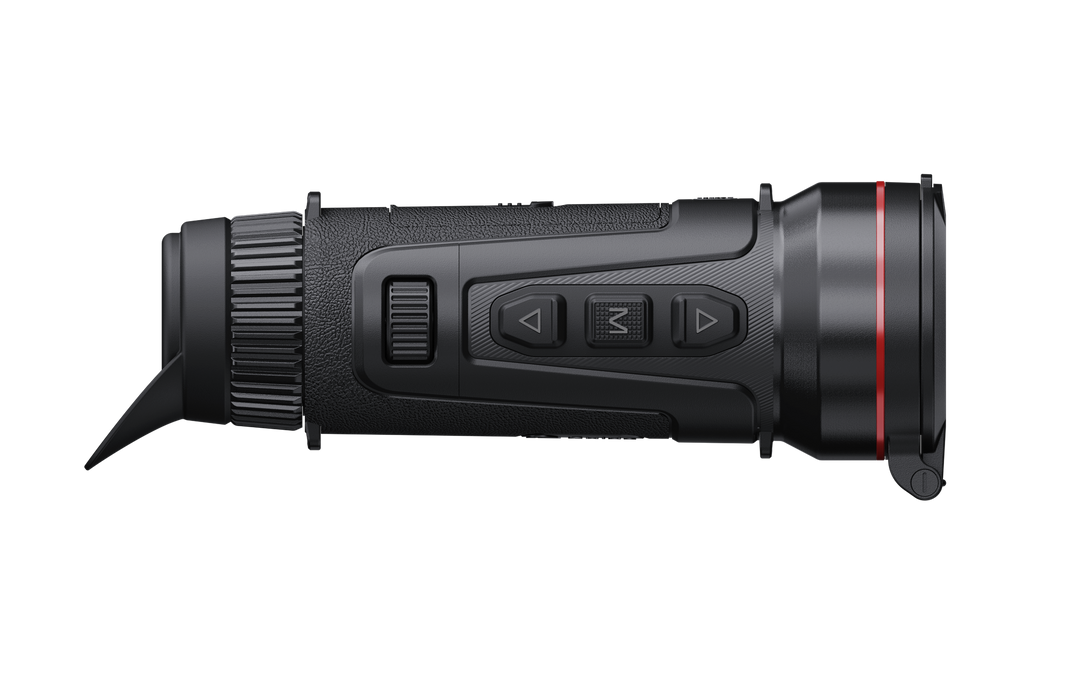

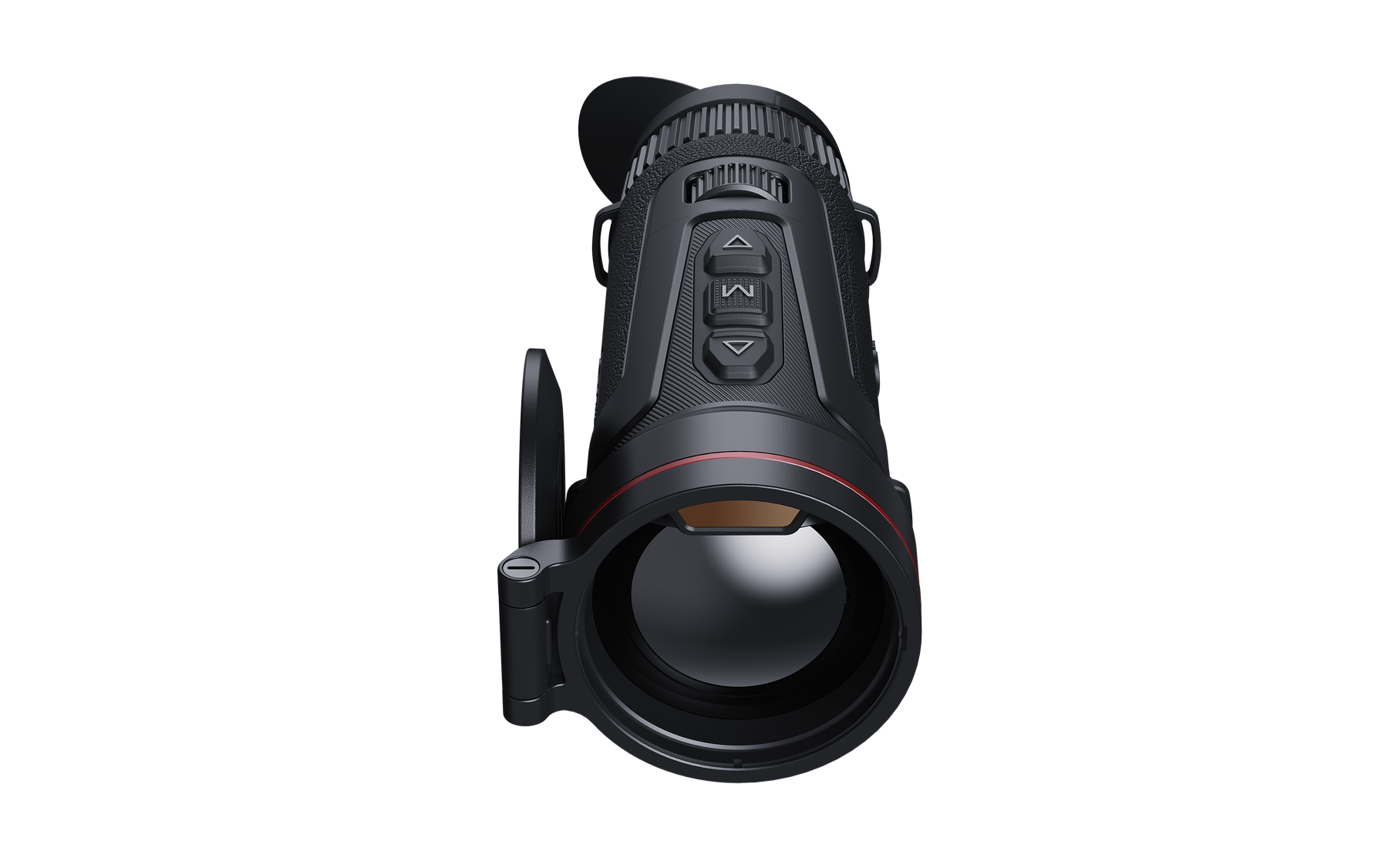

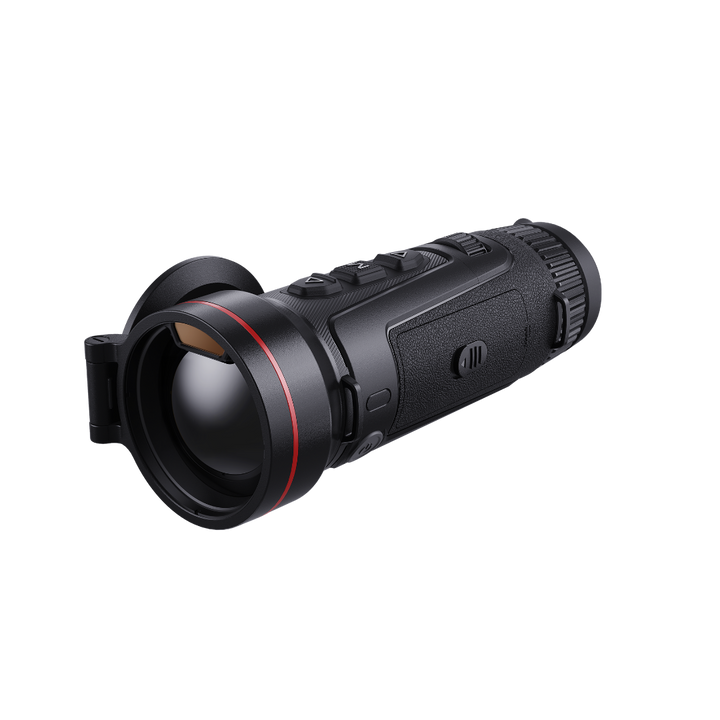

Guide Kodiak TK650LS 3.0 Thermal Monocular

The Guide KODIAK TK650LS 3.0 is the long-reach model of Guide's new compact KODIAK 3.0 series, built for hunters who need to scan open country and pick up heat signatures at serious distance. A 640×512 @12μm detector with ≤15mK NETD sensitivity sits behind a fast 50mm F0.9 lens, giving a detection range of up to 2600m.

Powered by the complete ApexVision S1 architecture (ApexCore S1 detector, Nexus 1.0 platform and Hyper-Light 3.0 algorithm), it brings out fine temperature differences for clearer target recognition. Shutterless 3.0 and a 50Hz frame rate keep the image smooth with no calibration freezes while you follow moving game, and the huge 1.03" AMOLED 2560×2560 display gives a big, detailed view across 4x–32x magnification.

Once you've found something, the built-in 1200m laser rangefinder gives you the distance straight through the monocular, with no second device to juggle. It's ready in three seconds, works comfortably in either hand with a fingertip focus roller, records photo, video and audio to 64GB of internal storage, and is IP67 rated against water and dust. Each battery runs around 5.5 hours and two are supplied, so it's ready for long nights in Australian conditions.

Key Features

• 640×512 @12μm thermal detector, ≤15mK NETD
• 50mm F0.9 lens, up to 2600m detection range
• Built-in 1200m laser rangefinder
• Huge 1.03" AMOLED 2560×2560 display
• Complete ApexVision S1 imaging system
• Shutterless 3.0 with 50Hz frame rate
• 3-second start-up

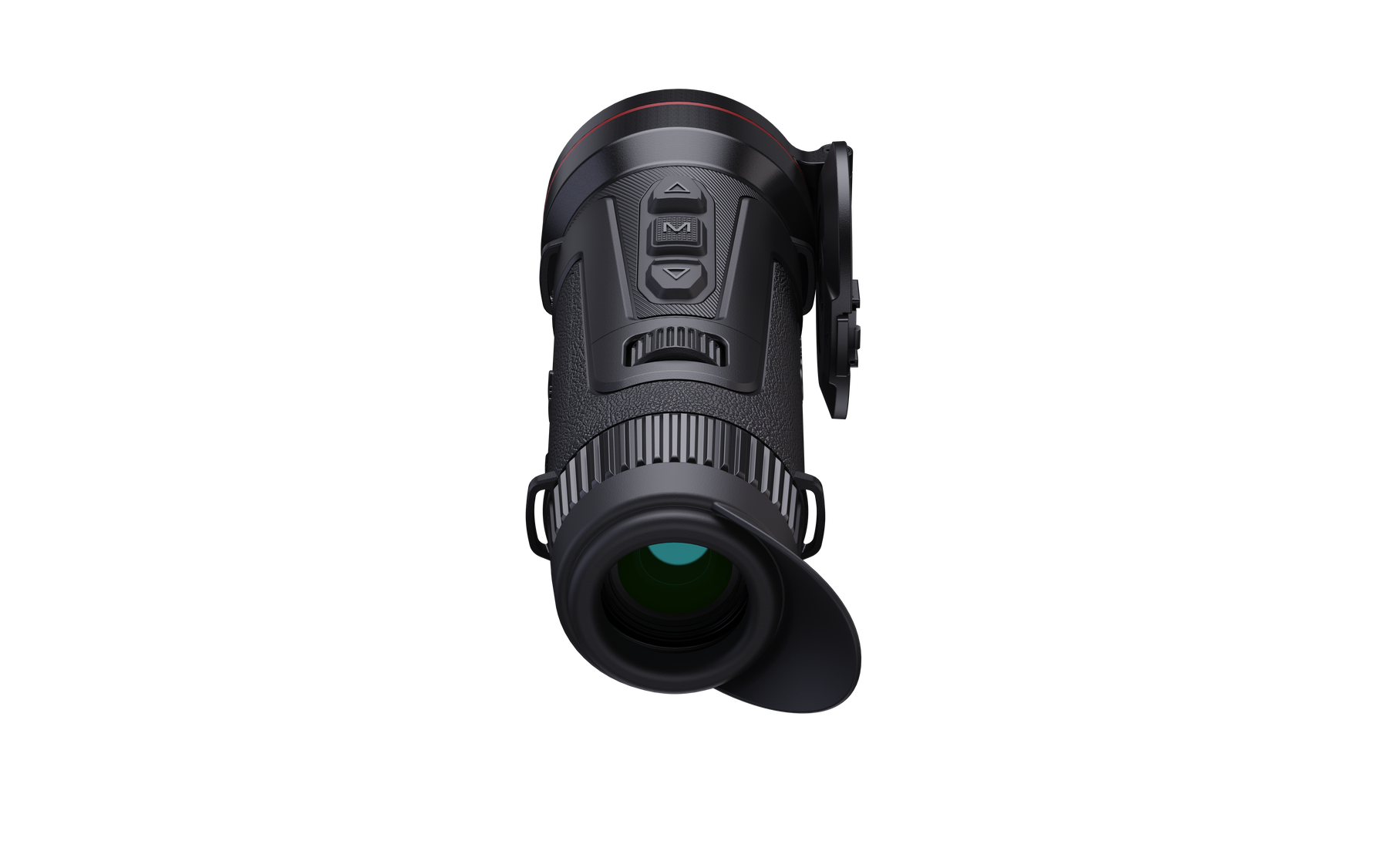

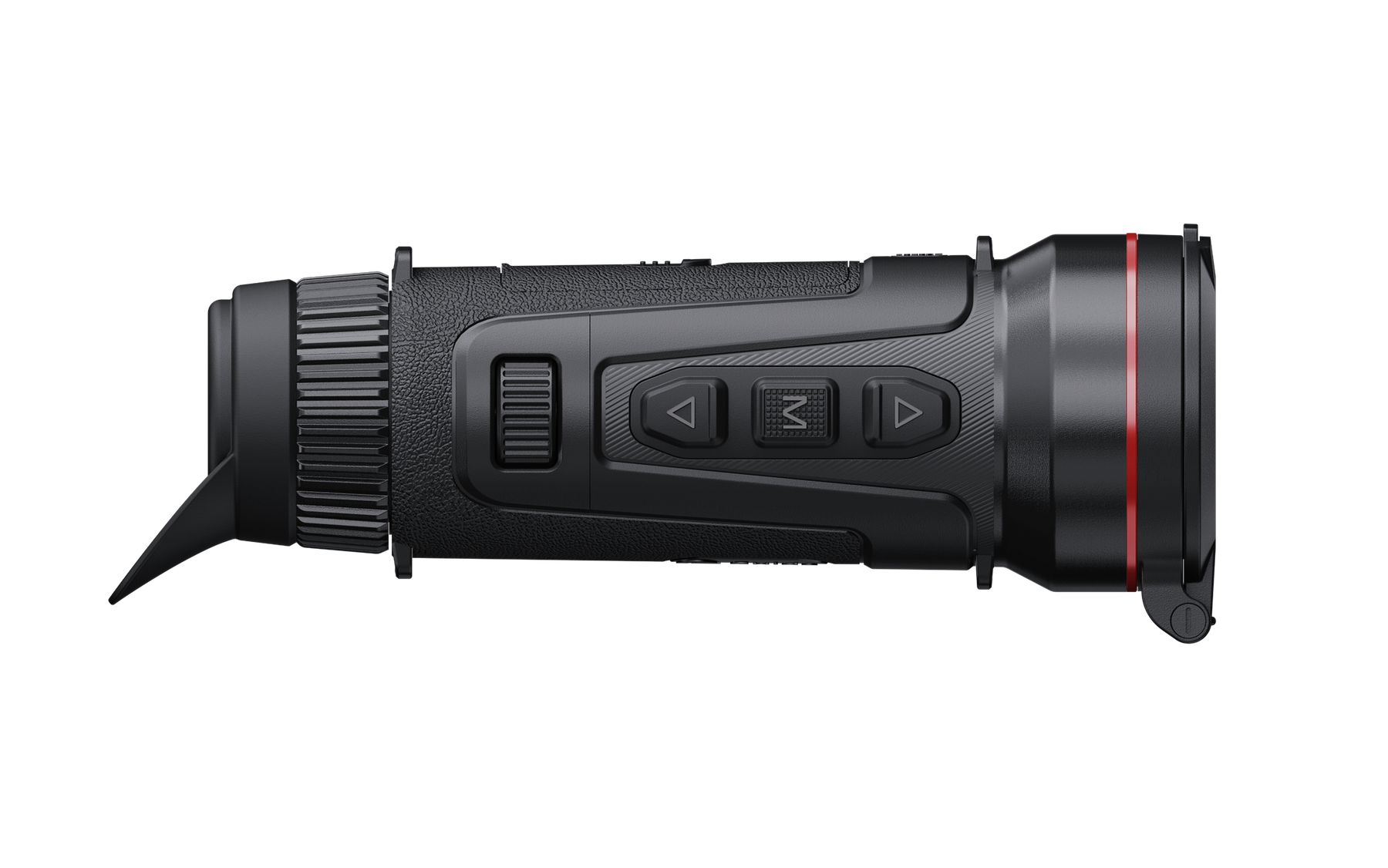

• Ambidextrous design with one-finger focus roller
• 64GB storage for photo, video and audio; Wi-Fi and TargetIR app support
• IP67 water and dust protection
• Approx. 5.5 hours per battery, two batteries supplied

Specifications

• Sensor: 640×512, 12μm pixel pitch
• NETD: ≤15mK
• Response waveband: 8–14μm

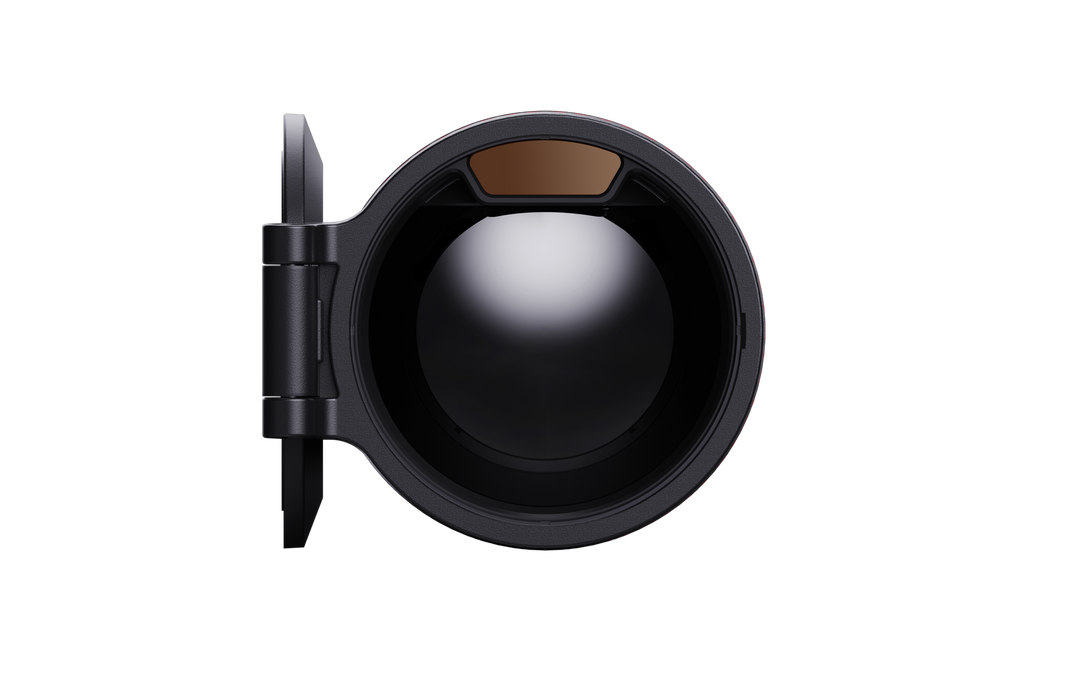

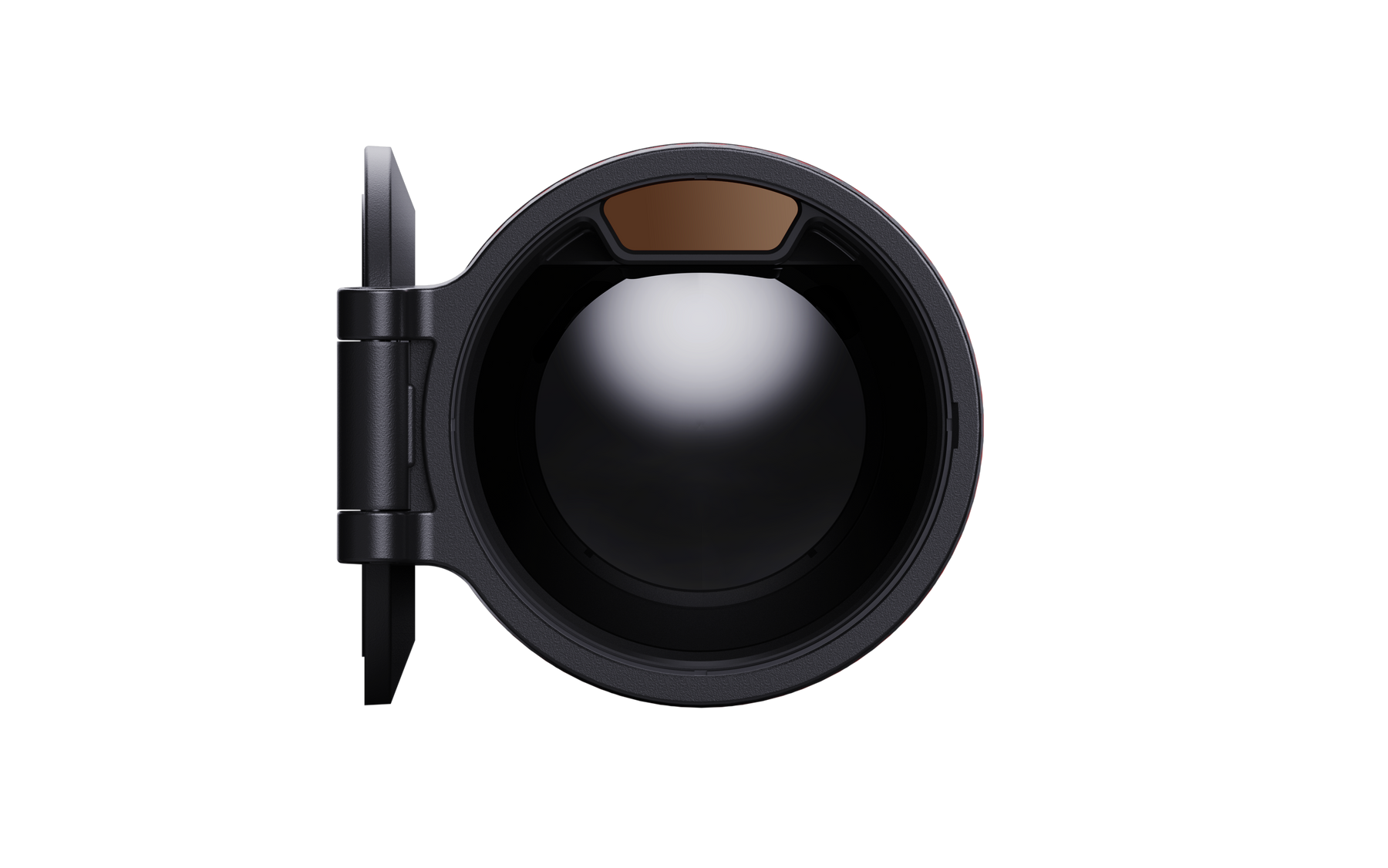

• Lens: 50mm F0.9
• Magnification: 4x–32x
• Field of view: 8.8° × 7.0° (15.4 × 12.3m @ 100m)
• Detection range: 2600m
• Laser rangefinder: 1200m
• Display: 1.03" AMOLED, 2560×2560
• Frame rate: 50Hz
• Diopter: -6 to +6
• Palettes: White Hot, Black Hot, Amber Sepia, Red Hot, Iron Red, Blue Hot, Green Hot
• Storage: 64GB, video and audio recording
• Battery: replaceable, approx. 5.5 hours operating time
• Power: USB-C
• Protection: IP67
• Operating temperature: -20°C to 50°C
• Dimensions: 191 × 67 × 79mm
• Weight: 593g
