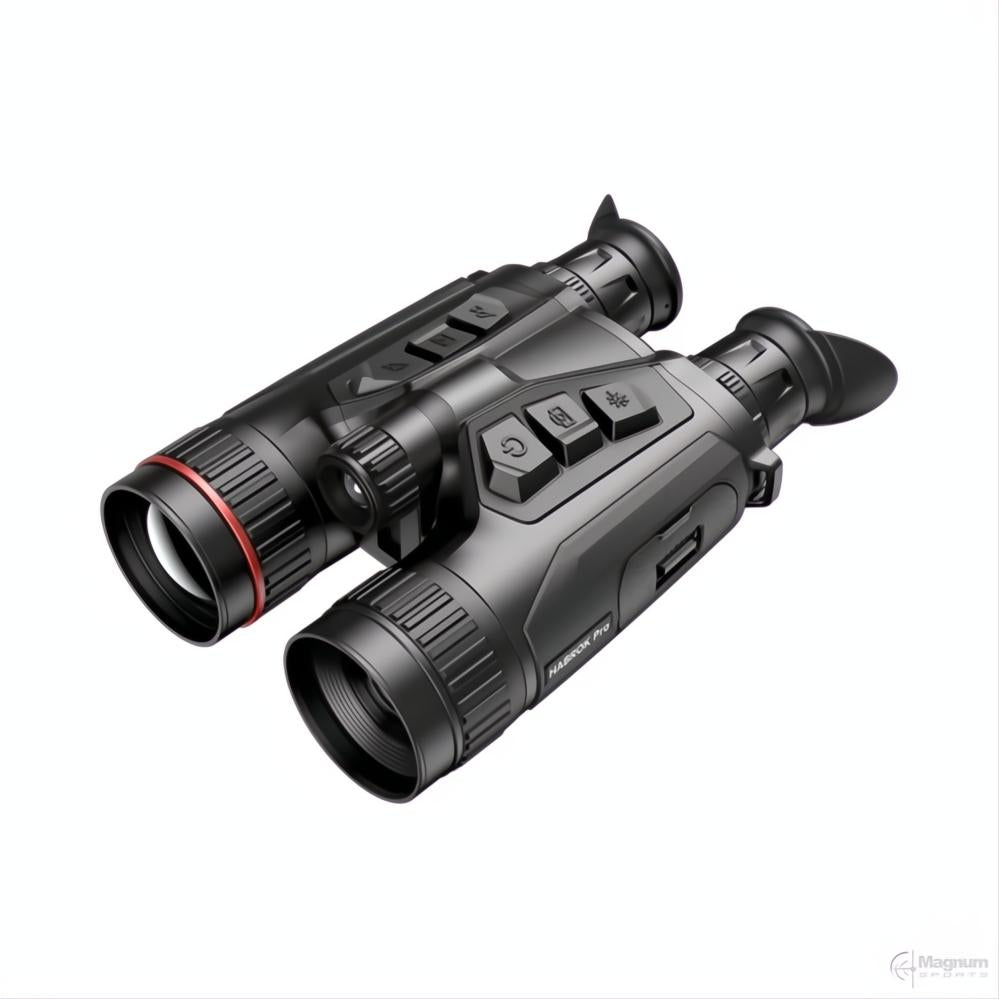

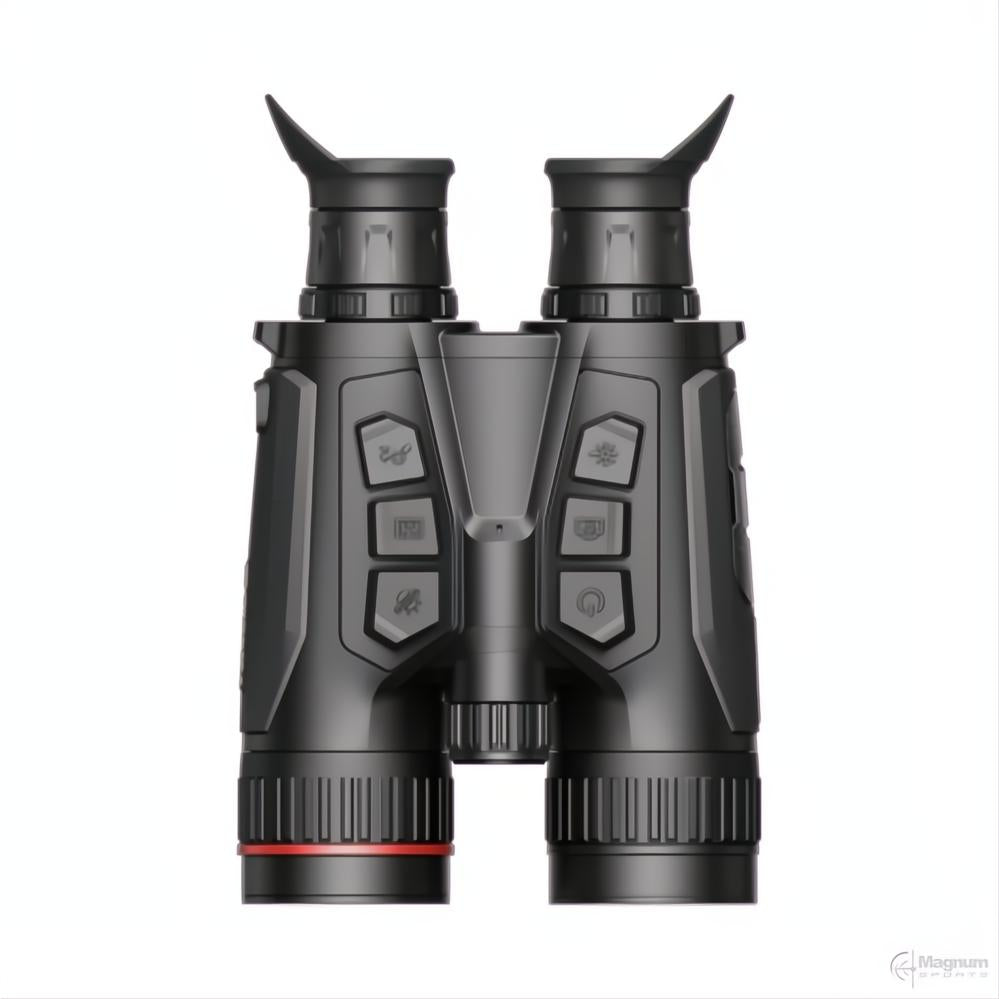

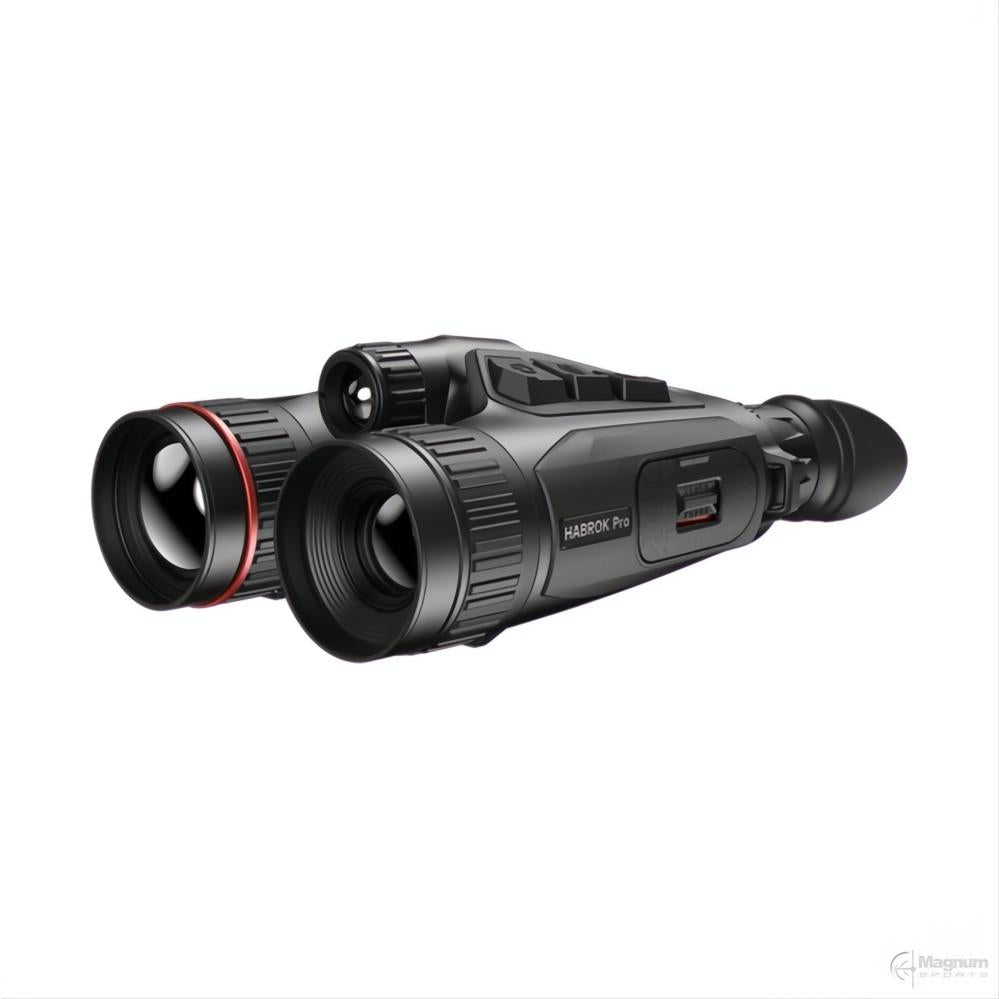

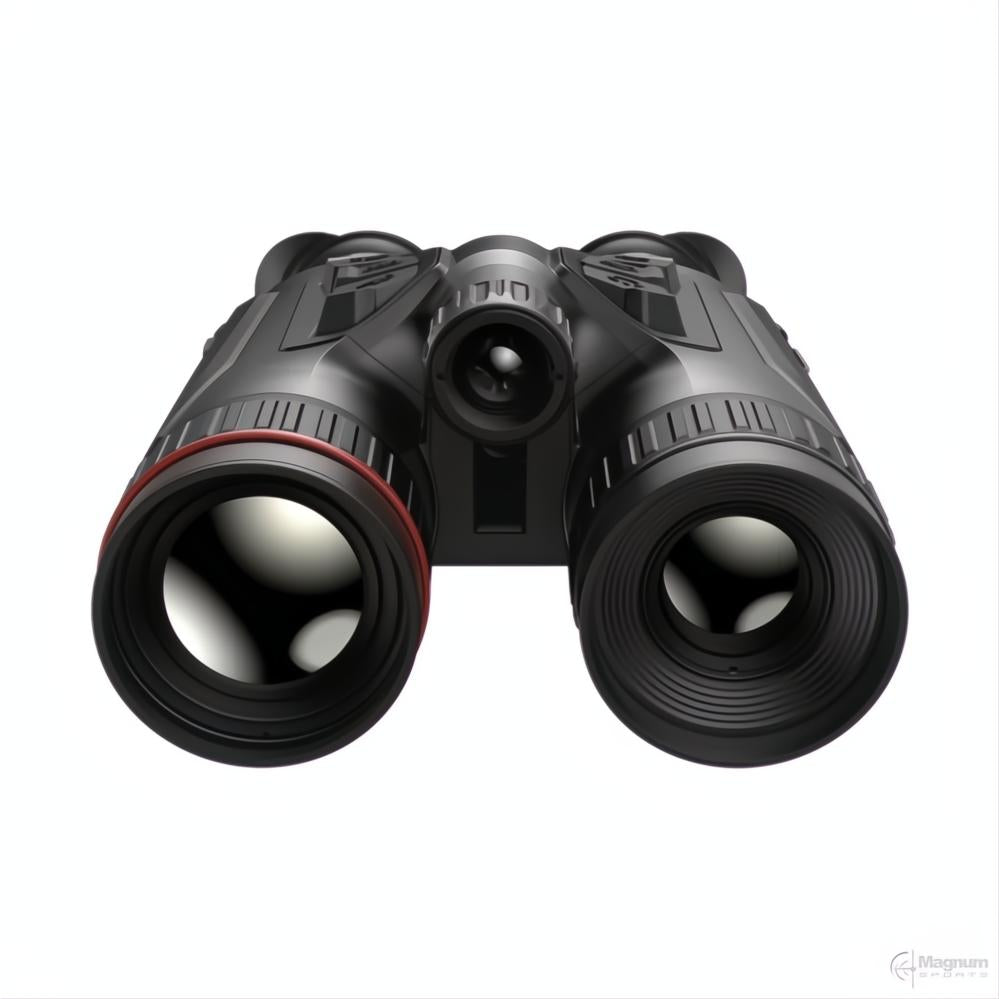

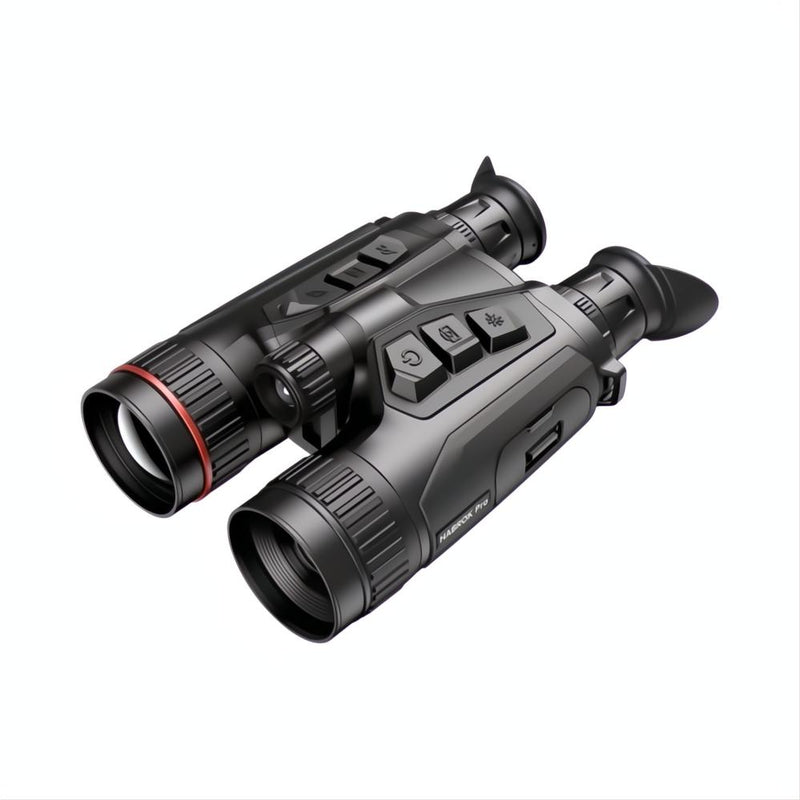

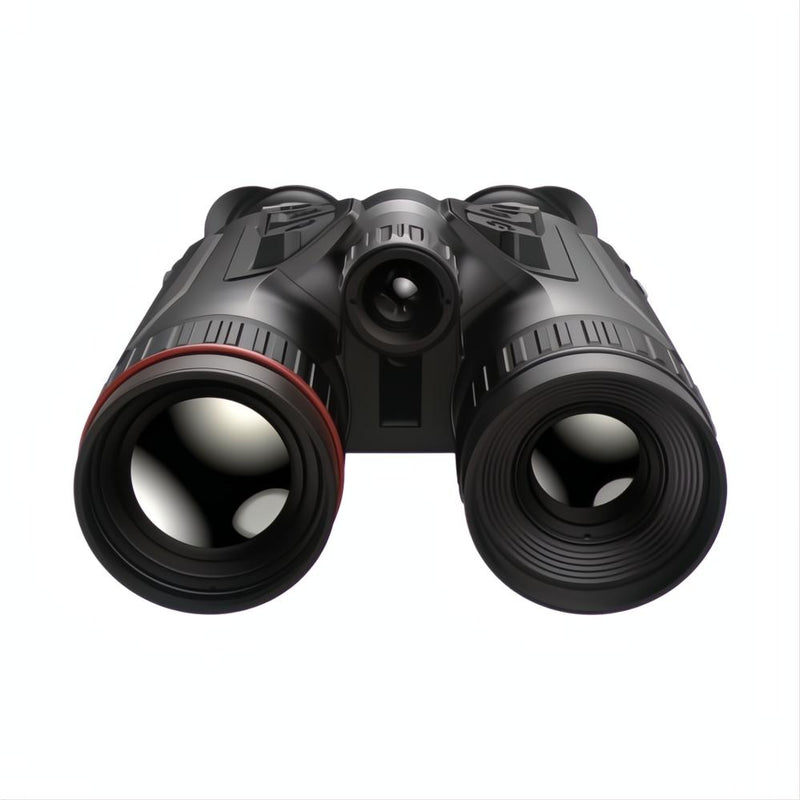

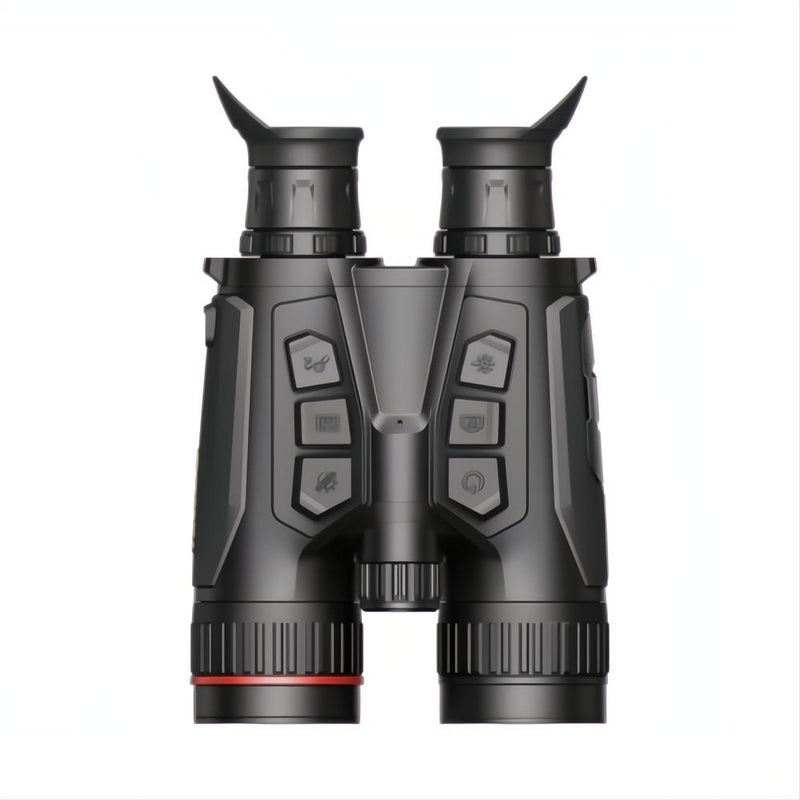

Hikmicro Habrok Pro HQ50LN

The HIKMICRO HABROK Pro HQ50L(N) Multi-Spectrum Binocular is engineered for superior performance in all environments. Featuring an ultra-sensitive < 15mK NETD and a 640 x 512 thermal detector with a 50 mm thermal lens, along with a cutting-edge 4K digital detector with a 60 mm lens, it guarantees exceptional image quality and precise detail recognition in any weather or lighting condition.

Paired with a 1000 m laser rangefinder and a replaceable 850nm or 940nm IR emitter, this versatile all-in-one binocular is ideal for applications such as forest and field hunting, birdwatching, wildlife tracking, search and rescue operations, and marine exploration.

Features:

• 640 x 512 resolution @12 um thermal detector
• High sensitivity thermal module NETD < 15 mK (@25√ªC, F# = 1.0)
• 50 mm, F1.0 lens with thermal detection range up to 2600 m
• 3840 x 2160 4K ultra high-resolution CMOS detector
• 1920 x 1080 resolution 0.49-inch OLED display
• Built-in 850 nm or 940 nm IR illuminator and Laser Rangefinder of 1000 m measuring distance
• 7 h+ continuous operation time with replaceable battery pack
• 975 g lightweight, with a compact and ergonomic design

Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 640 x 512
• Frame Rate: 50Hz
• Pixel Interval: 12um
• Response Waveband: 8um to 14um
• NETD: Less than 15 mK (@25√ªC),F#=1.0
• Lens (Focal Length): 50mm, F1.0
• Detection Range: 2600m
• Focus Mode: Focus Ring
• Field of View(H x V), Degrees / m @100m: 8.8√ª x 5.3√ª / 15.4m x 9.3m
• Min. Focusing Distance: 5m
• Magnification: 4.3x-20.0x (4.6x)

Optical Module

• Image Sensor: 1/1.8'' Progressive Scan CMOS
• Max. Resolution: 3840 x 2160
• Focal Length: 60mm, F2.2
• Field of View (H x V), Degrees / m @100m: 7.3√ª x 4.1√ª / 12.6m x 7.2m
• Min. Working Distance: 3m
• IR Illuminator Wavelength: 940nm
• Viewing Range at Night: 350m
• Magnification: 5.5x - 22.0x√Æ‚à´4x)
• Focus Mode: Focus Ring
• Smart IR: Yes
• Replaceable IR Illuminator: Yes

Image Display

• Display: 0.49 inch, OLED, 1920 x1080
• Contrast Adjustment: Yes
• Brightness Adjustment: Yes
• Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 8mm
• Eye Relief: 15mm
• Diopter (Range): -5D~+3D
• Tone Adjustment: Cold, warm
• Zoom Pro: Yes
• Image Pro 2.0: Yes

General

• Protection Level: IP67
• Weight: 975g with battery pack
• Dimension: 142.9mm x 79.7 mm x 230.5 mm (5.6" x 3.1" x 9.1")
• Working Temperature: -30√¢ ~ +55√¢
• Interpupillary Adjustment Range: 60 mm to 74 mm
• Mounting Adapter: 1/4‚à´-20-UNC

System

• Record Video: Yes
• Capture Snapshot: Yes
• Hotspot: Yes
• GPS: Yes
• Digital Magnetic Compass: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64 GB)
• PIP: Yes
• Hot Track: Yes
• Audio Recording: Yes
• Local Album: Yes

Power Supply

• Replaceable and Rechargeable Li-ion Battery Pack
• Battery Operating Time: 10.5h (25 √ªC, with hotspot off, LRF and Zoom Pro on)
• Type-C Power Supply: 5V/9V DC, 3A
  Support External Power Supply, Support Direct Charging

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905nm
• Max. Measuring Range: 1000m
• Measurement Accuracy: ¬±1m
• Min. Measuring Range: 10m
