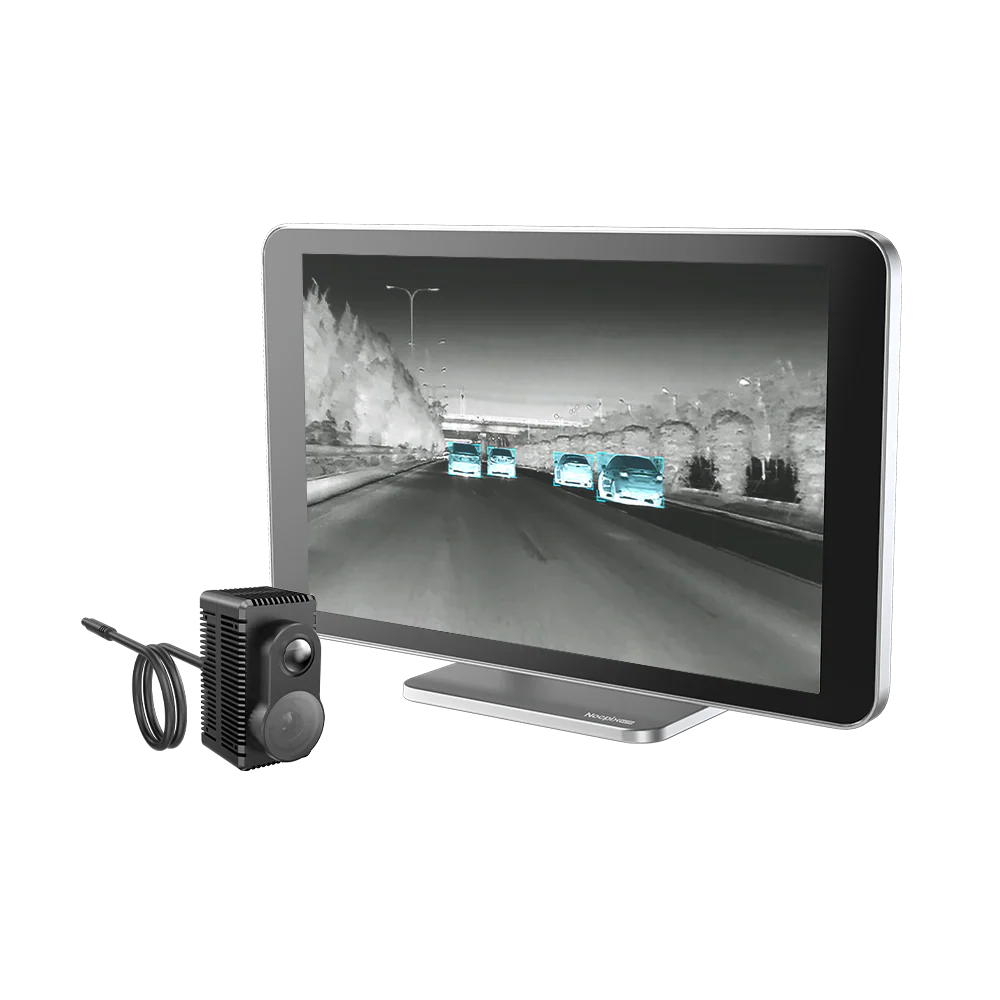

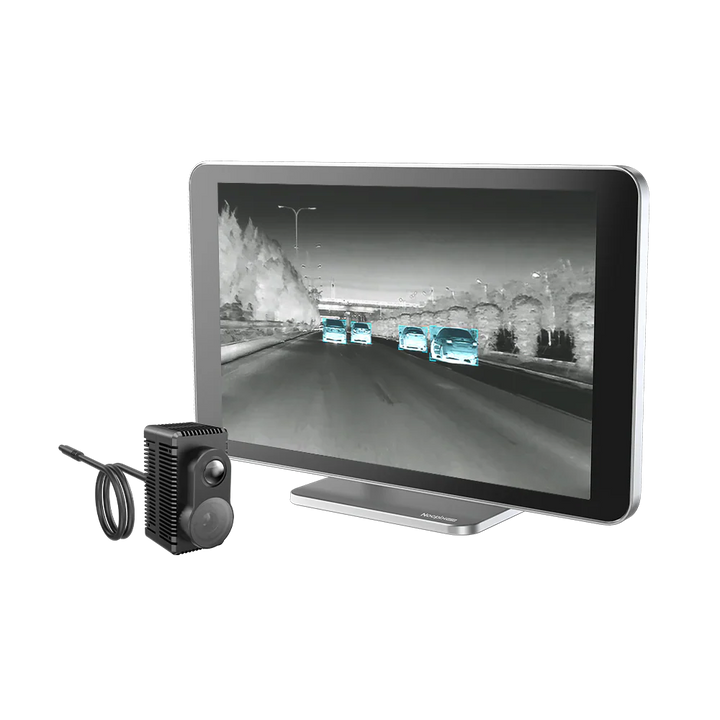

Nocpix AUTO NS7 Thermal Assisted Driving Camera

The Nocpix AUTO NS7 combines thermal and visible-light imaging to provide continuous in-vehicle assisted driving with onboard ADAS alerts, improving driver situational awareness day or night.

• Dual imaging system: 256×192 thermal resolution (NETD≤25mK) plus 1920×1080 visible-light camera for layered detection.
• 7-inch high-definition display: 1280×800 resolution with a 60Hz refresh rate for clear, responsive on-screen alerts.
• ADAS warnings: FCW (forward collision), PCW (pedestrian collision), and LDW (lane departure) plus special-animal detection to help highlight potential hazards.
• Detection distances (vehicle, 2.3 m target): 200 m / 100 m, supporting earlier awareness of vehicles ahead.
• Compact camera footprint and operating range: camera dimensions 26 mm × 33.5 mm × 73 mm and operating temperature -4 to +140 °F.

By combining thermal sensitivity with high-resolution visible imaging and a sizable, high-refresh display, the NS7 is designed to present layered sensor information and timed ADAS alerts for more informed driving decisions in varied lighting and temperature conditions.
