Thermal Imaging Driver Assist Kit
Thermal Imaging Driver Assist Kit

Thermal Imaging Driver Assist Kit


Regular price$4,750.00
Tax included. Shipping calculated at checkout.

Is safety paramount to your journey? Thermal Imaging Driver Assist technology is the next step in automotive safety. Using thermal imaging cameras, driver assist devices can help drivers identify potentially hazardous situations well before they unfold. Avoid wandering wildlife. Steer clear of unseen obstructions. Detect pedestrians through smoke or fog.

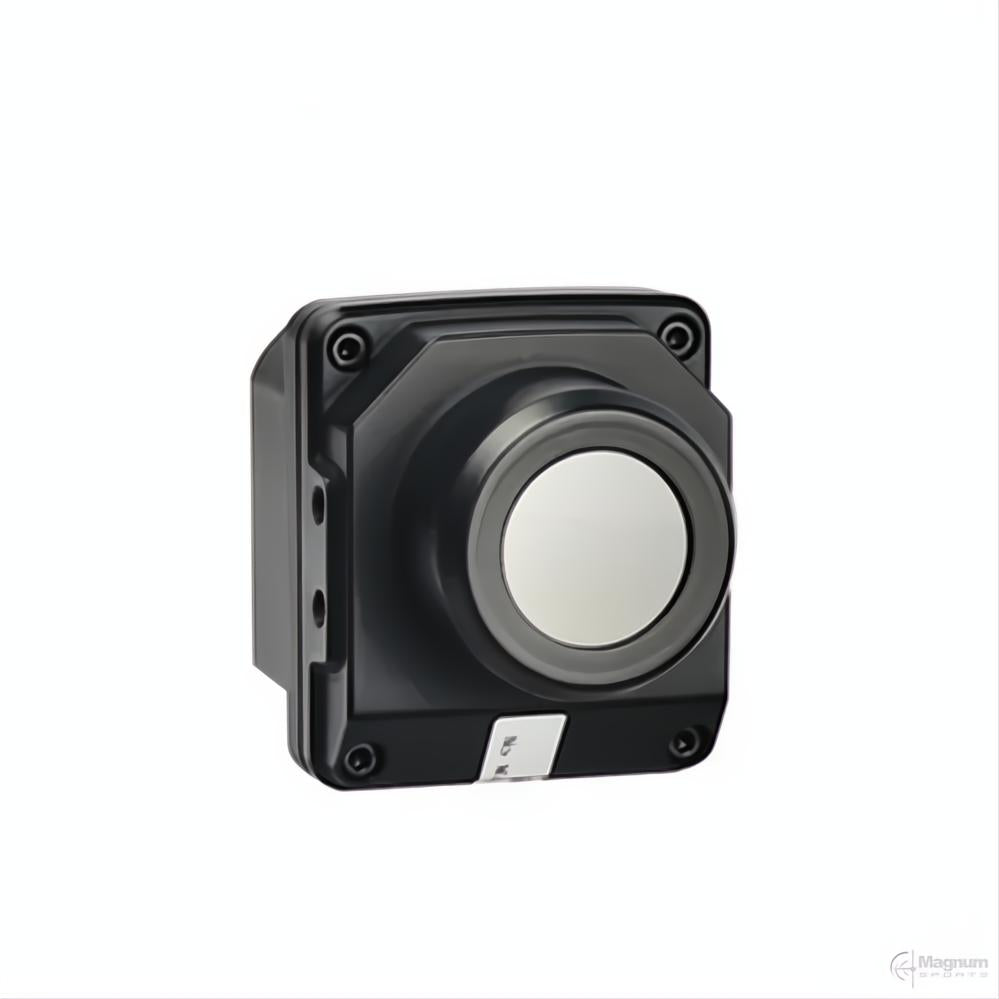

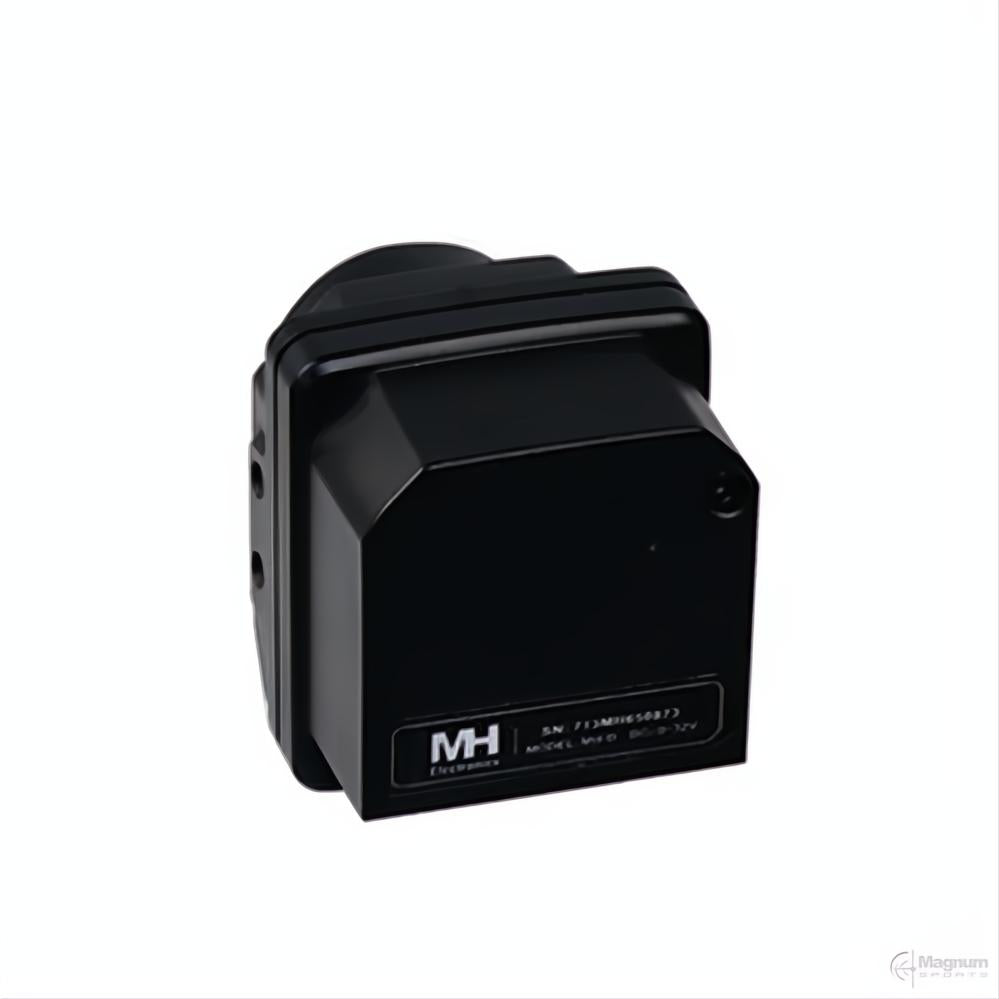

The MH-D kit includes a thermal imaging driver assist camera that mounts within the front grill of a vehicle. The camera is connected to an inbuilt vehicle display, or a separately available 6" LCD monitor, to display and detect thermal signatures in the path of the vehicle. The MH-D boasts detection distances of 200m for a man-sized object or 400m for a vehicle. Combined with rugged design and the intelligent recognition system the MH-D is the superior option to make your journey as safe as possible.

Our range of automotive thermal imaging devices is guaranteed to give drivers peace of mind on long-haul trips and through busy city streets.

Thermal Imaging Detector (Sensor)

  • Sensor type - 384 x 288 Uncooled Microbolometer
  • Spectral band (μm) - 8~14 microns (LWIR)
  • Lens Focus - 19mm
  • Field-of-View - 28°x21° (PAL), 27°x18° (NTSC)

Image Presentation

  • Video Output Resolution - 50Hz PAL/60Hz NTSC
  • Start-up time - ≤8s
  • Calibration Algorithm - Auto shutter calibration (shutter-less algorithm optional)
  • Image Processing Algorithm - Auto brightness & contras/image enhancement
  • Intelligent alarm algorithm - Pedestrian recognition

Electric Interface

  • Power Input - DC 9~32v
  • Communication Port - RS232
  • Video Output Interface CVBS single-ended/difference

Power Supply

  • Regulated Voltage - DC 9~32v
  • Power Consumption - ≤3.5w(@12v, when heating up the front window.)

Environment Compatibility

  • Operating Temperature Range - -40°C~80°C
  • Storage Temperature Range - -45~90°C
  • Auto Heater - If front window temperature is lower than 2°C±2°C, auto heater works; If front window temperature is higher than 7°C±2°C, auto heater does not work
  • Salt Spray - 6500 working hours under 81% humidity, 25°C, refer to standard IEC60068-2-11Ka
  • Sand and Dust - 6 working hours under sand & dust density 10g/m3, airflow velocity under 10m/s, refer to standards GB/t2423. 37-2006Lc1
  • Shock - Half-sine wave, accelerating 30g, duration 11ms, 5 times/direction, 3-axis/3-direction
  • Vibration - 25-500-25Hz, sine scanning frequency 1 oct/min, Z-axis 3g, X, Y-axis 1.5g, 8h/direction
  • Encapsulation - IP67
  • Size - 75mm x 58mm x 68mm
  • Weight - ≤400g

Effective Range:
Detection Range

  • Man-Sized - ≥200m
  • Vehicle - ≥400m

Recognition Range

  • Man-Sized - ≥90m
  • Vehicle - ≥120m
