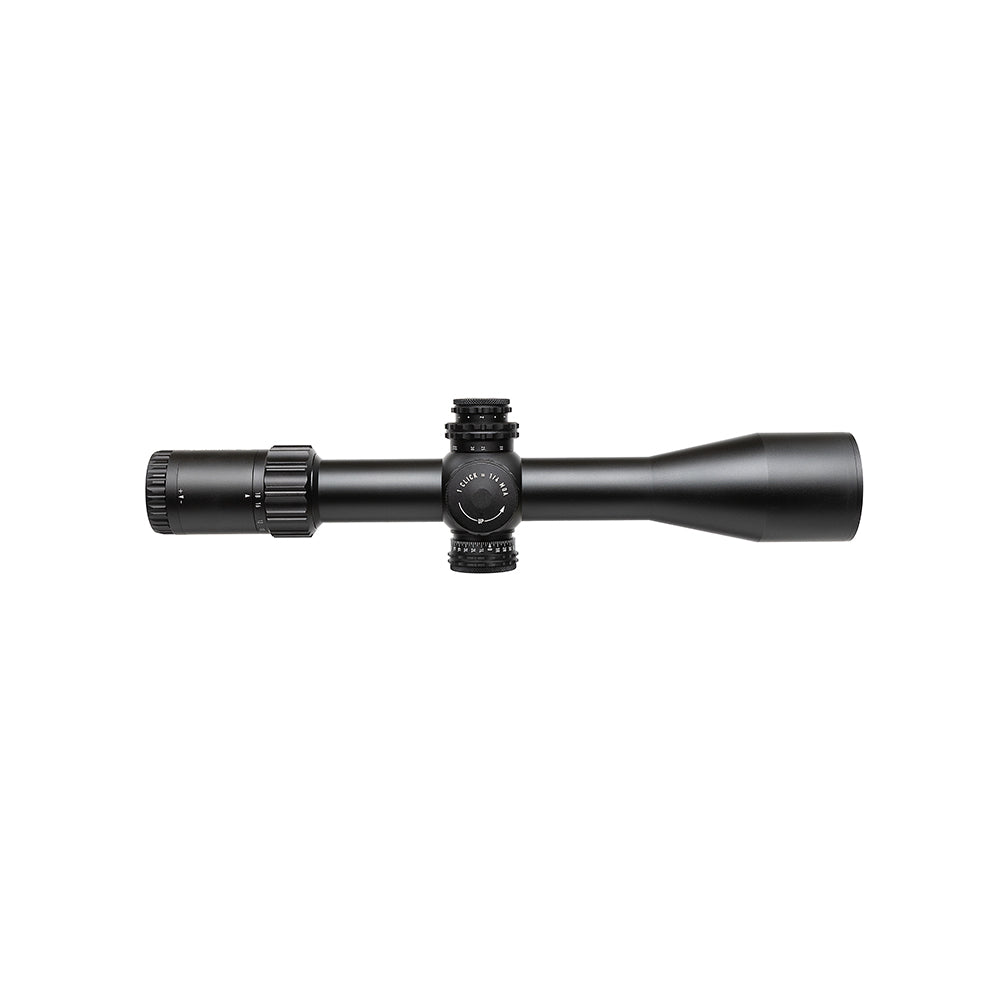

Element Optics Helix HDLR 2-16X50

The Helix HDLR (Long Range) model steps it up another notch with HD Glass, Reticle Illumination, a massive Zoom Range and more Elevation Travel. And, they’ve capped both the windage and elevation turrets for a more hunter-friendly, compact feel. This is on top of Helix’s core features which include clear glass, smart reticle, innovative design, and a turret system superior to other products in the same price class. Further, they’ve kept the ever popular Tool-Free system and Zero-Stop on the Elevation turret for ease of use when dealing for extended ranges, but have capped the windage for a more hunter-friendly, compact feel.

• 30mm Main Body Tube
• 8x Zoom Optical System
• Compact, Lightweight design
• Second Focal Plane Reticle
• Aircraft Grade Aluminum
• Side Parallax: 10m-Infinity
• Fully Multi-Coated Lenses with HD Glass
• Capped, Resettable Turrets
• Removable Magnification Throw Lever
• Waterproof, Fogproof, Shockproof & Nitrogen Purged
• Sunshade, Lens Cloth, ¬∫Cheat Sheet' Stickers & Clear Lens Caps Included
• Features

  • 30mm Main Body Tube
  • 8x Zoom Optical System
  • Compact, Lightweight design
  • Second Focal Plane Reticle
  • Aircraft Grade Aluminum
  • Side Parallax: 10m-Infinity
  • Fully Multi-Coated Lenses with HD Glass
  • Tool-Free Exposed Elevation Turret, Capped Windage Turret
  • Zero Stop
  • Removable Magnification Throw Lever
  • Waterproof, Fogproof, Shockproof & Nitrogen Purged
  • Sunshade, Lens Cloth & Lens Caps Included


  MAGNIFICATION RANGE00	2-16x
  TUBE DIAMETER	30mm
  OBJECTIVE LENS DIAMETER	50mm
  EXIT PUPIL	8.5-3.1mm
  EYE RELIEF	101.6mm (4”)
  FIELD OF VIEW	60.2-7.49ft @ 100yds (20.2 – 2.51m @ 100m)

  CLICK VALUE		1/10 MRAD (6 MRAD / REV)
  ELEVATION ADJUSTMENT RANGE	100 MOA	29 MRAD
  WINDAGE ADJUSTMENT RANGE	45 MOA	13 MRAD
  MINIMUM PARALLAX	10 YDS	10 METERS
  LENGTH	13.39 Inches	340mm
  WEIGHT	27.1oz	770g
