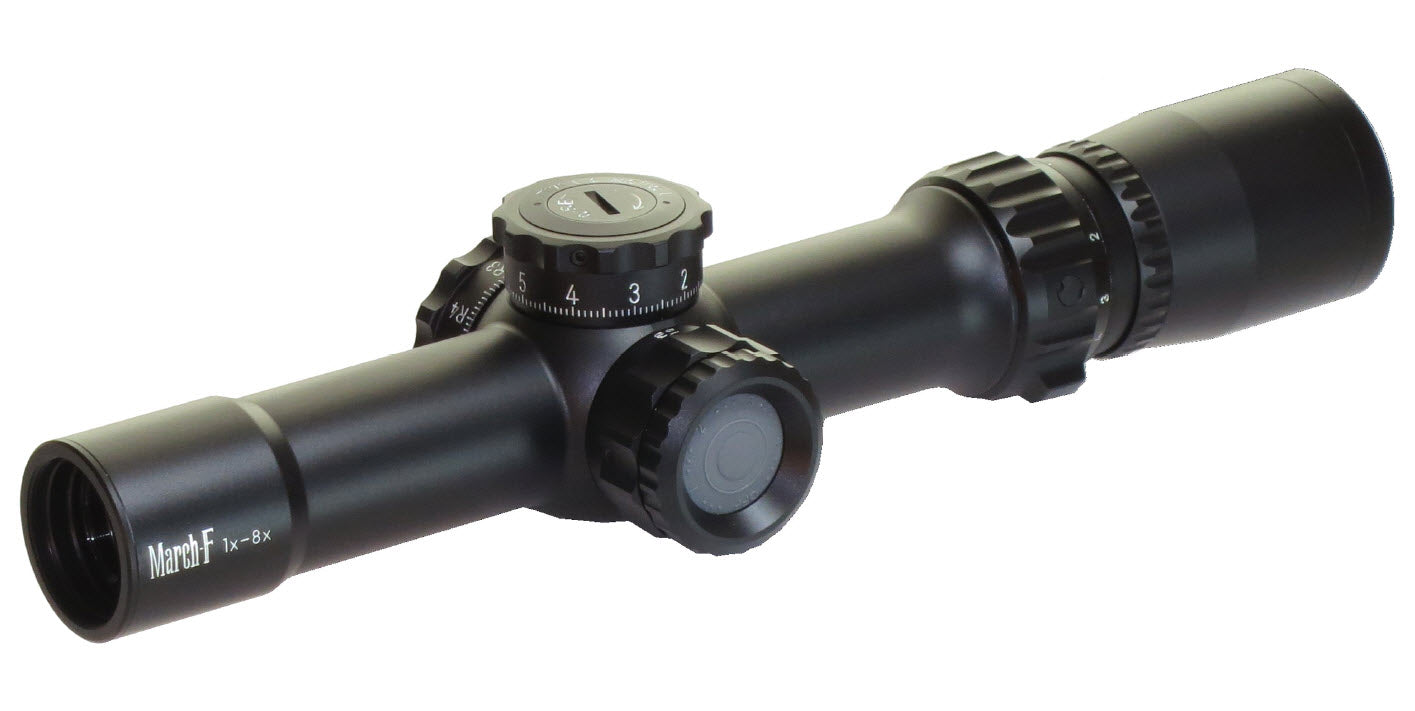

This zoom scope has an 8x magnification ratio. Available in Mil Radian version. The reticle scale value remains constant across the entire zoom range. Target ranging is accurate at any power. One turn of the adjustment dial is 10 mrad. One click value is 1/10 m-rad. Additionally, with the capability to set any position as the zero point in elevation, the shooter will never lose their starting calibration.
Comes in illuminated and non-illuminated versions. High end Extra-Low dispersion (ED) lenses
Standard and Low illumination modules are available. Both modules provide four levels of reticle intensity (red) and can be cycled by simply pressing the pressure switch within the focus dial.
Key Features
- First Focal Plane(FFP) reticle with 8x zoom ratio.
- The m-rad(Mil) reticle scale value remains constant across the entire zoom range.
- 56 Mils of windage and elevation adjustment range.
- 10 Mils per turret revolution, 1/10th Mil per click.
- Side Focus/Parallax adjustment from 10 yards to infinity.
- Compact/Lightweight design with long eye relief and 30mm main tube.
- Tactical turrets with zero set function within the elevation turret.
- Illuminated or Non-Illuminated options.
- Multiple illumination module options, which are user changeable. Including a low illum module that is night vision compatible.
- Supplied with flip lens covers that lock back.
- Illumination module options that are user changeable. (Standard, and low intensity for night vision compatibility).
Specifications
- Magnification: 1x (low) / 8x (high)
- Effective Lens Diameter: 24mm
- Body Tube Diameter: 30mm
- Exit Pupil: 8.6mm (low) / 3mm (high)
- Field of View, real: 20° (low) / 2.5° (high)
- Eye Relief: 86-98mm
- 1 Click Adjustment: 0.1 Mil
- Elevation Travel: 56 Mil
- Windage Travel: 56 Mil
- Focus: Side Focus / Parallax
- Distance: 10YD-infinity
- Finish: Matte Black
- Total Length (-1D): 258mm (10 Inch)
- Weight: 530g (18.69oz) - 560g (19.75oz)
Dimensions (see diagram)
- A: 258mm (10.16 inch)
- B: 129mm (5.01 inch)
- C: 33mm (1.3 inch)
- D: 41mm (1.6 inch)
- E: 35mm (1.4 inch)
- F: 94mm (3.7 inch)
- G: 49mm (1.9 inch)
- H: 42mm (1.65 inch)
Configurations and Order Codes

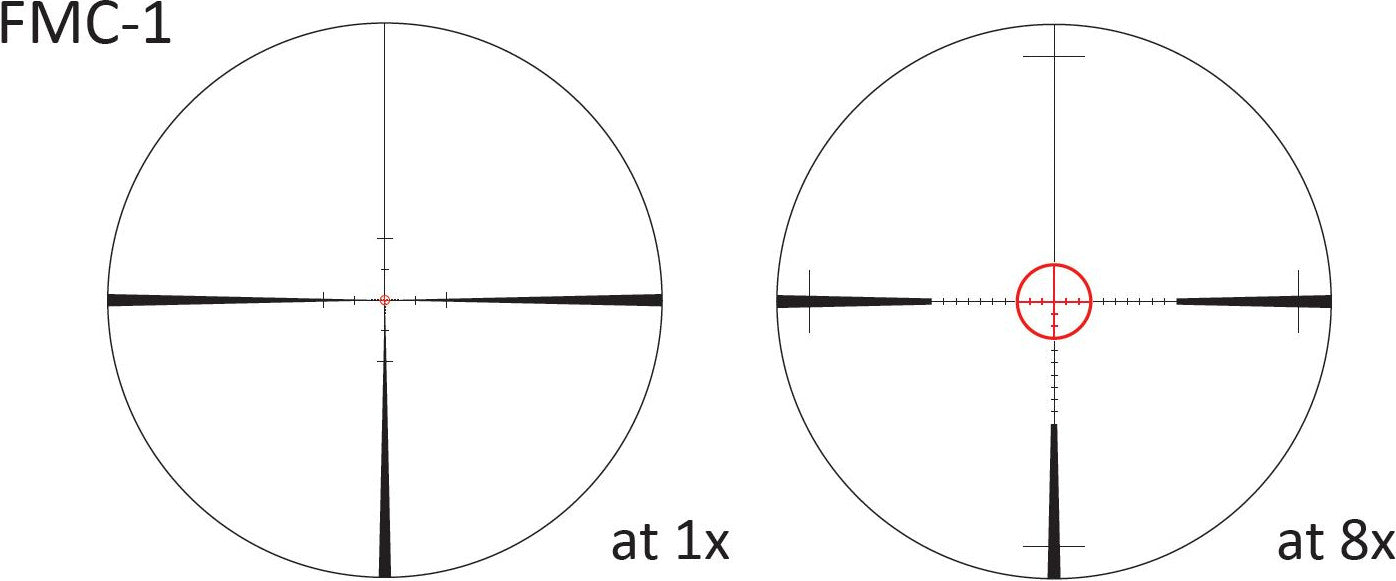

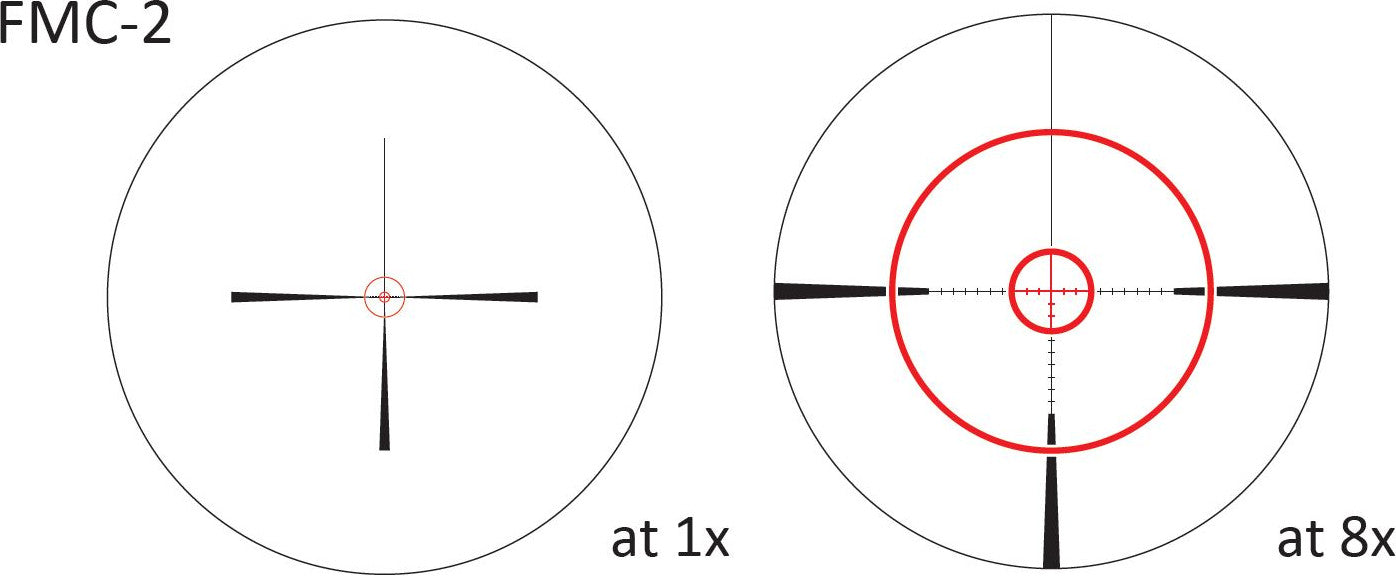

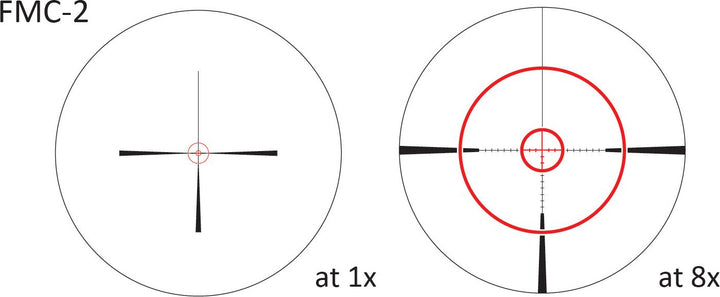

- D8V24FML - Tactical turrets, non-illuminated, 0.1 MIL clicks. Reticles: FMC-1, FMC-2
- D8V24FIML - Tactical turrets, illuminated, 0.1 MIL clicks. Reticles: FMC-1, FMC-2
March scopes are hand-built in Japan by DEON Optical Design and supplied to order through the Australian distributor. Contact us for current availability and lead times on your configuration.
