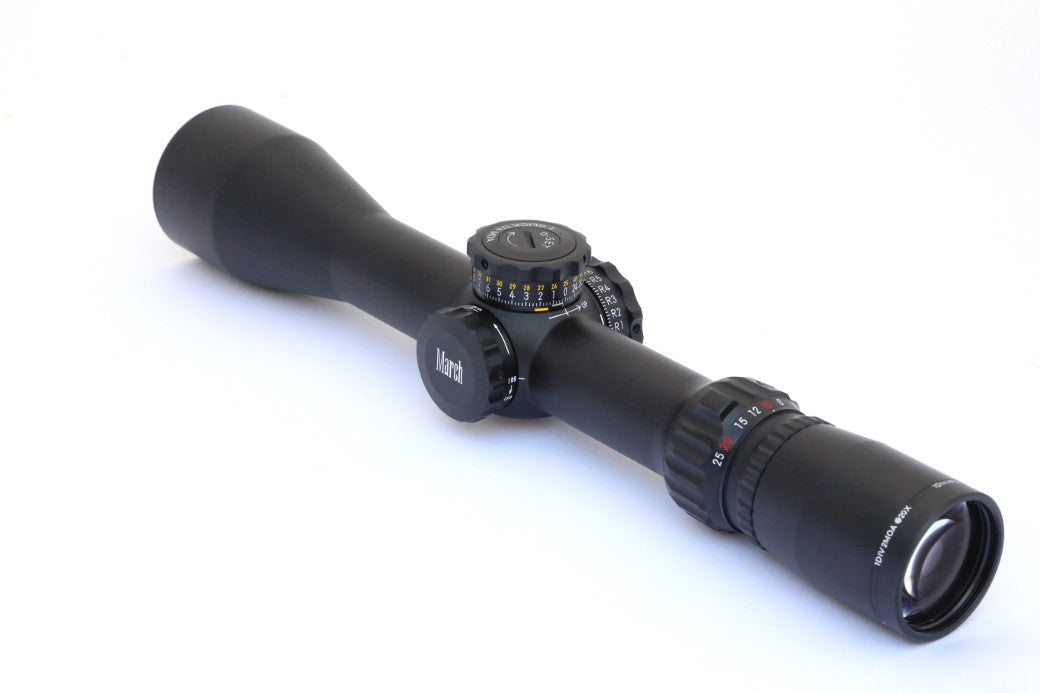

March Scopes 2.5-25x42 SFP

This second focal plane design scope has an 10x magnification ratio, which is the highest magnification ratio in a SFP (Second focal plane) configuration rifle scope made to date. The first scope in the world which had this zoom capability. This 2.5x-25x 42mm Compact model comes in two versions. The Minute of Angle (MOA) and a Mil Radian (MML) . Short compact overall size yet strong robust build quality as you would expect from a MARCH Scope.

It comes in illuminated and non-illuminated versions. Standard and Low illumination modules are available. Both modules provide four levels of reticle intensity (red) and can be cycled by simply pressing the pressure switch within the focus dial on the left side. There is also a 6 setting illumination module. Very effective feature at dusk or when aiming at a dark target. Auto shut-off too to save battery life. If illumination is not activated the reticle remains black as per the non illuminated model. Additionally, with the capability to set any position as the zero point in the elevation (0-set feature), the shooter will never lose their starting calibration point. *(see additional note below)

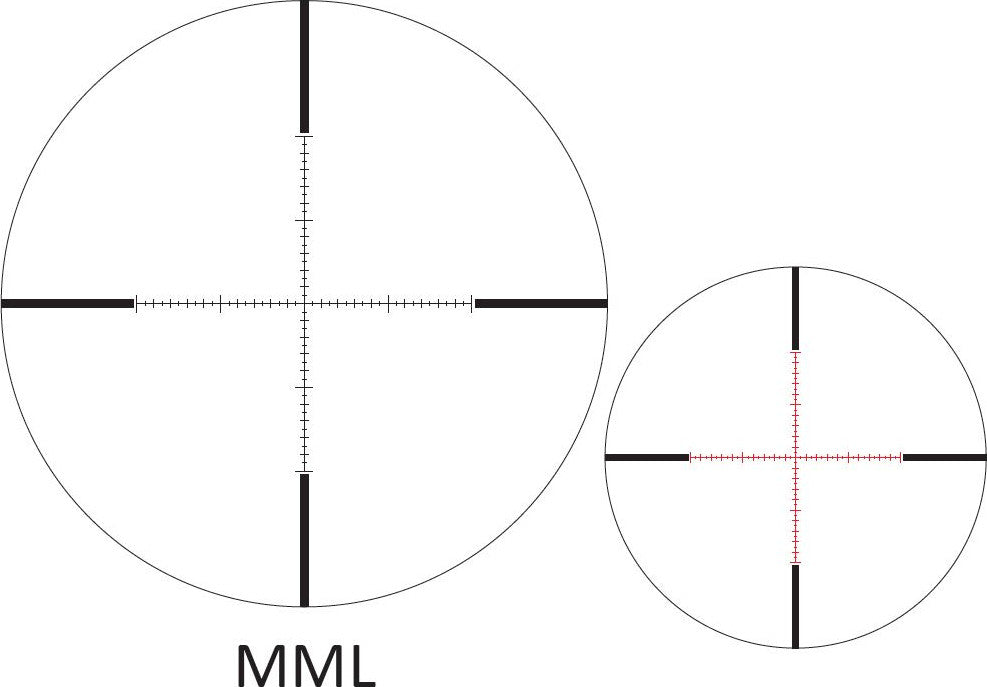

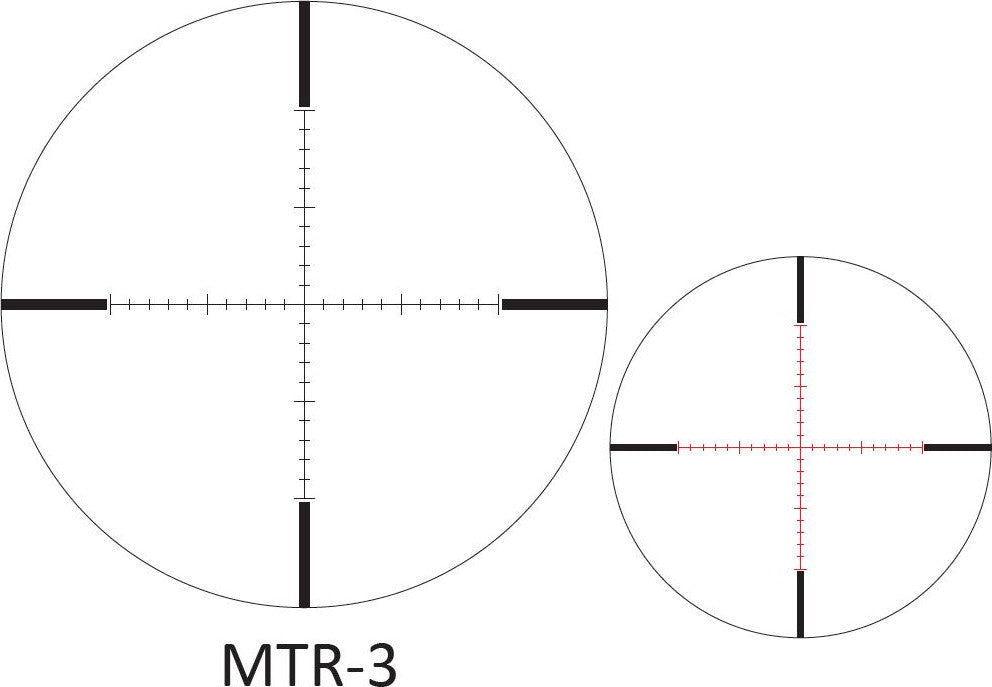

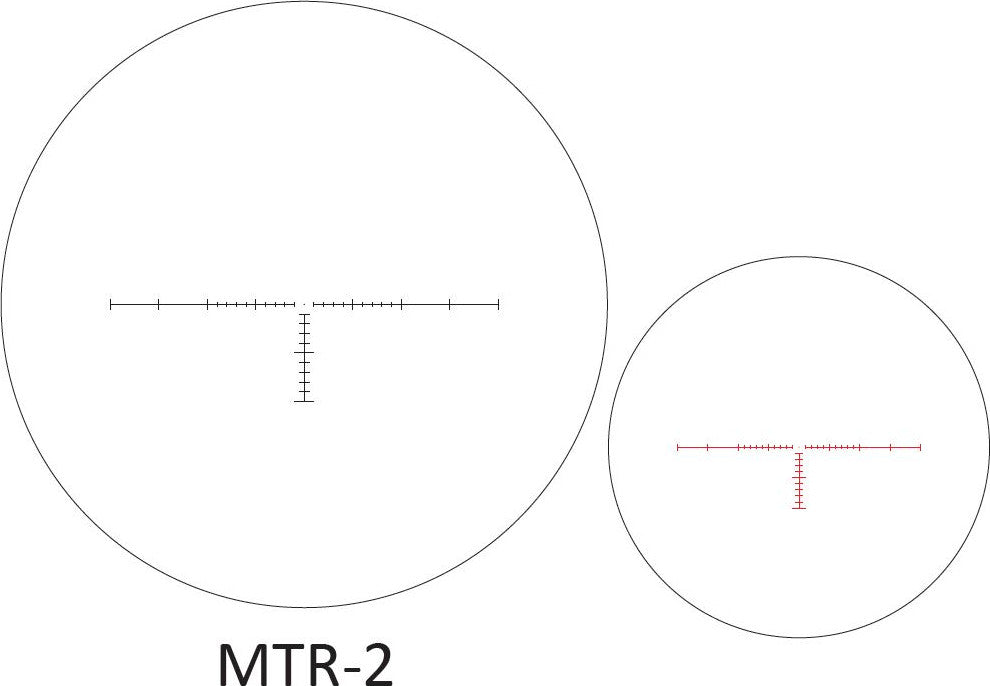

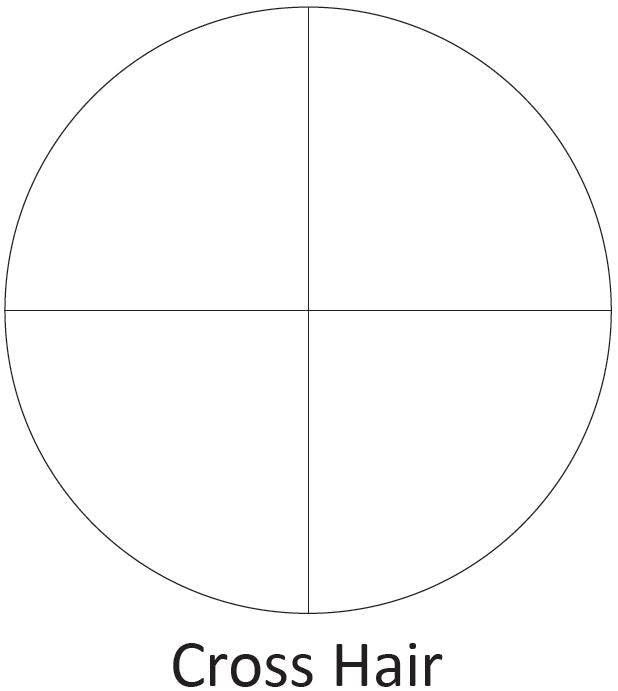

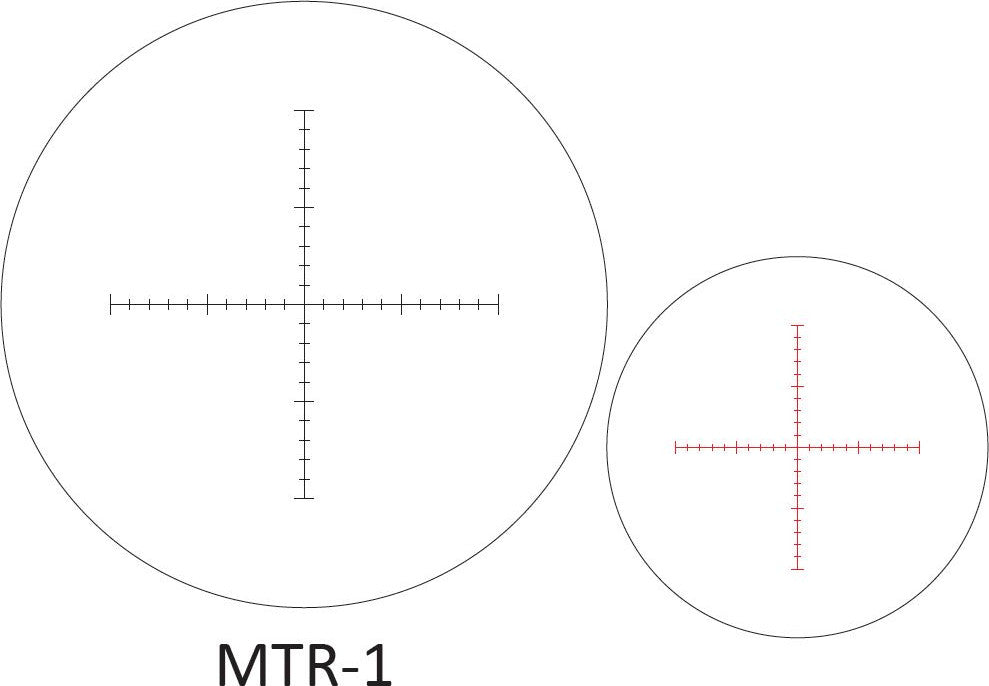

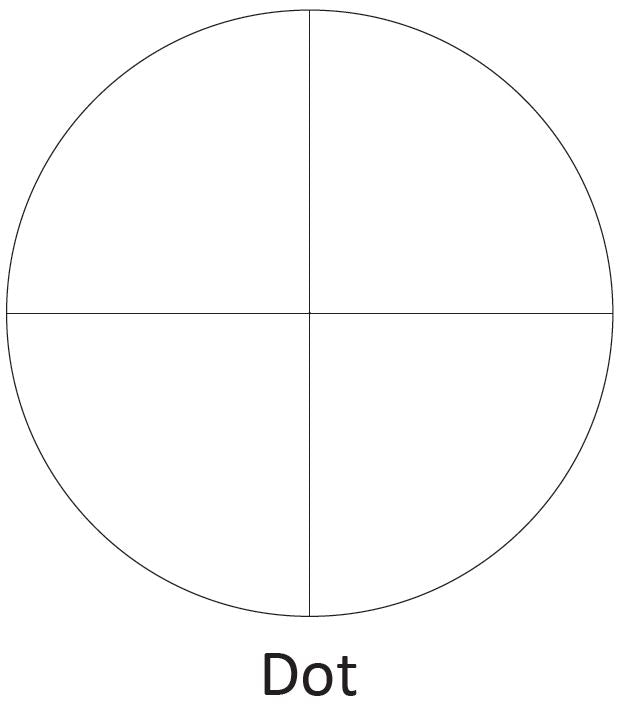

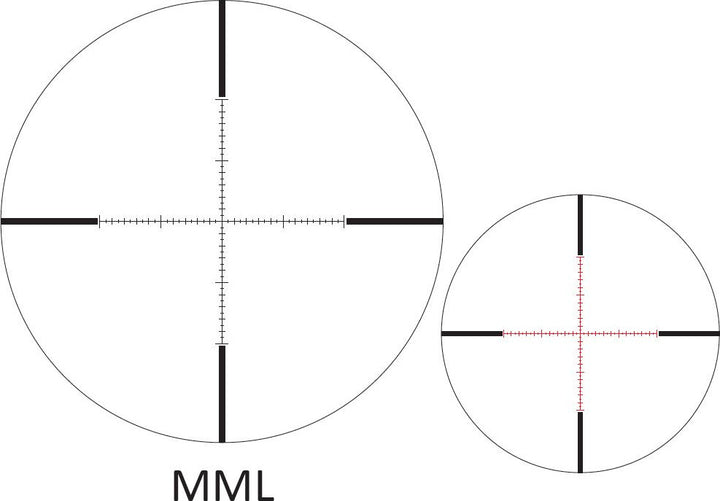

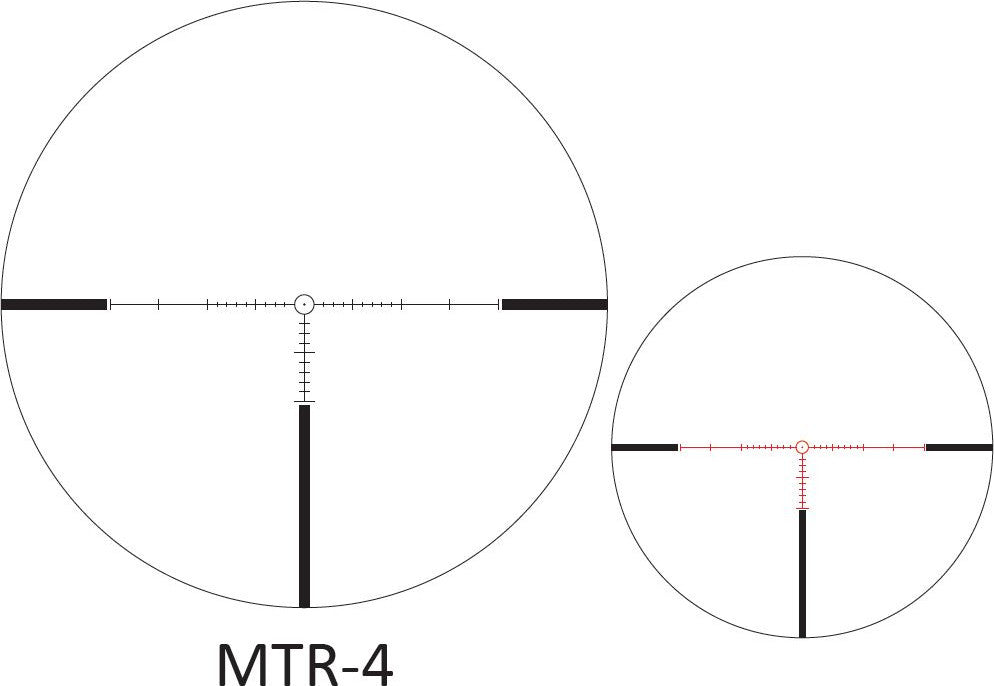

Reticle options include the standard wire style reticles of the DE Plex, Crosshair and 1/4 dot. Then the glass etched reticles of MTR-1, 2, 3, 4 and the MML. These come in either non illuminated or illuminated versions.

Key Features

• Second Focal Plane (SFP) with 10x zoom ratio.
• The Mil or MOA reticle will remain the same size across the zoom range.
• 100 MOA of elevation and windage adjustment range.
• 25 MOA per turret revolution, 1/4 MOA per click.
• 28 Mil of elevation and windage adjustment range.
• 10 Mil per turret revolution, 0.1 Mil per click.
• Side Focus/Parallax adjustment from 10 yards to infinity.
• 30mm main tube with long eye relief up to 100mm.
• 42mm front lens with superb Japanese glass, ED technology.
• Tactical Turrets with zero set in the elevation turret.
• Also available with capped turrets.
• Compact/Lightweight design with long eye relief and 30mm main tube.
• Illuminated or Non-Illuminated options.
• Multiple illumination module options, which are user changeable. Including a low illum module that is night vision compatible.
• Supplied with flip lens covers that lock back and sun shade.

Specifications

• Magnification: 2.5x (low) / 25x (high)
• Effective Lens Diameter: 52mm
• Body Tube Diameter: 30mm
• Exit Pupil: 2.08mm
• Field of View, real: 8° (low) / 0.8° (high)
• Eye Relief: 85-100mm (low) / 89-96mm (high)
• 1 Click Adjustment: 1/4 MOA
• Elevation Travel: 120 MOA
• Windage Travel: 60 MOA
• Focus: Side Focus / Parallax
• Distance: 10YD-infinity
• Finish: Matte Black
• Total Length (-1D): 338mm
• Weight: 665g (234.oz) or 695g (24.5oz)

Dimensions (see diagram)

• A: 312 - 314mm (12.3 - 12.4 inch)
• B: 139mm (5.5 inch)
• C: 51mm (2.0 inch)
• D: 41mm (1.6 inch)
• E: 81mm (3.2 inch)
• F: 92 - 94mm (3.6 - 3.7 inch)
• G: 53mm (2.08 inch)
• H: 48mm (1.88 inch)

Configurations and Order Codes

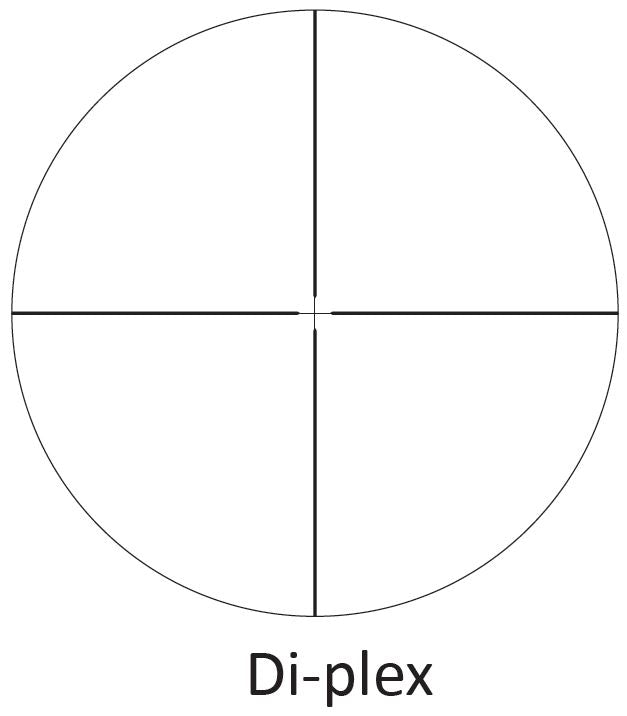

• D25V42T - Tactical turrets, non-illuminated, 1/4 MOA clicks. Reticles: Crosshair, 1/4 Dot, Di-Plex
• D25V42TDE - Tactical turrets, non-illuminated, 1/4 MOA clicks. Reticles: DE Plex
• D25V42TM - Tactical turrets, non-illuminated, 1/4 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4, MTR-FT

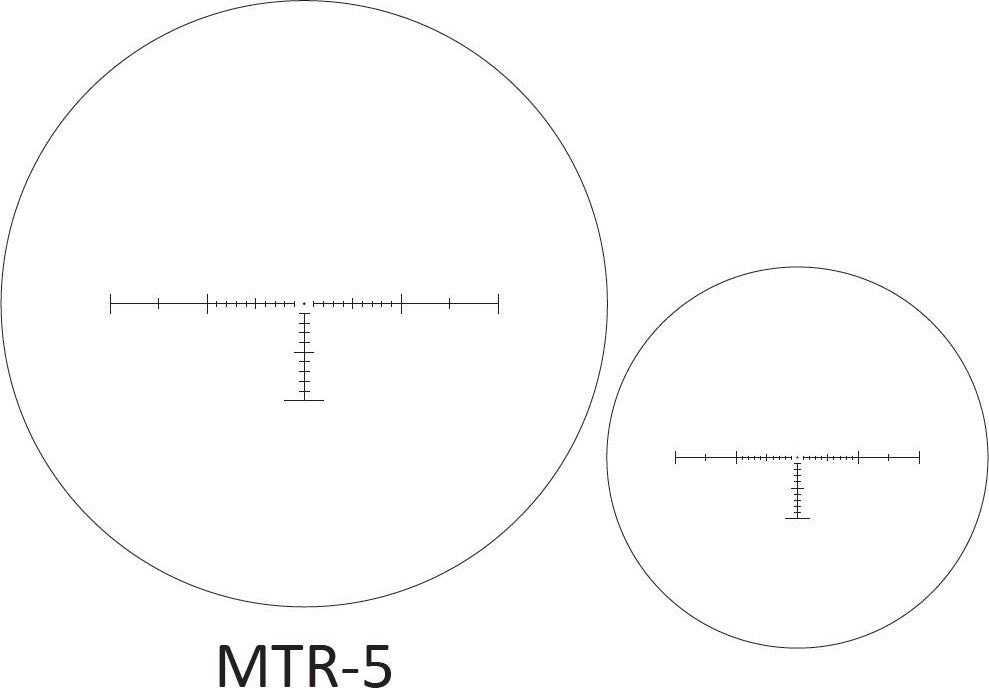

• D25V42TI - Tactical turrets, illuminated, 1/4 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4, MTR-FT, MTR-5
• D25V42TML - Tactical turrets, non-illuminated, 0.1 MIL clicks. Reticles: MML
• D25V42TIML - Tactical turrets, illuminated, 0.1 MIL clicks. Reticles: MML
• D25V42 - Hunting Capped turrets, non-illuminated, 1/4 MOA clicks. Reticles: Crosshair, 1/4 Dot, Di-Plex
• D25V42M - Hunting Capped turrets, non-illuminated, 1/4 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4

March scopes are hand-built in Japan by DEON Optical Design and supplied to order through the Australian distributor. Contact us for current availability and lead times on your configuration.
