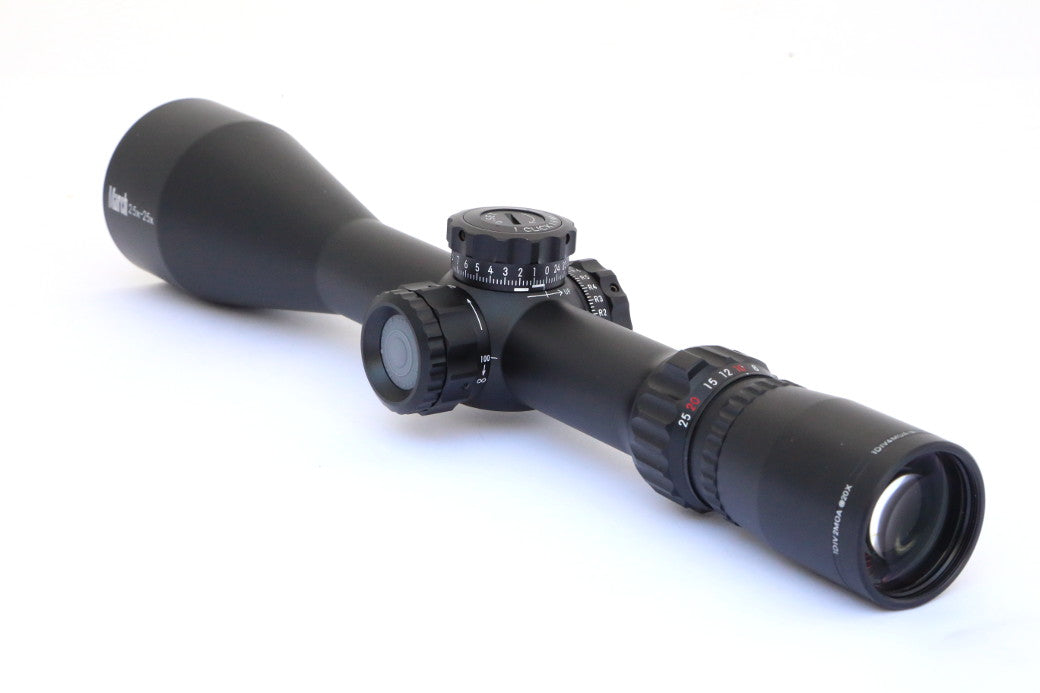

March Scopes 2.5-25x52 SFP

This second focal plane design scope has an 10x magnification ratio, which is the highest magnification ratio in a SFP (Second focal plane) configuration rifle scope made to date. This 2.5x-25x 52mm model comes in two versions. The Minute of Angle (MOA) and a Mil Radian (MML) . This model compliments the Compact version which has a 42mm front lens. The 52mm Objective model has ED lenses short overall size and strong robust build quality as you would expect from a MARCH Scope.

It comes in illuminated and non-illuminated versions. Standard and Low illumination modules are available. Both modules provide four levels of reticle brightness or intensity (red) and can be cycled by simply pressing the pressure switch within the focus dial on the left side. Very effective feature at dusk or when aiming at a dark target. Illumination models auto shut-off too to save battery life. When the illumination is not activated the reticle remains black as per the non illuminated models with etched glass style reticles (MTR and MML style). Additionally, with the capability to set a position as the zero point in the elevation (0-set feature), the shooter will never lose their starting calibration point. (*see additional note below about zero-set range)

Key Features

• Second Focal Plane (SFP) with 10x zoom ratio.
• The Mil or MOA reticle will remain the same size across the zoom range.
• 120 MOA of elevation and 60 MOA of windage adjustment range.
• 25 MOA per turret revolution, 1/4 MOA per click.
• 34 Mil of elevation and 17 Mils of windage adjustment range.
• 10 Mil per turret revolution, 0.1 Mil per click.
• Side Focus/Parallax adjustment from 10 yards to infinity.
• 30mm main tube with long eye relief up to 100mm.
• 52mm front lens with superb Japanese glass, ED technology
• Tactical Turrets with zero set in the elevation turret.
• Also available with capped turrets.
• Illuminated or Non-Illuminated options.
• Multiple illumination module options, which are user changeable. Including a low illum module that is night vision compatible.
• Supplied with flip lens covers that lock back and sun shade.

Specifications

• Magnification: 2.5x (low) / 25x (high)
• Effective Lens Diameter: 52mm
• Body Tube Diameter: 30mm
• Exit Pupil: 2.08mm
• Field of View, real: 8° (low) / 0.8° (high)
• Eye Relief: 85-100mm (low) / 89-96mm (high)
• 1 Click Adjustment: 1/4 MOA
• Elevation Travel: 120MOA
• Windage Travel: 60MOA
• Focus: Side Focus / Parallax
• Distance: 10YD-infinity
• Finish: Matte Black
• Total Length (-1D): 338mm
• Weight: 665g (23.4oz) or 695g (24.5oz)

Dimensions (see diagram)

• A: 336 - 338mm (13.2 - 13.3 inch)
• B: 139mm (5.5 inch)
• C: 60mm (2.4 inch)
• D: 41mm (1.6 inch)
• E: 105mm (4.1 inch)
• F: 92 - 94mm (3.6 - 3.7 inch)
• G: 53mm (2.08 inch)
• H: 48mm (1.88 inch)

Configurations and Order Codes

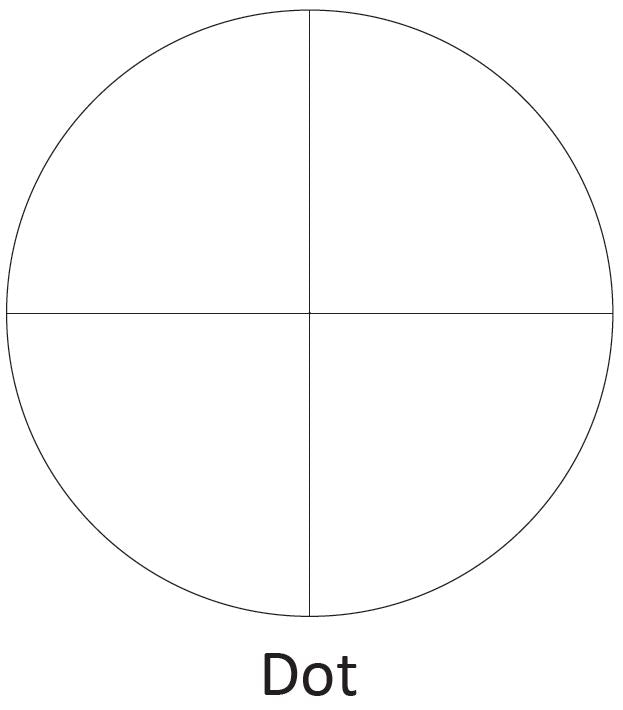

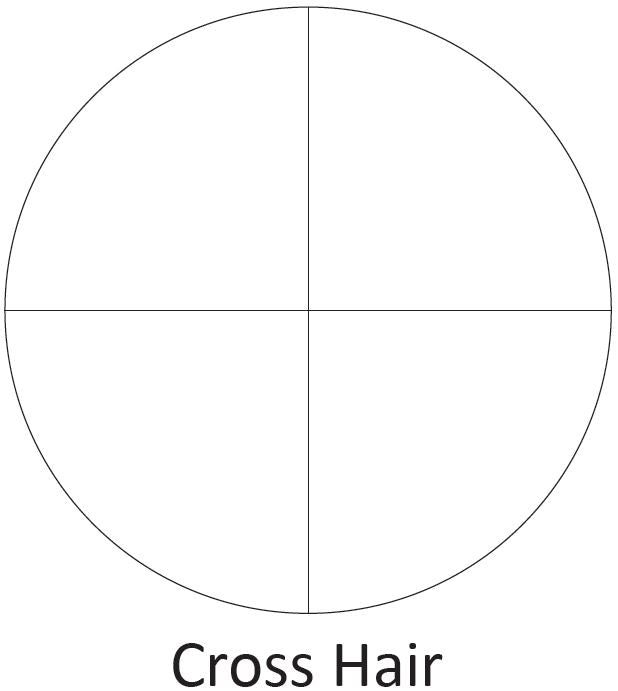

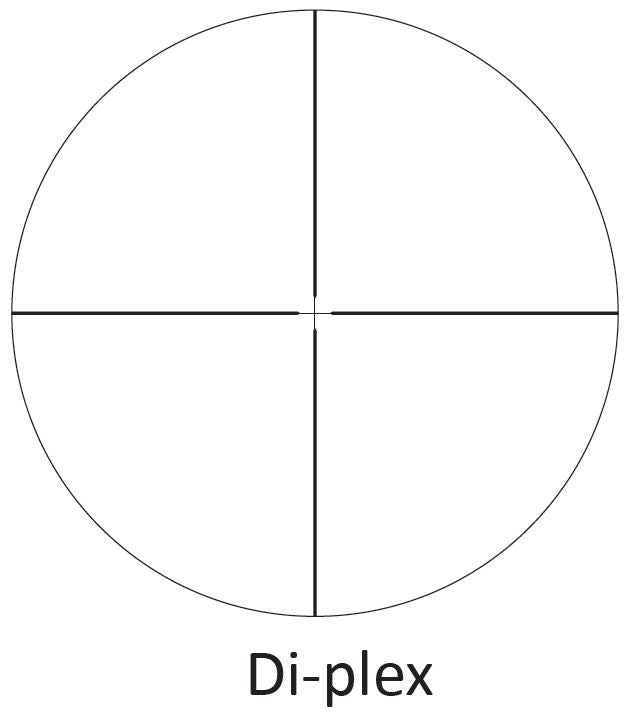

• D25V52T - Tactical turrets, non-illuminated, 1/4 MOA clicks. Reticles: Crosshair, 1/4 Dot, Di-Plex

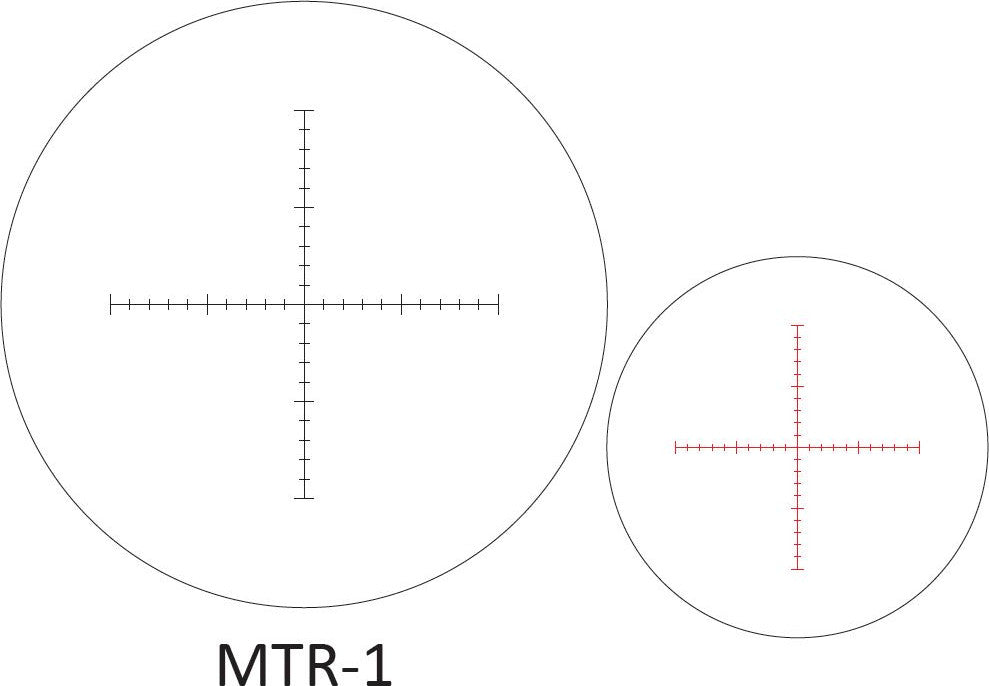

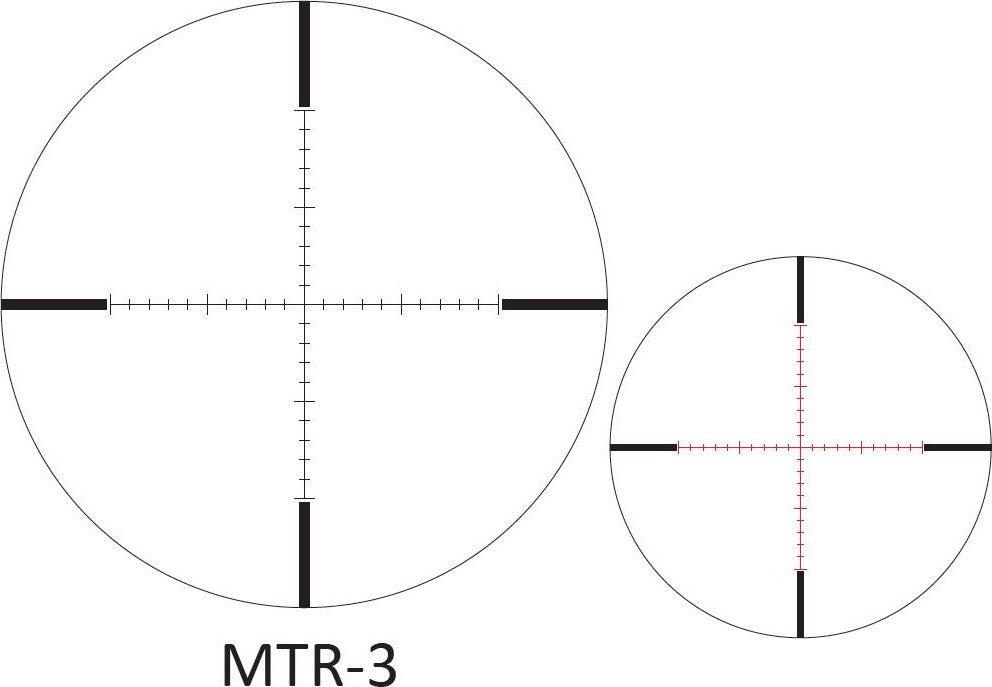

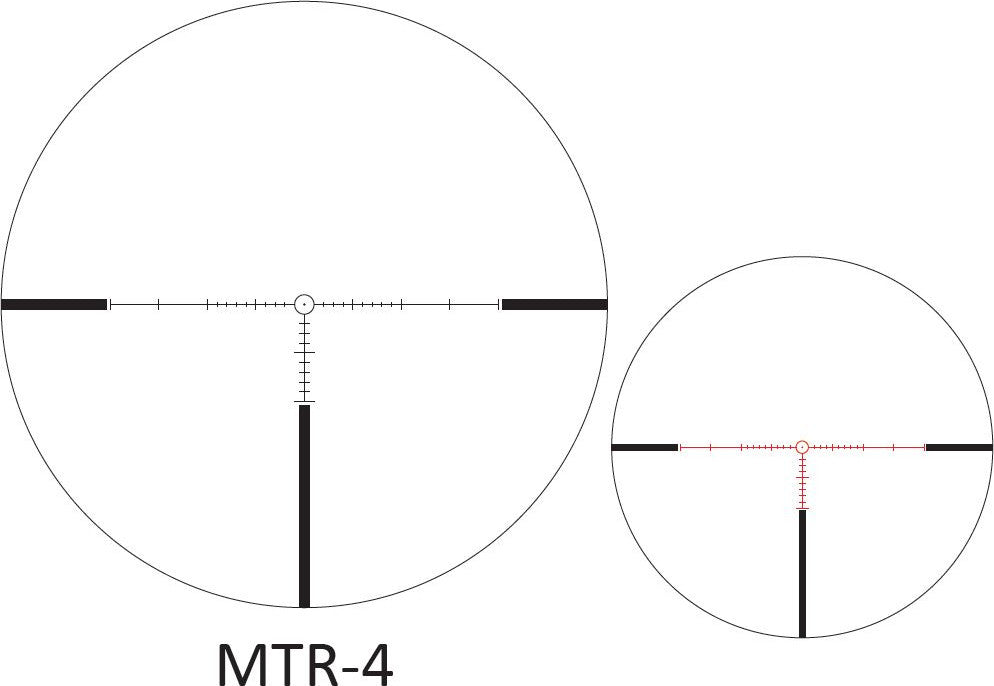

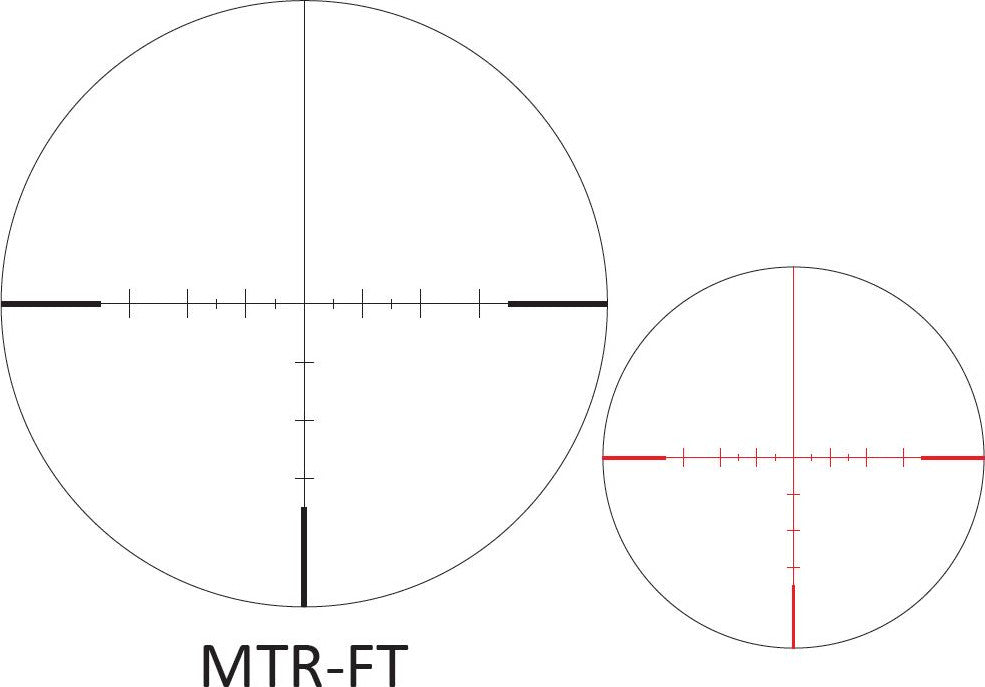

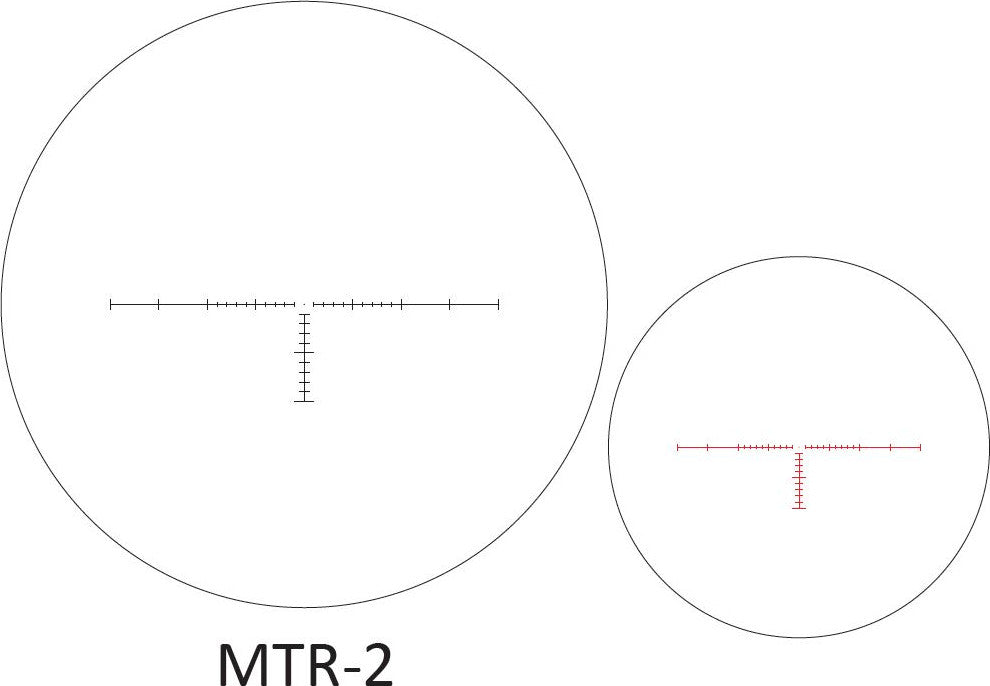

• D25V52TM - Tactical turrets, non-illuminated, 1/4 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4, MTR-FT

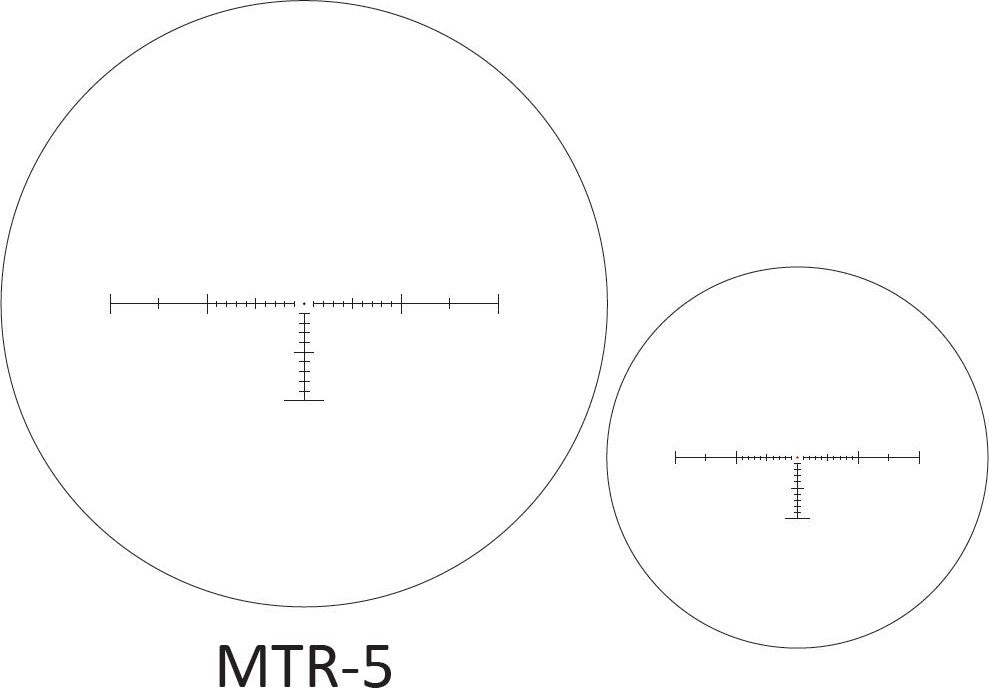

• D25V52TI - Tactical turrets, illuminated, 1/4 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4, MTR-FT, MTR-5

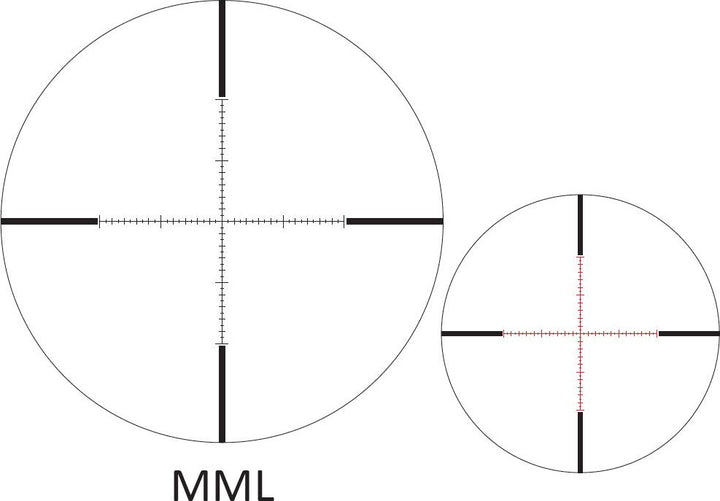

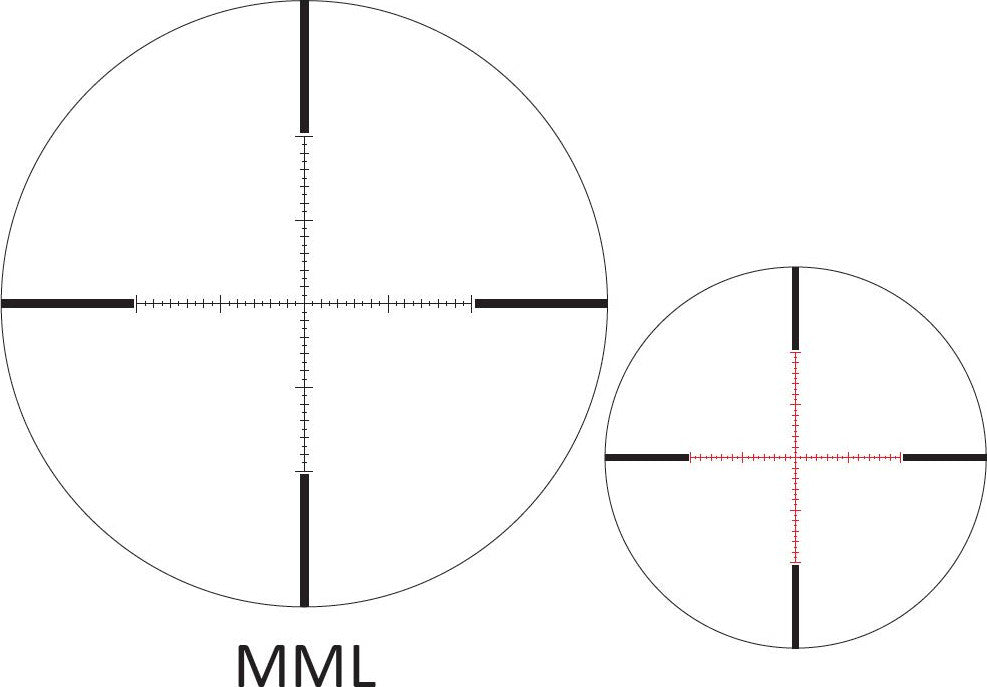

• D25V52ML - Tactical turrets, non-illuminated, 0.1 MIL clicks. Reticles: MML
• D25V52IML - Tactical turrets, illuminated, 0.1 MIL clicks. Reticles: MML

March scopes are hand-built in Japan by DEON Optical Design and supplied to order through the Australian distributor. Contact us for current availability and lead times on your configuration.
