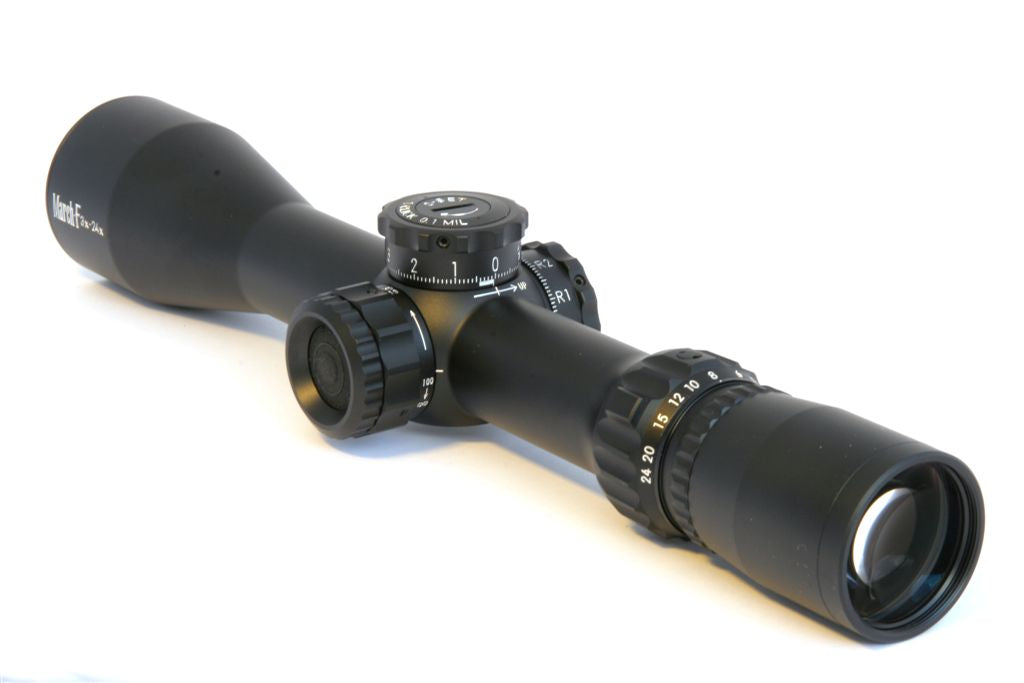

March Scopes 3-24x42 FFP

This zoom scope has an 8x magnification ratio. It is easy to range a target without thinking about where to set the zoom range. Target ranging is accurate at any power. This 3x-24x Compact model comes in two versions. The Mil Radian (Mil) and the Minute of Angle (MOA). The short compact overall size yet strong build quality as you would expect from a MARCH scope.

It comes in illuminated and non-illuminated versions. Standard and Low illumination modules are available. Both modules provide four levels of reticle intensity (red) and can be cycled by simply pressing the pressure switch within the focus dial on the left side. Very effective feature at dusk or when aiming at a dark target. If illumination is not activated the reticle remains black as per the non illuminated model. Additionally, with the capability to set any position as the zero point in the elevation (0 - set feature), the shooter will never lose their starting calibration

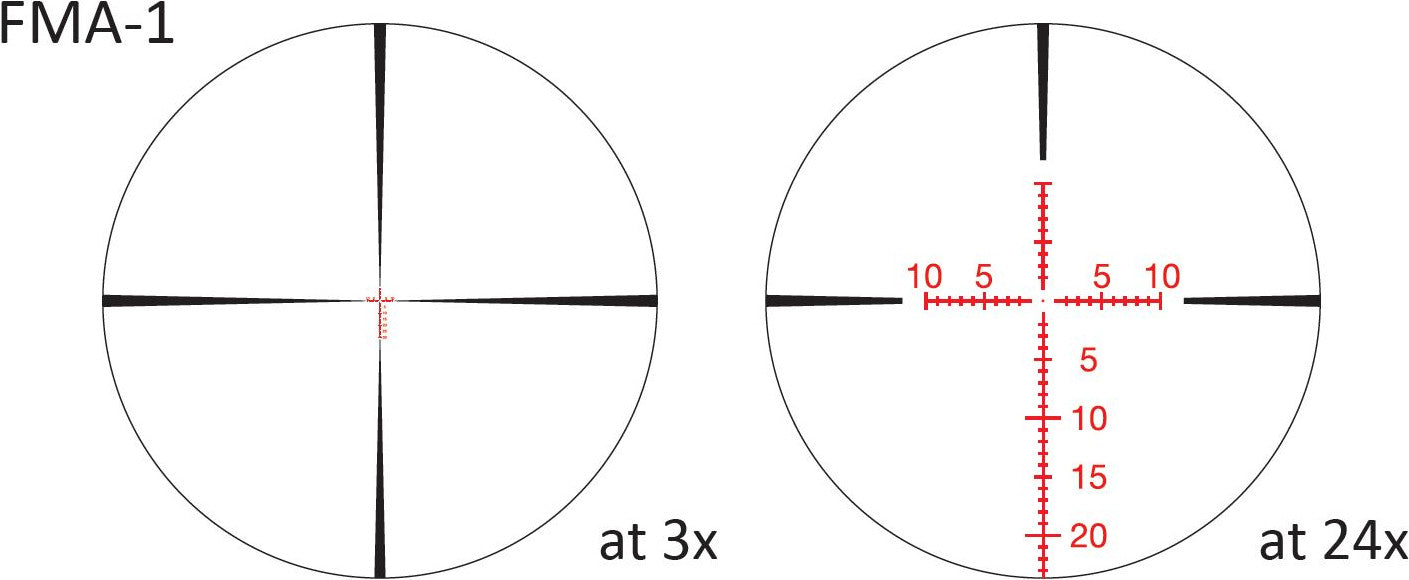

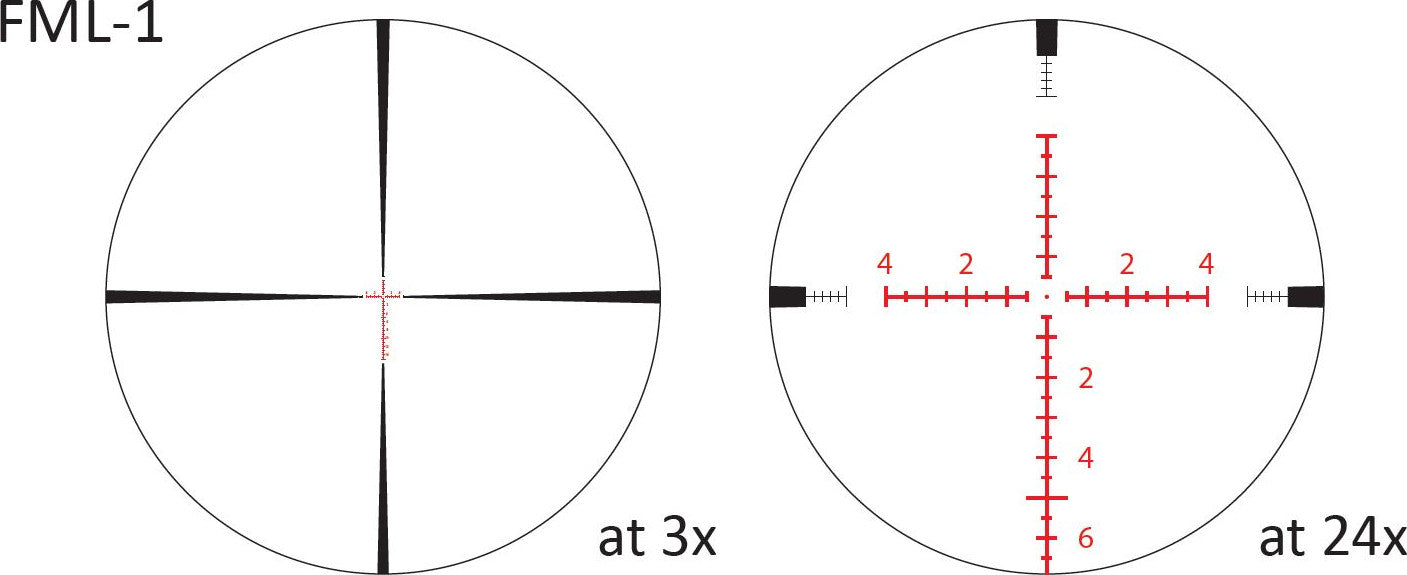

First Focal Plane design allows the scaling on the FML-1 or FMA-1 reticle to remain constant across the entire zoom range, however the reticle scale will get thicker when the magnification is increased. But the special reticle design in the March FFP scopes allows target acquisition at both low and high magnification levels. The special FMA-2 reticle is a very fine lined reticle and therefore only available in the non illuminated model.

Key Features

• First Focal Plane (FFP) with 8x zoom ratio.
• The m-rad(Mil) or MOA reticle scale value remains constant across the entire zoom range.
• Mil or MOA versions.
• Mil Version has 28 mils of elevation and windage adjustment.
• One turret revolution is 10 mils, one click is 1/10th of a mil.
• MOA Version has 100 moa of elevation and windage.
• One turret revolution is 25 MOA, one click is 1/4 of a MOA.
• Side Focus/Parallax adjustment from 10 yards to infinity.
• Compact/Light Weight design with long eye relief in a 30mm main tube design.
• Tactical turrets with zero set function on elevation.
• Illuminated or Non-Illuminated options.
• Multiple illumination module options, which are user changeable. Including a low illum module that is night vision compatible.
• Supplied with sunshade, lens covers, and flip caps.
• Multiple Reticle Options.

Specifications

• Magnification: 3x (low) / 24x (high)
• Effective Lens Diameter: 42mm
• Body Tube Diameter: 30mm
• Exit Pupil: 7mm (low) / 1.75mm (high)
• Field of View, real: 6.66° (low) / 0.83° (high)
• Eye Relief: 85-100mm (low) / 89-96mm (high)
• 1 Click Adjustment: 0.1 Mil or 1/4 MOA
• Elevation Travel: 28 Mil or 100 MOA
• Windage Travel: 28 Mil or 100 MOA
• Focus: Side Focus / Parallax
• Distance: 10YD-infinity
• Finish: Matte Black
• Total Length (-1D): 312mm
• Weight: 640g (22.6oz)

Dimensions (see diagram)

• A: 314mm (12.4 inch)
• B: 139mm (5.5 inch)
• C: 51mm (2.0 inch)
• D: 41mm (1.6 inch)
• E: 81mm (3.2 inch)
• F: 94mm (3.7 inch)
• G: 53mm (2.1 inch)
• H: 48mm (1.88 inch)

Configurations and Order Codes

• D24V42FMA - Tactical turrets, non-illuminated, 1/4 MOA clicks. Reticles: FMA-2
• D24V42FIMA - Tactical turrets, illuminated, 1/4 MOA clicks. Reticles: FMA-1

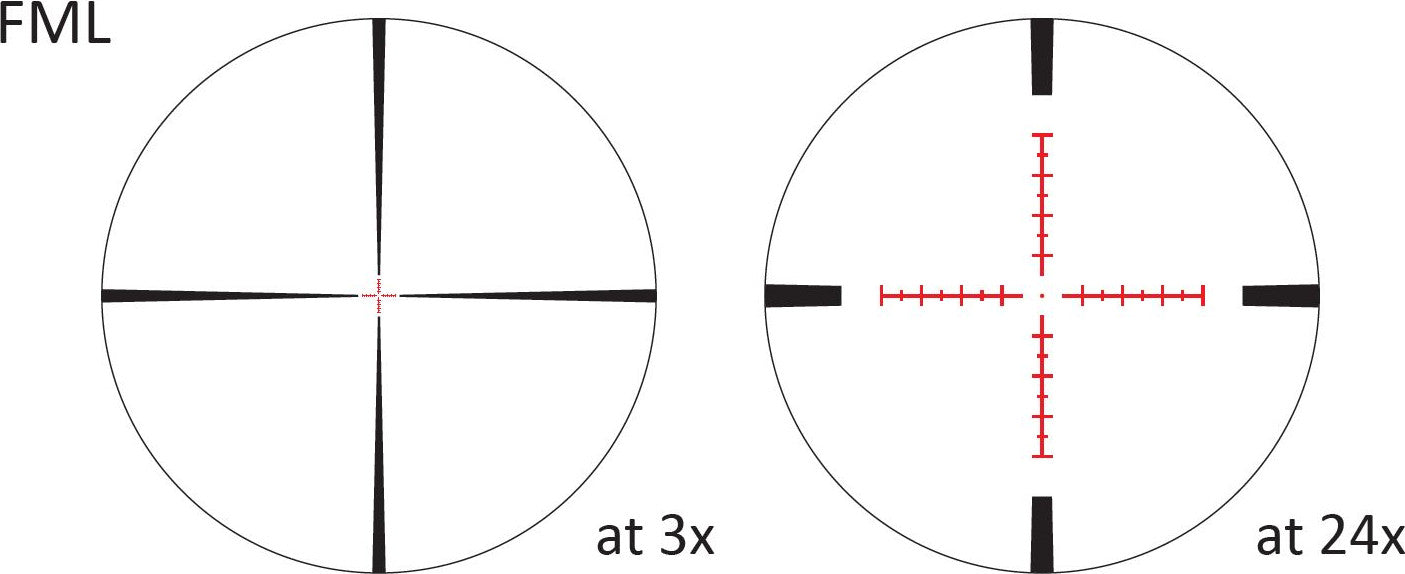

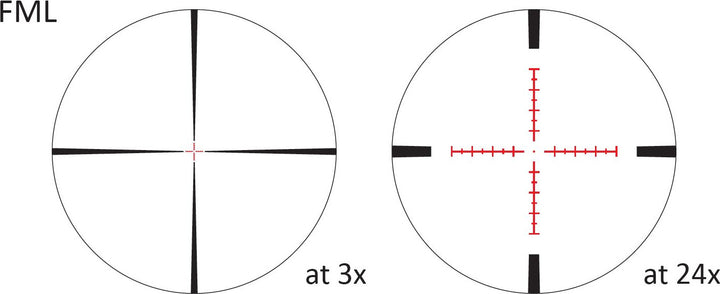

• D24V42FML - Tactical turrets, non-illuminated, 0.1 MIL clicks. Reticles: FML, FML-1

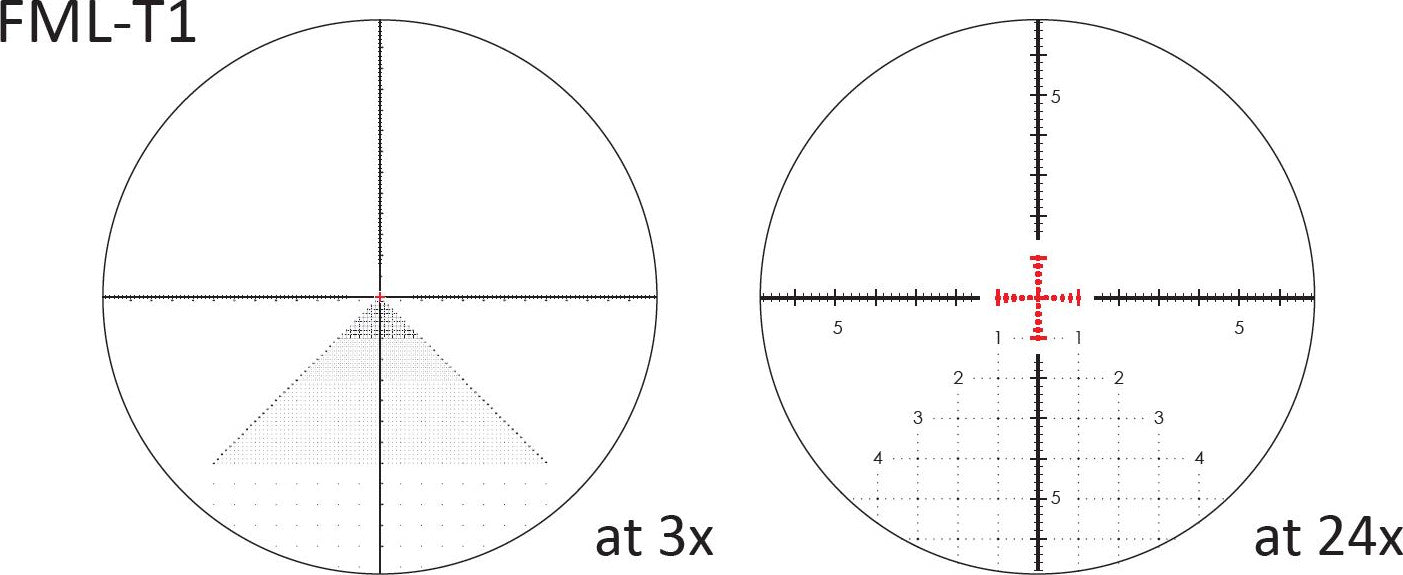

• D24V42FIML - Tactical turrets, illuminated, 0.1 MIL clicks. Reticles: FML, FML-1, FML-T1

March scopes are hand-built in Japan by DEON Optical Design and supplied to order through the Australian distributor. Contact us for current availability and lead times on your configuration.
