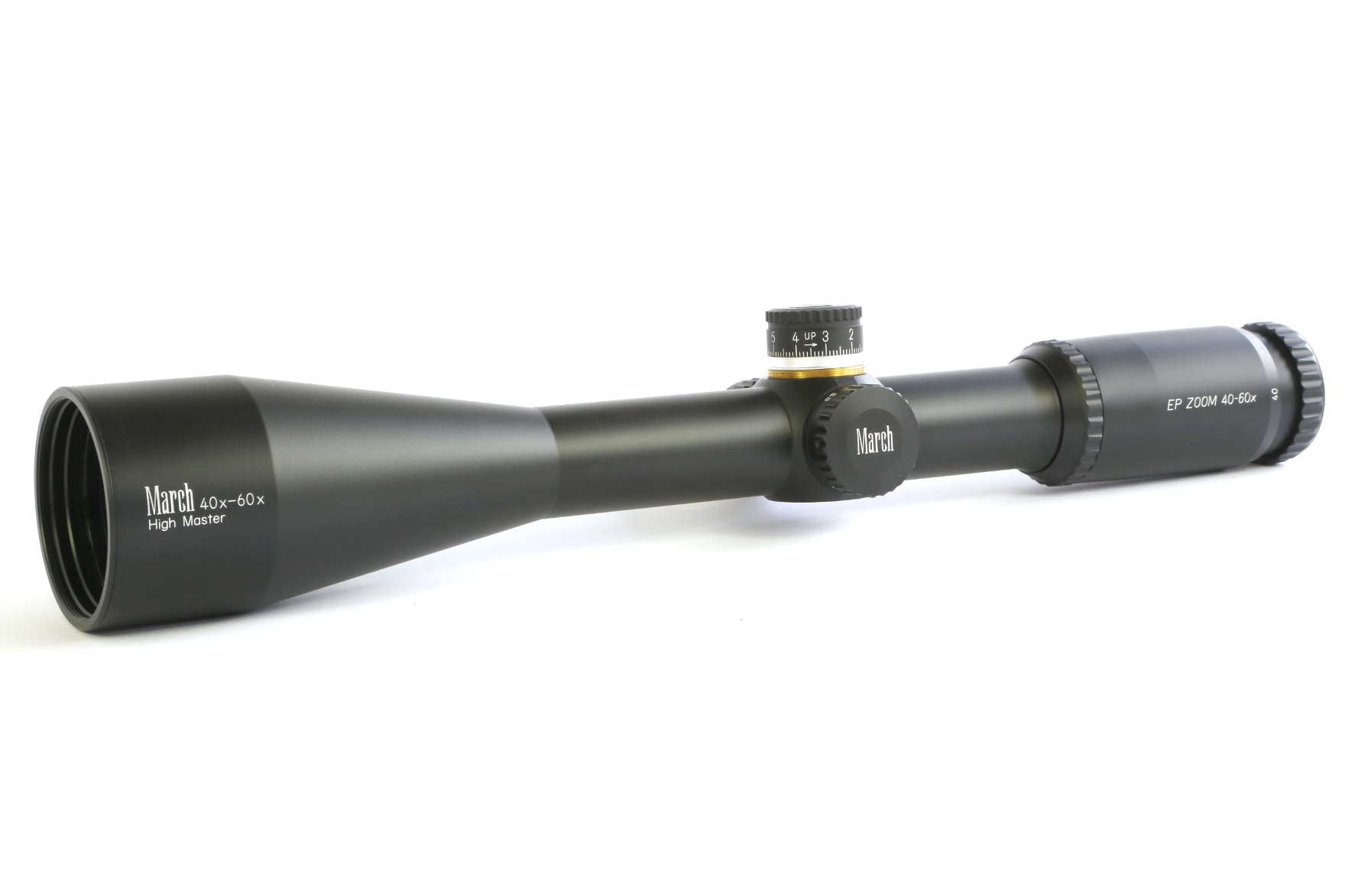

This scope is one of the new High Master series of MARCH Rifle scopes. This scope could be the ultimate Benchrest scope. It is designed for all the forms of this rifle competition including Air Rifle, 22 Rimfire, Centrefire groups and score plus Long Range Benchrest. The eyepiece roulette rotates counterclockwise and outwards to zoom the magnification back to 40x. This eye piece zoom system means the exact point of aim will remain absolutely constant. So it would be possible, if desired, to zoom in and out to any magnification between 40x and 60x during the shooting on one target and your POA will not move. The magnification range of 40x to 60x extends what is generally available from other applications.
Back in 2009 Deon Optical corporation released a totally new design to satisfy the demands of the Benchrest world. That was the EPZ 36x-55x. In a similar way in a 1st focal plane design scope the the exact point of aim cannot change when zooming magnification. Now in 2017 this new 40x-60x EPZ with High Master lens system progresses the generation yet further again. As always MARCH is the leader. Your aim just got better.
Key Features
- Second Focal Plane (SFP)
- The MOA reticle will remain the same size across the zoom range.
- High Master Lens Technology
- Super-ED, High Refractive Lenses.
- Reduced Chromatic Aberration.
- 40x-60x Eye-piece zoom system (Zoom roulette)
- 60 MOA of Elevation and 40 MOA of Windage adjustment range.
- 10 MOA per turret revolution, 1/8 MOA per click.
- Side Focus/Parallax adjustment from 10 yards to infinity.
- 30mm main tube with long eye relief up to 100mm.
- 42mm front lens with superb Japanese glass, ED technology.
- Benchrest(Capped) Turrets with zero set in the elevation turret.
- Supplied with MD disc, leather lens covers and turret caps.
Specifications
- Magnification: 40x (low) / 60x (high)
- Effective Lens Diameter: 52mm
- Body Tube Diameter: 30mm
- Exit Pupil: 1.24mm (low) / 0.89mm (high)
- Field of View, real: 5°
- Eye Relief: 82-91mm (low) / 66-75mm (high)
- 1 Click Adjustment: 1/8 MOA
- Elevation Travel: 60MOA
- Windage Travel: 40MOA
- Focus: Side Focus / Parallax
- Distance: 10YD-infinity
- Finish: Matte Black
- Total Length (-1D): 397mm (low) / 374mm (high)
- Weight: 690g (24.3oz)
Dimensions (see diagram)
- A: 374-397mm (14.72 - 15.63 inch)
- B: 162mm (6.38 inch)
- C: 60mm (2.36 inch)
- D: 41mm (1.6 inch)
- E: 126mm (4.69 inch)
- F: 86 - 109mm (3.39 - 4.29 inch)
- G: 70mm (2.76 inch)
- H: 55mm (2.17 inch)
Configurations and Order Codes

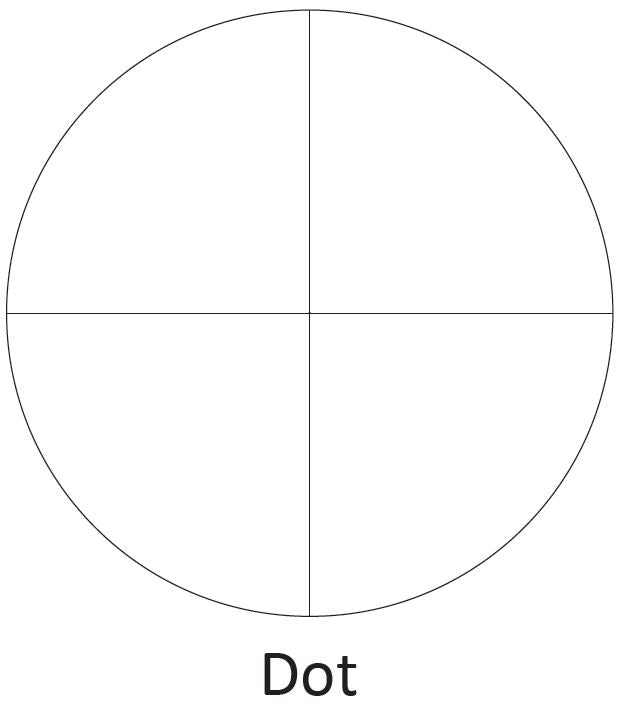

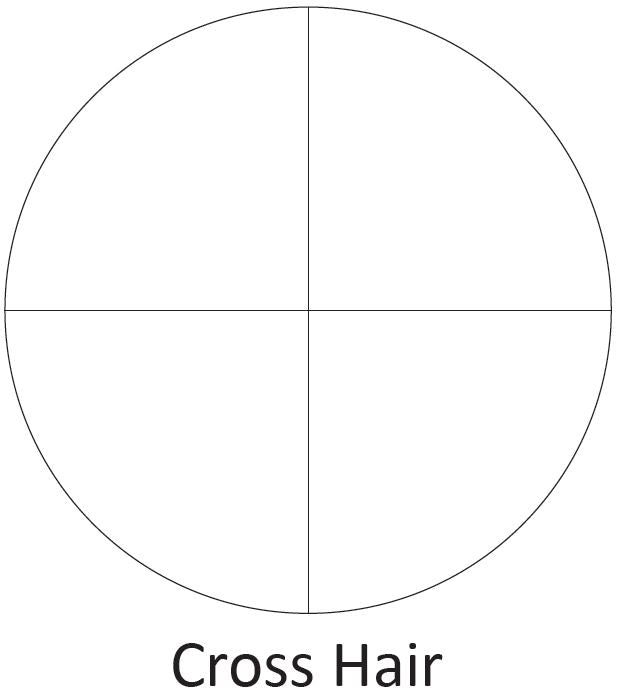

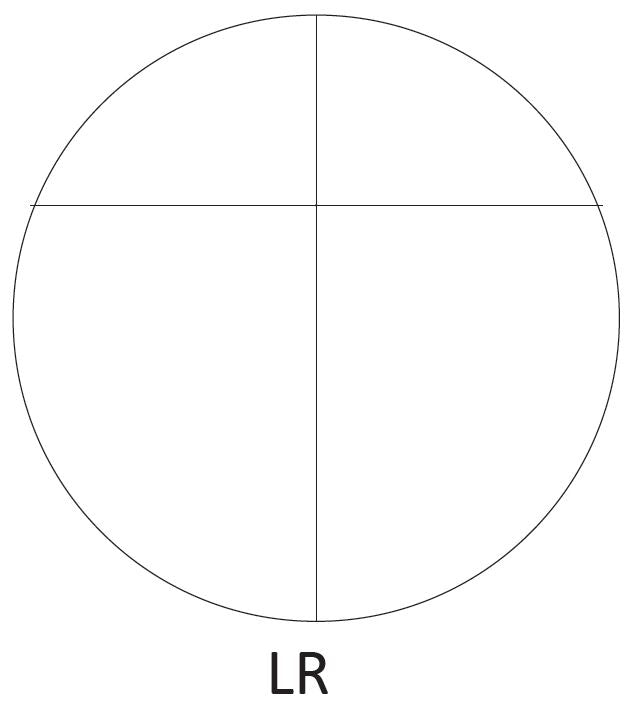

- D60EV52 - Benchrest Capped turrets, non-illuminated, 1/8 MOA clicks. Reticles: Crosshair, 1/8 Dot, 3/32 Dot, 1/16 Dot, LR
March scopes are hand-built in Japan by DEON Optical Design and supplied to order through the Australian distributor. Contact us for current availability and lead times on your configuration.
