BXT-PICA-RAIL-17S-QUEEN
This rail is 6.934 inches/176 mm long, .5 inch/12.7 mm thick. It has 17 Slots. It has a total of five (5) holes sized to take 10-32 Flat Head hex screws. The holes are countersunk on both sides of the rail to permit attachment from either its top or bottom.
The five holes are distributed in two hole patterns, a two-hole pattern on one end and a three-hole pattern on the other. Let's call these patterns A and B :
PATTERN A
PATTERN B

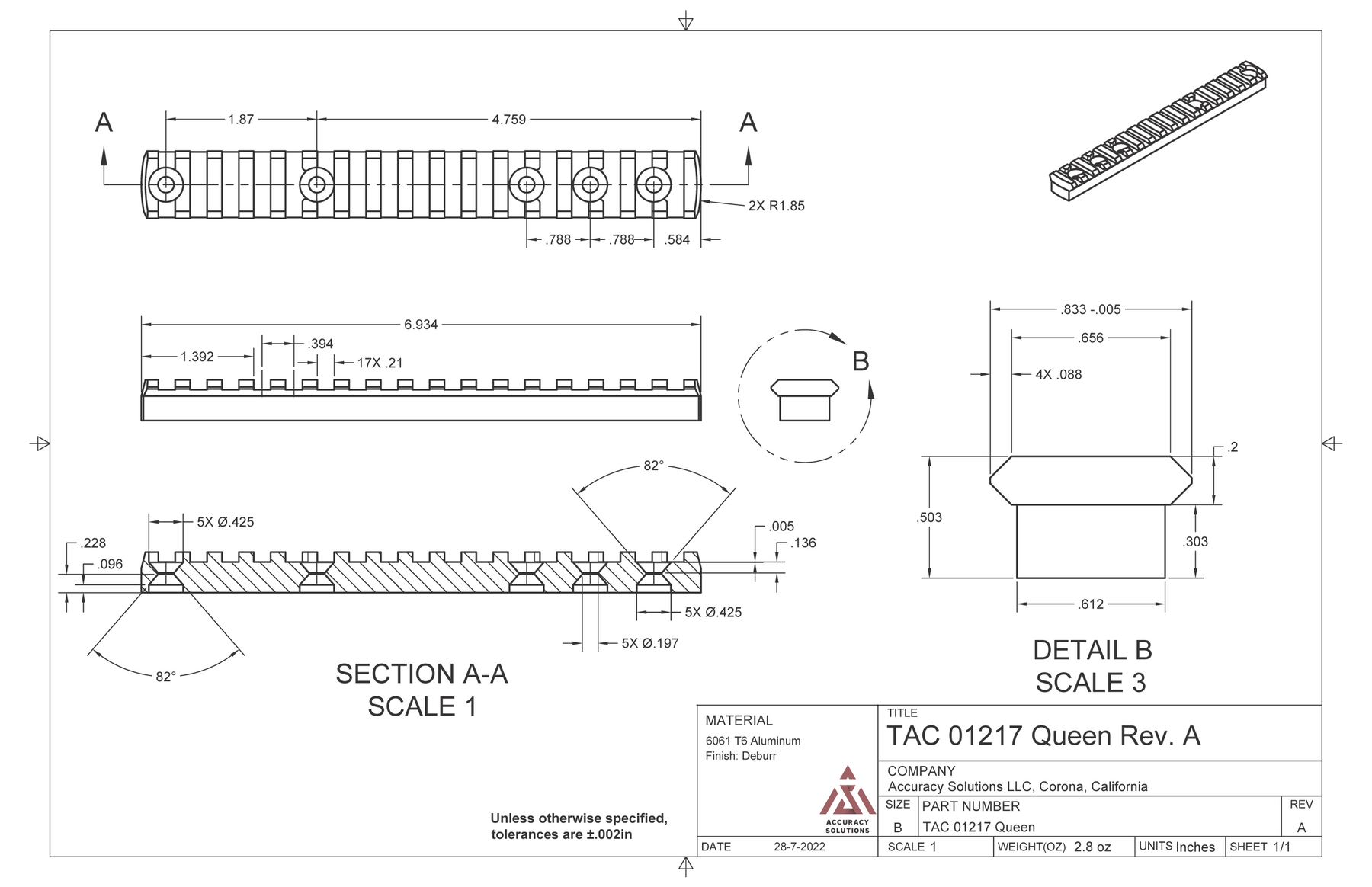

Look through the pictures to see a technical drawing of this rail.
Specifications:
