Reticle

SKMR4+

SKMR+

MSR2/Ki

Adjustment Direction

ccw

Windage

left

right

$6,900.00

Tax included. Shipping calculated at checkout.

In store:
In stock at supplier, allow 5+ days
Special order, allow 5+ days
Out of stock at suppliers, enquire with store

Quantity

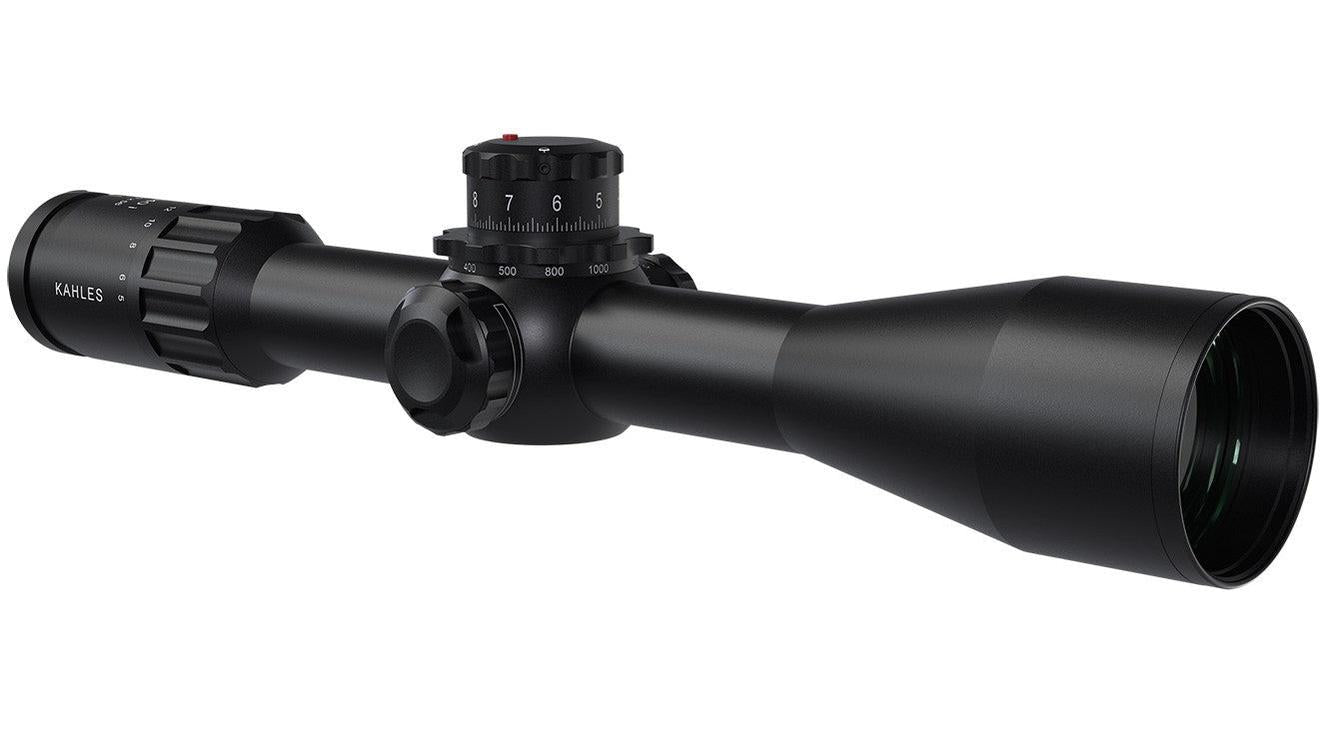

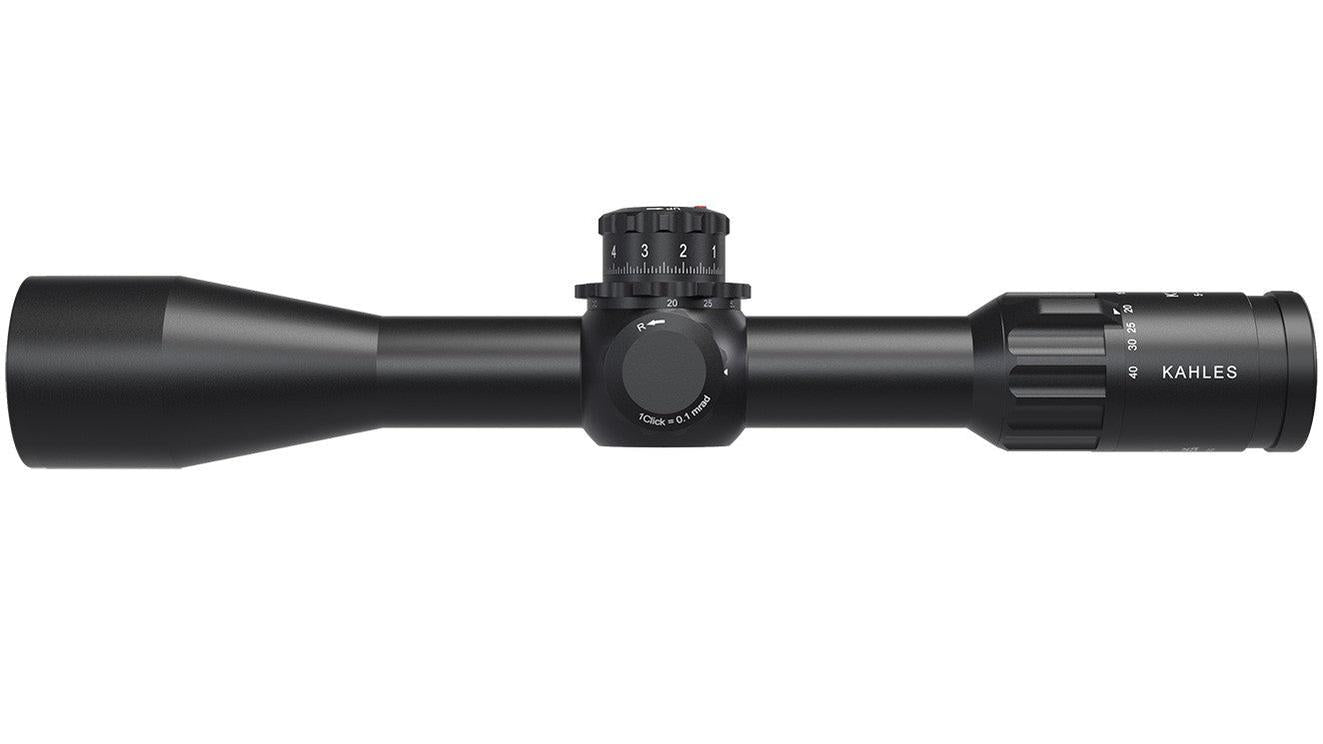

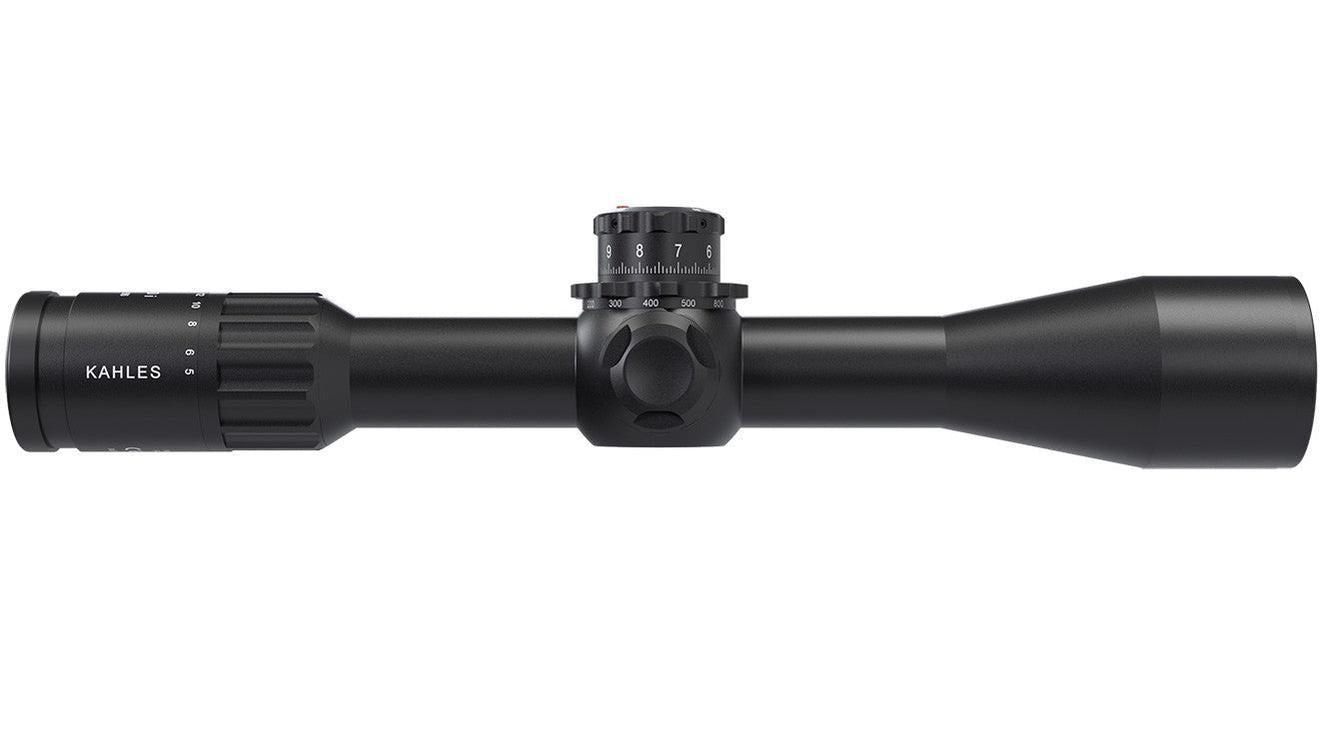

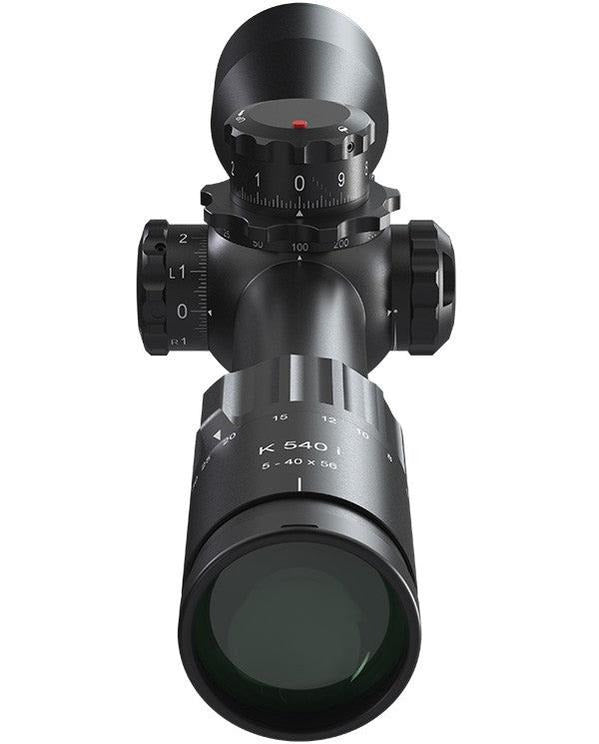

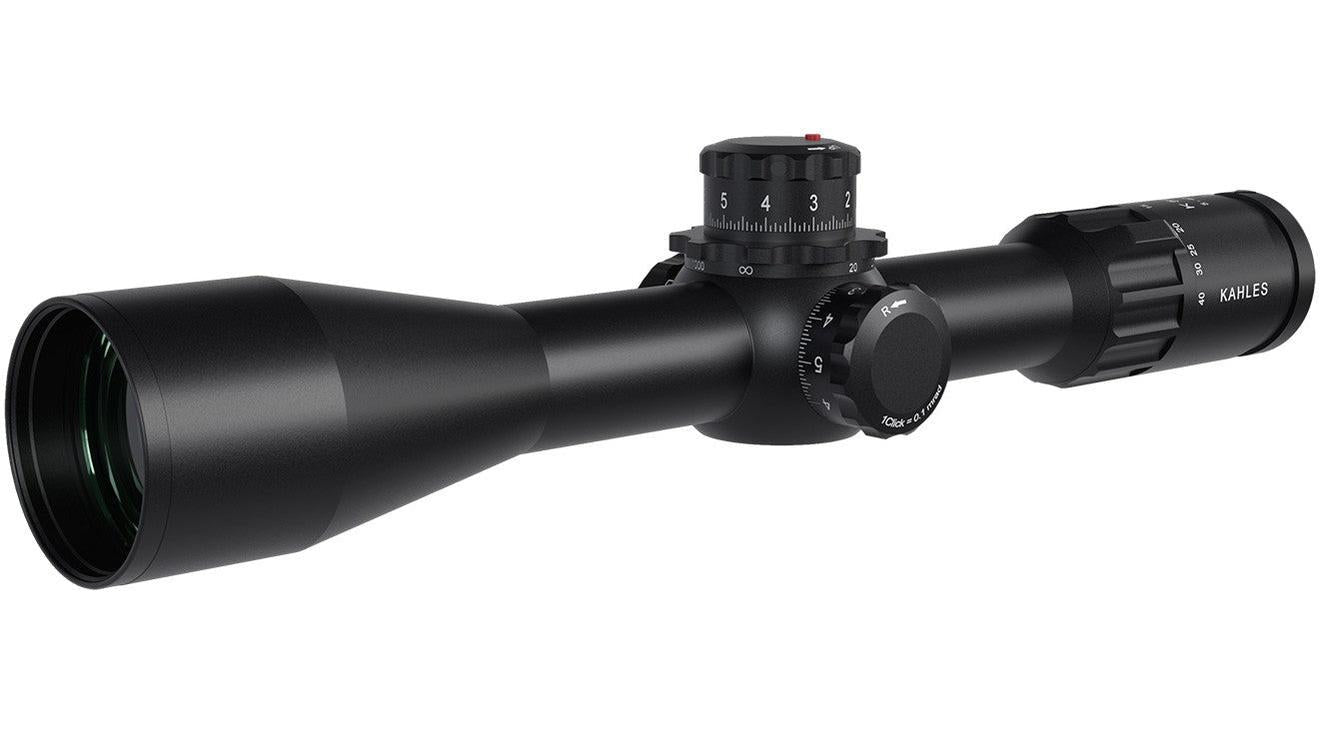

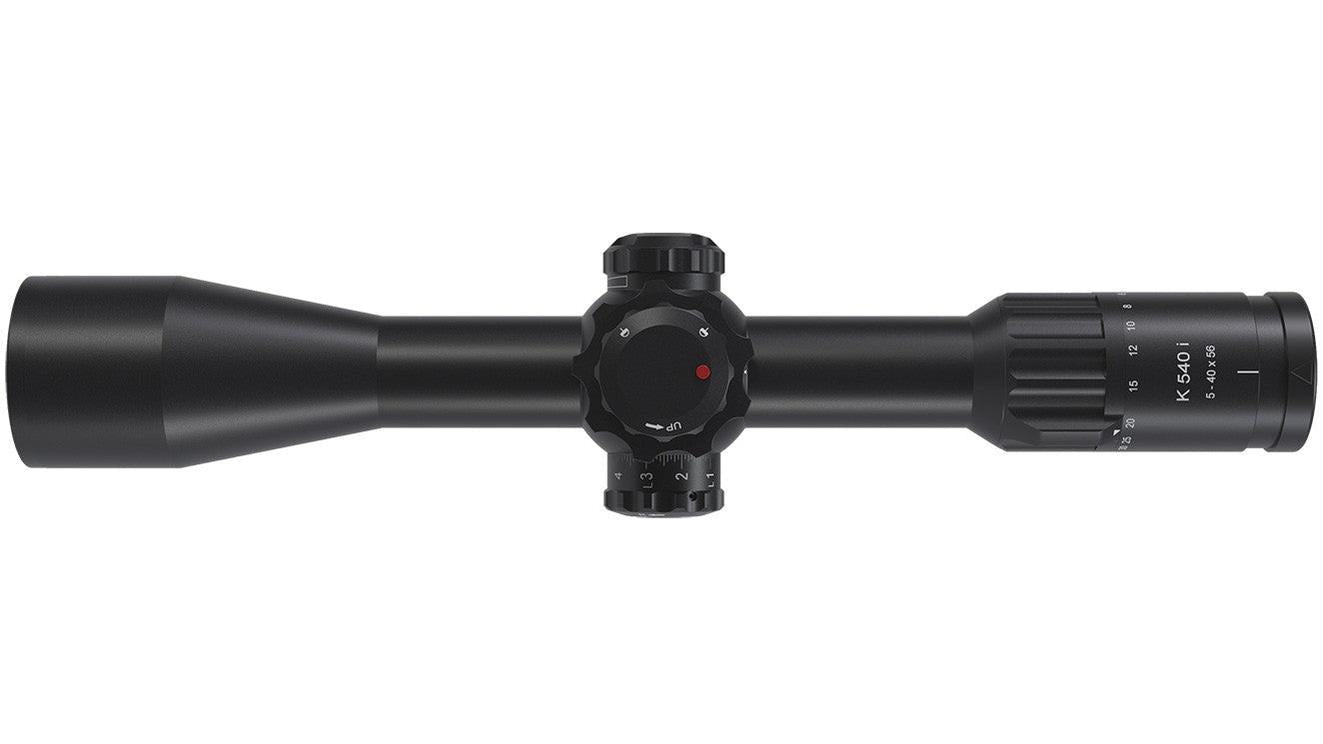

The flagship first-focal-plane precision scope, combining a true 8x zoom (5-40x) with the VISIONFLEX optical design for a field of view around 40% wider than the previous generation and a very forgiving eyebox. A 36 mm tube, .1 MRAD clicks and shooter-specific turret configurations make it a top-tier choice for ELR and long-range competition. REFINED with 10 MIL windage.

Key features

Flagship FFP precision; true 8x zoom (5-40x)

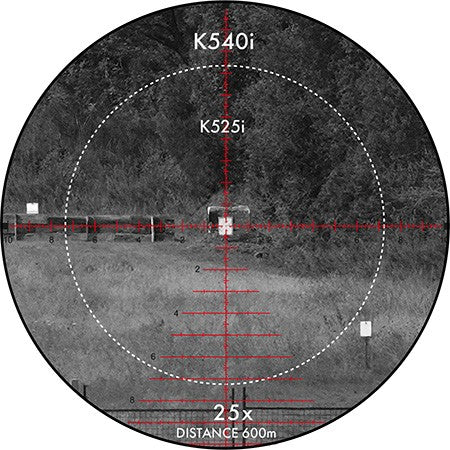

VISIONFLEX optics: ~40% wider field of view and a generous eyebox
36 mm tube; .1 MRAD clicks

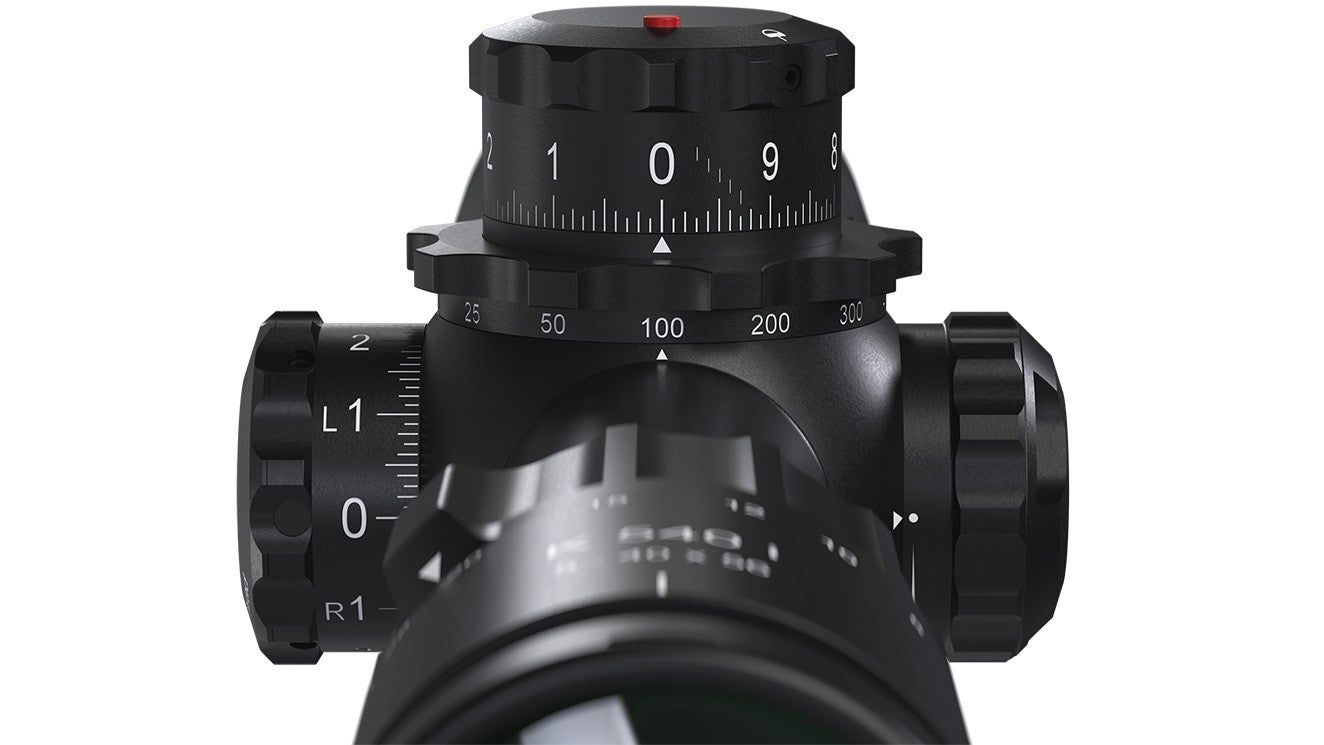

Shooter-specific turret options; REFINED 10 MIL windage

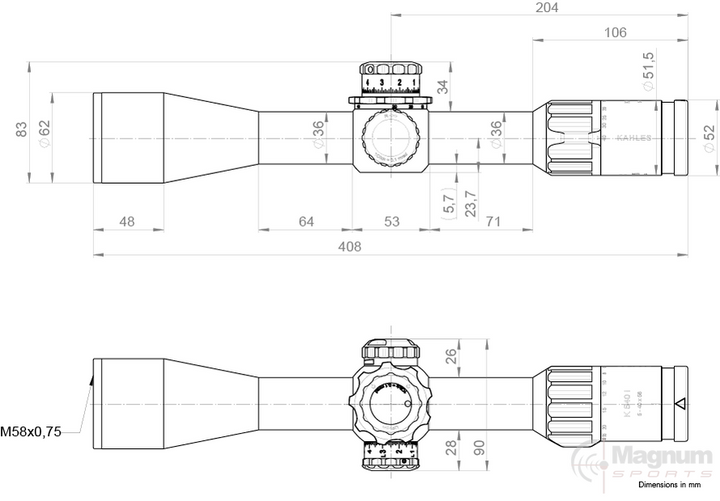

Technical data

Magnification	5-40x56i
Objective lens diameter	56 mm
Field of view	10.2 - 1.3 m/100 m
Eye relief	92 mm
Exit pupil	7.7-1.4 mm
Tube diameter	36 mm
Focal plane	First focal plane (FFP)
Illuminated	Yes
Impact correction per click	.1 MRAD
Parallax adjustment	20 - ∞
Adjustment range (E/W)	2,9 / 1,2
Twilight factor (DIN 58388)	16.7-47.3
Diopter compensation	+2/–3 dpt

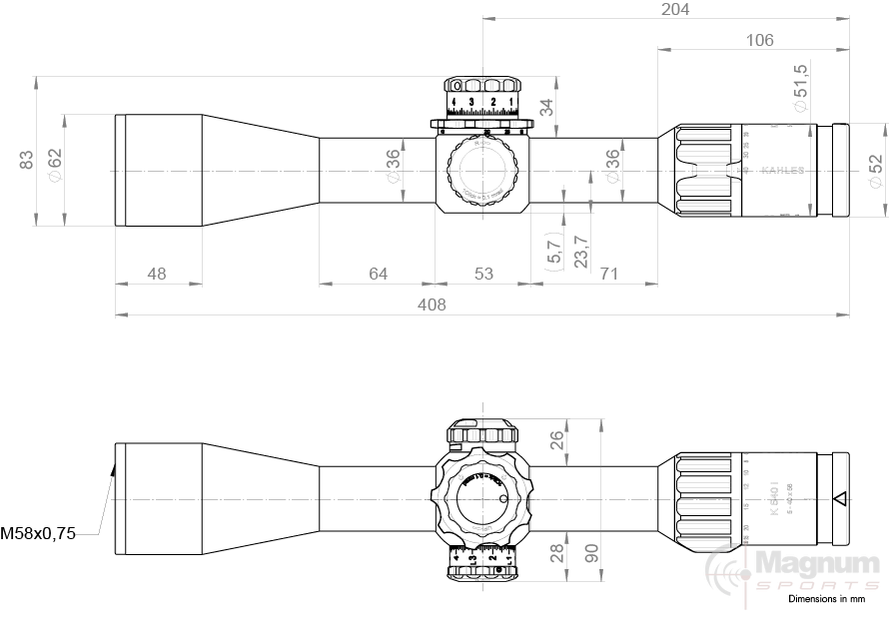

Length	408 mm
Weight	1115 g
Warranty	10 years

[{"id":54228256129308,"title":"SKMR4+ \/ ccw \/ left","option1":"SKMR4+","option2":"ccw","option3":"left","sku":"10950","requires_shipping":true,"taxable":true,"featured_image":{"id":52432187195676,"product_id":10877845471516,"position":8,"created_at":"2026-06-24T10:49:10+10:00","updated_at":"2026-08-12T10:48:59+10:00","alt":"Kahles K540i 5-40x56i – view 8","width":599,"height":744,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739","variant_ids":[54228256129308,54228256162076,54228256194844,54228256227612,54228256260380,54228256293148]},"available":true,"name":"Kahles K540i 5-40x56i - SKMR4+ \/ ccw \/ left","public_title":"SKMR4+ \/ ccw \/ left","options":["SKMR4+","ccw","left"],"price":690000,"weight":1115,"compare_at_price":null,"inventory_management":"shopify","barcode":"9008729009503","featured_media":{"alt":"Kahles K540i 5-40x56i – view 8","id":43257662669084,"position":8,"preview_image":{"aspect_ratio":0.805,"height":744,"width":599,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54228256162076,"title":"SKMR4+ \/ ccw \/ right","option1":"SKMR4+","option2":"ccw","option3":"right","sku":"10951","requires_shipping":true,"taxable":true,"featured_image":{"id":52432187195676,"product_id":10877845471516,"position":8,"created_at":"2026-06-24T10:49:10+10:00","updated_at":"2026-08-12T10:48:59+10:00","alt":"Kahles K540i 5-40x56i – view 8","width":599,"height":744,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739","variant_ids":[54228256129308,54228256162076,54228256194844,54228256227612,54228256260380,54228256293148]},"available":true,"name":"Kahles K540i 5-40x56i - SKMR4+ \/ ccw \/ right","public_title":"SKMR4+ \/ ccw \/ right","options":["SKMR4+","ccw","right"],"price":690000,"weight":1115,"compare_at_price":null,"inventory_management":"shopify","barcode":"9008729009510","featured_media":{"alt":"Kahles K540i 5-40x56i – view 8","id":43257662669084,"position":8,"preview_image":{"aspect_ratio":0.805,"height":744,"width":599,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54228256194844,"title":"SKMR+ \/ ccw \/ left","option1":"SKMR+","option2":"ccw","option3":"left","sku":"10952","requires_shipping":true,"taxable":true,"featured_image":{"id":52432187195676,"product_id":10877845471516,"position":8,"created_at":"2026-06-24T10:49:10+10:00","updated_at":"2026-08-12T10:48:59+10:00","alt":"Kahles K540i 5-40x56i – view 8","width":599,"height":744,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739","variant_ids":[54228256129308,54228256162076,54228256194844,54228256227612,54228256260380,54228256293148]},"available":true,"name":"Kahles K540i 5-40x56i - SKMR+ \/ ccw \/ left","public_title":"SKMR+ \/ ccw \/ left","options":["SKMR+","ccw","left"],"price":690000,"weight":1115,"compare_at_price":null,"inventory_management":"shopify","barcode":"9008729009527","featured_media":{"alt":"Kahles K540i 5-40x56i – view 8","id":43257662669084,"position":8,"preview_image":{"aspect_ratio":0.805,"height":744,"width":599,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54228256227612,"title":"SKMR+ \/ ccw \/ right","option1":"SKMR+","option2":"ccw","option3":"right","sku":"10953","requires_shipping":true,"taxable":true,"featured_image":{"id":52432187195676,"product_id":10877845471516,"position":8,"created_at":"2026-06-24T10:49:10+10:00","updated_at":"2026-08-12T10:48:59+10:00","alt":"Kahles K540i 5-40x56i – view 8","width":599,"height":744,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739","variant_ids":[54228256129308,54228256162076,54228256194844,54228256227612,54228256260380,54228256293148]},"available":true,"name":"Kahles K540i 5-40x56i - SKMR+ \/ ccw \/ right","public_title":"SKMR+ \/ ccw \/ right","options":["SKMR+","ccw","right"],"price":690000,"weight":1115,"compare_at_price":null,"inventory_management":"shopify","barcode":"9008729009534","featured_media":{"alt":"Kahles K540i 5-40x56i – view 8","id":43257662669084,"position":8,"preview_image":{"aspect_ratio":0.805,"height":744,"width":599,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54228256260380,"title":"MSR2\/Ki \/ ccw \/ left","option1":"MSR2\/Ki","option2":"ccw","option3":"left","sku":"10954","requires_shipping":true,"taxable":true,"featured_image":{"id":52432187195676,"product_id":10877845471516,"position":8,"created_at":"2026-06-24T10:49:10+10:00","updated_at":"2026-08-12T10:48:59+10:00","alt":"Kahles K540i 5-40x56i – view 8","width":599,"height":744,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739","variant_ids":[54228256129308,54228256162076,54228256194844,54228256227612,54228256260380,54228256293148]},"available":true,"name":"Kahles K540i 5-40x56i - MSR2\/Ki \/ ccw \/ left","public_title":"MSR2\/Ki \/ ccw \/ left","options":["MSR2\/Ki","ccw","left"],"price":690000,"weight":1115,"compare_at_price":null,"inventory_management":"shopify","barcode":"9008729009541","featured_media":{"alt":"Kahles K540i 5-40x56i – view 8","id":43257662669084,"position":8,"preview_image":{"aspect_ratio":0.805,"height":744,"width":599,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54228256293148,"title":"MSR2\/Ki \/ ccw \/ right","option1":"MSR2\/Ki","option2":"ccw","option3":"right","sku":"10955","requires_shipping":true,"taxable":true,"featured_image":{"id":52432187195676,"product_id":10877845471516,"position":8,"created_at":"2026-06-24T10:49:10+10:00","updated_at":"2026-08-12T10:48:59+10:00","alt":"Kahles K540i 5-40x56i – view 8","width":599,"height":744,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739","variant_ids":[54228256129308,54228256162076,54228256194844,54228256227612,54228256260380,54228256293148]},"available":true,"name":"Kahles K540i 5-40x56i - MSR2\/Ki \/ ccw \/ right","public_title":"MSR2\/Ki \/ ccw \/ right","options":["MSR2\/Ki","ccw","right"],"price":690000,"weight":1115,"compare_at_price":null,"inventory_management":"shopify","barcode":"9008729009558","featured_media":{"alt":"Kahles K540i 5-40x56i – view 8","id":43257662669084,"position":8,"preview_image":{"aspect_ratio":0.805,"height":744,"width":599,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":54228256129308,"title":"SKMR4+ \/ ccw \/ left","option1":"SKMR4+","option2":"ccw","option3":"left","sku":"10950","requires_shipping":true,"taxable":true,"featured_image":{"id":52432187195676,"product_id":10877845471516,"position":8,"created_at":"2026-06-24T10:49:10+10:00","updated_at":"2026-08-12T10:48:59+10:00","alt":"Kahles K540i 5-40x56i – view 8","width":599,"height":744,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739","variant_ids":[54228256129308,54228256162076,54228256194844,54228256227612,54228256260380,54228256293148]},"available":true,"name":"Kahles K540i 5-40x56i - SKMR4+ \/ ccw \/ left","public_title":"SKMR4+ \/ ccw \/ left","options":["SKMR4+","ccw","left"],"price":690000,"weight":1115,"compare_at_price":null,"inventory_management":"shopify","barcode":"9008729009503","featured_media":{"alt":"Kahles K540i 5-40x56i – view 8","id":43257662669084,"position":8,"preview_image":{"aspect_ratio":0.805,"height":744,"width":599,"src":"\/\/magnumsports.com.au\/cdn\/shop\/files\/K540i-CCW-5-40x56---LSW_VII.jpg?v=1786495739"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Kahles K540i 5-40x56i

Technical data
