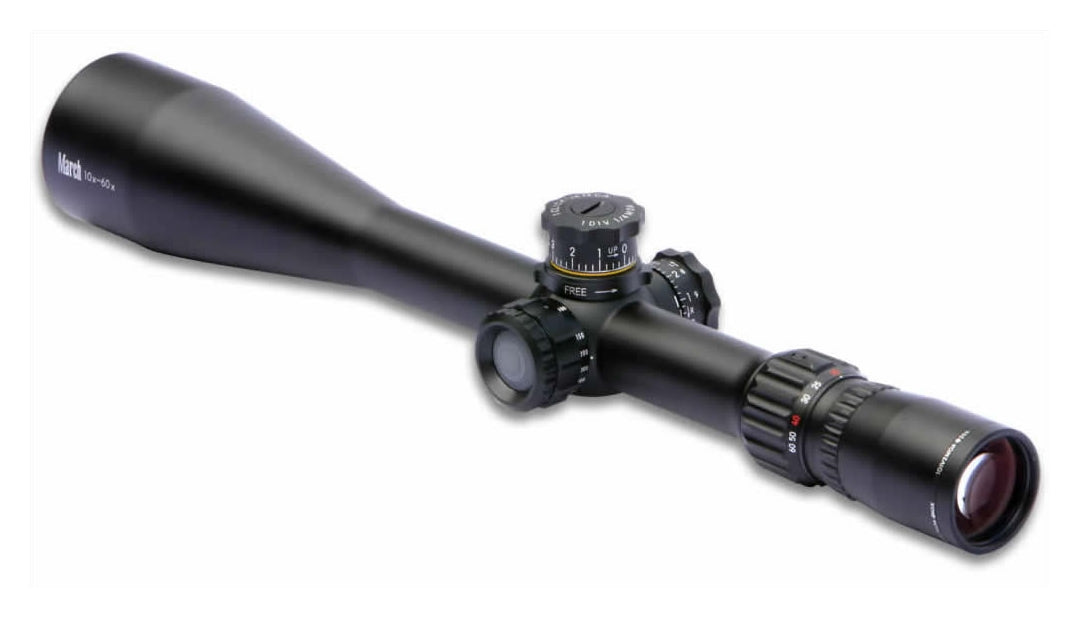

March Scopes 10-60x52 SFP

These scopes are designed from the ground up for series long range rifle shooting. They can also be used in many other disciplines too because of 10 yards minimum focus distance. Like Air Rifle Field Target, 22 Rimfire, Centrefire Benchrest.

Tactical turrets include a Zero set feature. There is a large range of reticle types including a model with illumination available. The new 6 level illumination switch allows you to select which level of brightness and then the pressure pad simply turns illumination at that level on and off.

Like all March Scopes these scopes are hand built with all parts individually mated together and lapped precisely together for perfect component. This is the only way to ensure the best possible optical precision instrument. These rifle scopes have over 160 separate parts. March scopes are the only scope in the world that have no plastic parts internally.

Key Features

• Second Focal Plane (SFP) with 6x zoom ratio.
• The MOA reticle will remain the same size across the zoom range.
• 60 MOA of elevation and 40 MOA of windage adjustment range.
• Turret
• 10 MOA per turret revolution, 1/8th MOA per click.
• Side Focus/Parallax adjustment from 10 yards to infinity.
• 30mm main tube with long eye relief up to 101mm.
• 52mm front lens with superb Japanese glass, ED technology
• Tactical Turrets with zero set in the elevation turret.
• Also available with Benchrest(capped) turrets.
• Illuminated or Non-Illuminated options.
• Multiple illumination module options, which are user changeable. Including a low illum module that is night vision compatible.
• Supplied with flip lens covers that lock back and sun shade.

Specifications

• Magnification: 10x (low) / 60x (high)
• Effective Lens Diameter: 52mm
• Body Tube Diameter: 30mm
• Exit Pupil: 0.86mm
• Field of View, real: 2° (low) / 0.33° (high)
• Eye Relief: 88-99mm (low) / 95-101mm (high)
• 1 Click Adjustment: 1/8 MOA
• Elevation Travel: 60MOA
• Windage Travel: 40MOA
• Focus: Side Focus / Parallax
• Distance: 10YD-infinity
• Finish: Matte Black
• Total Length (-1D): 420mm
• Weight: 730g (25.7oz) TM Model

Dimensions (see diagram)

• A: 420mm (16.5 inch)
• B: 173mm (6.8 inch)
• C: 60mm (2.4 inch)
• D: 41mm (1.6 inch)
• E: 142mm (5.6 inch)
• F: 105mm (4.1 inch)
• G: 79mm (3.1 inch)
• H: 57mm (2.2 inch)

Configurations and Order Codes

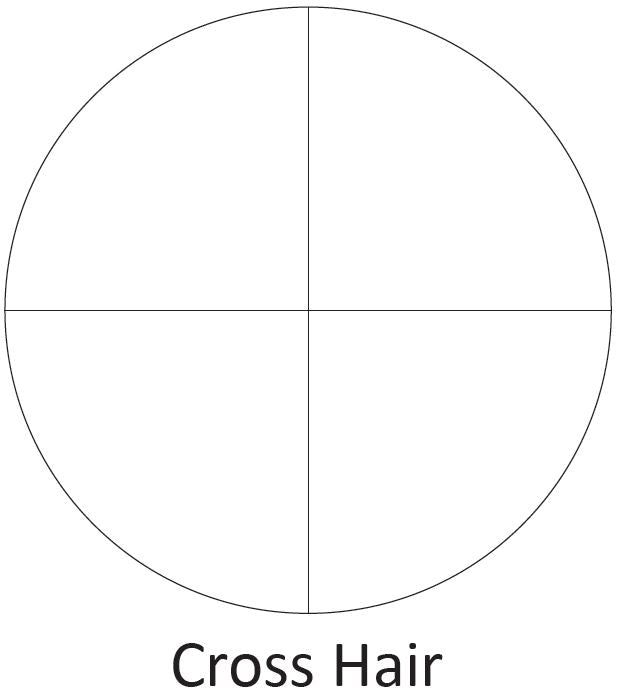

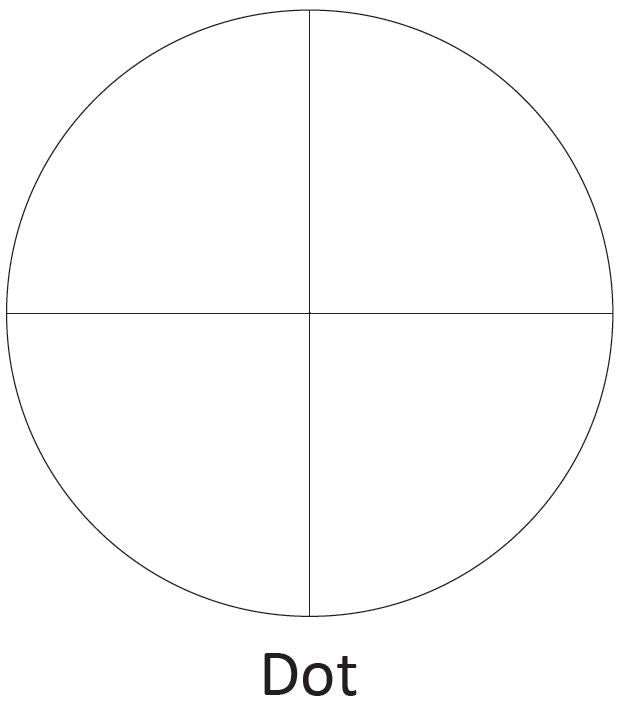

• D60V52T - Tactical turrets, non-illuminated, 1/4 MOA / 1/8 MOA clicks. Reticles: Crosshair, 1/8 Dot, 3/32 Dot, 1/16 Dot

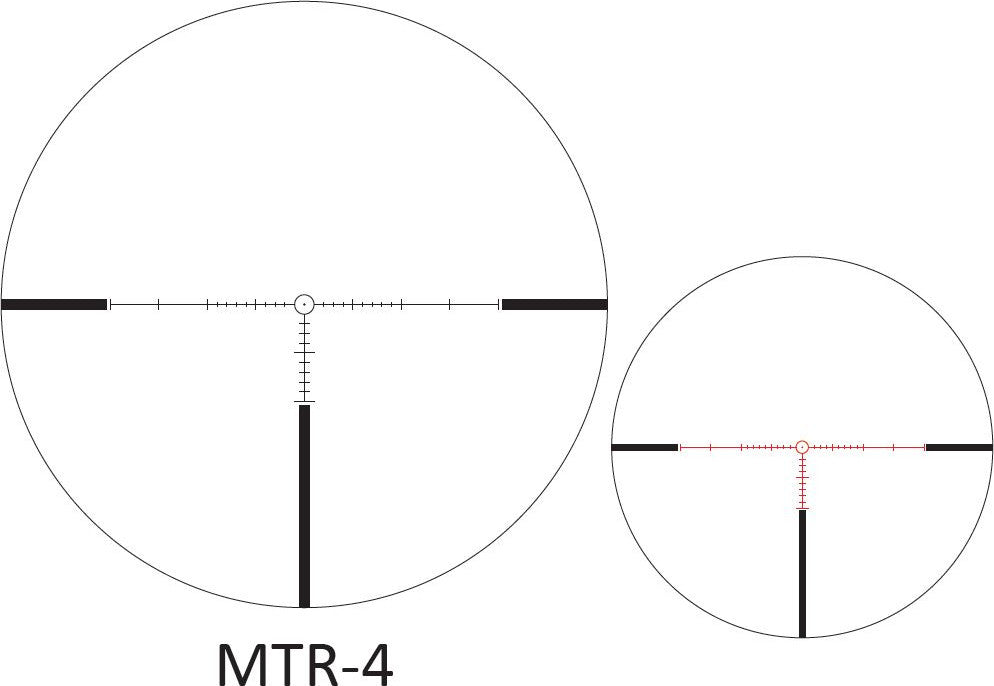

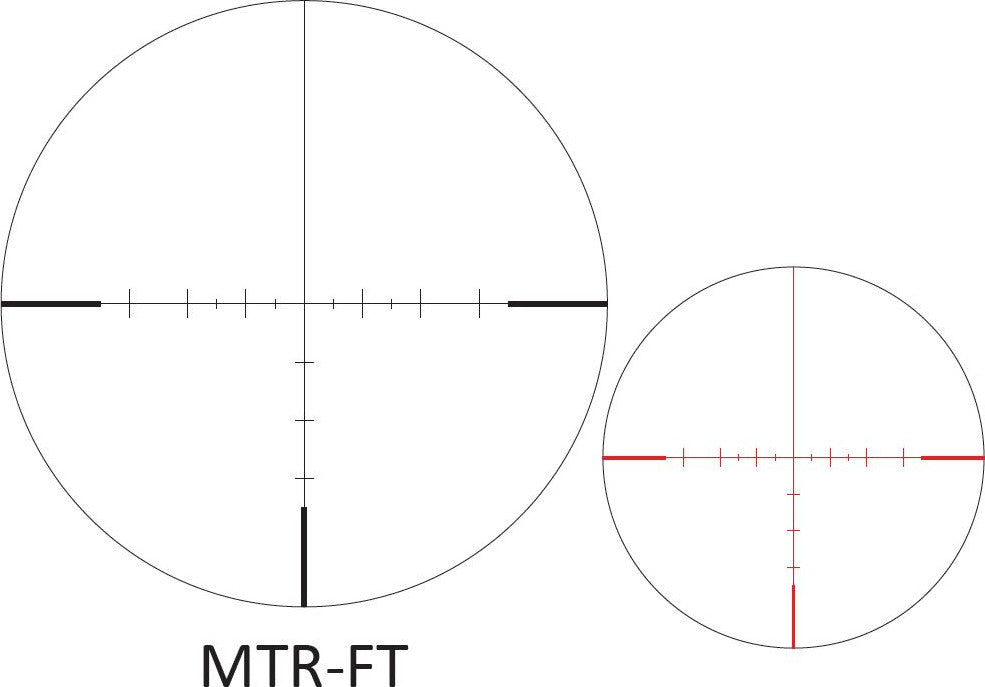

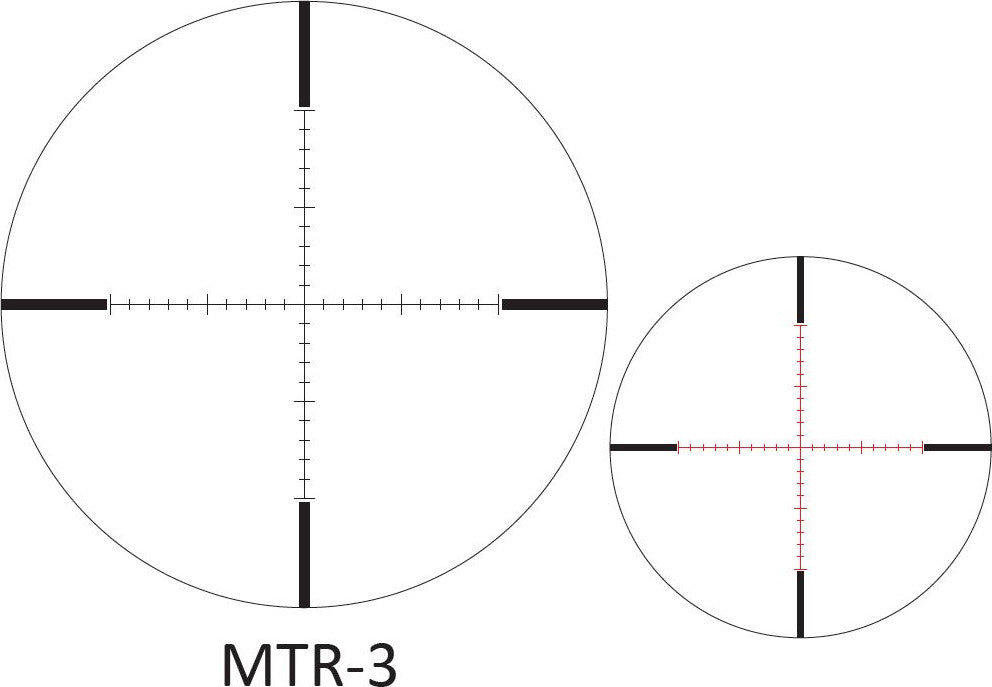

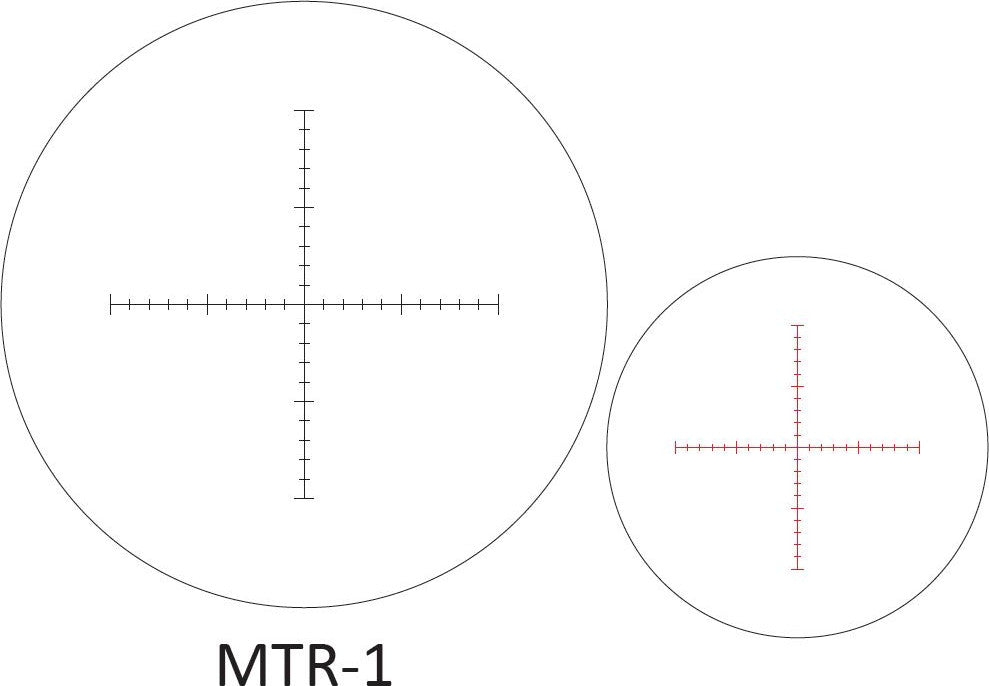

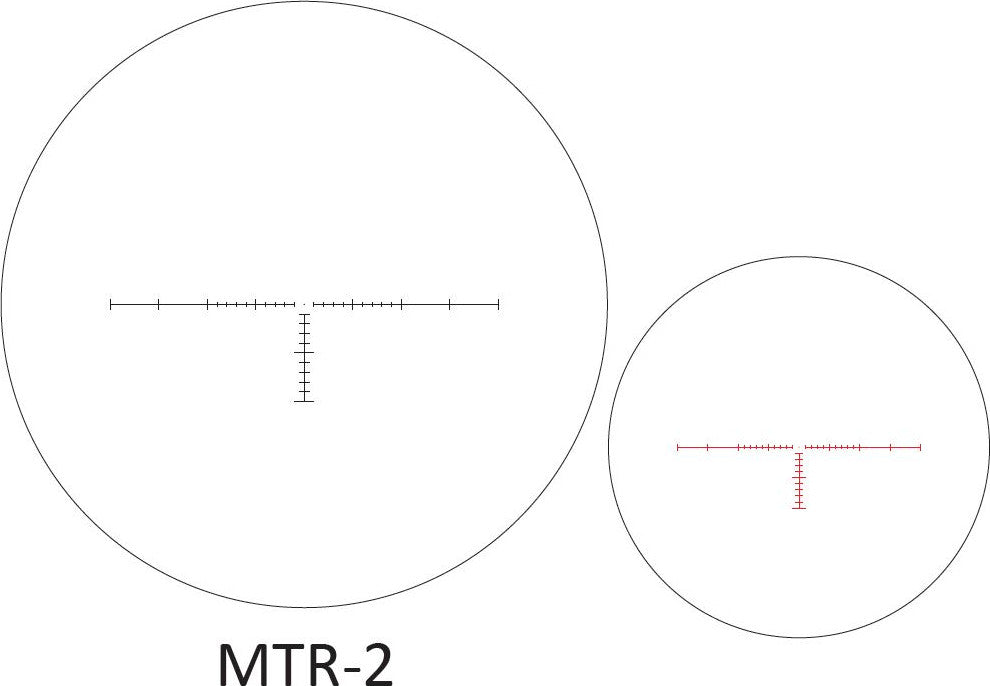

• D60V52TM - Tactical turrets, non-illuminated, 1/4 MOA / 1/8 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4, MTR-FT

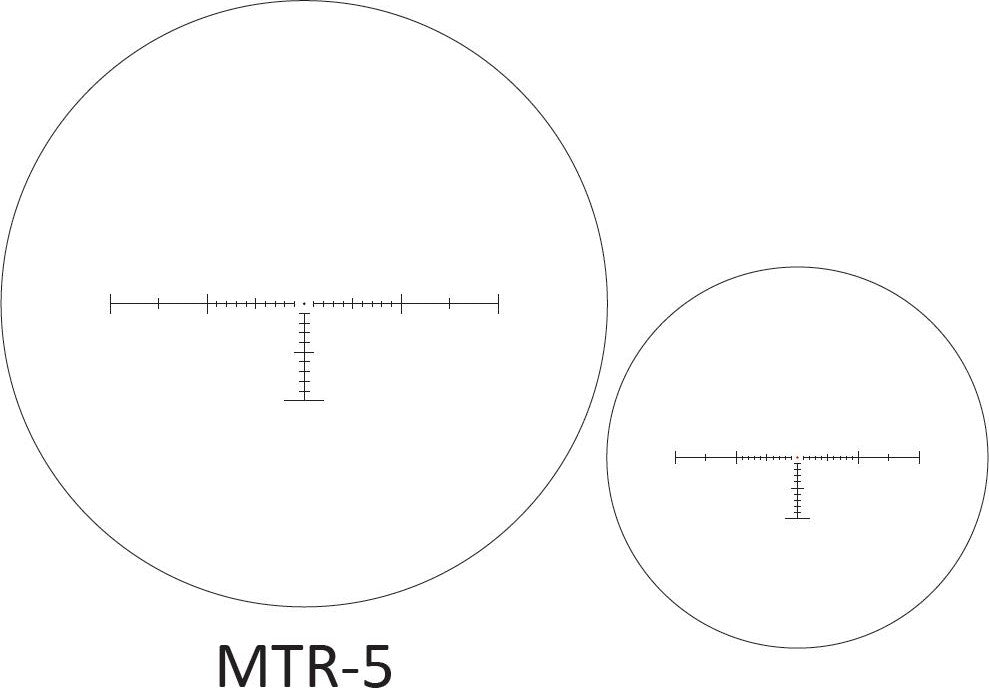

• D60V52TI - Tactical turrets, illuminated, 1/4 MOA / 1/8 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4, MTR-FT, MTR-5
• D60V52L - Benchrest Capped turrets, non-illuminated, 1/8 MOA clicks. Reticles: Crosshair, 1/8 Dot, 3/32 Dot, 1/16 Dot
• D60V52LM - Benchrest Capped turrets, non-illuminated, 1/8 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4, MTR-FT

Tactical models are available with 1/4 MOA or 1/8 MOA turret clicks - tell us which when ordering. Benchrest models are 1/8 MOA.

March scopes are hand-built in Japan by DEON Optical Design and supplied to order through the Australian distributor. Contact us for current availability and lead times on your configuration.
