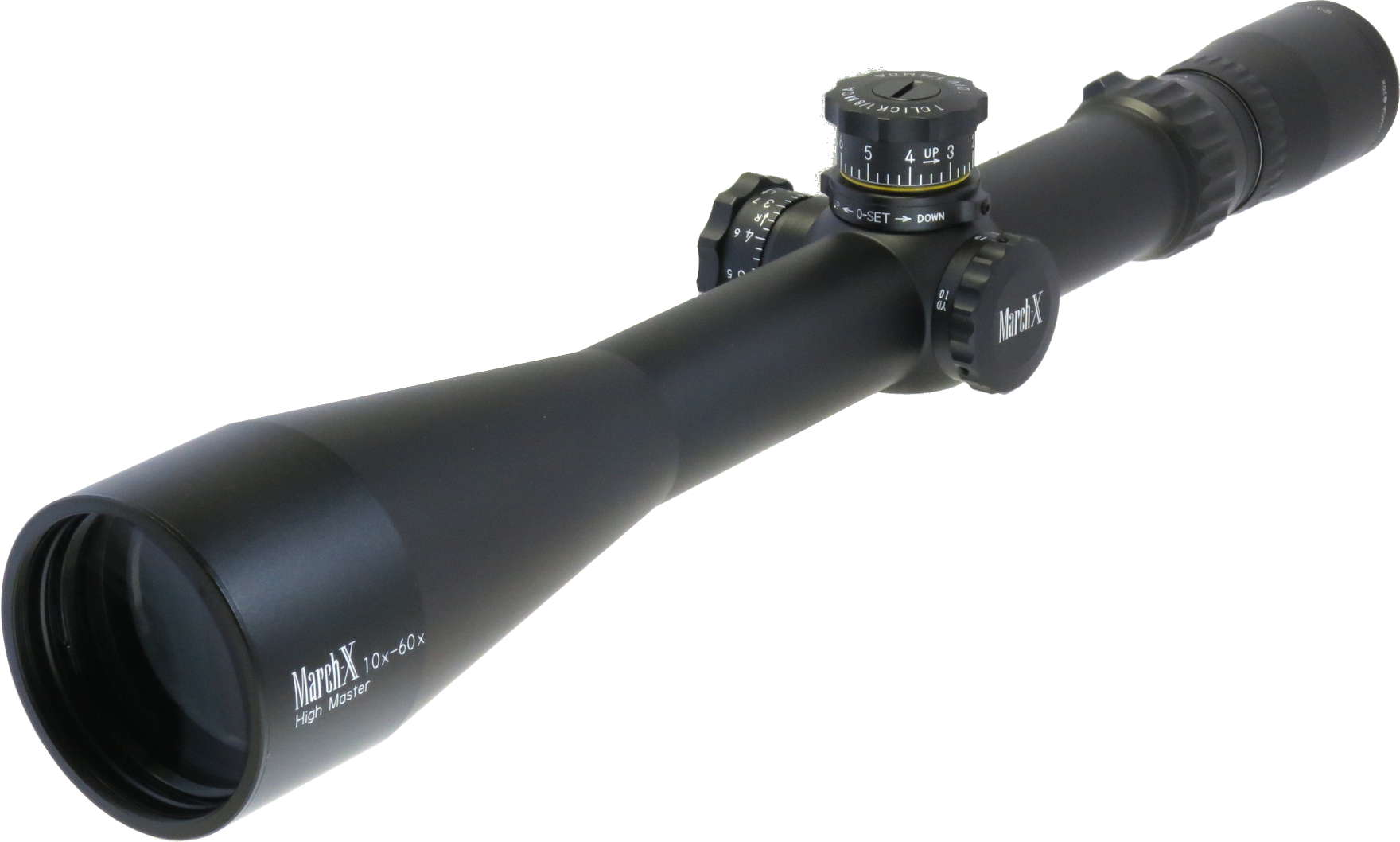

March Scopes 10-60x56 High Master SFP

This scope is the first type with the new High Master series which involves a completely different internal lens structure arrangement. It also uses Super ED lenses and Hi Refractive lenses in this structure. This is a variable magnification scope from 10x to 60x with a 56mm diameter front lens. The main tube is 34mm diameter and 4mm thick and contains the Tactical turret system like other March-X models 8-80 and 5-50. The Tactical turrets system has a Zero-set feature so you will never lose your zero again. Like all March scopes the complete body is machined from solid billet of special alloy. March scopes have the lowest thermal conductivity and material distortion of any rifle scopes. This scope would be ideal for Heavy Class rifles competing in any form of Bench Rest, Long Range and F class. As always MARCH is the leader. Your aim just got better.

Key Features

• Second Focal Plane (SFP) with 6x zoom ratio.
• The MOA reticle will remain the same size across the zoom range.
• High Master Lens Technology
• Super-ED, High Refractive Lenses.
• Reduced Chromatic Aberration.
• 60 MOA of elevation and windage adjustment range.
• 10 MOA per turret revolution, 1/8th MOA per click.
• Side Focus/Parallax adjustment from 10 yards to infinity.
• 34mm main tube with long eye relief up to 101mm.
• 56mm front objective lens.
• Tactical Turrets with zero set in the elevation turret.
• Also available with Benchrest(capped) turrets.
• Illuminated or Non-Illuminated options.
• Multiple illumination module options, which are user changeable. Including a low illum module that is night vision compatible.
• Supplied with flip lens covers that lock back and sun shade.

Specifications

• Magnification: 10x (low) / 60x (high)
• Effective Lens Diameter: 56mm
• Body Tube Diameter: 34mm
• Exit Pupil: 4.11mm (low) / 0.94mm (high)
• Field of View, real: 10.2ft (low) / 1.7ft (high)
• Eye Relief: 88-99mm (low) / 85-101mm (high)
• 1 Click Adjustment: 1/8MOA
• Elevation Travel: 60MOA
• Windage Travel: 40MOA
• Focus: Side Focus / Parallax
• Distance: 10YD-infinity
• Finish: Matte Black
• Total Length (-1D): 413mm
• Weight: 925g (32.6oz)

Dimensions (see diagram)

• A: 413mm (16.26 inch)
• B: 180mm (7.07 inch)
• C: 64mm (2.52 inch)
• D: 41mm (1.6 inch)
• E: 134mm (5.28 inch)
• F: 99mm (3.9 inch)
• G: 81mm (3.19 inch)
• H: 63mm (2.48 inch)

Configurations and Order Codes

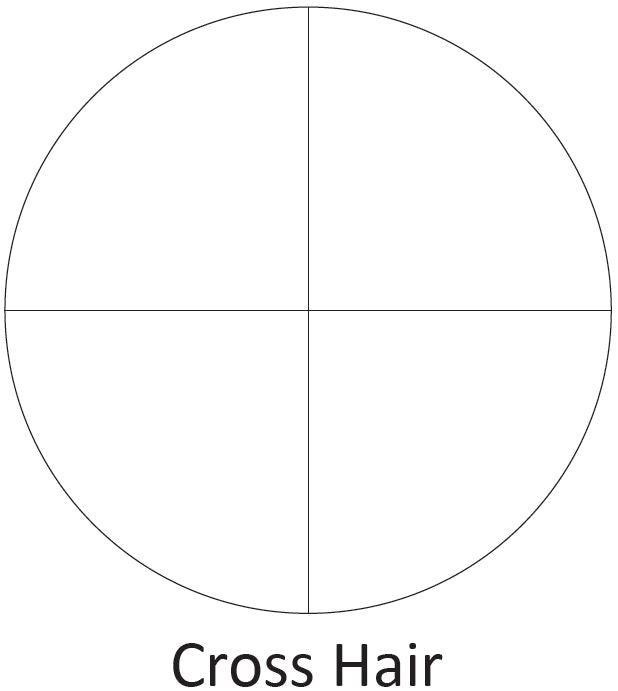

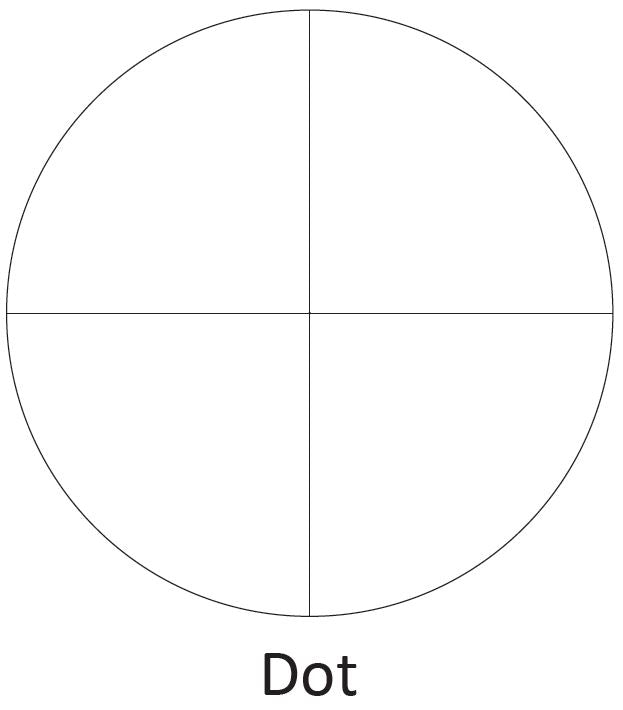

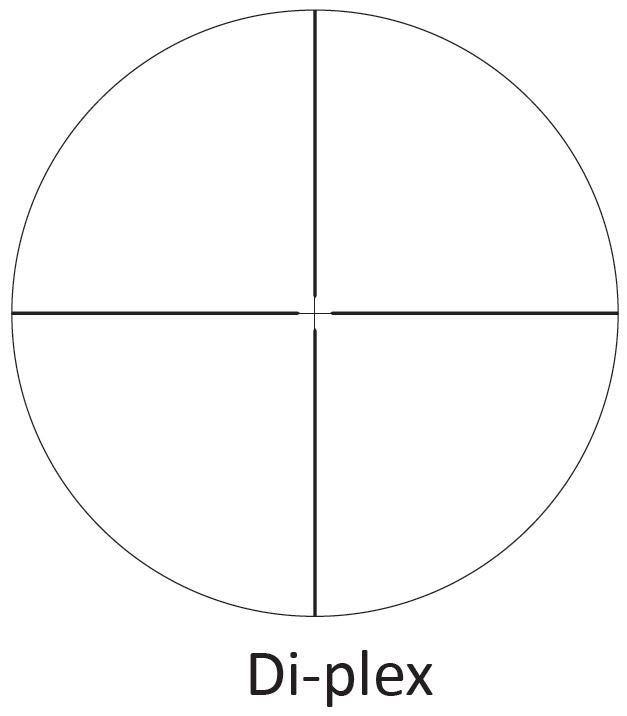

• D60HV56T - Tactical turrets, non-illuminated, 1/8 MOA clicks. Reticles: Crosshair, 1/8 Dot, 3/32 Dot, 1/16 Dot, Di-Plex

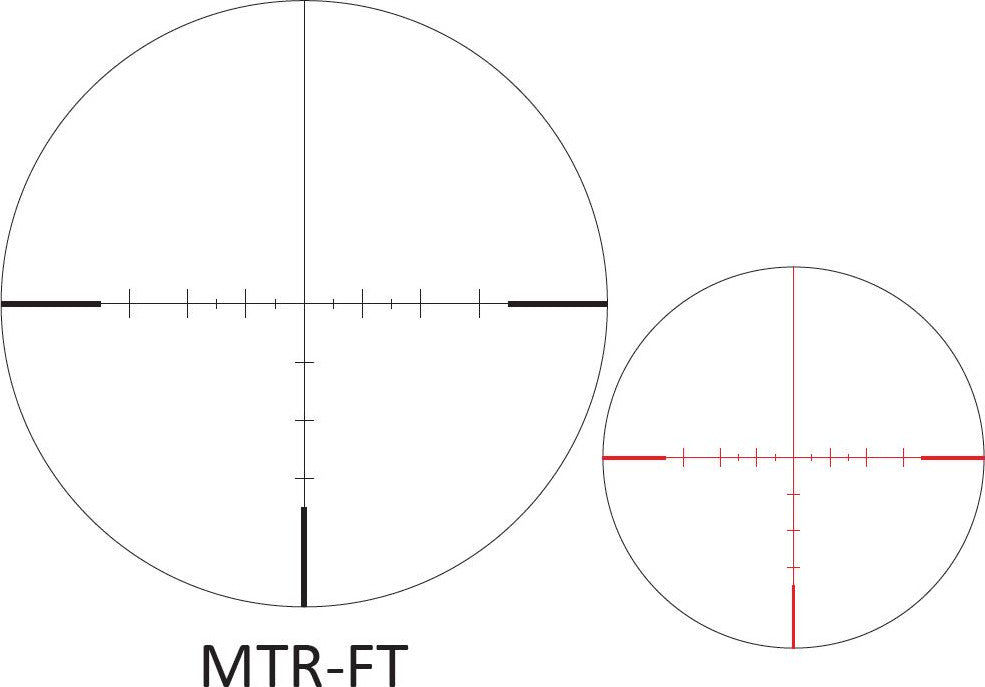

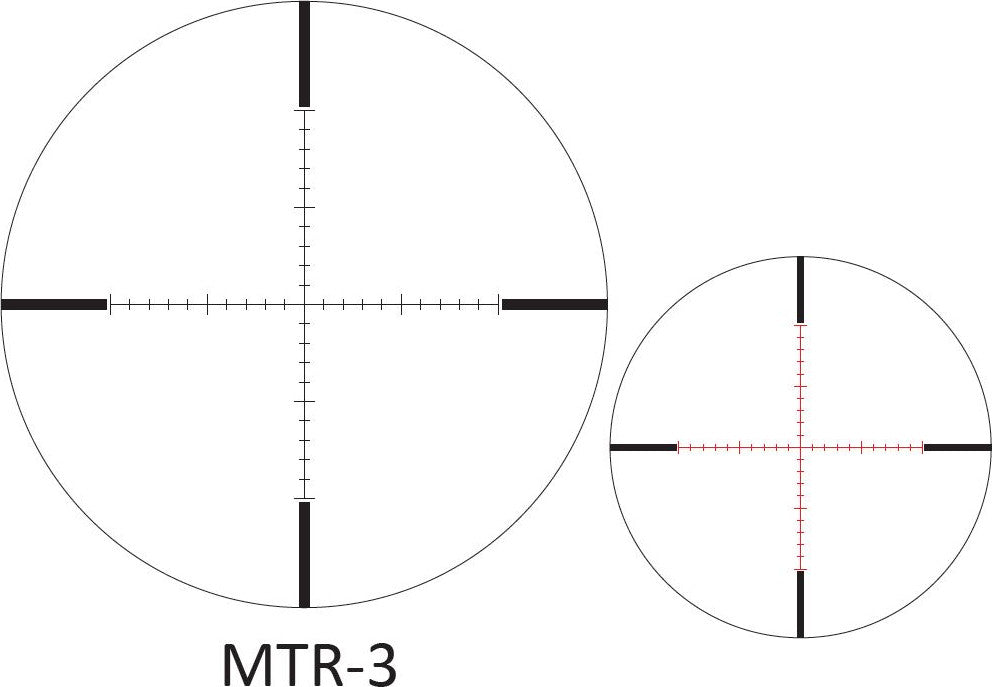

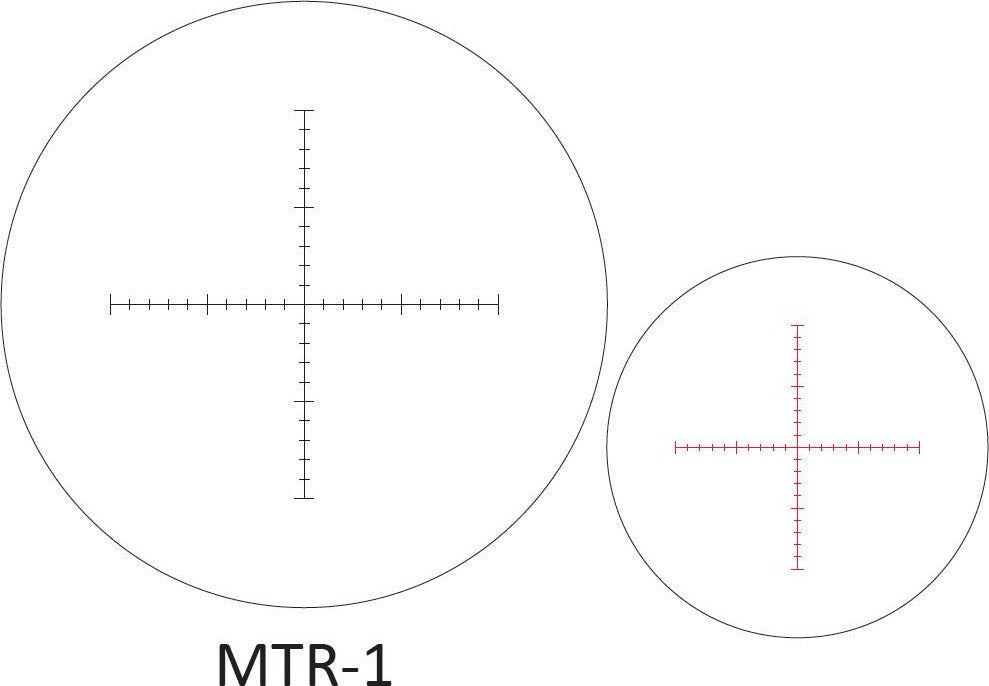

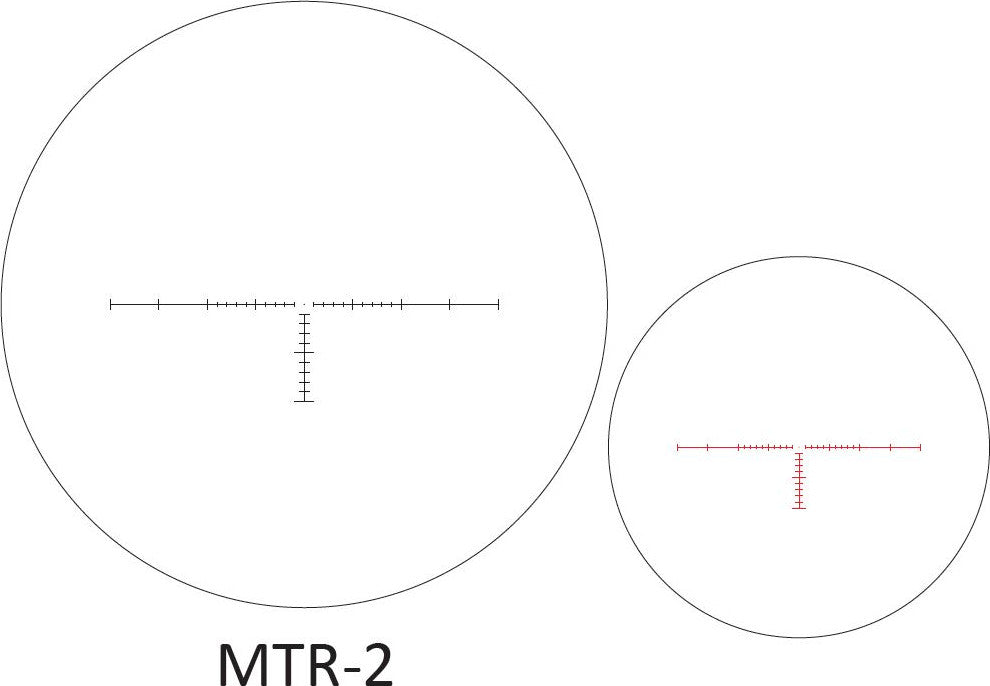

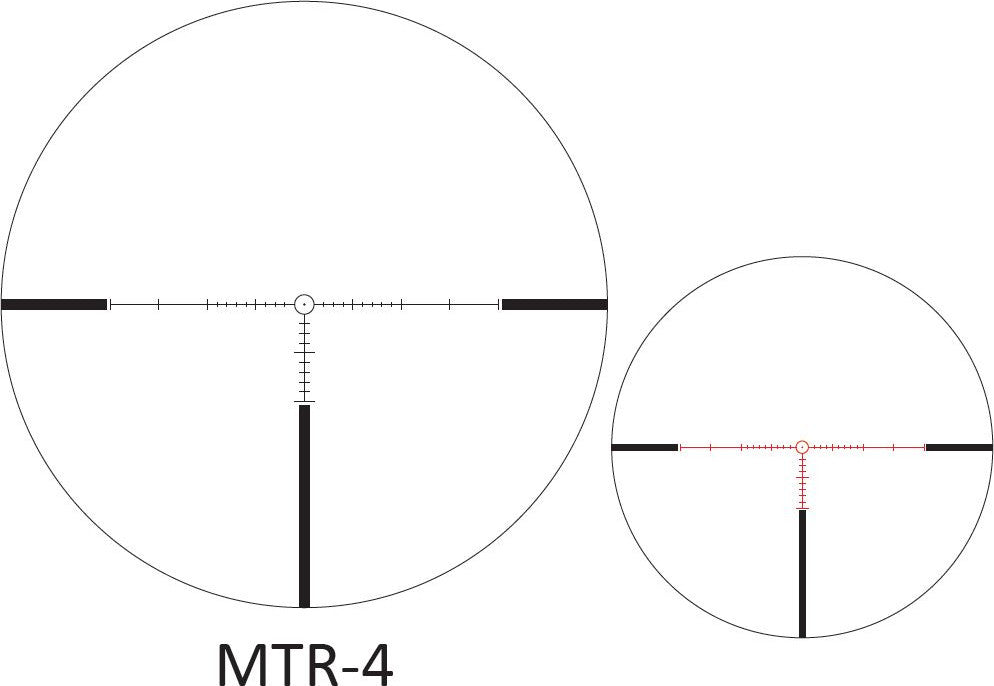

• D60HV56TM - Tactical turrets, non-illuminated, 1/8 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4, MTR-FT

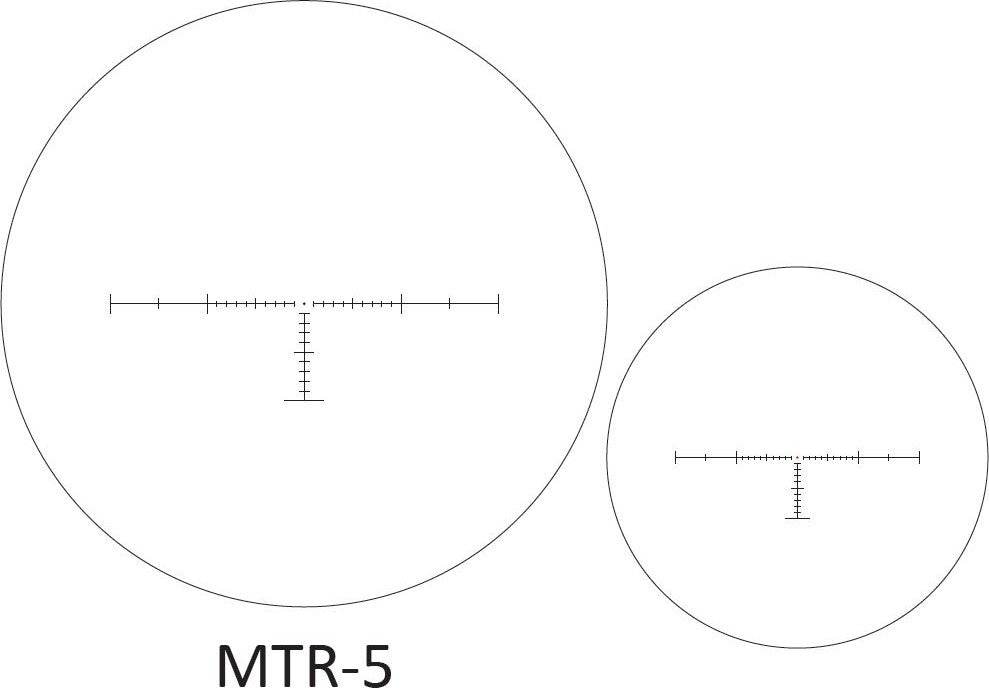

• D60HV56TI - Tactical turrets, illuminated, 1/8 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4, MTR-FT, MTR-5
• D60HV56L - Benchrest Capped turrets, non-illuminated, 1/8 MOA clicks. Reticles: Crosshair, 1/8 Dot, 3/32 Dot, 1/16 Dot
• D60HV56LM - Benchrest Capped turrets, non-illuminated, 1/8 MOA clicks. Reticles: MTR-1, MTR-2, MTR-3, MTR-4, MTR-FT

March scopes are hand-built in Japan by DEON Optical Design and supplied to order through the Australian distributor. Contact us for current availability and lead times on your configuration.
