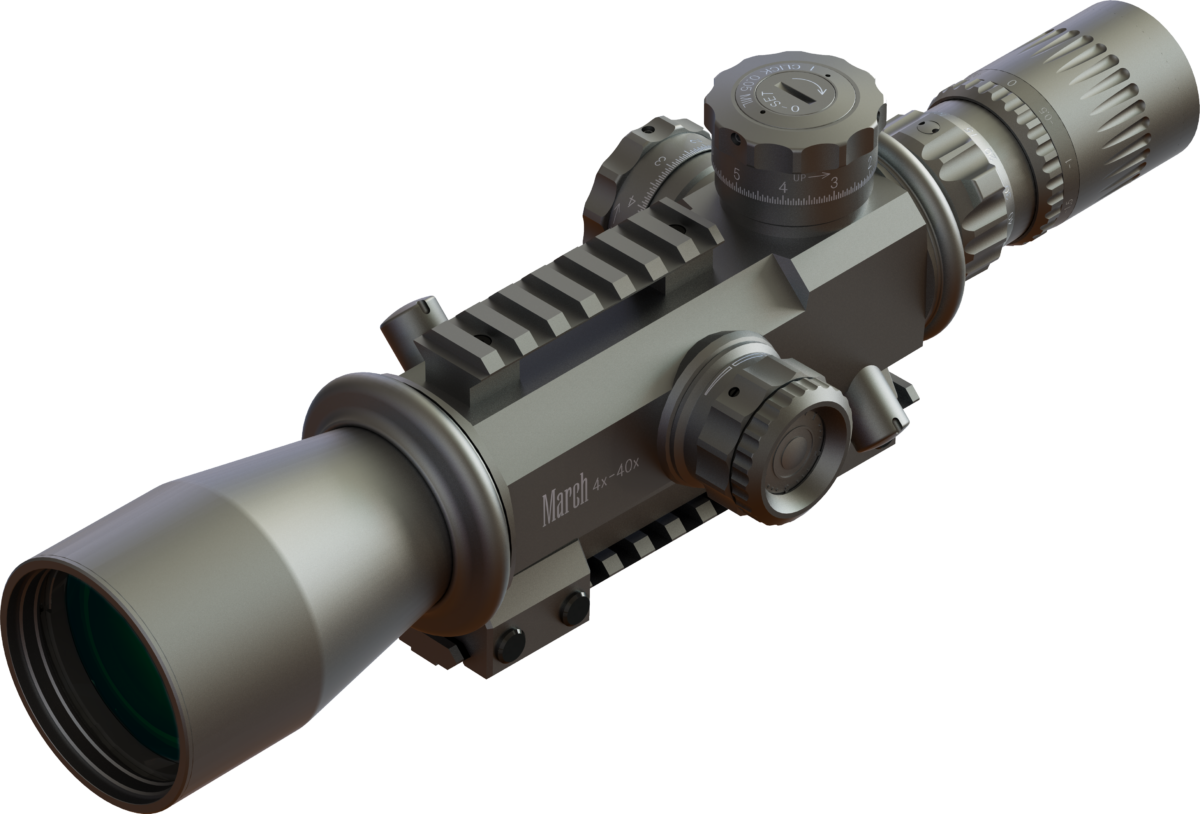

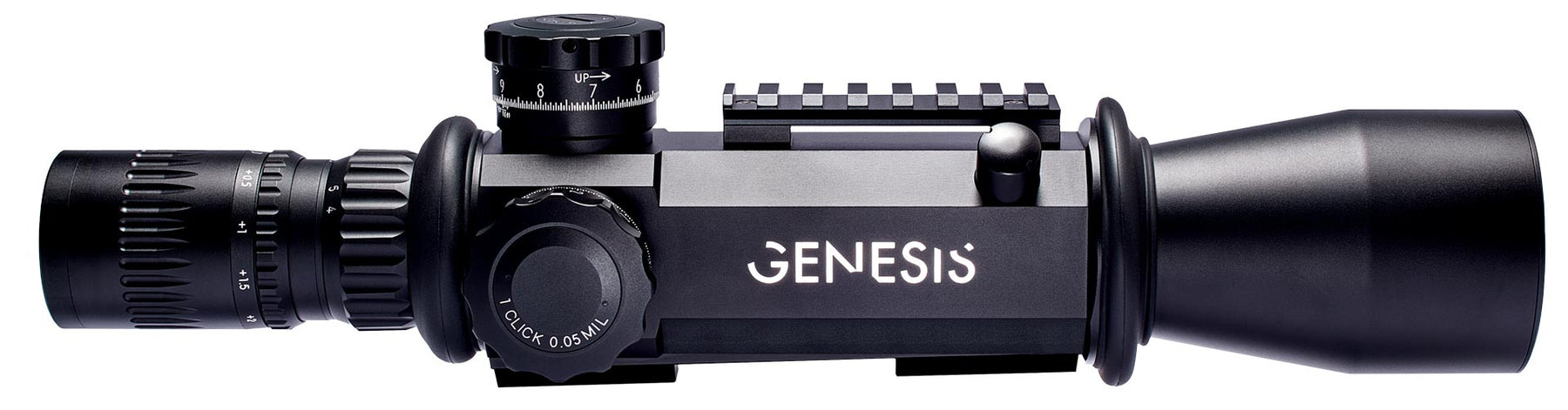

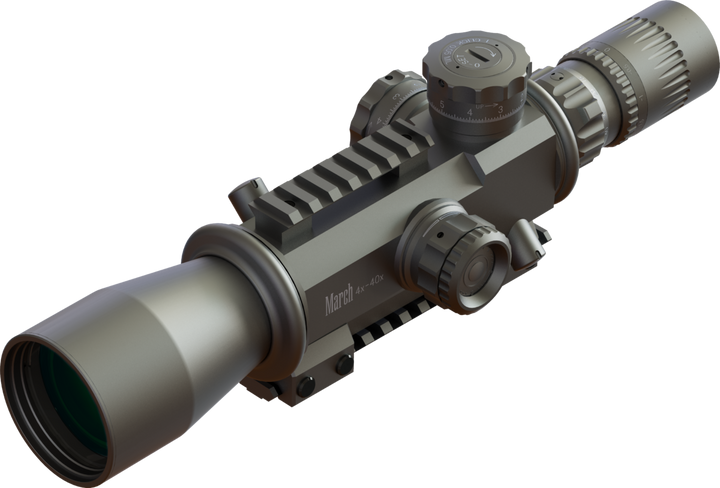

The Mini-Genesis is the next evolution in scope design and engineering. The original Genesis started in late 2016, and the Mini-Genesis is the result of 4+ years trying to solve the problem of how to build an internal adjustment scope capable of shooting 2 miles and beyond. A group of dedicated world class shooters, from around the world got together with a team of highly skilled engineers at Deon who took on the challenge. After thousands of miles traveled, performance testing all over the world and across multiple calibers, and countless design changes the Genesis was born. The Mini-Genesis is the next evolution in that scope design. A rifle scope with unrivaled specifications.
The Mini-Genesis is capable of parallax from 20 meters to infinity, in a 10 times zoom ratio (4 - 40 Power). The multi patented Gimble and Slider Seal Technology allows for 86+ Mils of Elevation, and 28+ Mils of Windage. Because of the mechanical design of the movement, the optical line of sight is always centered on the front objective. Providing for the highest quality image, no matter how much elevation is traversed. This scope is equipped with the High Master Lens System for a cleaner higher quality image than traditional systems. This scope also has a wide angle rear objective, allowing for a more lenient exit pupil at high magnification.
Key Features
- 86 Mils of total elevation travel with Zero-set feature (72 mils up, 14 mils down).
- 28 Mils of total windage travel.
- 10 Mils per turn on each turret. 0.05 Mil clicks. Also now available with 0.1Mil clicks. Also now available in MOA version with 1/4moa clicks
- High Master Lens Technology
- Super-ED, High Refractive Lenses.
- Reduced Chromatic Aberration.
- 4x-40×52 First Focal Plane.
- Integral picatinny mounting points on the main frame
- 52mm objective.
- Wide angle eyepiece.
- Side focus / Parallax from 20 yards to infinity

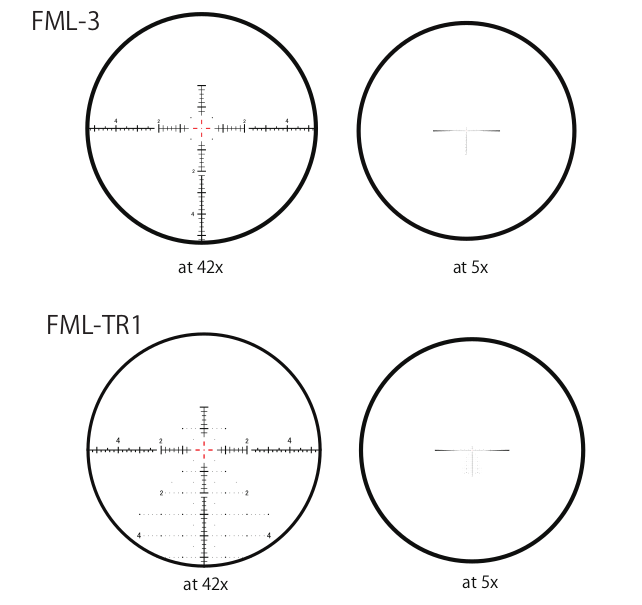

- Reticle: FML-TR1 or FML-3
- Central gimbal system and slider bearings with main frame (worldwide patents pending)
- Weight 1.28kg or 45.2oz
Specifications
- Magnification: 4x (low) / 40x (high)
- Effective Lens Diameter: 52mm
- 1 Click Adjustment: 0.05 Mil
- Elevation Travel: 86 Mil
- Windage Travel: 28 Mil
- Focus: Side Focus / Parallax
- Distance: 20YD-infinity
- Finish: Matte Black
- Total Length (-1D): 331mm(13inch)
- Weight: 1280g (2lbs 13oz)
Configurations and Order Codes
- D40HV52WFIML - Tactical turrets, illuminated, 0.05 MIL clicks. Reticles: FML-TR1, FML-3
- D40HV52WFIMA - Tactical turrets, illuminated, 1/4 MOA clicks. Reticles: FMA-3
Mil versions are 0.05 Mil per click (0.1 Mil clicks available on request); the MOA version is 1/4 MOA per click.
March scopes are hand-built in Japan by DEON Optical Design and supplied to order through the Australian distributor. Contact us for current availability and lead times on your configuration.
