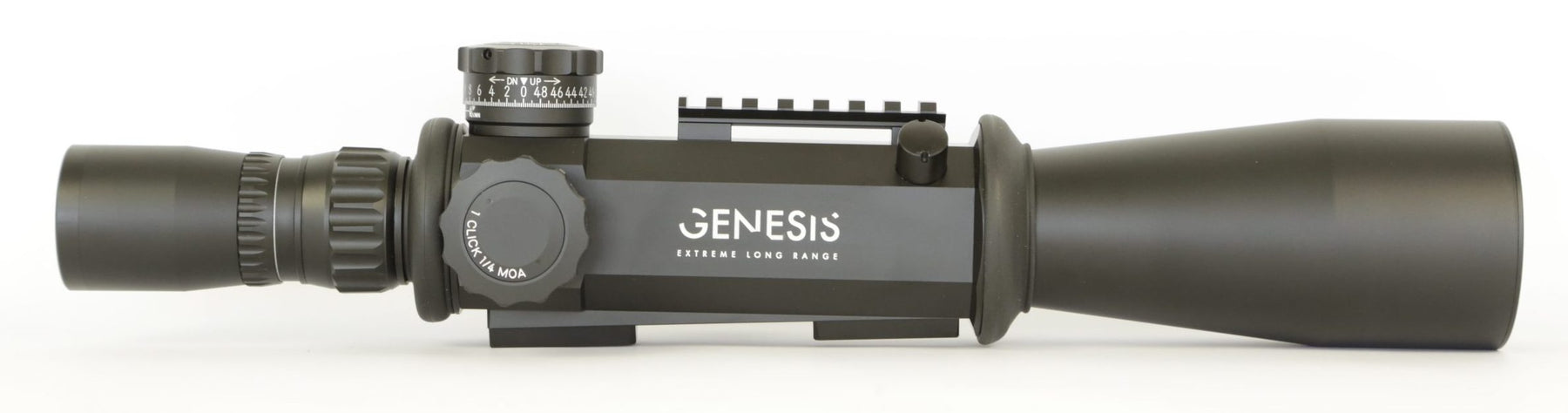

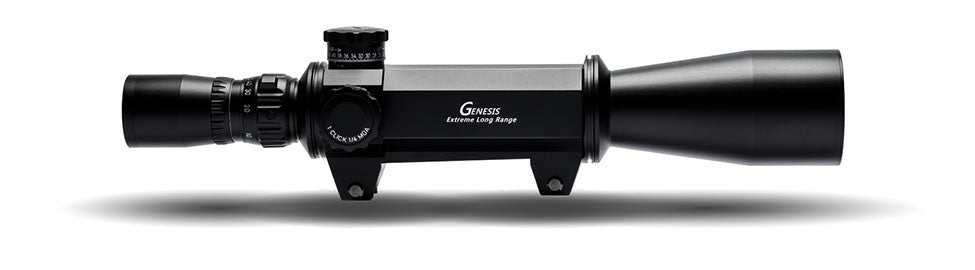

The Genesis is an evolution in scope design and engineering. Started in late 2016 it is the result of 2+ years trying to solve the problem of how to build an internal adjustment scope capable of shooting 2 miles and beyond. A group of dedicated world class shooters, from around the world got together with a team of highly skilled engineers at Deon who took on the challenge. After thousands of miles traveled, performance testing all over the world and across multiple calibers, and countless design changes the Genesis was born. A rifle scope with unrivaled specifications.
The Genesis is capable of parallax from 10 meters to infinity, in a 10 times zoom ratio (6 - 60 Power). The multi patented Gimble and Slider Seal Technology allow for 400+ Minutes of Elevation, and 150+ Minutes of Windage. Because of the mechanical design of the movement, the optical line of sight is always centered on the front objective. Providing for the highest quality image, no matter how much elevation is traversed. The scope also features the High Master Lens System, which is a new way to arrange lenses providing a cleaner higher quality image than traditional systems. The scope also features a wide angle rear objective, allowing for a more lenient exit pupil at high magnification.
Key Features
- 400 MOA of total elevation travel with Zero-set feature (300 up, 100 down)
- 150 MOA of total windage travel (75 MOA left and right)
- 50 MOA per turn on each turret. 1/4 MOA clicks
- High Master Lens Technology
- Super-ED, High Refractive Lenses.
- Reduced Chromatic Aberration.
- 6x-60×56 First Focal Plane. Highest zoom ratio and FFP magnification in the world
- Integral picatinny mounting points on the main frame
- High Master lens system with 56mm objective.
- Wide angle eyepiece with 25 degrees apparent field of view. 21.8 feet at 100 yards (low- 6x). 2.18 feet at 100 yards (high-60x)
- Side focus / Parallax from 10 yards to infinity
- Eye relief 67-82mm and Exit pupil (low) 3.3mm and (high) 0.93mm
- Reticle FMA-MT* for ELR (*nb: MIL system and reticle coming later)
- Central gimbal system and slider bearings with main frame (worldwide patents pending)
- Weight 3.3lbs/1.5 KG
Specifications
- Magnification: 6x (low) / 60x (high)
- Effective Lens Diameter: 56mm
- Body Tube Diameter: N/A
- Exit Pupil: 3.3mm(0.129inch) (low) / .93mm(0.036inch) (high)
- Field of View, real: 21.8ft @ 100 Yards (low) / 2.18ft @ 100 Yards (high)
- Eye Relief: 67-82mm(2.64″-3.23″) (low) / 63mm-82.5mm(2.48″-3.25″) (high)
- 1 Click Adjustment: 0.05 Mil or 1/4 MOA
- Elevation Travel: 114 Mil or 400 MOA
- Windage Travel: 40 Mil or 150 MOA
- Focus: Side Focus / Parallax
- Distance: 20YD-infinity
- Finish: Matte Black
- Total Length (-1D): 336mm
- Weight: 1480g (3.26lbs)
Configurations and Order Codes
- D60V56GFIML - Tactical turrets, illuminated, 0.05 MIL clicks. Reticles: FML-MT
- D60V56GFML - Tactical turrets, non-illuminated, 0.05 MIL clicks. Reticles: FML-MT
- D60V56GFIMA - Tactical turrets, illuminated, 1/4 MOA clicks. Reticles: FMA-MT
- D60V56GFMA - Tactical turrets, non-illuminated, 1/4 MOA clicks. Reticles: FMA-MT
March scopes are hand-built in Japan by DEON Optical Design and supplied to order through the Australian distributor. Contact us for current availability and lead times on your configuration.
